54 34 350 Removing and installing/replacing left or right convertible top trim strip

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: The right trim strip is removed in the same way as the left trim strip shown.

Release screws (1).

Remove trim strip.

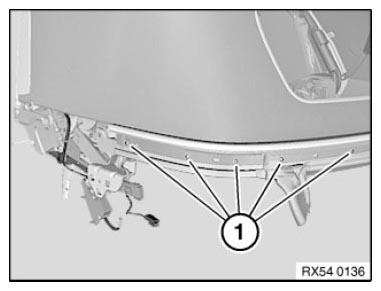

Fig 1: Identifying Trim Strip Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, insert wedge (2) for trim strip in tension bar.

Secure trim strip on tension bar with screws (1) (do not tighten down).

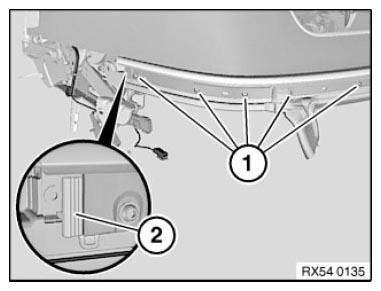

Fig 2: Inserting Wedge For Trim Strip In Tension Bar

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting trim strip in relation to window cavity cover strip:

Align trim strip with wedge to window cavity cover strip.

A = 4.5 mm

NOTE: Trim strips must be horizontally and vertically flush.

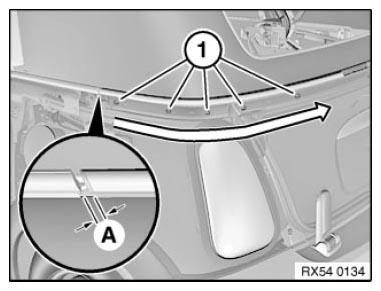

Fig 3: Aligning Trim Strip With Wedge To Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws in sequence.

Tightening torque 54 34 10AZ .

Installation:

Carry out function test.

Tension bar must immerse flawlessly into body.

Trim strip seal must rest correctly on body cutout.

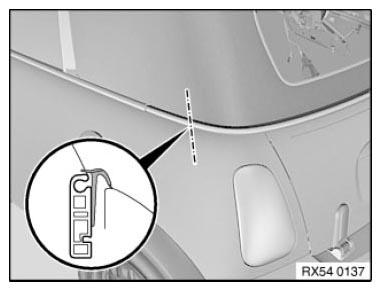

Fig 4: Identifying Trim Strip Seal Position

Courtesy of BMW OF NORTH AMERICA, INC.
