54 34 375 Replacing left or right locking tension bar

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Locking tension bar only:

Lift out cover cap.

Drive out locking pin (1).

Remove locking tension bar.

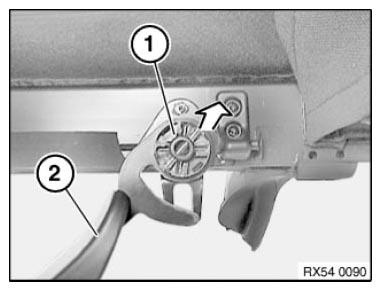

Fig 1: Driving Out Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Locking tension bar with tension bar joint:

First drill out rivets (1).

NOTE: Completely remove rivet remnants (rattling noises).

If necessary, remove TENSION BAR on left and right from bearing.

Remove bearing (2).

Drill out rivets from tension bar joint.

Remove locking tension bar (3) with joint.

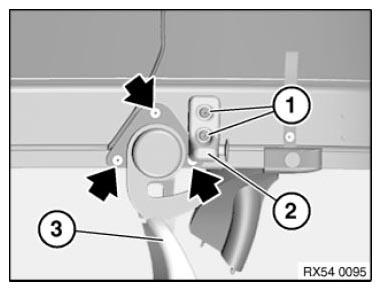

Fig 2: Identifying Rivets, Bearing And Locking Tension Bar

Courtesy of BMW OF NORTH AMERICA, INC.
