51 11 156 Removing and installing front bumper trim

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

On vehicles from version 08/2010 (not R60/61):

Release the expanding rivets (1 and 2) according to the version.

Release screws (3).

Fig 1: Identifying Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

On vehicles with version up to 08/2010 (and R60/R61):

Release screws (1 and 2).

Pull bumper trim (3) slightly towards front with aid of a 2nd person.

Disconnect plug connections, depending on version.

Remove bumper trim (3) towards front with aid of a 2nd person.

Fig 2: Identifying Bumper Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure foam insert is correctly positioned on carrier.

For adjustment, refer to GAP DIMENSIONS, BODY .

On vehicles from version 08/2010 (not R60/R61):

Release screws (1 and 2).

Release expanding rivet (3).

Pull bumper panel (4) slightly towards the front with aid of a 2nd person.

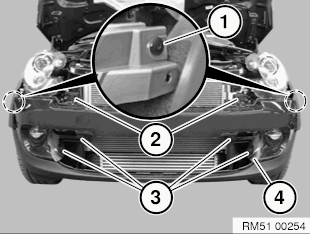

Fig 3: Removing Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections, depending on version.

Remove bumper panel (4) towards the front with aid of a 2nd person.

Installation note: For adjustment, refer to GAP DIMENSIONS, BODY .
