41 00... Gap dimensions, body

WARNING: This page is about a different variant/trim than selected.
NOTE: The dimensions specified in this document are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform gap.
Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.
No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

Fig 1: Identifying Body Gap Dimensions
G05529263Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

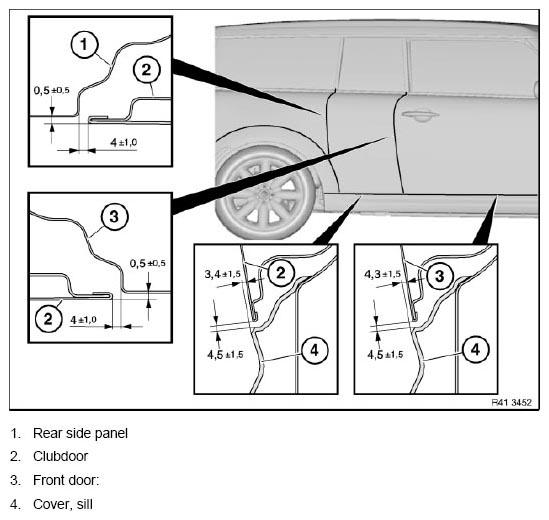

Fig 2: Identifying Body Gap Dimensions
G05529264Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

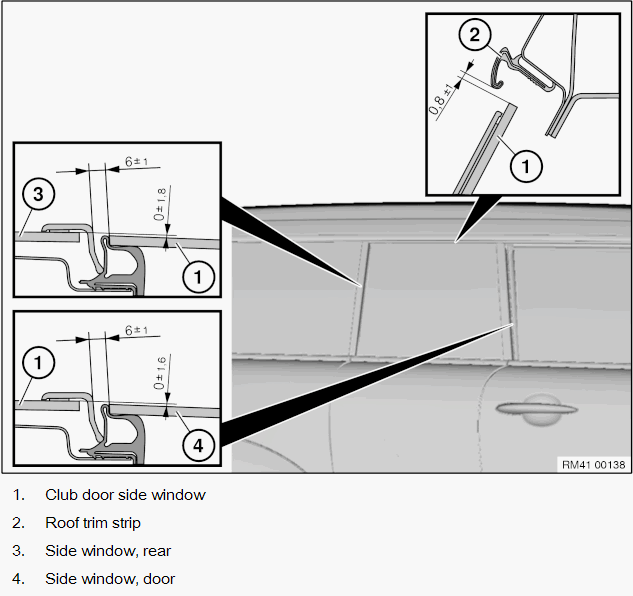

Fig 3: Identifying Body Gap Dimensions
G00534053Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

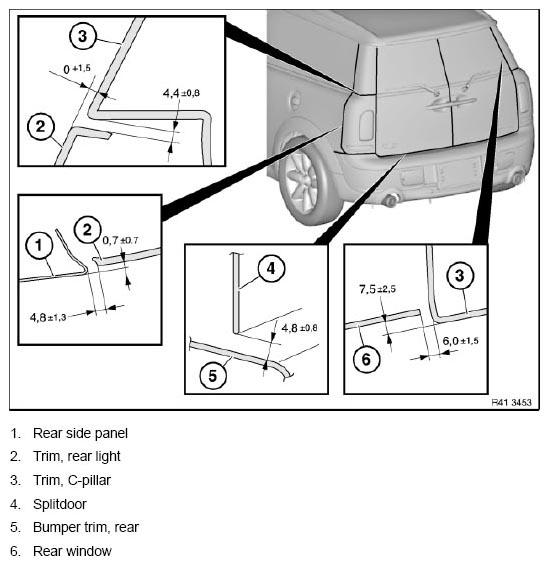

Fig 4: Identifying Body Gap Dimensions
G05529265Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

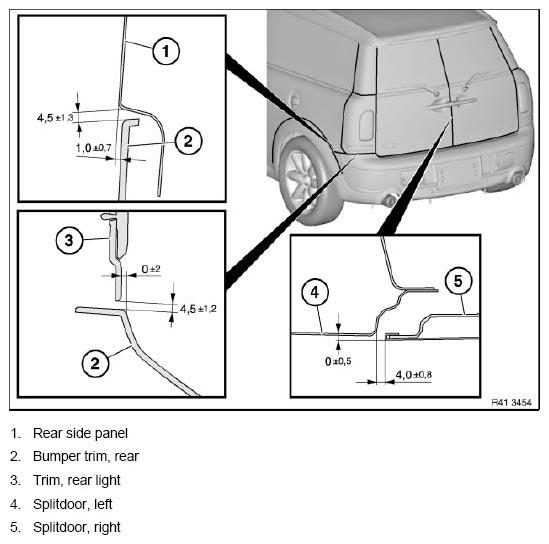

Fig 5: Identifying Body Gap Dimensions
G05529266Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Identifying Body Gap Dimensions
G05516541Courtesy of BMW OF NORTH AMERICA, INC.
