51 43 240 Removing and installing/replacing supplementary trim on C-pillar at bottom (with electric rear seat adjustment) on left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Move rear seat backrest forwards.

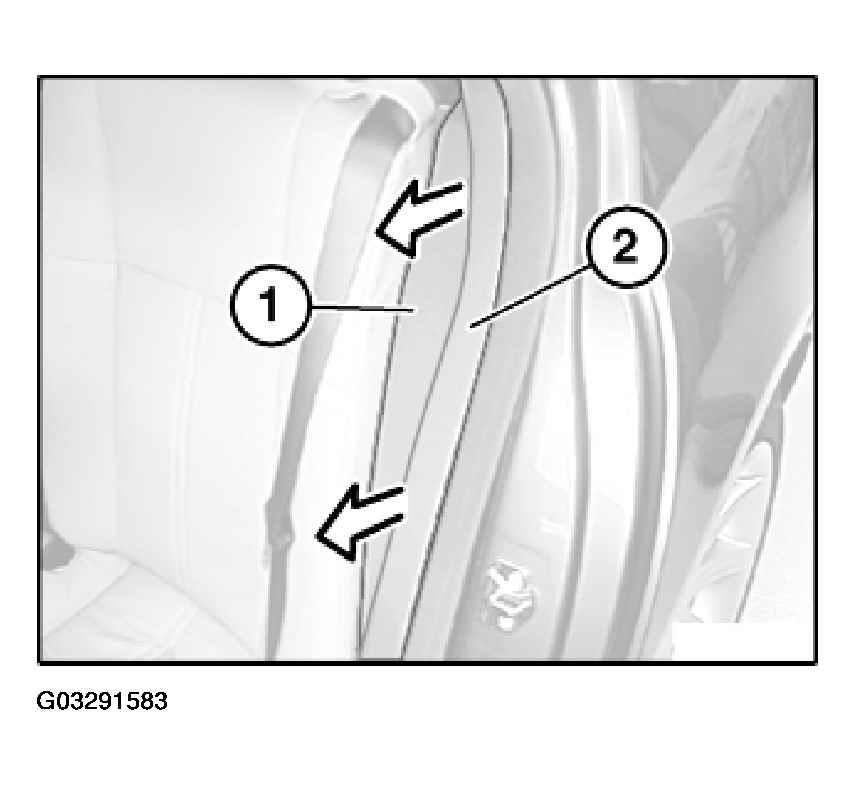

Unclip panel (1) on upper side trim section (2) towards front.

Fig 1: Unclipping Panel

Courtesy of BMW OF NORTH AMERICA, INC.

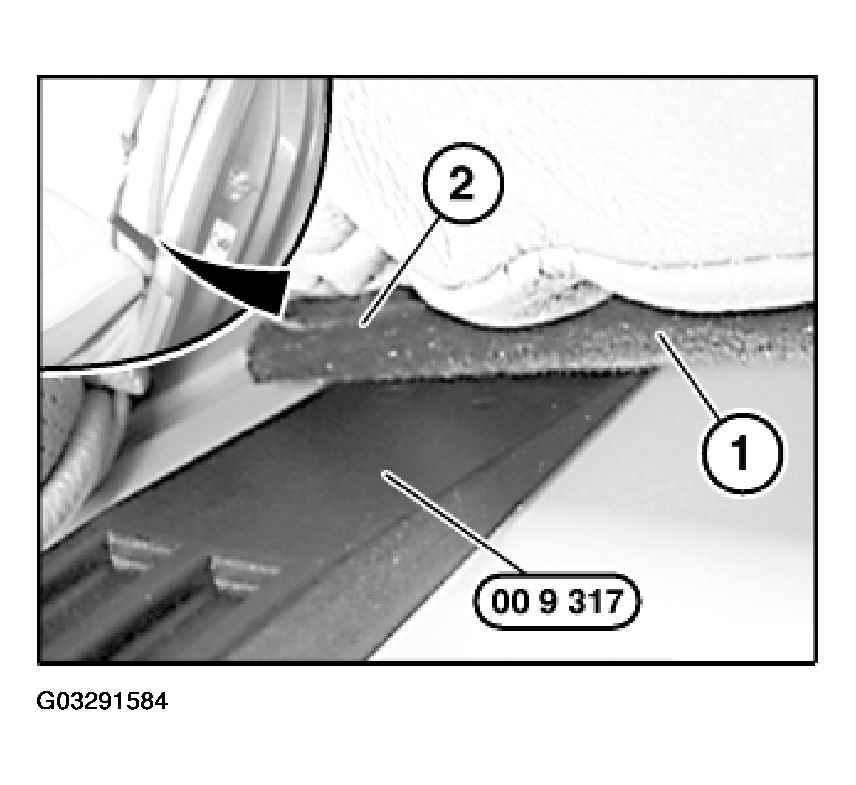

Unclip guide (1) at bottom with special tool 00 9 317 from panel (2).

Fig 2: Unclipping Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace clip.

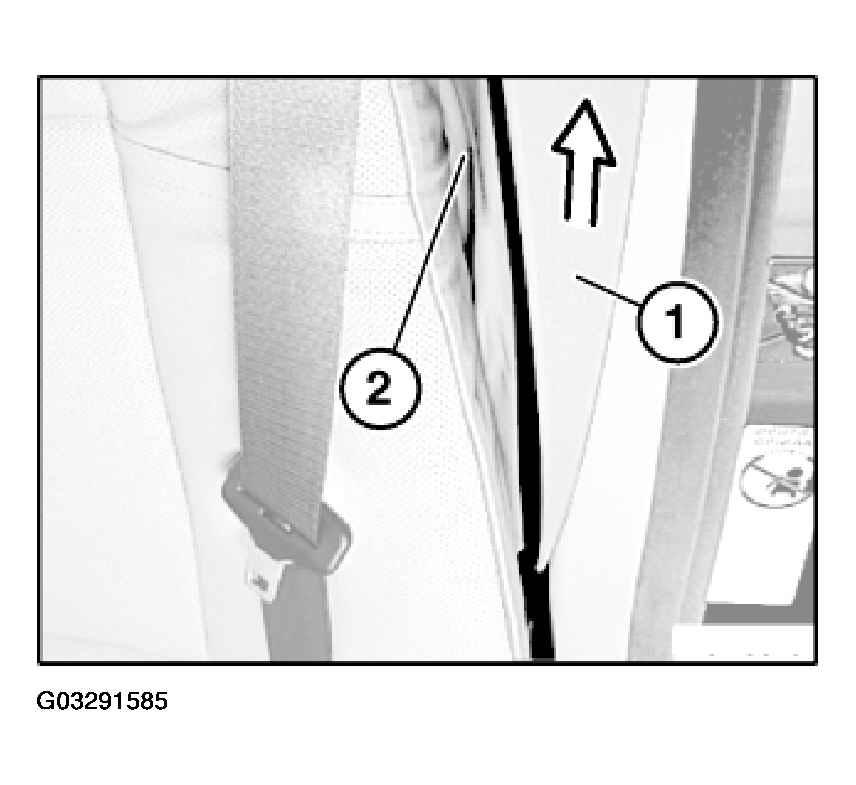

Feed out panel (1) from guide on seat cover (2) towards top.

Fig 3: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.
