51 47 172 Removing and installing / replacing flap in luggage compartment trim, left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Left side:

Unlock flap (2) with lever (1) and open.

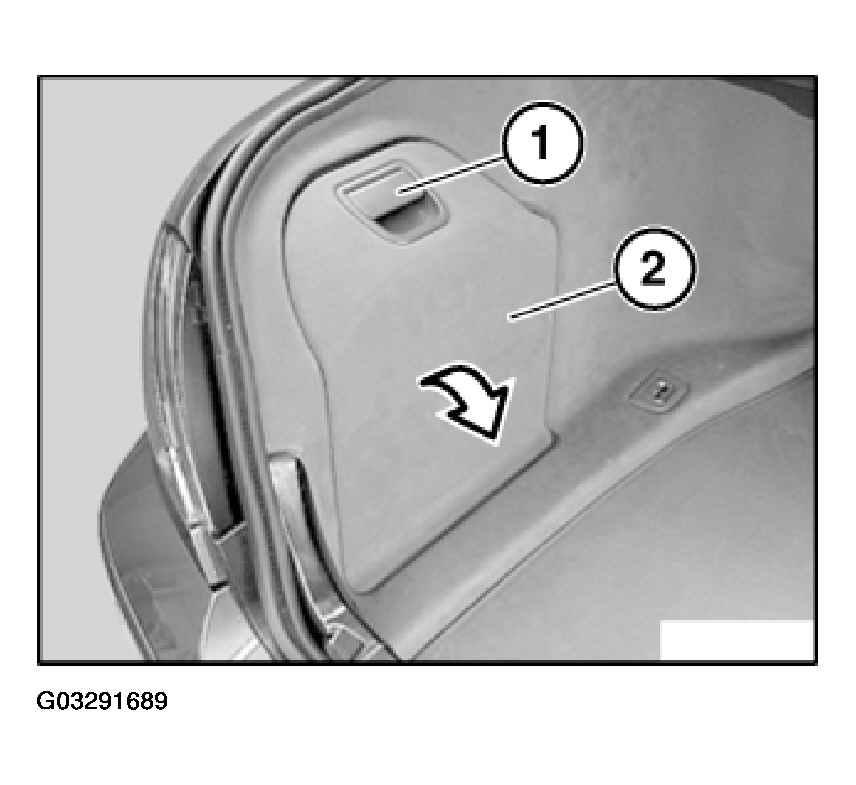

Fig 1: Unlocking Flap

G03291689

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out flap (1) in direction of arrow and remove.

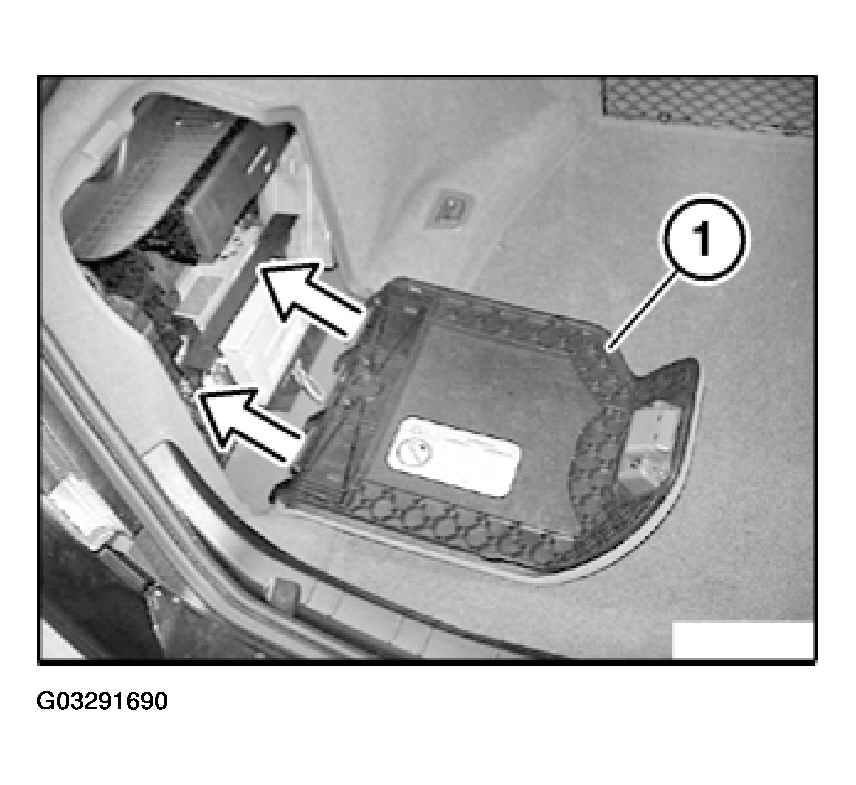

Fig 2: Removing Flap

G03291690

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of flap (4) must not be damaged or missing:

Mountings
Lock
Screws

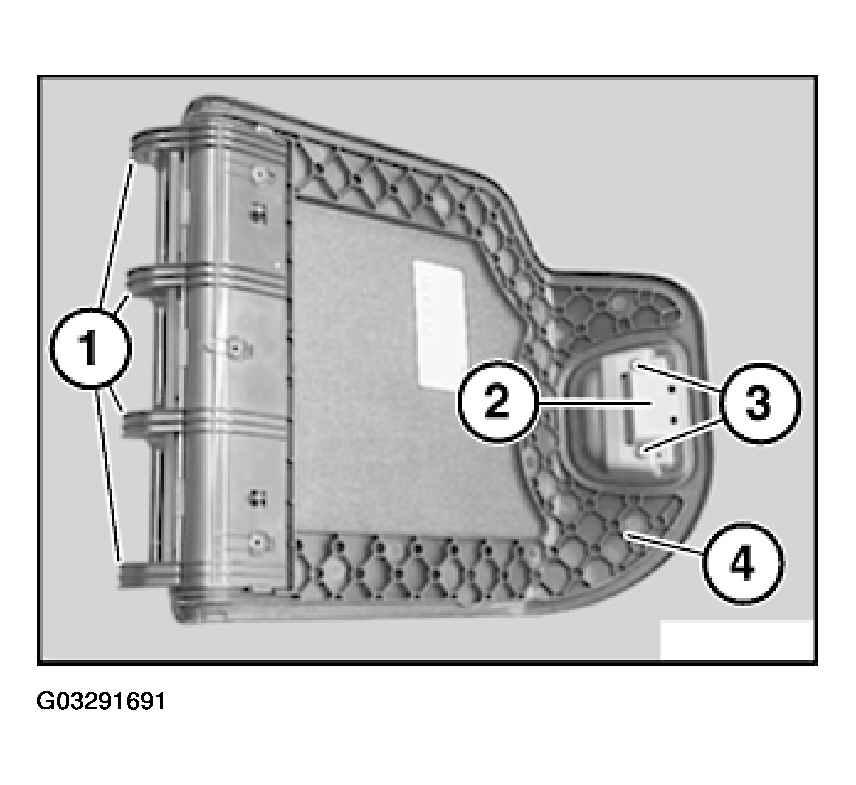

Fig 3: Identifying Flap Components

G03291691

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Version with revolving light:

Unfasten Velcro-type strap (1) and remove revolving light (2).

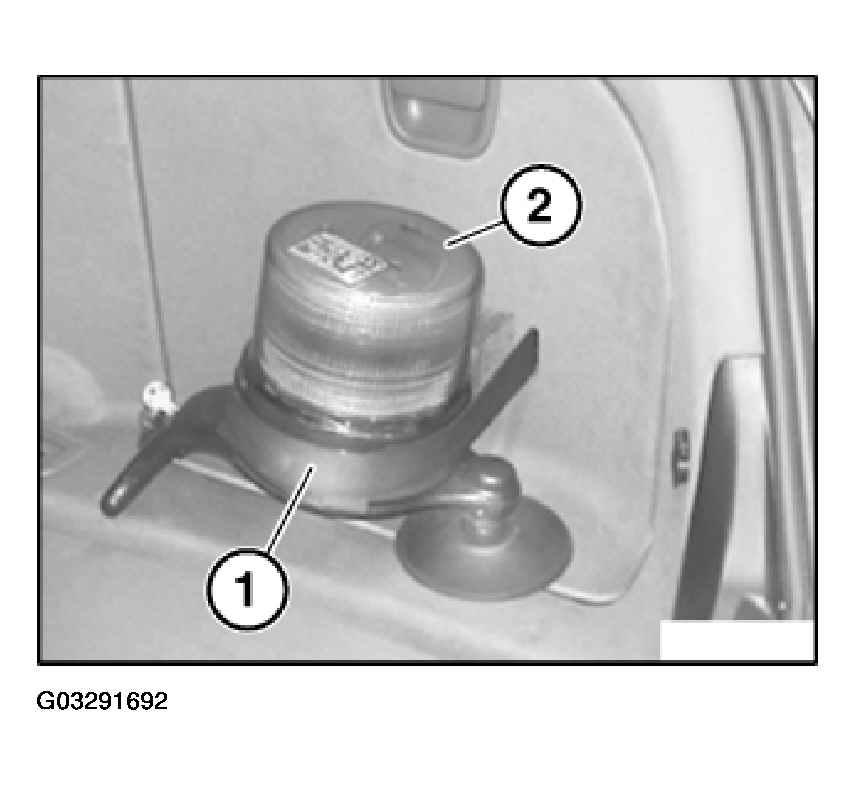

Fig 4: Removing Revolving Light

G03291692

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock flap (2) with lever (1) and open.

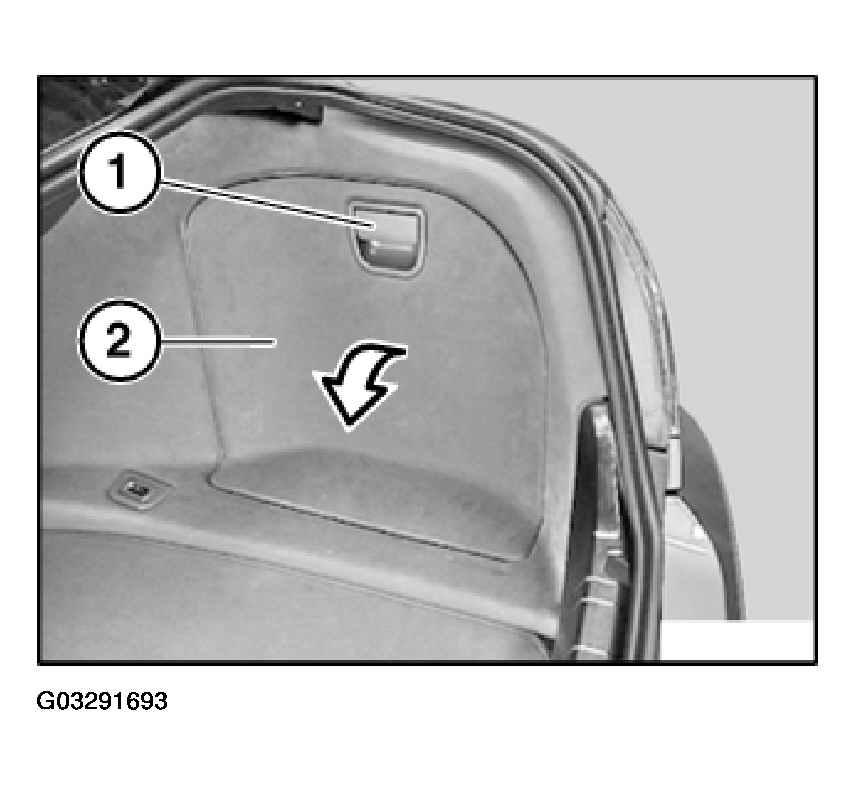

Fig 5: Unlocking Flap

G03291693

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out flap (1) in direction of arrow and remove.

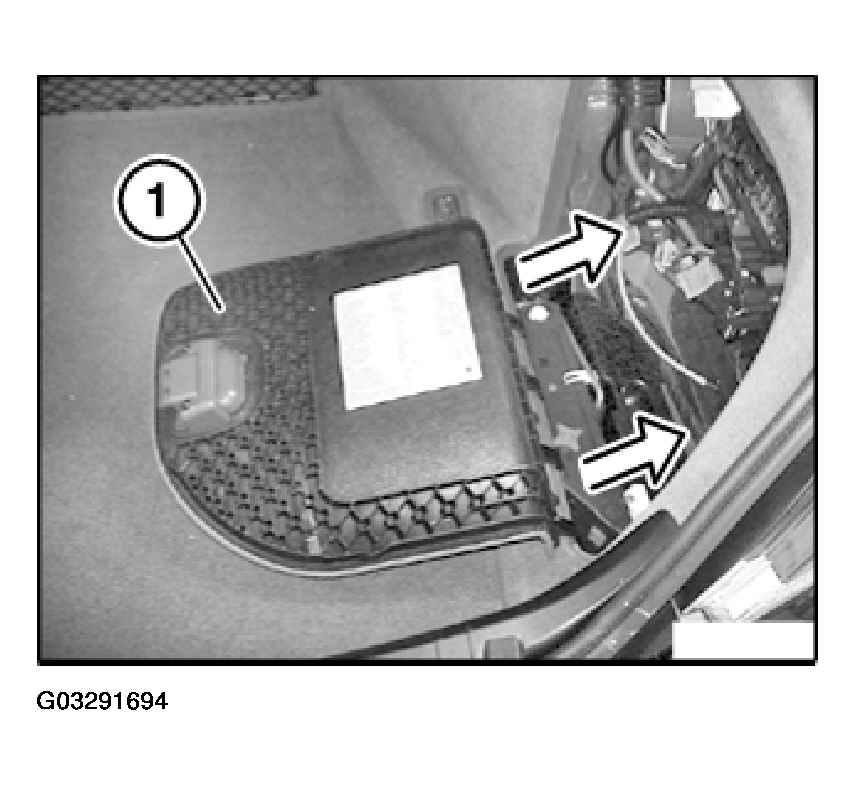

Fig 6: Removing Flap

G03291694

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of flap (4) must not be damaged or missing:

Mountings
Lock
Screws

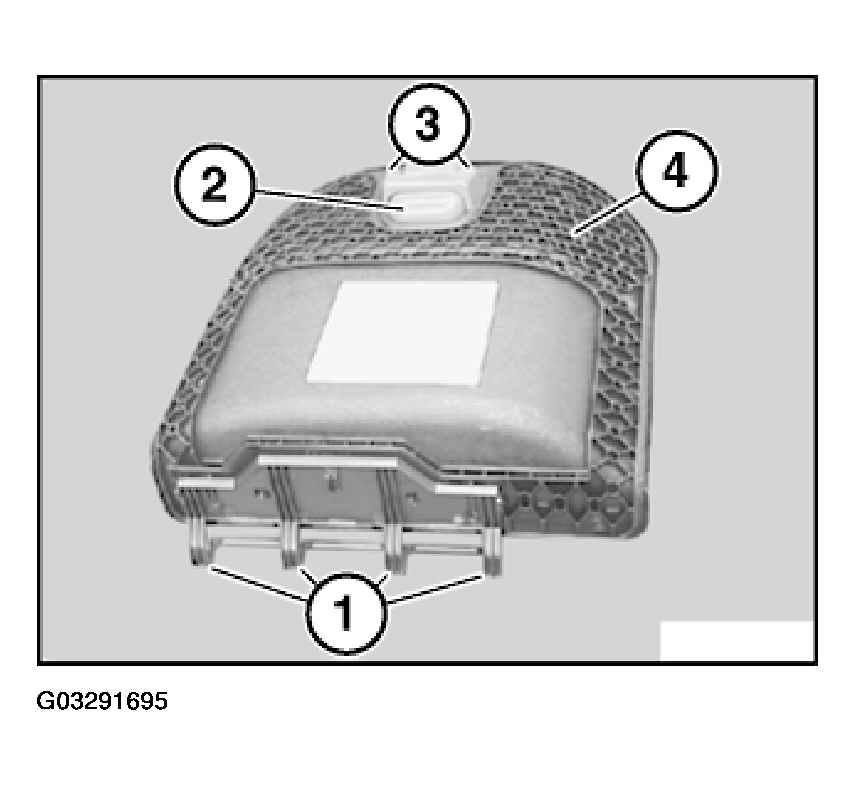

Fig 7: Identifying Flap Components
Courtesy of BMW OF NORTH AMERICA, INC.
