51 22 435 Removing and installing function carrier (with roller sun blind) on left or right rear door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove door trim panel, refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL

Version with roller sun blind only:

Remove roller sun blind of fixed side window, refer to 51 16 400 REMOVING AND INSTALLING OR REPLACING ROLLER SUN BLIND AT FIXED SIDE WINDOW OF LEFT OR RIGHT REAR DOOR
Remove guide rail for roller sun blind, refer to 51 16... REMOVING AND INSTALLING / REPLACING GUIDE RAIL FOR ROLLER SUN BLIND OF LEFT OR RIGHT REAR DOOR

IMPORTANT: Risk of mixing up plugs for door lock and control unit!
Mark relevant plugs prior to removal.

Release screws (1).

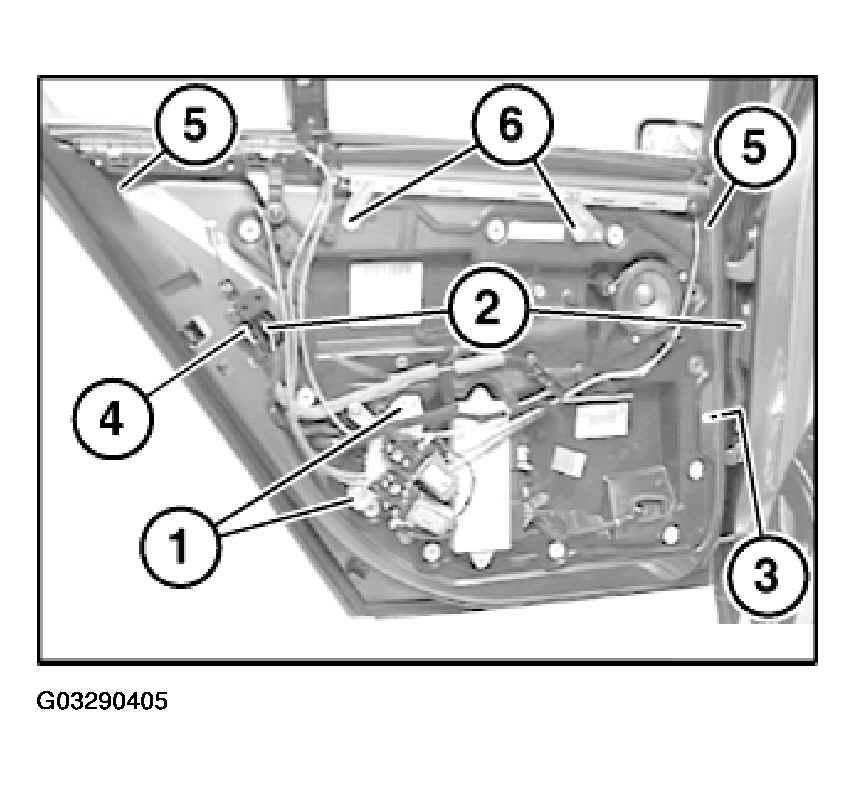

Fig 1: Disconnecting Plug Connections

G03290405

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2).

Feed out door wiring harness (kink-free) through wiring harness opening (3).

Disconnect Bowden cable (4). Refer to 51 22 235 REMOVING AND INSTALLING/REPLACING BOWDEN CABLE FOR INSIDE DOOR OPENER ON LEFT OR RIGHT REAR DOOR .

Version with roller sun blind only:

Unfasten screws (5 and 6).

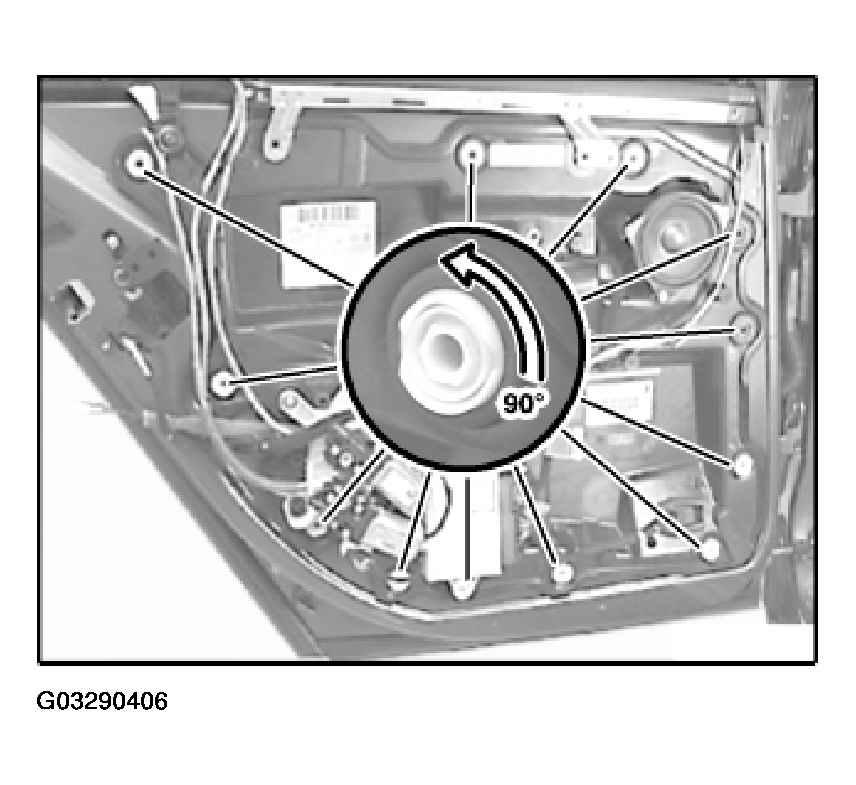

Fig 2: Removing Function Carrier

G03290406

Courtesy of BMW OF NORTH AMERICA, INC.

Release quick-release couplings.

Remove function carrier.

Installation:

If necessary, replace defective quick-release couplings.

Make sure quick-release couplings are installed in correct position.

Quick-release coupling grey 1.8 mm
Quick-release coupling white 0.8 mm

Installation:

Seal on function carrier (sound insulation) must not be damaged.

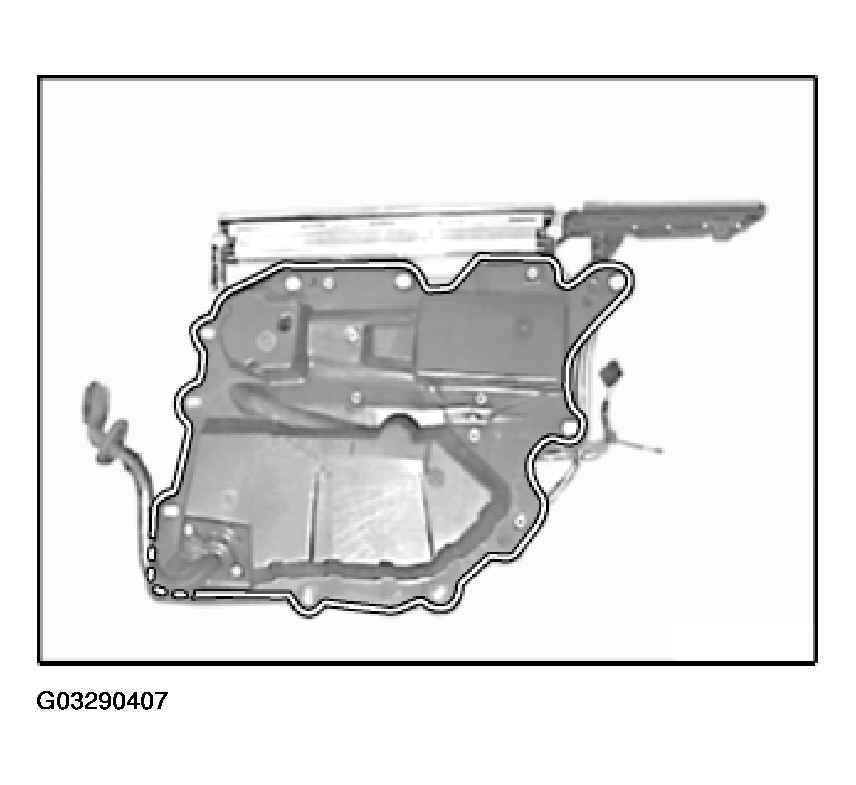

Fig 3: Identifying Seal On Function Carrier

G03290407

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version with roller sun blind only:

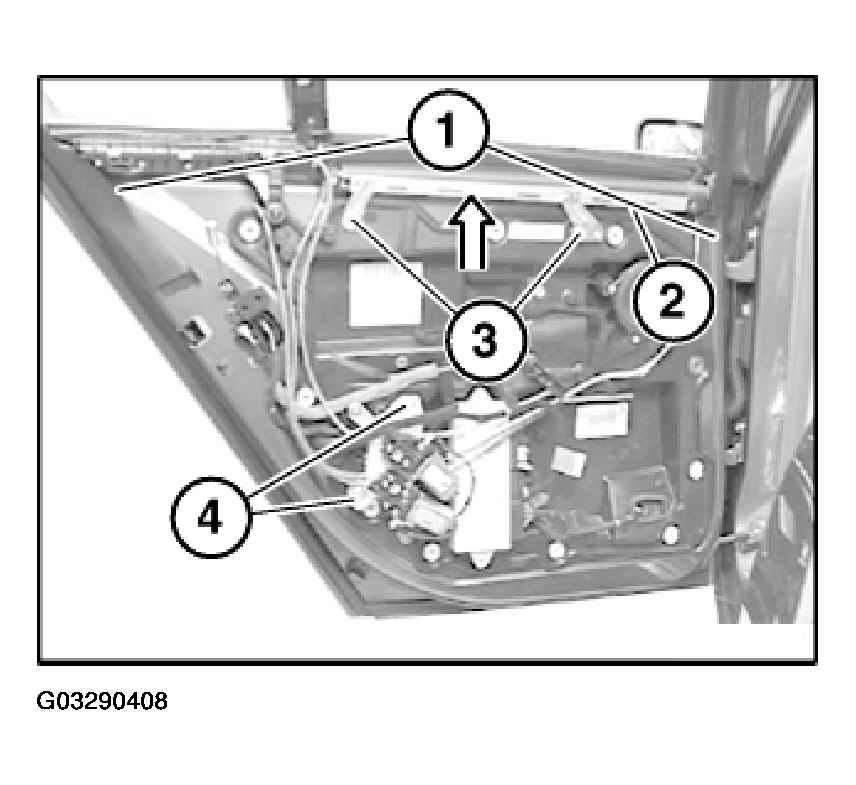

Fig 4: Installing Function Carrier

G03290408

Courtesy of BMW OF NORTH AMERICA, INC.

Installation sequence:

Install function carrier
Connect cable and Bowden cable (graphic R51 3078)
Lock couplings (graphic R51 3080)
Install roller sun blind, refer to 51 16 400 REMOVING AND INSTALLING OR REPLACING ROLLER SUN BLIND AT FIXED SIDE WINDOW OF LEFT OR RIGHT REAR DOOR
Install guide rail, refer to 51 16... REMOVING AND INSTALLING / REPLACING GUIDE RAIL FOR ROLLER SUN BLIND OF LEFT OR RIGHT REAR DOOR
Tighten screws (1)
Press roller blind cassette (2) upwards and tighten down screws (3)
Tighten screws (4)
Install door trim panel, refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL
Carry out function test on roller sun blind

Tightening torque, screw (1): 51 16 10AZ, refer to BODY EQUIPMENT - TIGHTENING TORQUES

Tightening torque, screws (3): 51 16 11AZ, refer to BODY EQUIPMENT - TIGHTENING TORQUES
