51 42 000 Removing and installing left or right rear door trim panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
00 9 322

WARNING: Model with side AIRBAG:
Side AIRBAG is mounted on door trim panel:
Disconnect battery. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

IMPORTANT: Do not use any sharp-edged removal tools, risk of damage to AIRBAG.

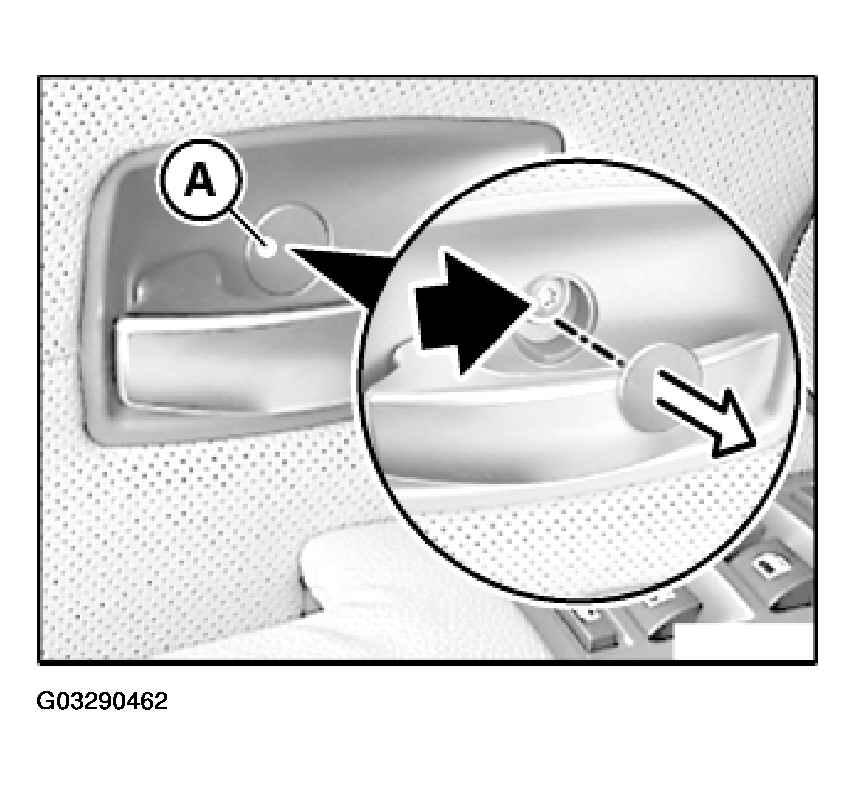

Press on point (A) and tilt out cover.

Fig 1: Tilting Out Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw underneath.

Installation:

Tightening torque 51 21 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

IMPORTANT: Replace damaged screws and nuts.

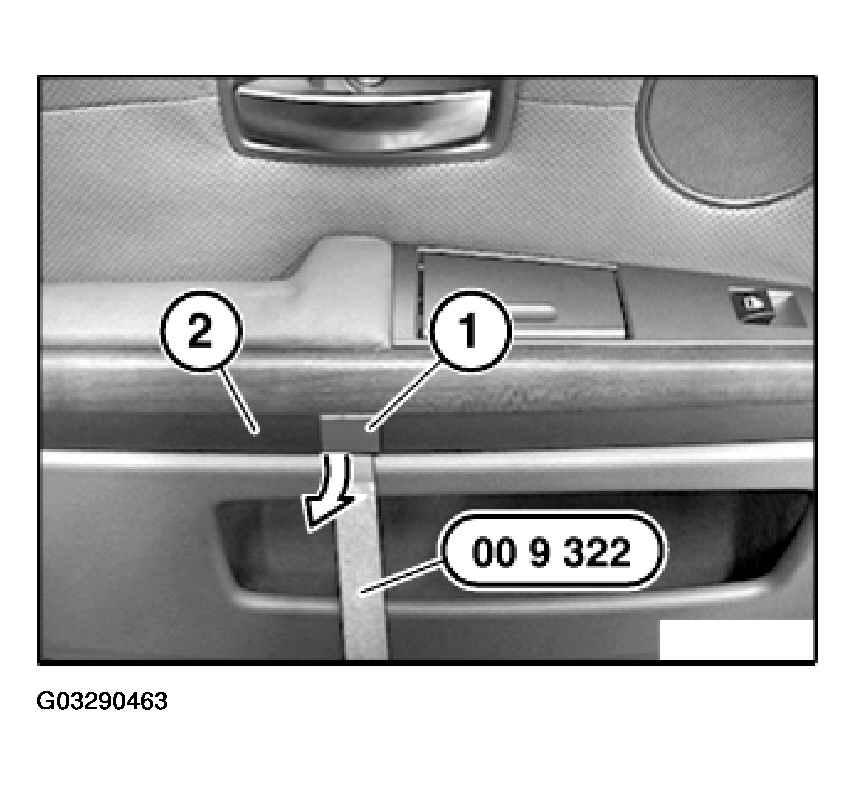

Carefully lever caps (1) with special tool 00 9 322 out of door trim panel (2).

Fig 2: Identifying Caps

Courtesy of BMW OF NORTH AMERICA, INC.

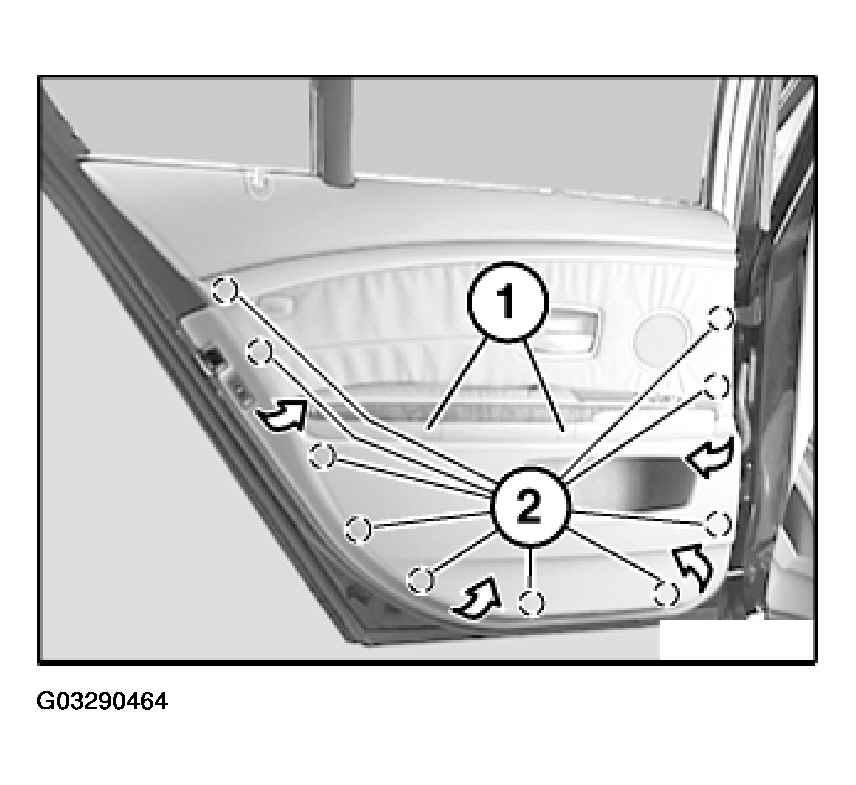

Release screws (1).

Fig 3: Unclipping Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 42 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

NOTE: Start unclipping at bottom.

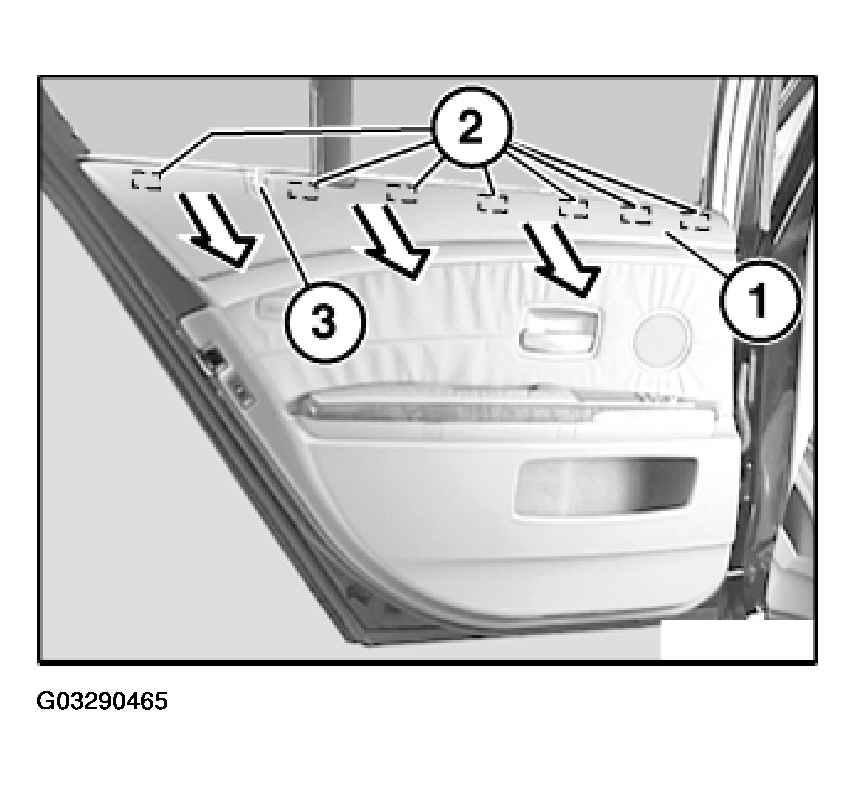

Unclip clips (2) of door trim with special tool 00 9 317.

Carefully unclip door trim panel (1) at top from retainers (2).

Fig 4: Feeding Out Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out door trim (1) from unlocking knob (3).

Unhook Bowden cable for release lever:

Fig 5: Releasing Lever

Courtesy of BMW OF NORTH AMERICA, INC.

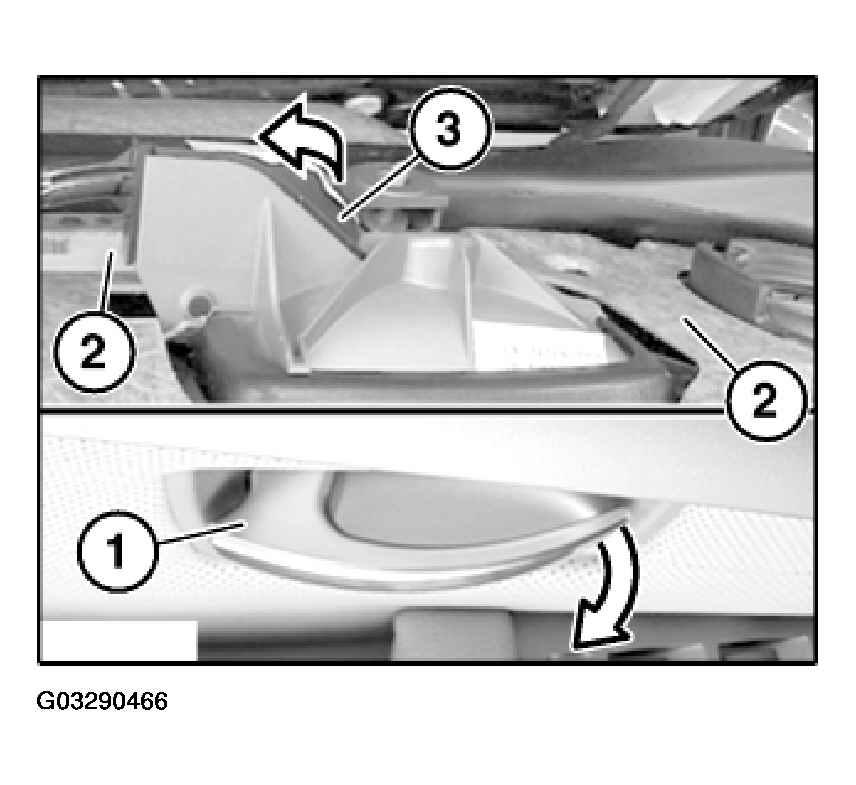

Tighten release lever (1).
Lever out lock (2).
Detach Bowden cable (3) towards rear/top.

Installation:

For fitting, press release lever (1) fully onto door trim panel.

Model with side AIRBAG:

WARNING: Disconnect plug connection on side AIRBAG.

Unlock plug connection (1) and disconnect from control unit.

Fig 6: Removing Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door trim panel (2).

Installation:

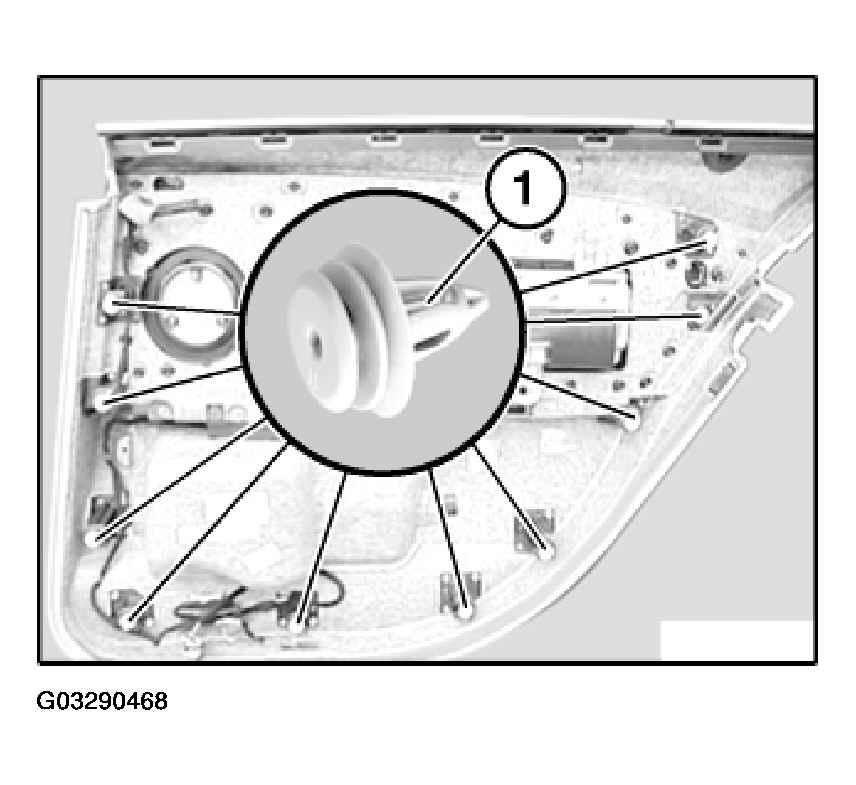

All clips (1) are white.

Fig 7: Installing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace faulty clips (1).

IMPORTANT: Make sure AIRBAG badge is correctly fitted (risk of injury in event of AIRBAG deployment).

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check for ease-of-movement on retaining button linkage
If necessary, align linkages
