51 16 400 Removing and installing or replacing roller sun blind at fixed side window of left or right rear door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim on roller sun blind of rear door, refer to 51 16... REMOVING AND INSTALLING / REPLACING TRIM ON ROLLER SUN BLIND OF LEFT OR RIGHT REAR DOOR
Remove rear door trim panel, refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL

Pull out pull plate (1) from roller sun blind slightly.

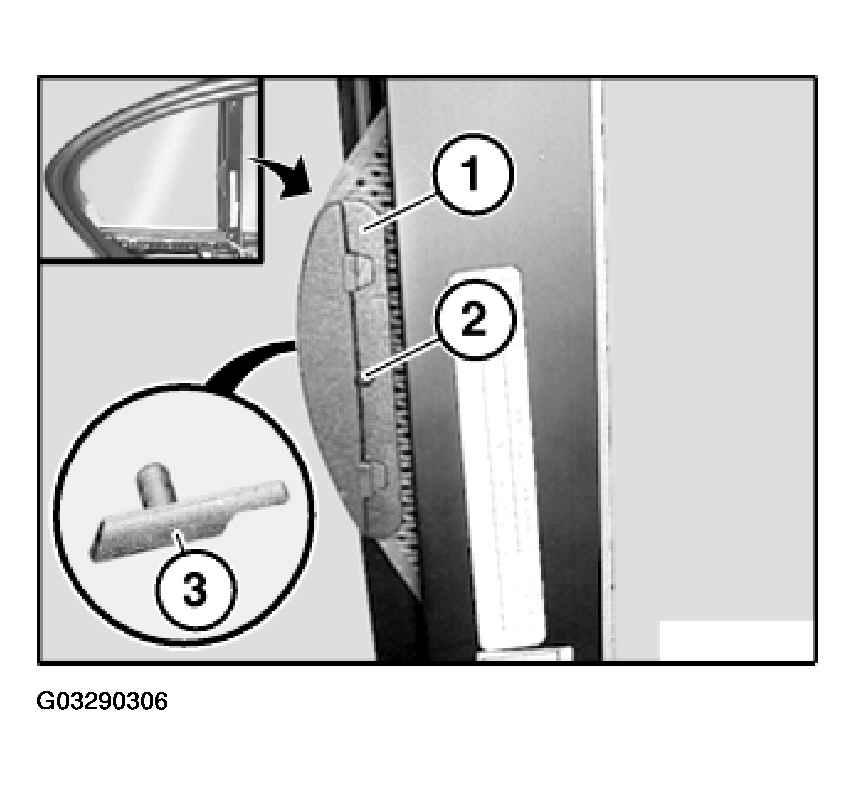

Fig 1: Removing Mounting Plate

G03290306

Courtesy of BMW OF NORTH AMERICA, INC.

Press pin (2) and remove mounting plate (3).

Release screws (1).

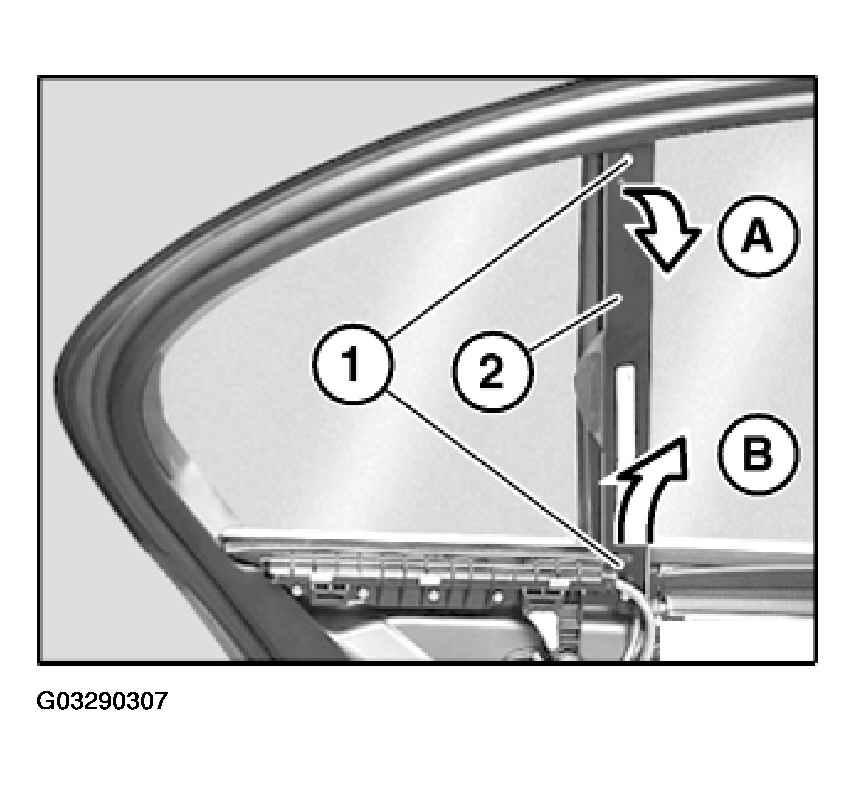

Fig 2: Removing Roller Sun Blind At Top

G03290307

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out roller sun blind (2) at top (A) and pull out in direction of arrow (B).

Installation:

The small roller sun blind also acts as the rear guide rail of the large roller sun blind (3).

Therefore insert small roller sun blind correctly in guide (1) and brush cable (2) of large roller sun blind (3).

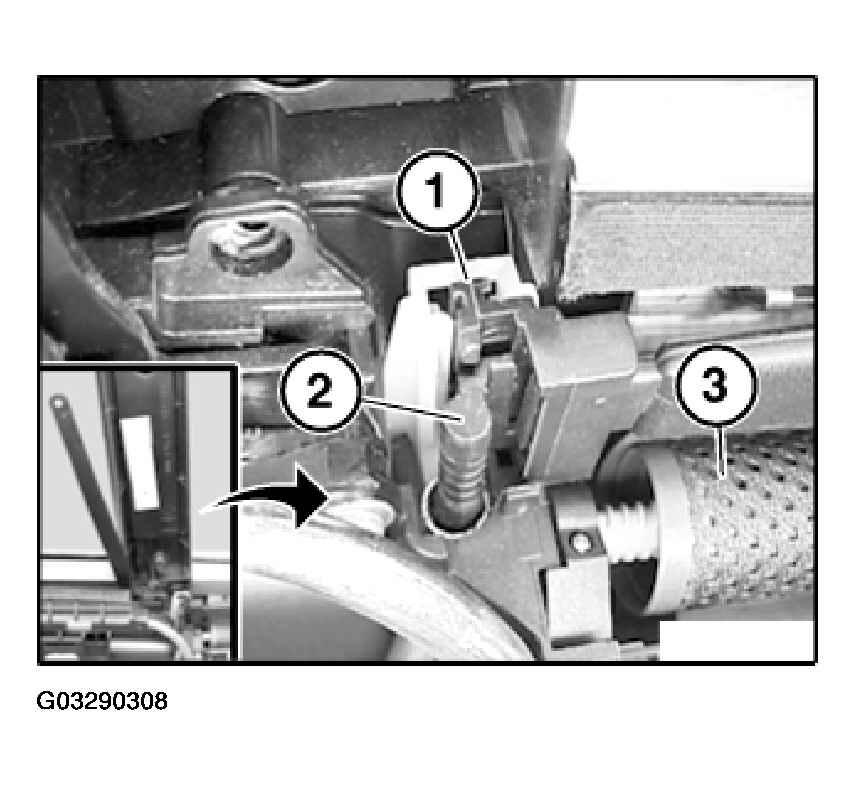

Fig 3: Installing Small Roller Sun Blind

G03290308

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on roller sun blind (3) must not be damaged or missing:

Rubber mount
Pull plate

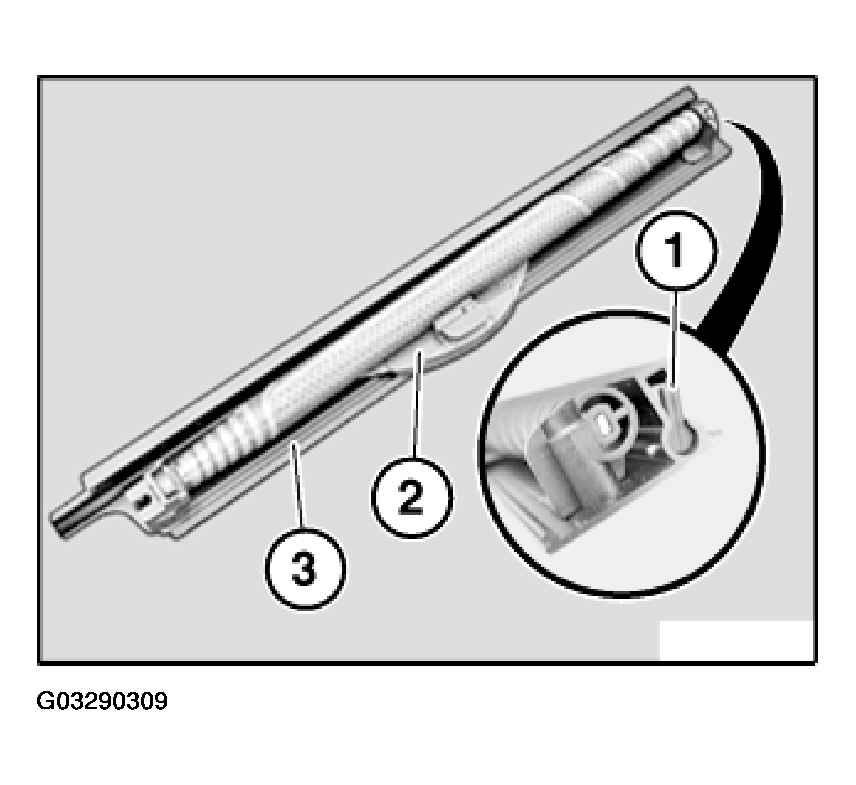

Fig 4: Identifying Rubber Mount And Pull Plate

G03290309

Courtesy of BMW OF NORTH AMERICA, INC.
