51 22 235 Removing and installing/replacing Bowden cable for inside door opener on left or right rear door
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL and 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL

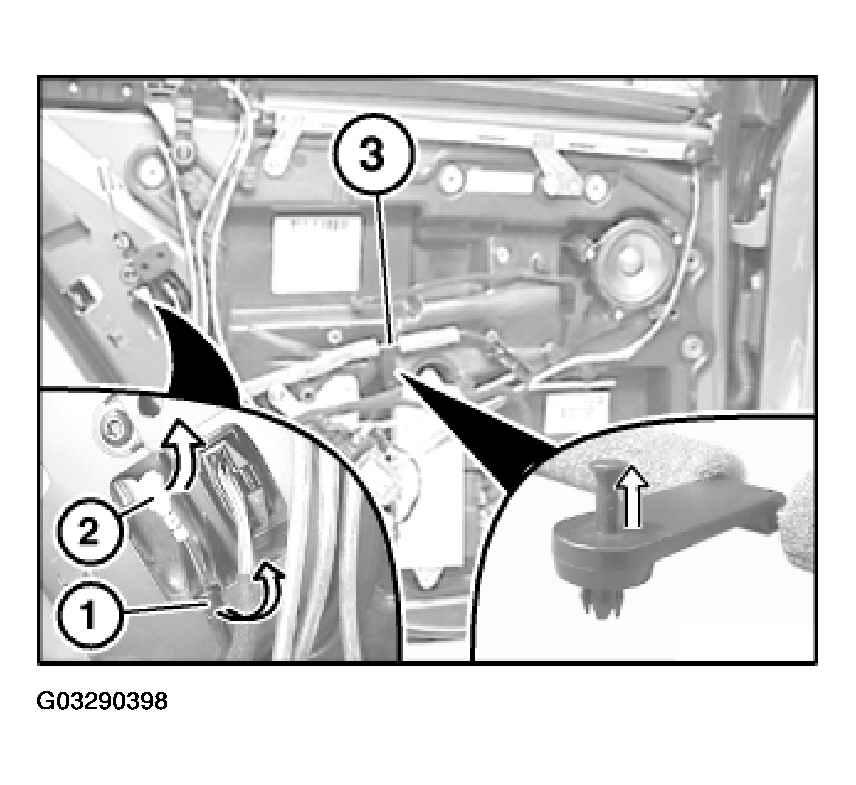

Feed out Bowden cable:
- Feed out Bowden cable sleeve towards bottom (1).
- Feed out Bowden cable towards top (2).
Unclip Bowden cable (3).
