51 41 001 Replacing front left or right door trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG module in front door. refer to SIDE AIR BAG MODULE .
Remove wooden strip in door trim (front). Refer to 51 41 065 REMOVING AND INSTALLING/REPLACING WOODEN STRIP ON LEFT OR RIGHT DOOR TRIM (FRONT) .
Remove chest strip (chrome strip). Refer to 51 41 300 REMOVING AND INSTALLING/REPLACING CHEST STRIP (CHROME STRIP) ON LEFT OR RIGHT FRONT DOOR .
Remove decorative strip (light strip). Refer to 51 41 030 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP (LIGHT STRIP) ON LEFT OR RIGHT DOOR TRIM (FRONT) .
Remover inside door opener. Refer to 51 21 225 REMOVING AND INSTALLING OR REPLACING INSIDE DOOR OPENER IN LEFT OR RIGHT FRONT DOOR .
Remove air outlet trim and air duct. Refer to 51 41... REMOVING AND INSTALLING/REPLACING AIR DUCT ON FRONT LEFT OR RIGHT DOOR TRIM .
Remove footwell light. Refer to 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .

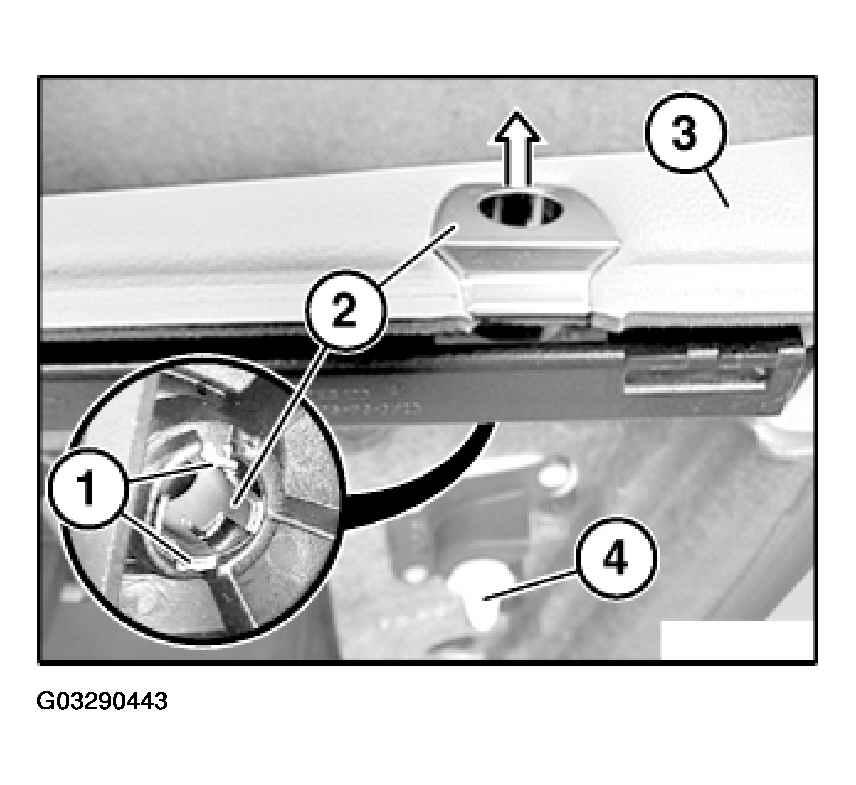

Unlock catches (1) and remove trim (2) in direction of arrow from door trim (3).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replace all clips (4).

Feed out AIRBAG label and remove.

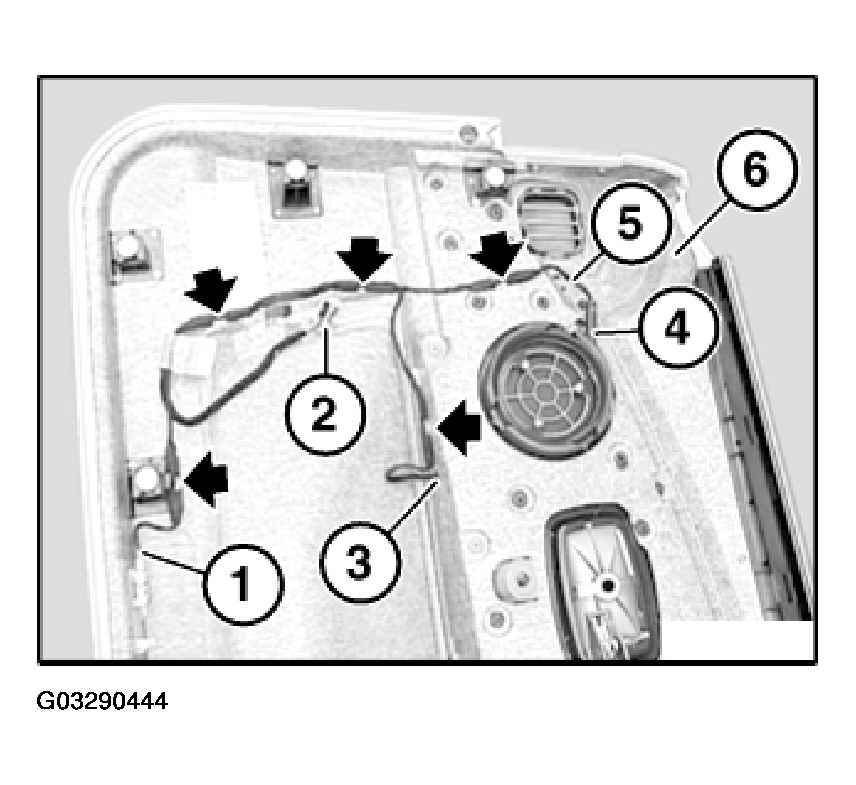

Unclip wiring harness (5) from door trim (6).

Fig 2: Removing Wiring Harness From Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Plug connections:

Footwell lighting
Control unit
Rocker switch for window operation
Decorative strip (light strip)
