51 41 065 Removing and installing/replacing wooden strip on left or right door trim (front)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove upper section on armrest (front). Refer to 51 41 070 REMOVING AND INSTALLING/REPLACING UPPER SECTION ON LEFT OR RIGHT ARMREST .

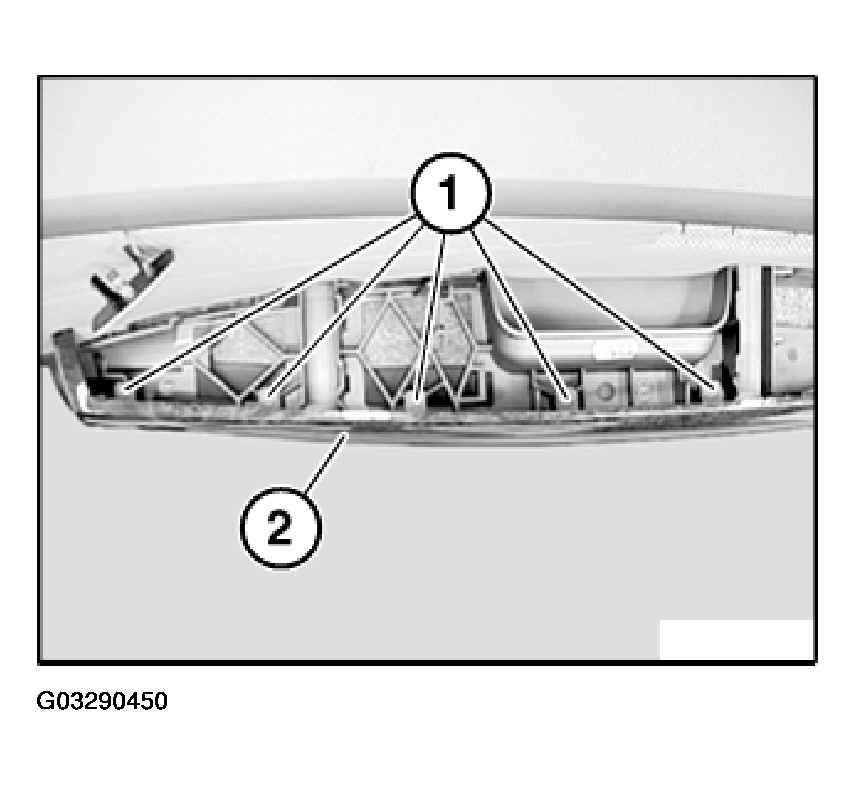

Release screws (1) on wooden strip (2).

Fig 1: Releasing Screws On Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 41 5AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

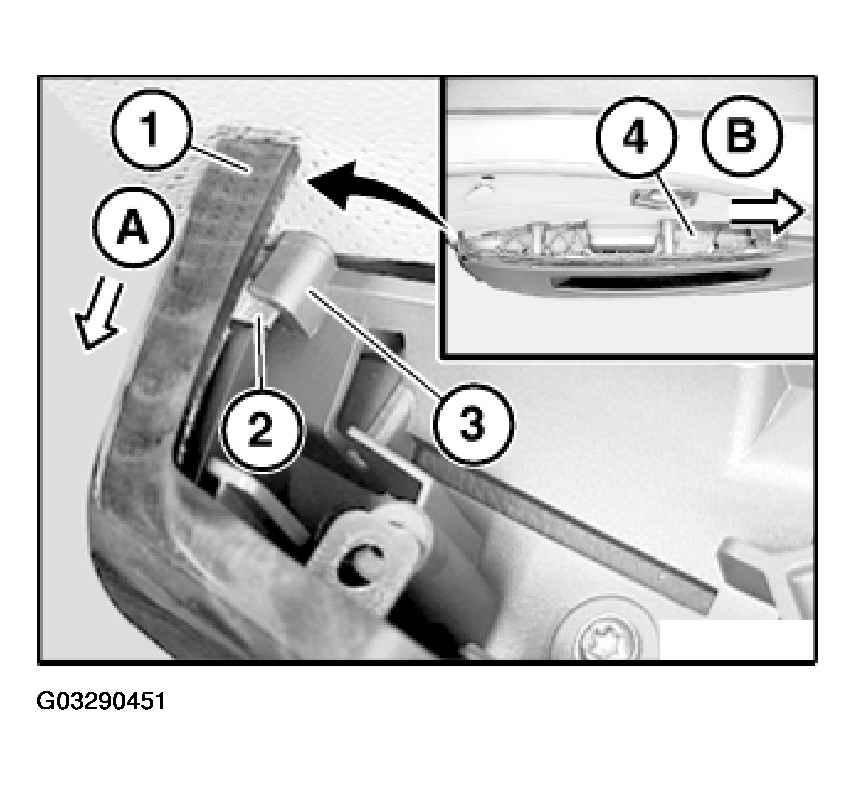

Lever wooden strip (1) out of door trim (4) as follows:

At rear lever guide (2) in direction of arrow out of mounting (3)
At front pull off in direction of arrow from door trim (4)

Fig 2: Removing Wooden Strip
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

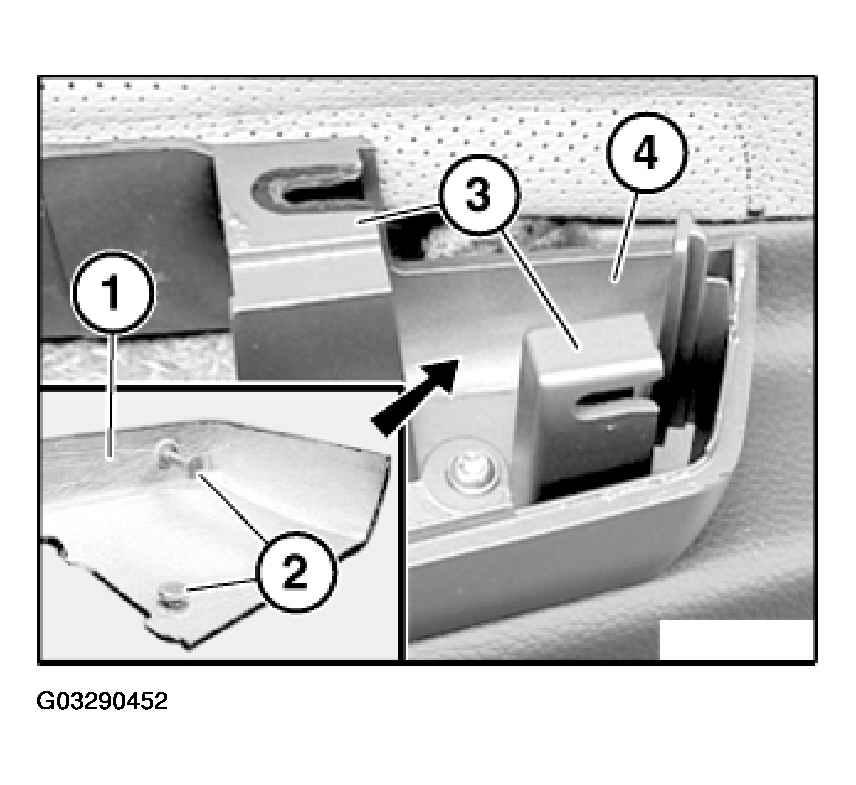

Insert guides (2) of wooden strip (1) correctly into mountings (3) of door trim (4).

Fig 3: Inserting Guides Of Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of wooden strip (5) must not be damaged:

Guide (rear)
Bracket
Spacer

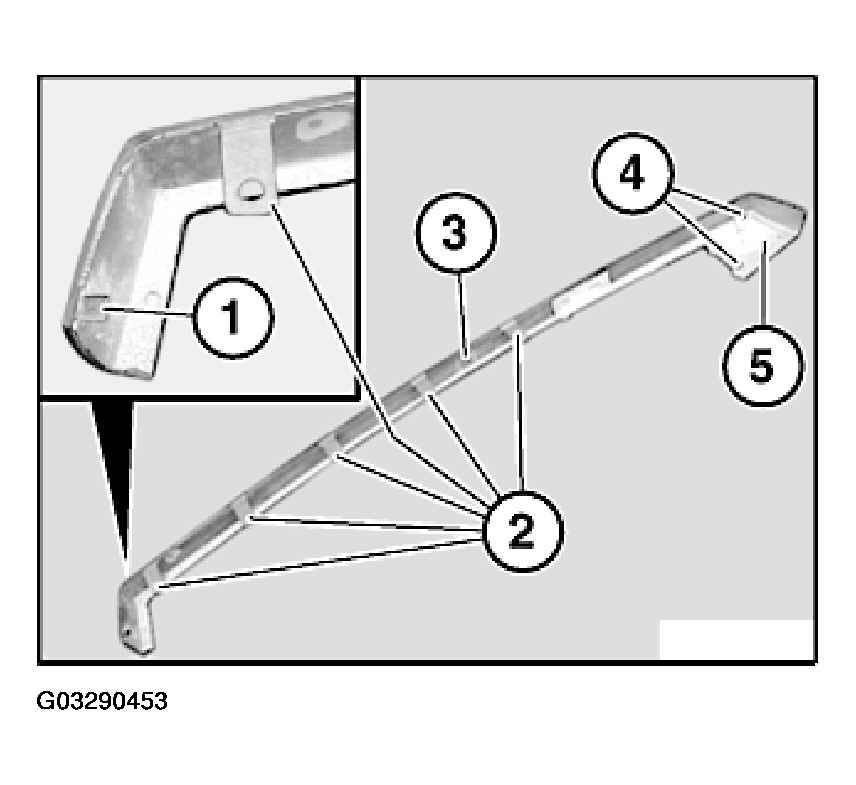

Guides (front)

Fig 4: Installing Wooden Strip
Courtesy of BMW OF NORTH AMERICA, INC.
