51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321
00 9 323

Press on point (A) and tilt cover.

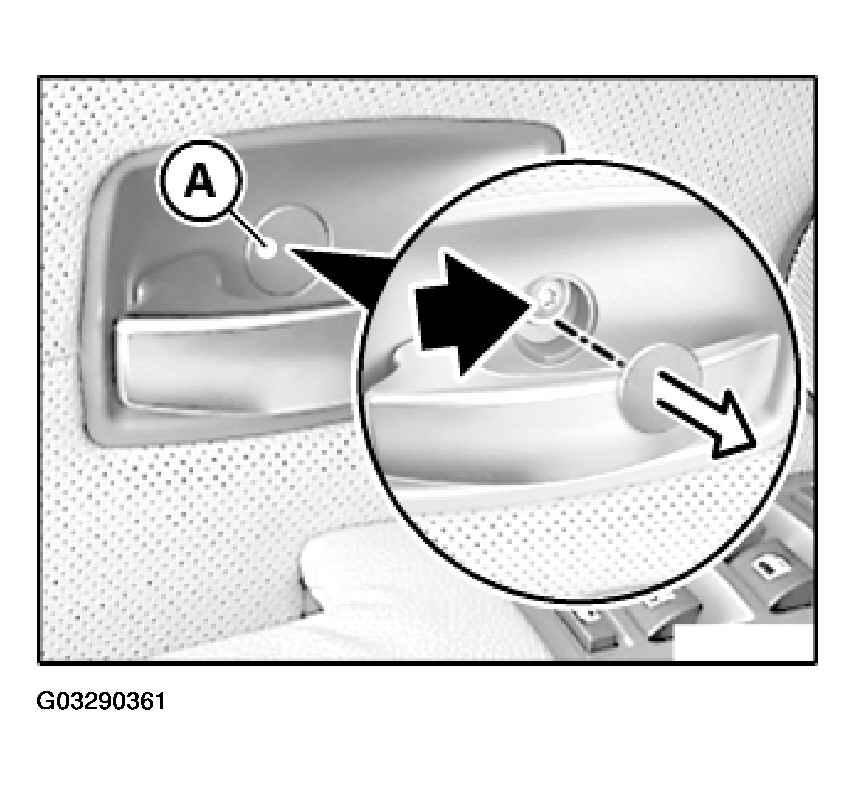

Fig 1: Removing Cover

G03290361

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover and release screw underneath.

Tightening torque 51 21 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Raise edge of door opener with cleaning wedge 00 9 323 slightly to be able then to lever out door opener with fishbone 00 9 321.

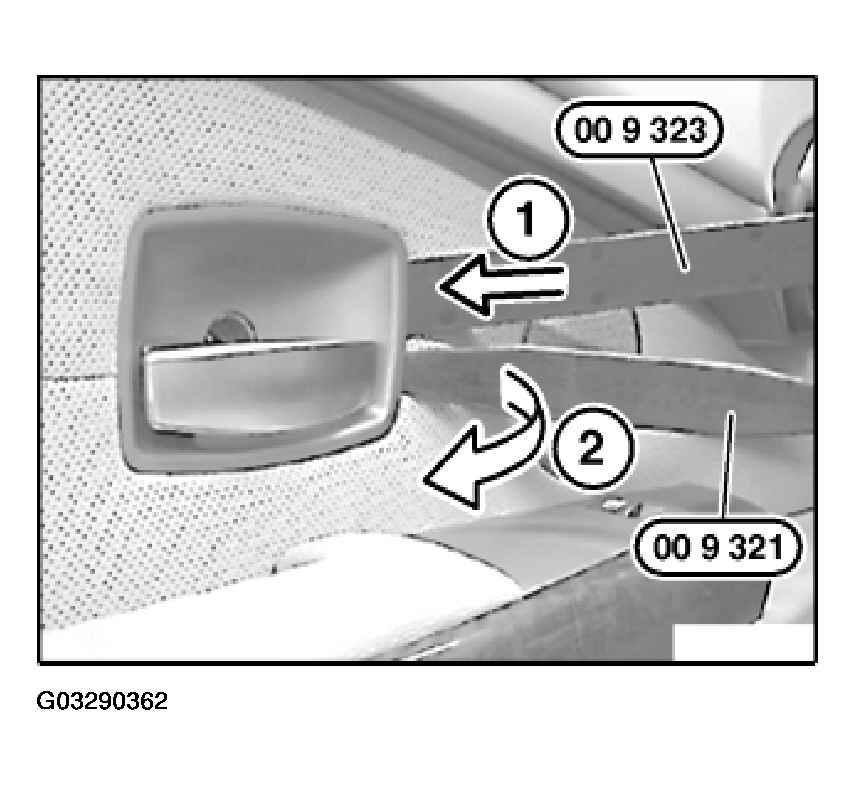

Fig 2: Removing Door Opener From Door Trim

G03290362

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully feed door opener forwards and downwards out of door trim.

IMPORTANT: If the door opener is pulled out too vigorously, there is a risk of damage to the door opener and the Bowden cable.

Unlock holder for Bowden cable (1) and remove door opener (2).

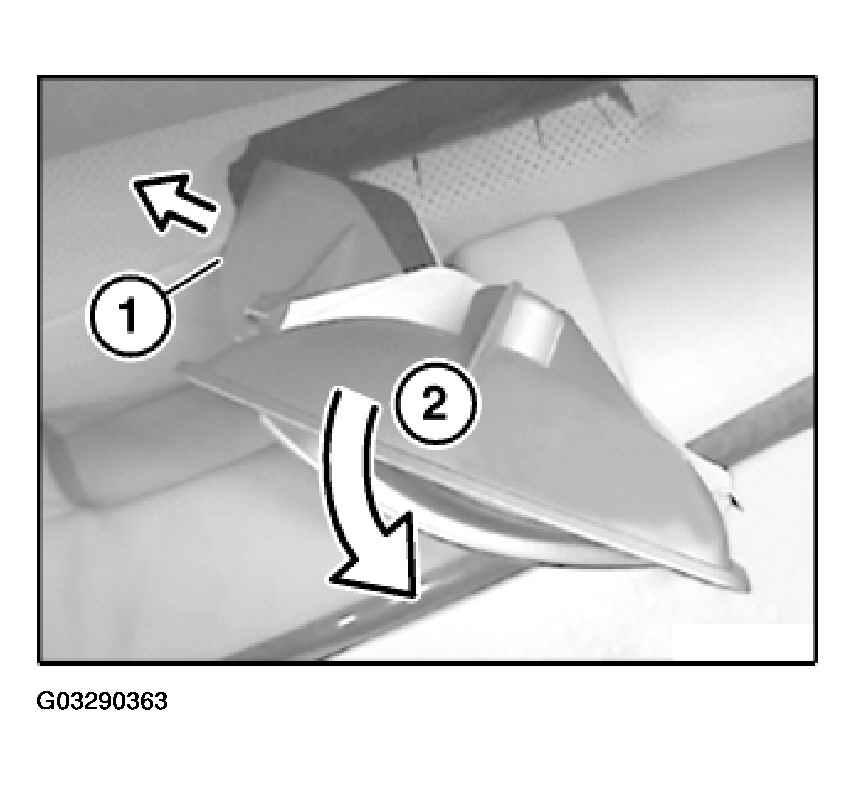

Fig 3: Removing Door Opener

G03290363

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place door opener (1) at front on holder for Bowden cable (2) and clip into place.

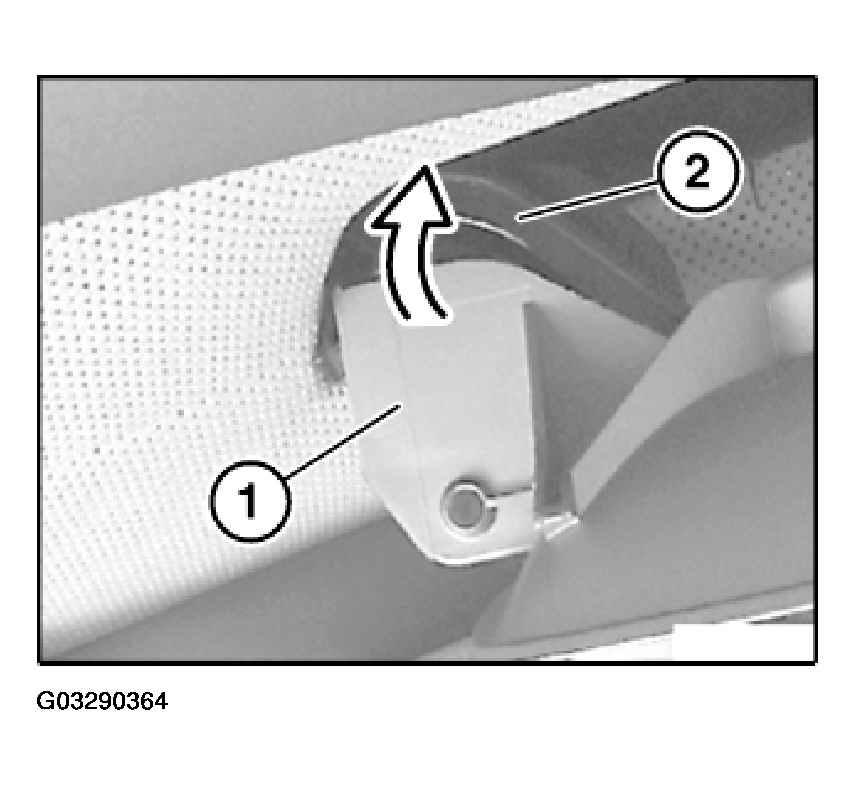

Fig 4: Installing Door Opener

G03290364

Courtesy of BMW OF NORTH AMERICA, INC.

Lever of door opener must be held "closed" in the process.
