51 41 300 Removing and installing/replacing chest strip (chrome strip) on left or right front door
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

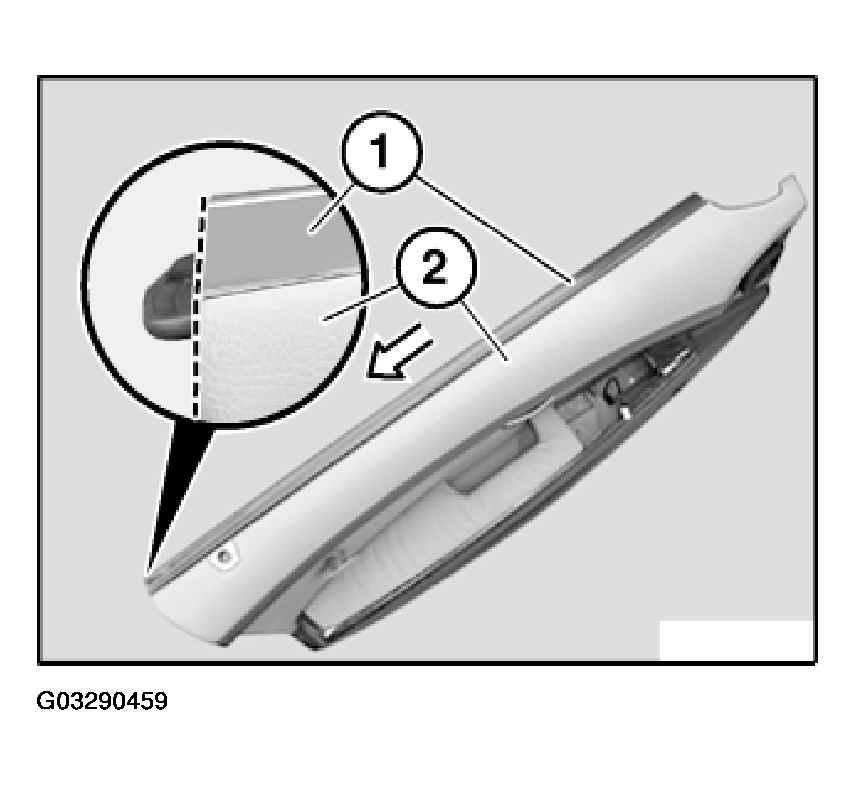

Pull chest strip (1) in direction of arrow off door trim (2).
Installation:
Chest strip (1) must be flush at rear with door trim (2).
