51 44 011 Removing and installing / replacing headliner (with slide/tilt sunroof): Notes

Removing and installing all grab handles,

refer to 51 16 480 REMOVING AND INSTALLING OR REPLACING FRONT GRAB HANDLE

Removing and installing both trim sections for front roof pillar (A-pillar finishers),

refer to 51 43 201 REMOVING AND INSTALLING OR REPLACING TRIM FOR FRONT LEFT OR RIGHT ROOF

Remove both trim panels for door column (top) (B-column finishers) and suspend on belt,

refer to 51 43 148 REMOVING AND INSTALLING OR REPLACING TRIM ON LEFT OR RIGHT DOOR COLUMN (TOP)

Removing and installing both finishers for rear roof pillar (C-pillar finishers),

refer to 51 43 251 REMOVING AND INSTALLING OR REPLACING TRIM FROM REAR LEFT OR RIGHT ROOF PILLAR

Removing and installing rear seat,

refer to REAR SEAT, NORMAL .

Removing and installing slide/tilt sunroof cover,

refer to MECHANICAL SUN ROOF COMPONENTS .

and/or

Removing and installing glass slide/tilt sunroof cover,

refer to MECHANICAL SUN ROOF COMPONENTS .

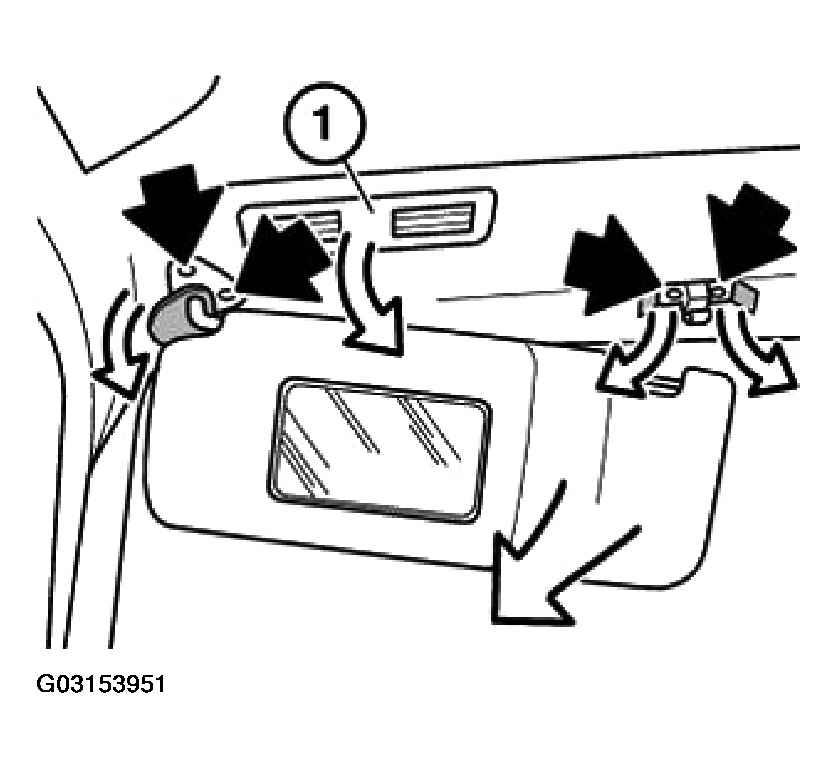

Lift out both sun visors.

Lift out mirror lights (1) and pull off connector.

Lift out finishers on counter support and joint and unfasten screws.

Pull out cable for mirror lighting somewhat and disconnect connector.

Installation

1. Conduct function check of mirror lighting.

Fig 1: Checking Mirror Lighting

Courtesy of BMW OF NORTH AMERICA, INC.

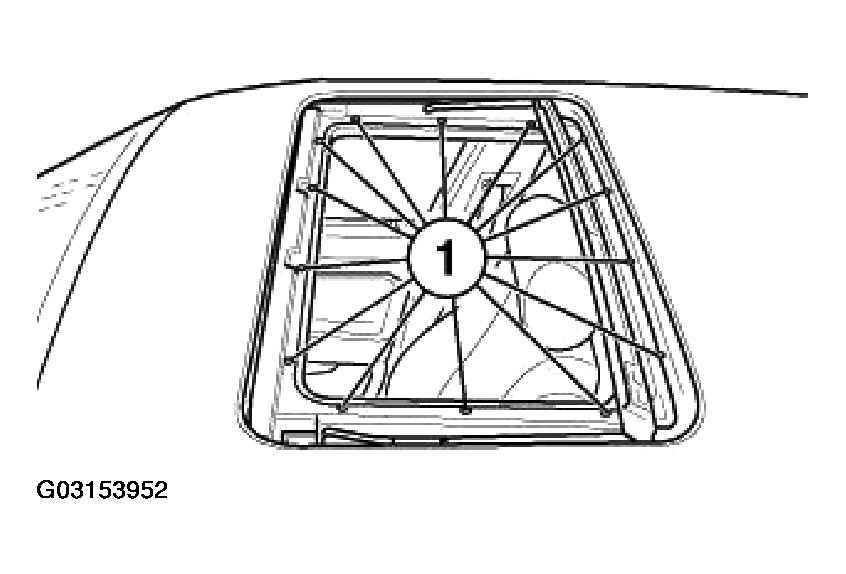

Unfasten screws (1) and remove cover frame.

Fig 2: Unfastening Screws And Remove Cover Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

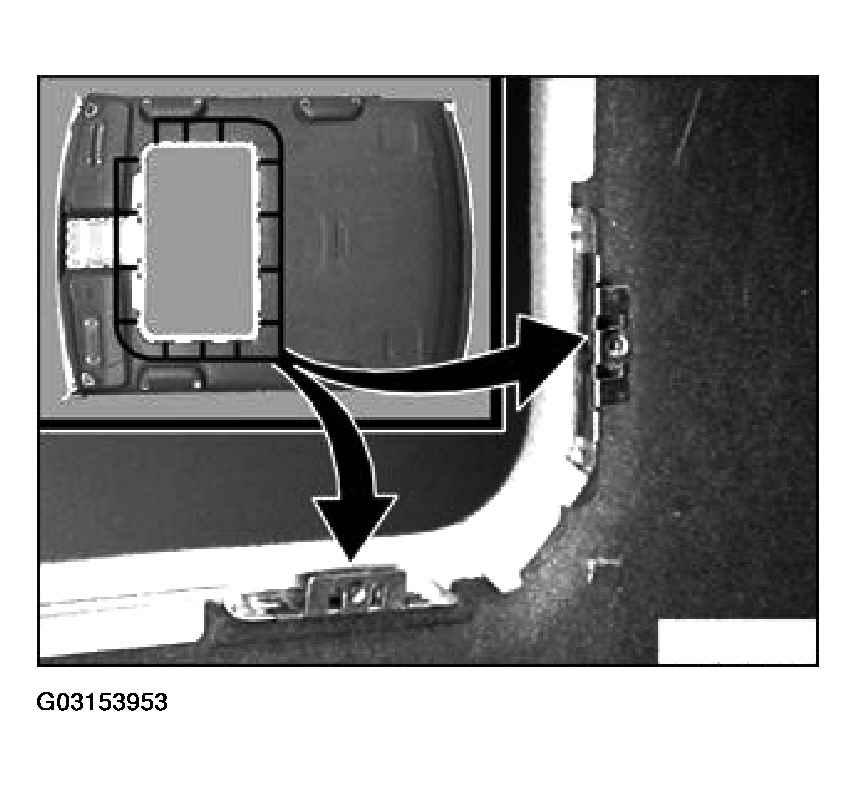

1. If necessary replace defective nuts.

Fig 3: Replacing Defective Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

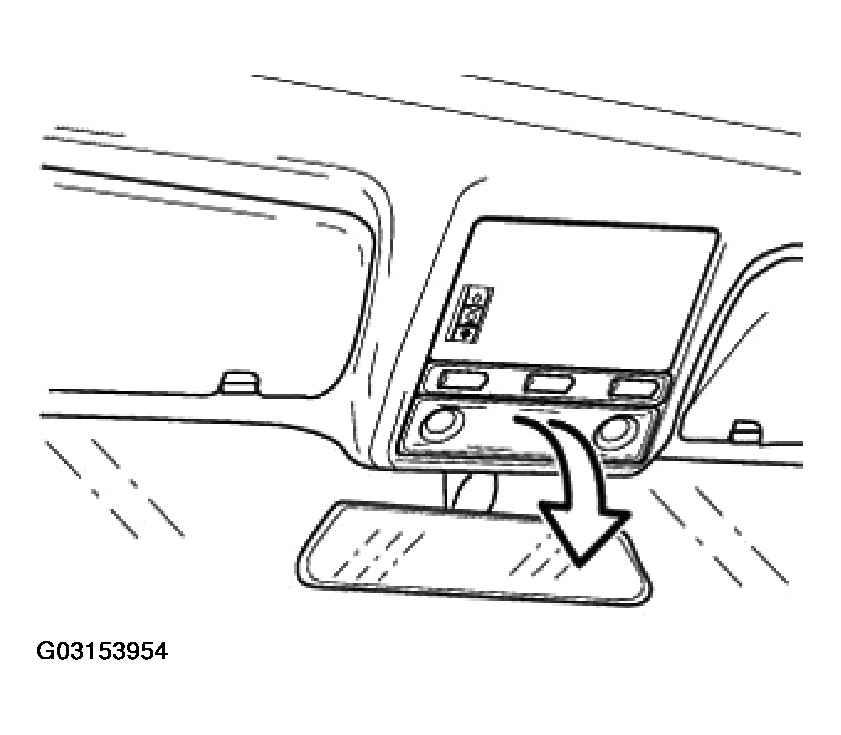

Lift out interior light and remove connector.

Fig 4: Lifting Out Interior Light And Remove Connector

Courtesy of BMW OF NORTH AMERICA, INC.

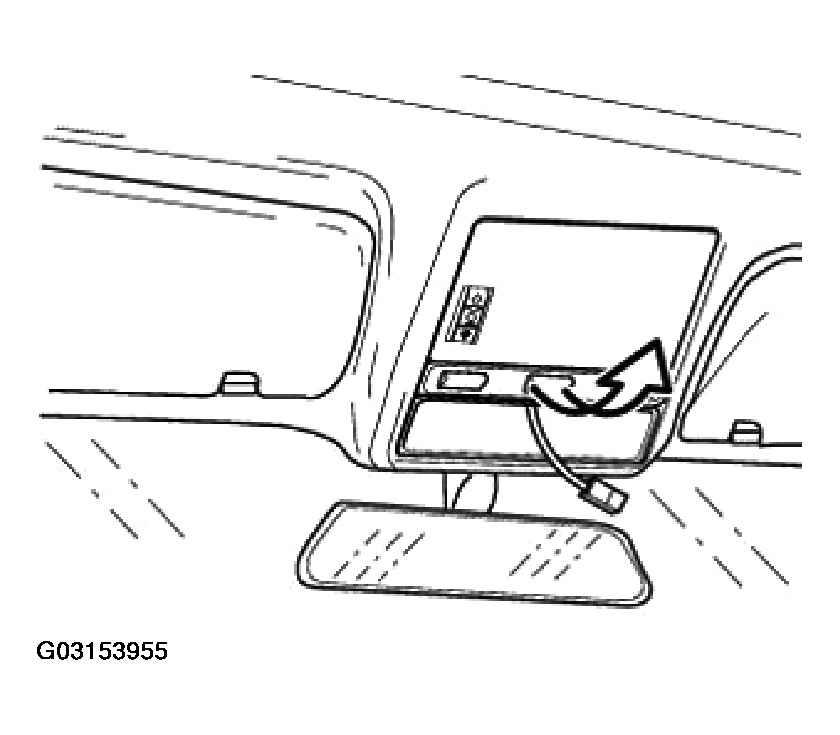

Lift out finisher and pull off connector.

Fig 5: Lifting Out Finisher And Pull Off Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Move both front seat backrests as far back as possible.

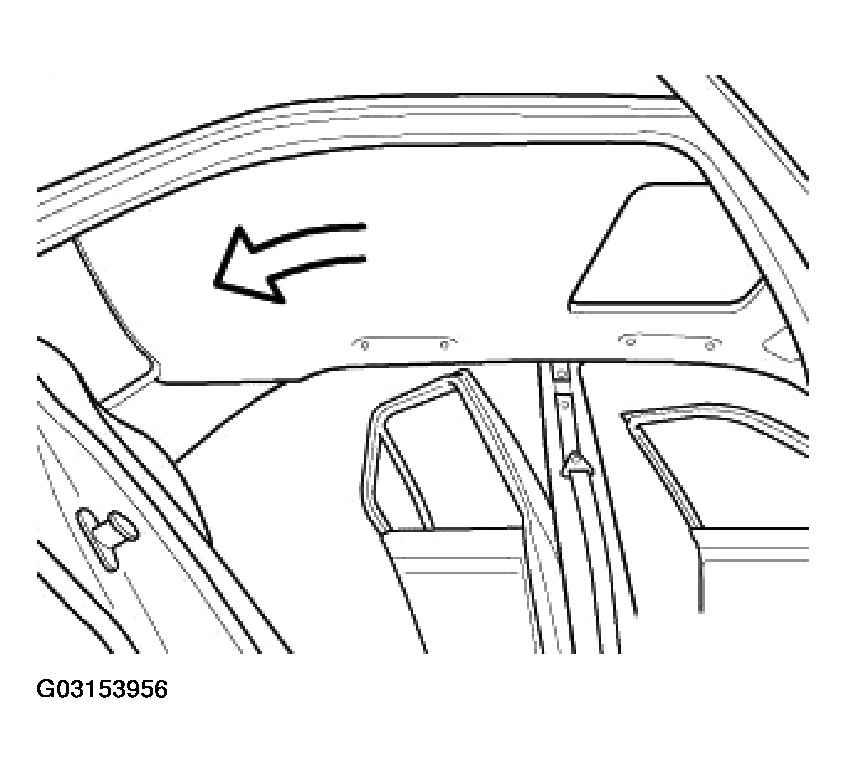

Pull headlining upwards out of sheet metal tabs and pull towards right rear door to remove.

Fig 6: Pulling Headlining Upwards Out Of Sheet Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

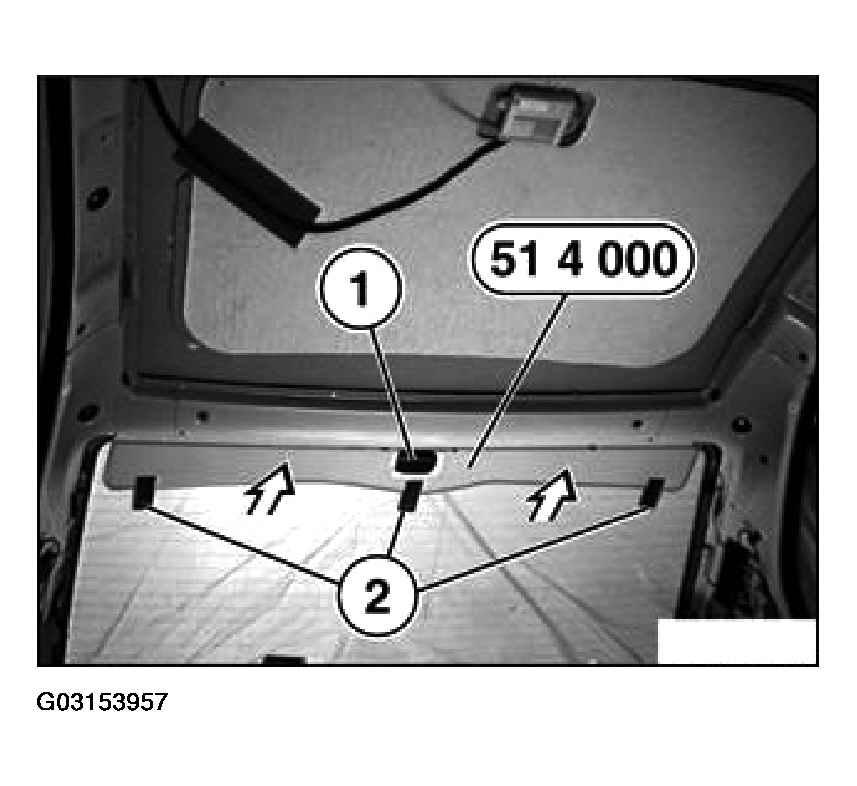

1. Insert special tool 51 4 000 in the support for headlining and secure with fabric adhesive tape (2).

Version with telephone connection unit:

If necessary, slide over telephone connection unit (1).

Fig 7: Identifying Slide Over Telephone Connection Unit

Courtesy of BMW OF NORTH AMERICA, INC.
