51 43 148 Removing and installing or replacing trim on left or right door column (top)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

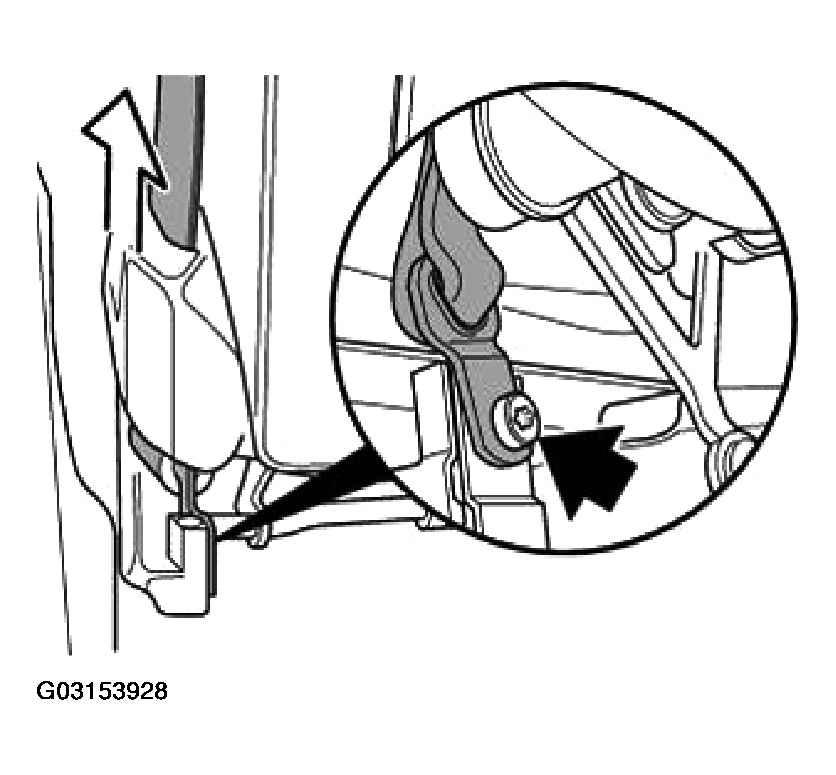

Unfasten seatbelt screw on front seat.

Installation:

Tightening torque, see 72 11 1AZ in SEAT BELTS AND ACCESSORIES - TIGHTENING TORQUES .

Fig 1: Unfastening Seatbelt Screw On Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On the version from 9/97, the trim panel for door pillar (bottom) must be removed.

Version up to 9/97:

Pull mucket upwards beside door column trim panel.

Unclip trim panel for door pillar at top and bottom towards inside.

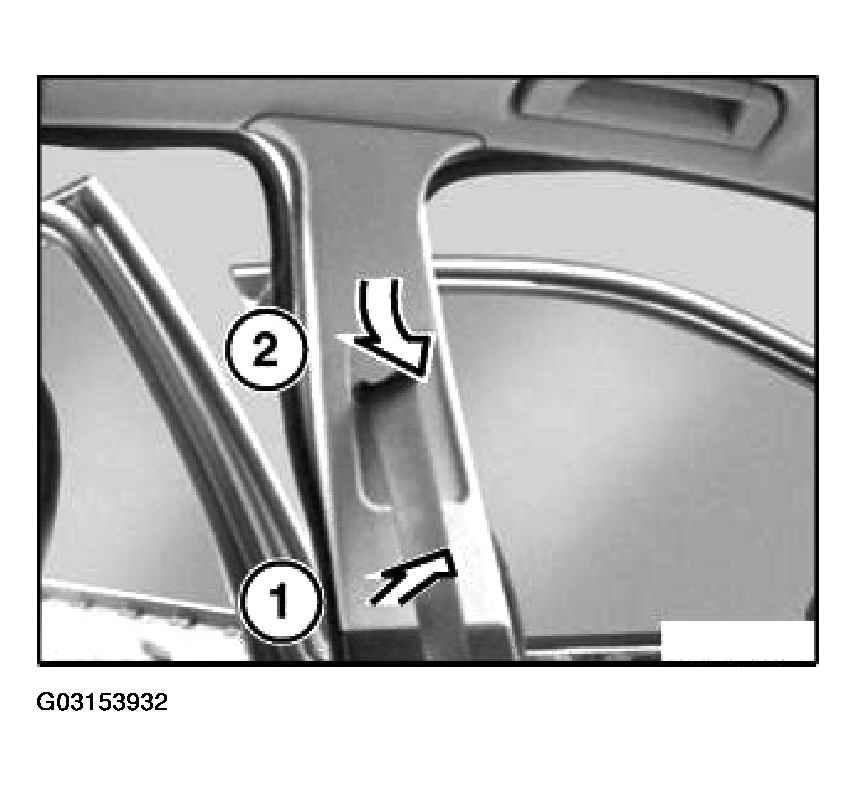

Pull out trim panel towards top.

Fig 2: Pulling Out Trim Panel Towards Top
Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 9/97:

Installation

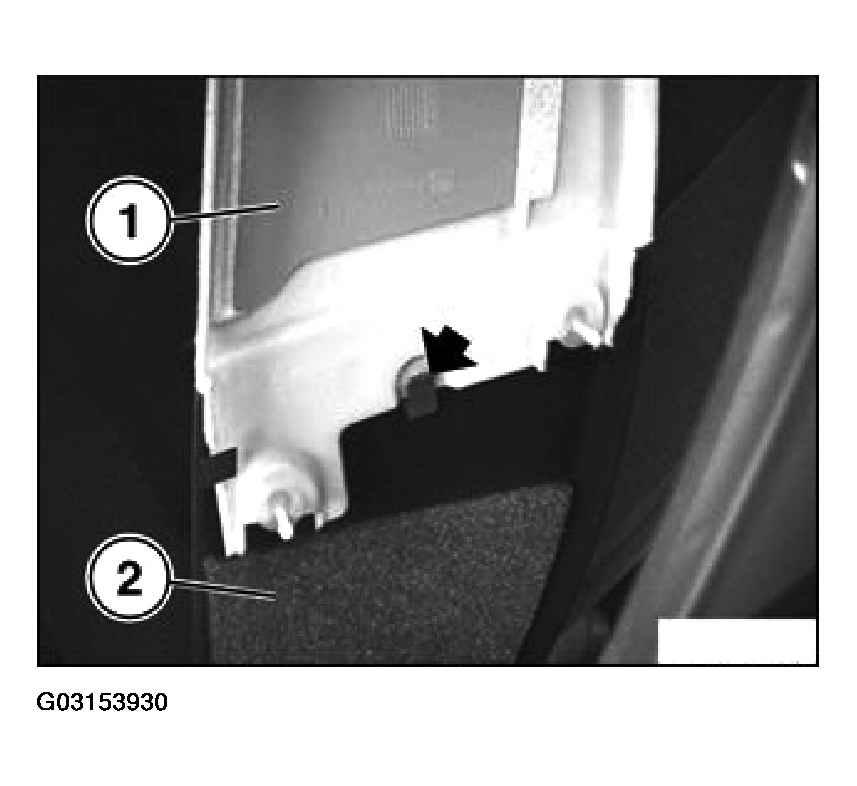

Insert trim for top of door column (1) in the trim for bottom of door column (2).

Fig 3: Inserting Trim For Top Of Door Column In Trim For Bottom Of Door Column

Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 9/97:

Installation

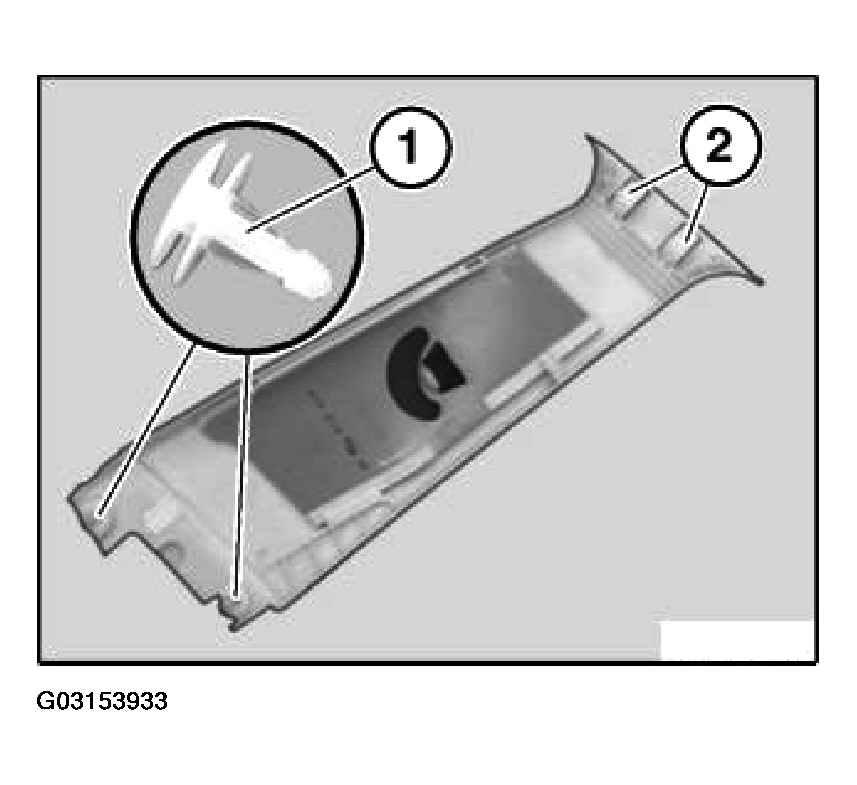

If necessary, replace damaged clips.

Fig 4: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 9/97:

Remove trim panel for door pillar (bottom).

Remove mucket in area of trim for door pillar at top.

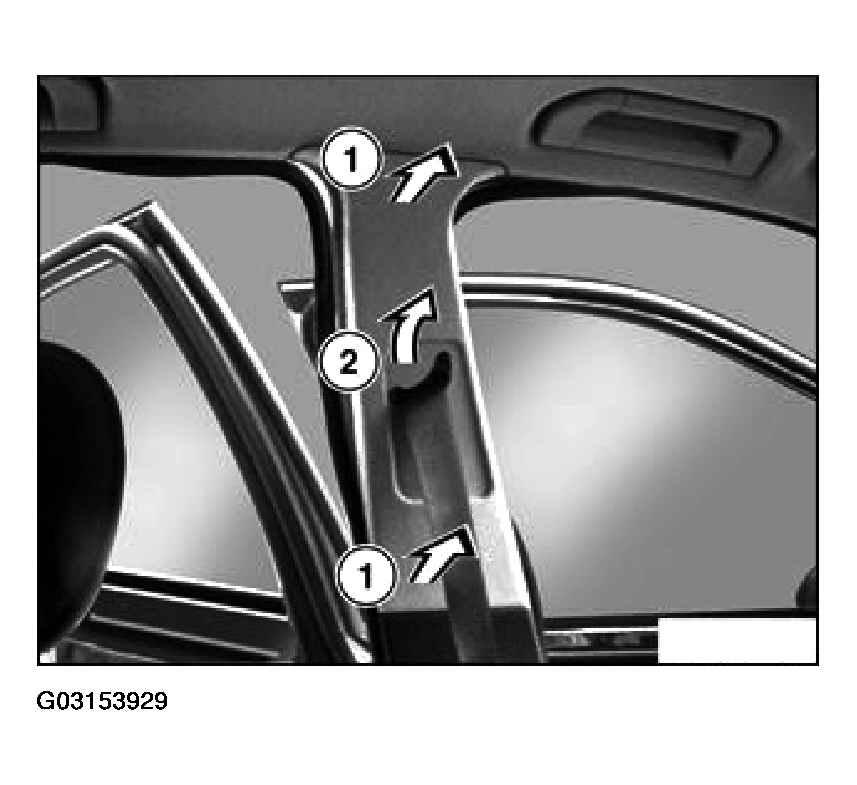

Unclip trim panel at bottom towards inside.
Detach out trim panel towards bottom.

Fig 5: Unclipping Trim Panel At Bottom Towards Inside
Courtesy of BMW OF NORTH AMERICA, INC.

Version from 9/97:

Installation

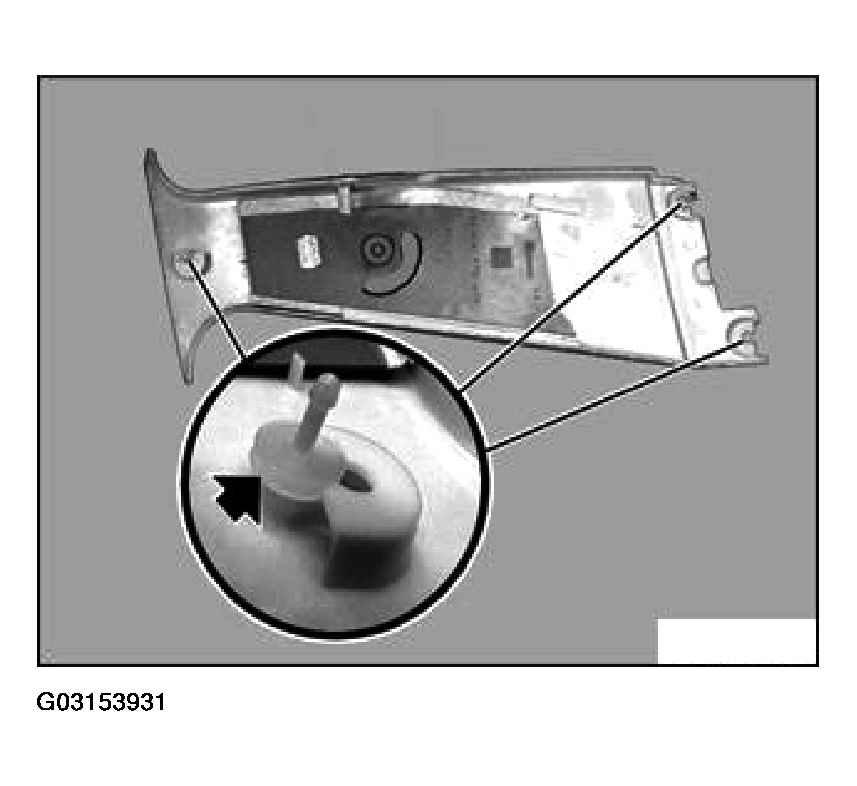

If necessary, replace defective clips (1).
Mounts (2) must not be damaged.

Fig 6: Replacing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.
