51 43 201 Removing and installing or replacing trim for front left or right roof
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with head airbag:
Follow safety instructions for working on cars with airbag systems,
refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS
Follow safety instructions for working on cars with airbag systems,
refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS
CAUTION:
Do not use sharp-edged tools to remove trim (risk of damage to head airbag).
Remove mucket from front roof pillar (A-pillar finisher).
Version with head airbag (ITS):

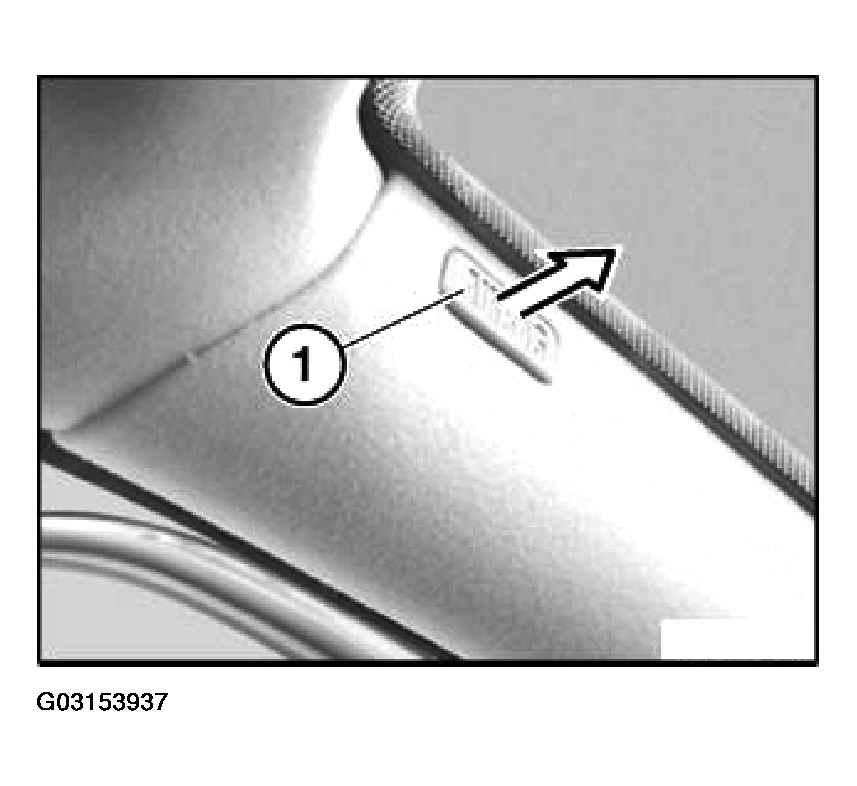

If necessary, lever out cap (1).
Version with head airbag (ITS):

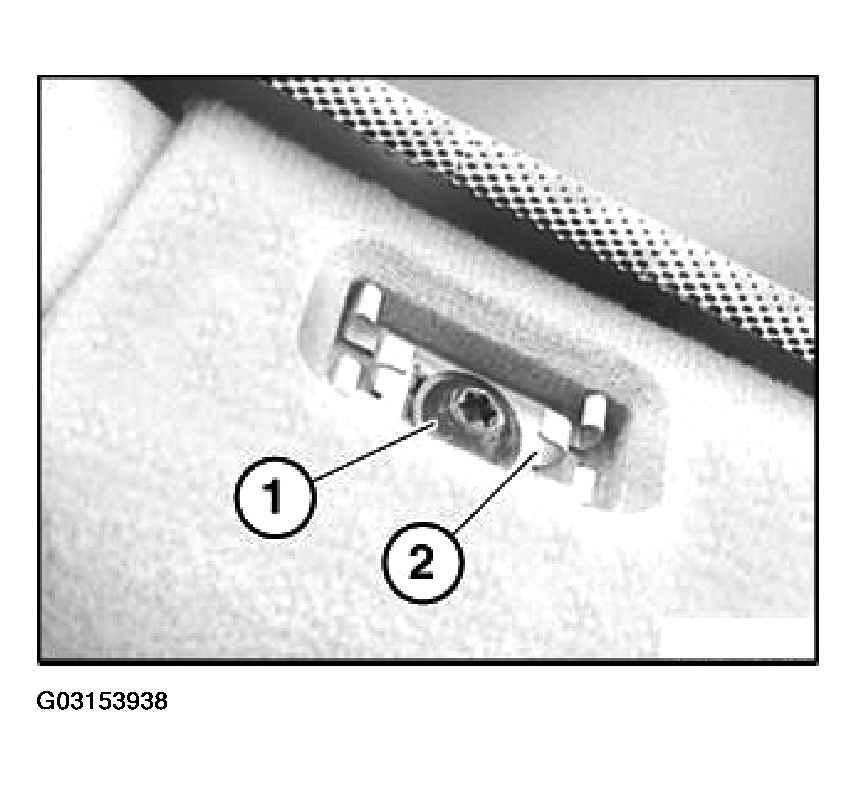

If necessary, release screw (1) and remove with clip (2).

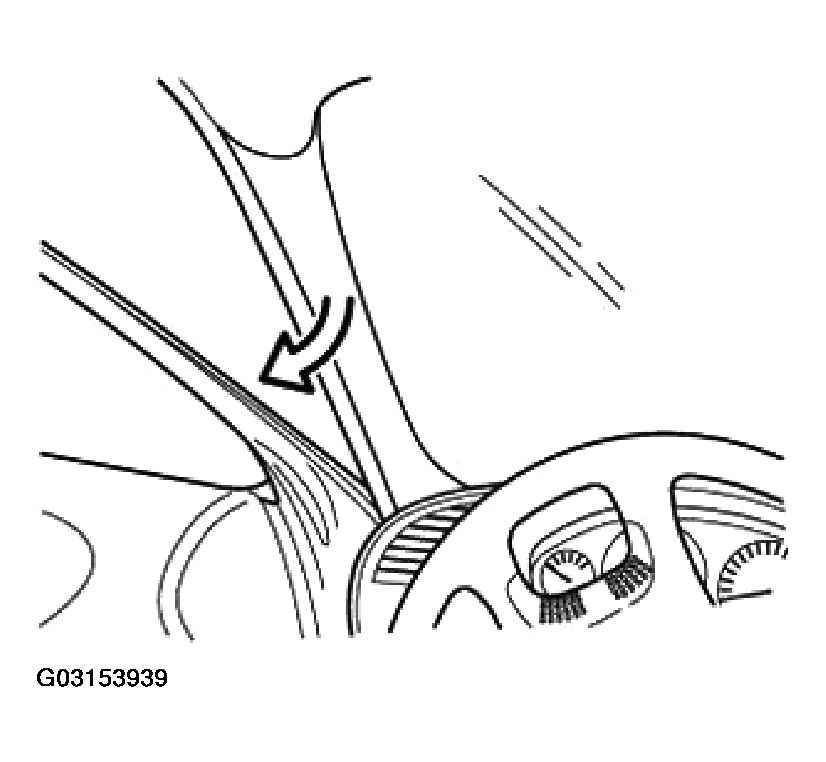

Unclip trim by pulling inwards and pull up to remove.
Installation:

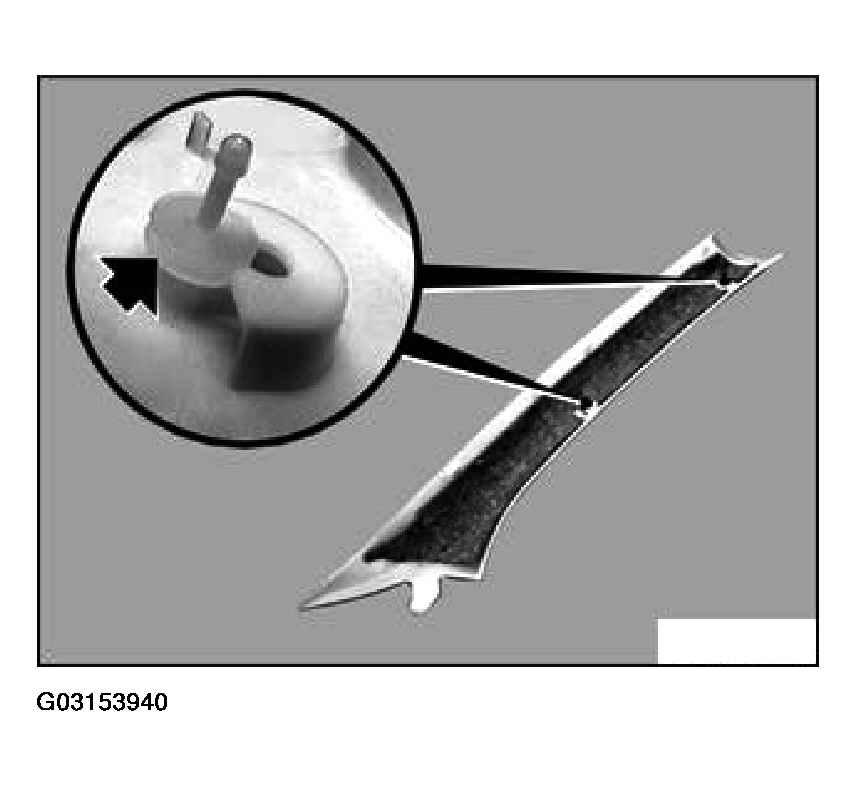

If necessary, replace damaged clips.
Version with head airbag (ITS):
Installation:

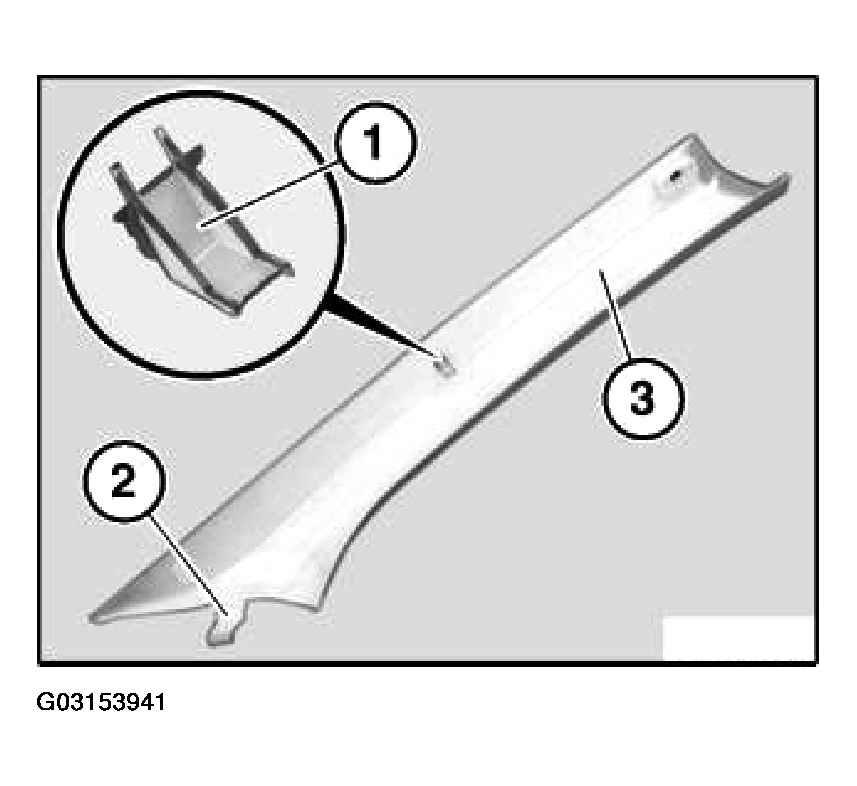

Mounts (1) and (2) of trim panel (3) must not be damaged.
