51 43 251 Removing and installing or replacing trim from rear left or right roof pillar

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

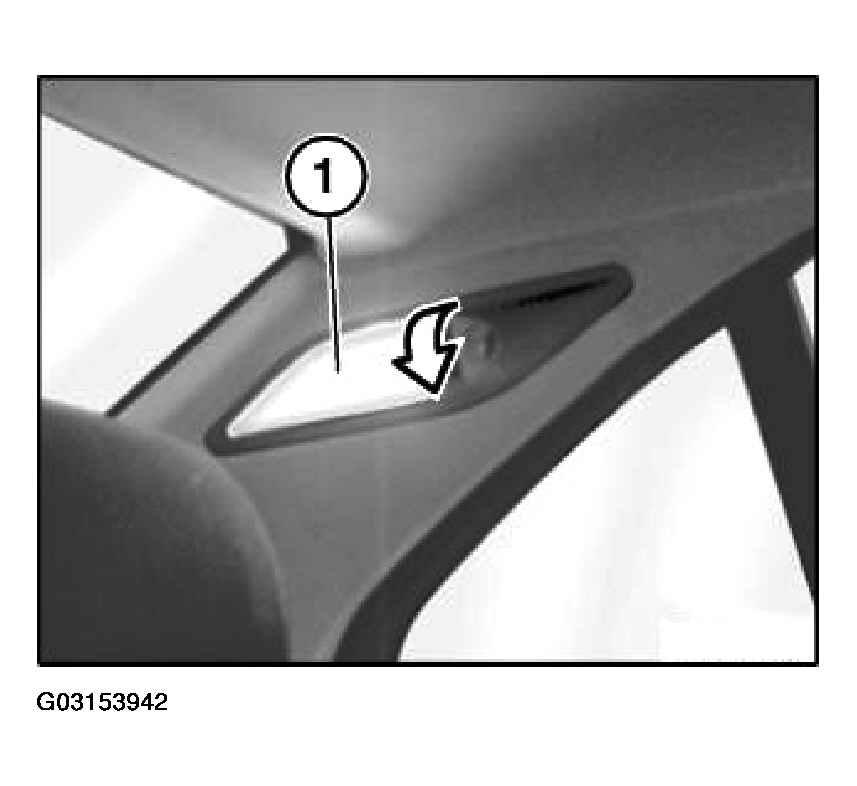

Lift interior light out from side of C pillar trim panel.

Fig 1: Lifting Interior Light Out From Side Of C Pillar Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

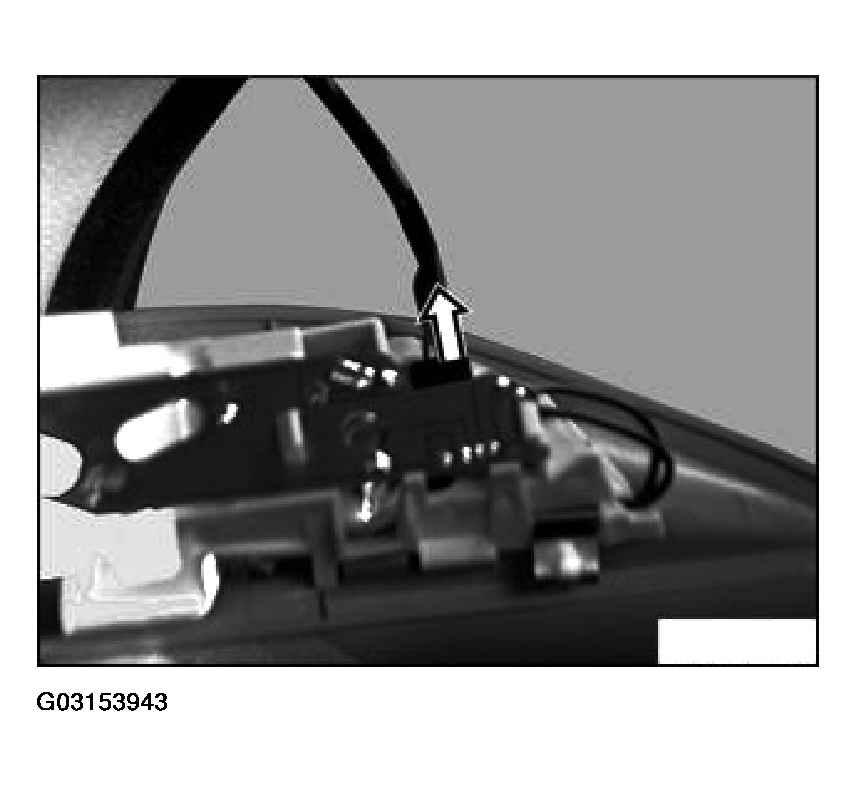

Pull off connectors.

Fig 2: Pulling Off Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

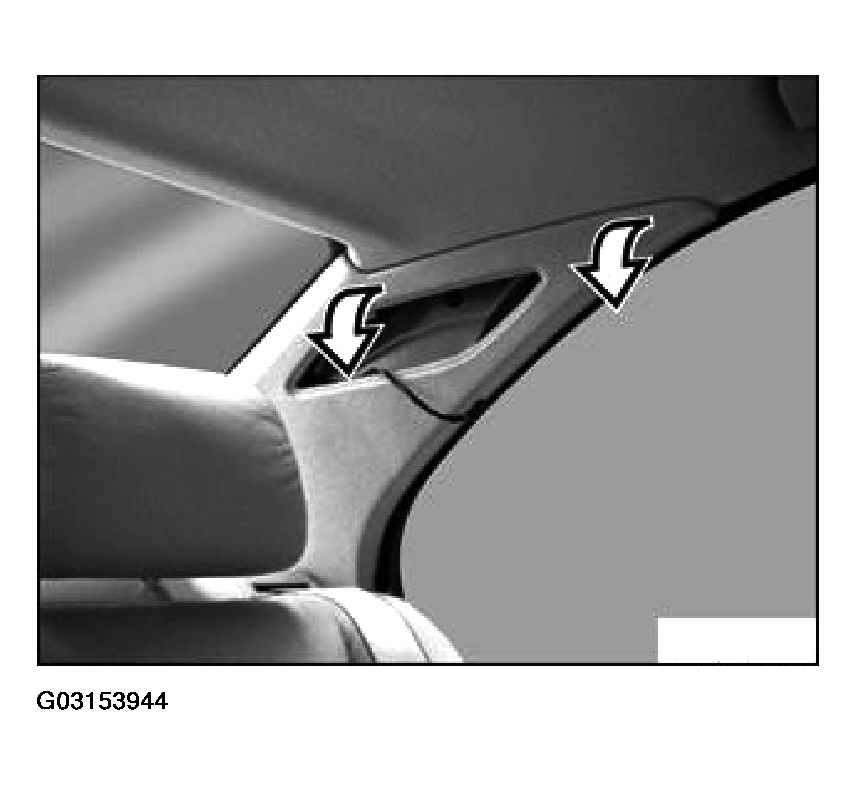

Pull trim upwards to unclip then inwards and upwards to remove.

Fig 3: Pulling Trim Upwards To Unclip Then Inwards And Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

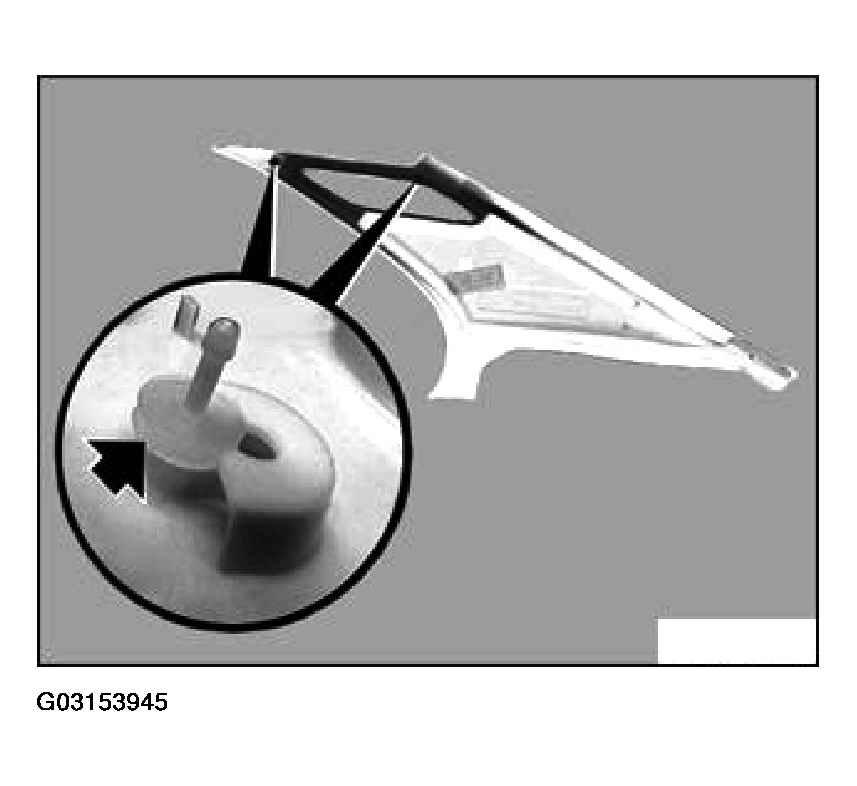

If necessary, replace damaged clips.

Only replace:

Remove insulating mat and cement to new trim panel.

Fig 4: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
