11 12 106 Removing and installing right cylinder head (M62 VANOS from 9/98)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 1 to 4)

Remove right exhaust manifold, refer to 11 62 065 REMOVING AND INSTALLING/REPLACING EXHAUST MANIFOLD, RIGHT (M62 VANOS FROM 9/98) .

Unfasten drain plug for coolant on right engine block.

Drain and dispose of coolant.

Installation

Replace sealing ring.

Tightening torque, refer to 11 11 5AZ in ENGINE - TIGHTENING TORQUES - 540i .

Top up coolant. Vent cooling system and check for leaks, refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

Remove both cylinder head covers, refer to 11 12 004 REMOVING AND INSTALLING/SEALING BOTH CYLINDER HEAD COVERS (M62) .

Remove spark plugs, refer to 12 12 011 REPLACING ALL SPARK PLUGS (M60, M62) .

Remove fan clutch with fan impeller, refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

Remove intake air manifold, refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M62) .

Remove coolant manifold, refer to 11 53 325 REMOVING AND INSTALLING/REPLACING COOLANT MANIFOLD (M62) .

Removal

Removal of cylinder head is described separately from installation.

Remove right camshaft adjustment unit, refer to 11 36 615 REMOVING AND INSTALLING/REPLACING RIGHT CAMSHAFT ADJUSTMENT UNIT (M62 VANOS FROM 9/98) .

E38/E39

Pull special tool 11 2 300 back until flywheel is no longer secured in position.

Fig 1: Installing Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

E53

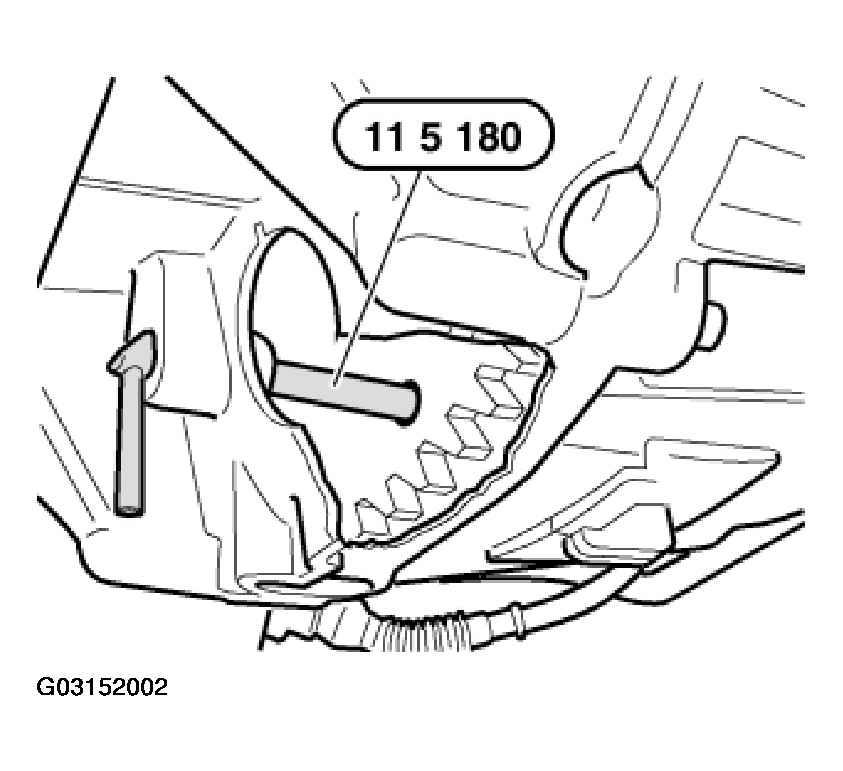

Pull back special tool 11 5 180 until flywheel is no longer secured in place.

Fig 2: Pulling Back Special Tool 11 5 180

Courtesy of BMW OF NORTH AMERICA, INC.

Lift timing chain and hold under tension.

NOTE: Note marks.

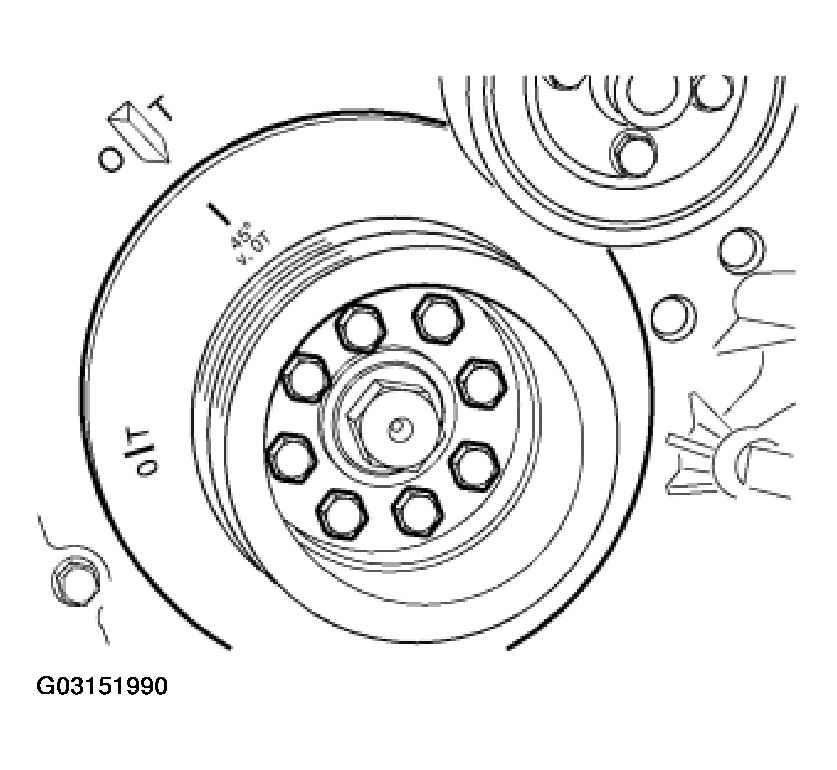

Crank engine at central bolt against direction of rotation to 45° before TDC position.

Fig 3: Cranking Engine At Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 2 444 / 443 / 445 / 441.

Fig 4: Removing Special Tools 11 2 444 / 443 / 445 / 441

Courtesy of BMW OF NORTH AMERICA, INC.

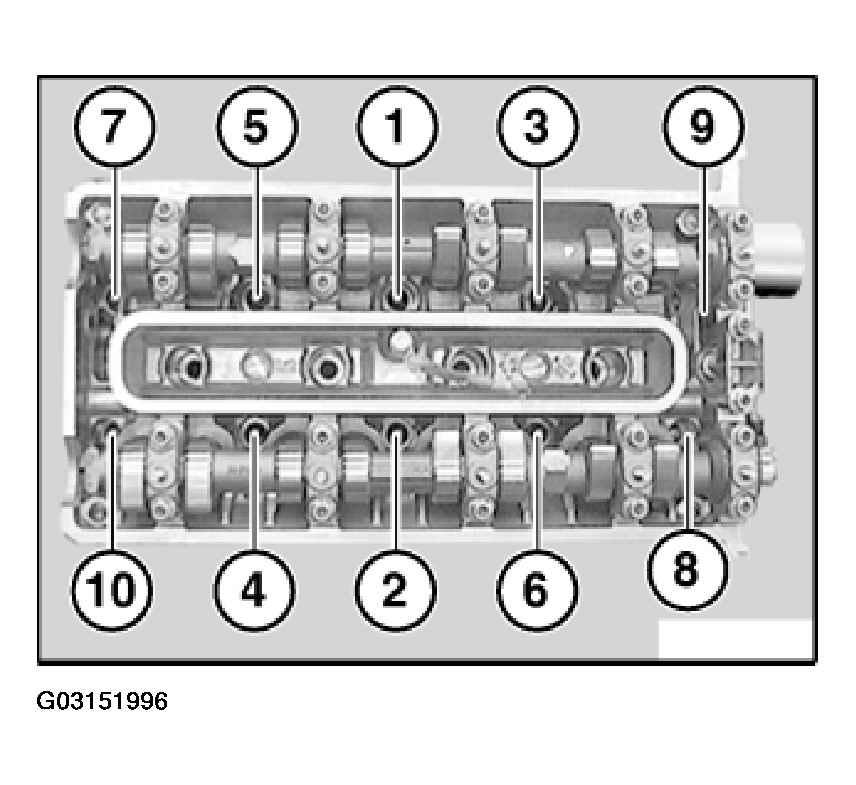

Release cylinder head bolts in sequence 10 to 1.

Lift off cylinder head.

Fig 5: Releasing Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Installation of cylinder head is described separately from removal.

Clean sealing faces of cylinder head and engine block, if necessary using wooden scraper to remove gasket debris. Ensure that no gasket debris drops into the oil and coolant ducts.

Threaded bores in engine block must be free of dirt and oil (danger of cracking).

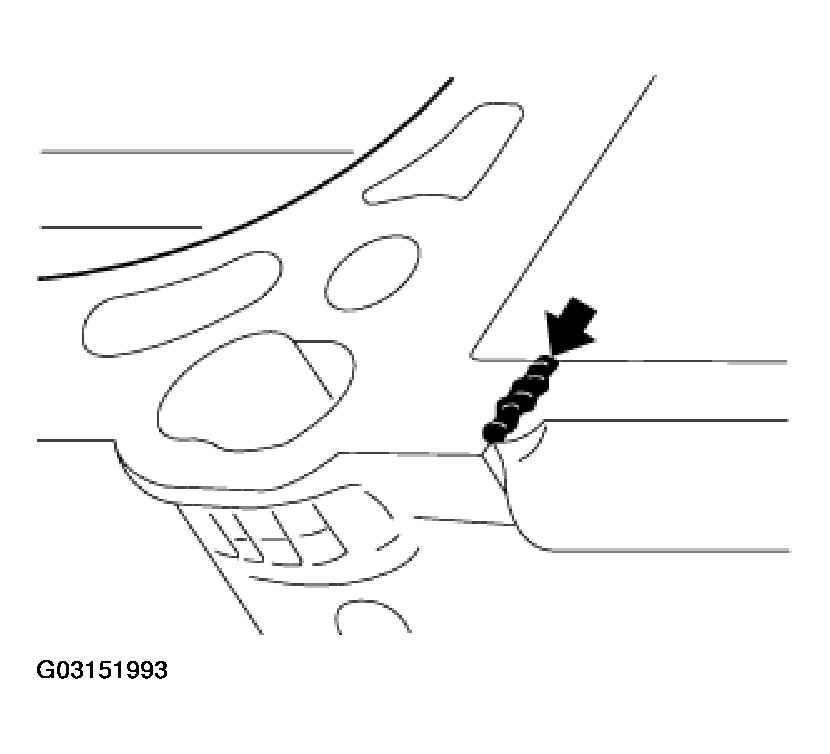

Coat joint between engine block and timing case cover with Drei Bond 1209.

Fig 6: Coating Joint Between Engine Block And Timing Case Cover With Drei Bond

Courtesy of BMW OF NORTH AMERICA, INC.

Check that dowel sleeves are undamaged and correctly located.

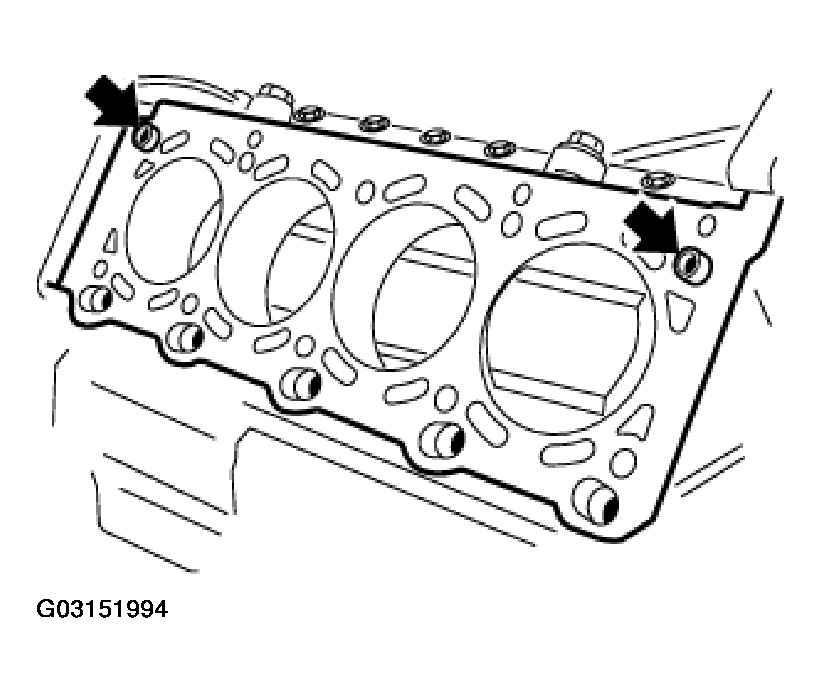

Place new cylinder head gasket in position.

Fig 7: Placing New Cylinder Head Gasket In Position

Courtesy of BMW OF NORTH AMERICA, INC.

Put the cylinder head on. Install new cylinder head bolts. Do not wash off bolt coating.

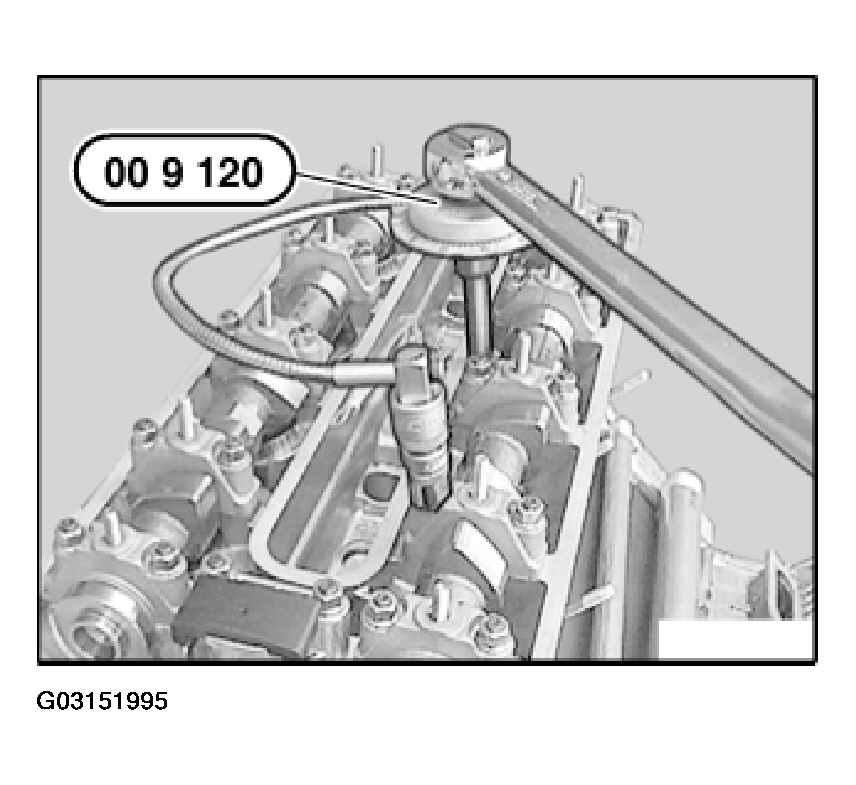

NOTE: Use special tool 00 9 120 for torsion angle tightening.

Fig 8: Using Special Tool 00 9 120 For Torsion Angle Tightening

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down cylinder head bolts in sequence 1 to 10.

Tightening torque, refer to 11 11 1AZ in ENGINE - TIGHTENING TORQUES - 540i .

Fig 9: Tightening Down Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage the cylinder head.

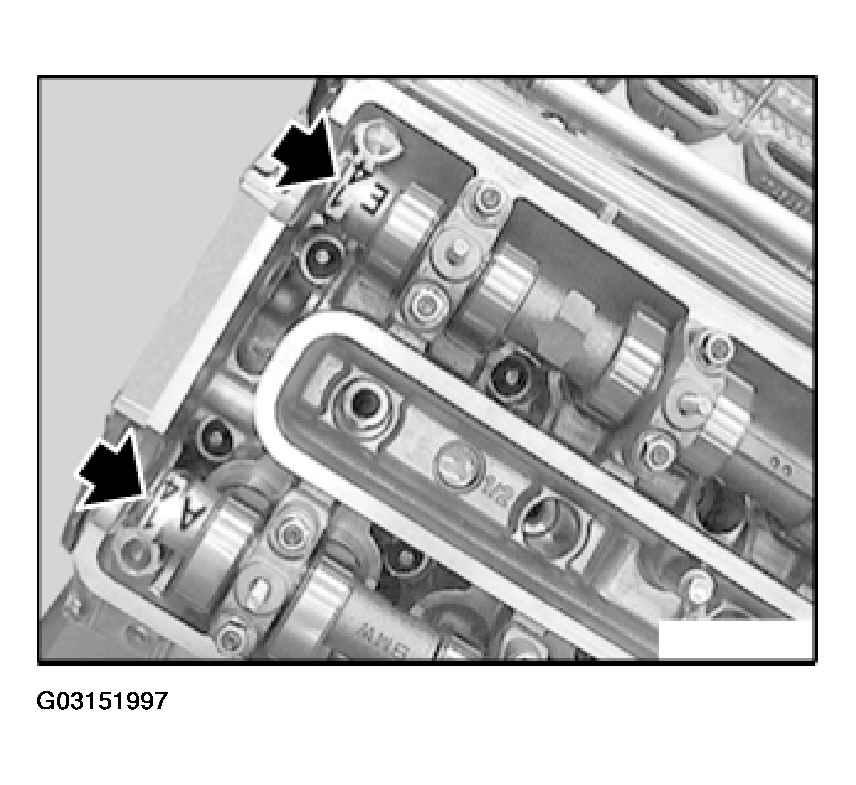

Rotate camshafts until camshaft markings face upwards.

Fig 10: Rotating Camshafts Until Camshaft Markings Face Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

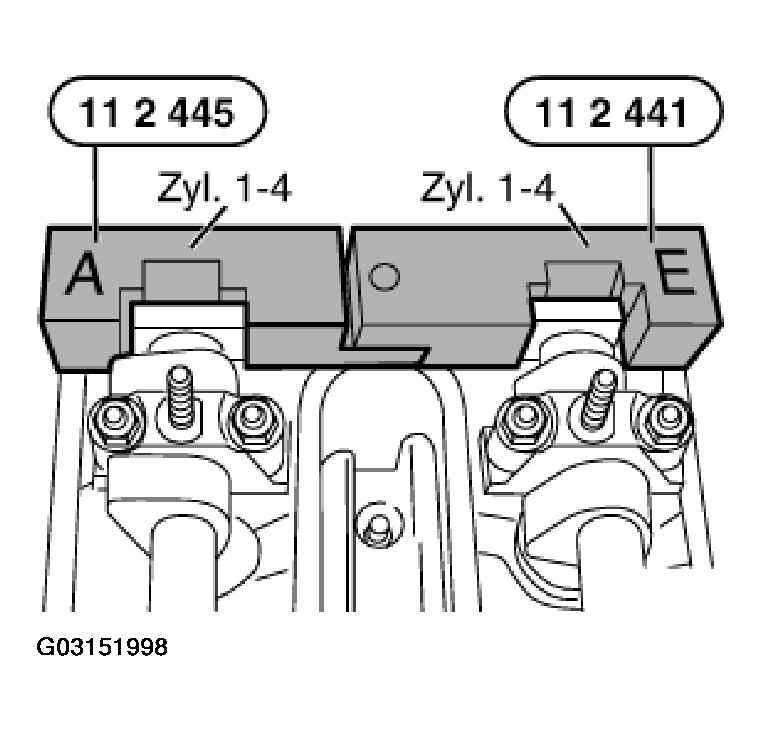

Fit special tool 11 2 445 / 441 to camshafts on cylinder bank 1 to 4.

Fig 11: Fitting Special Tool 11 2 445 / 441

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage the cylinder head.

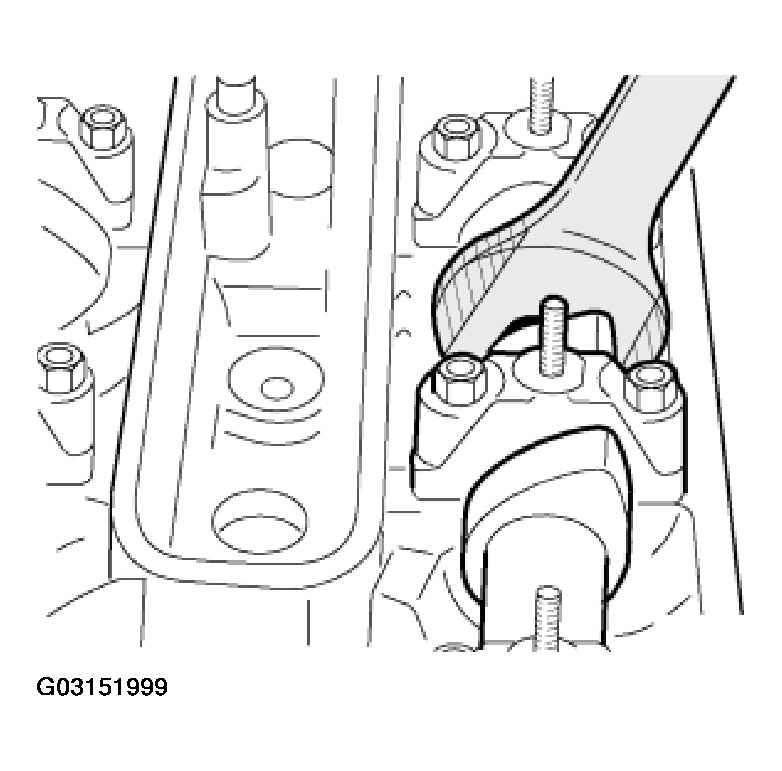

Align camshafts with an open-end wrench so that special tools 11 2 441 / 445 rest without a gap on the cylinder head.

Fig 12: Aligning Camshafts With An Open-End Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

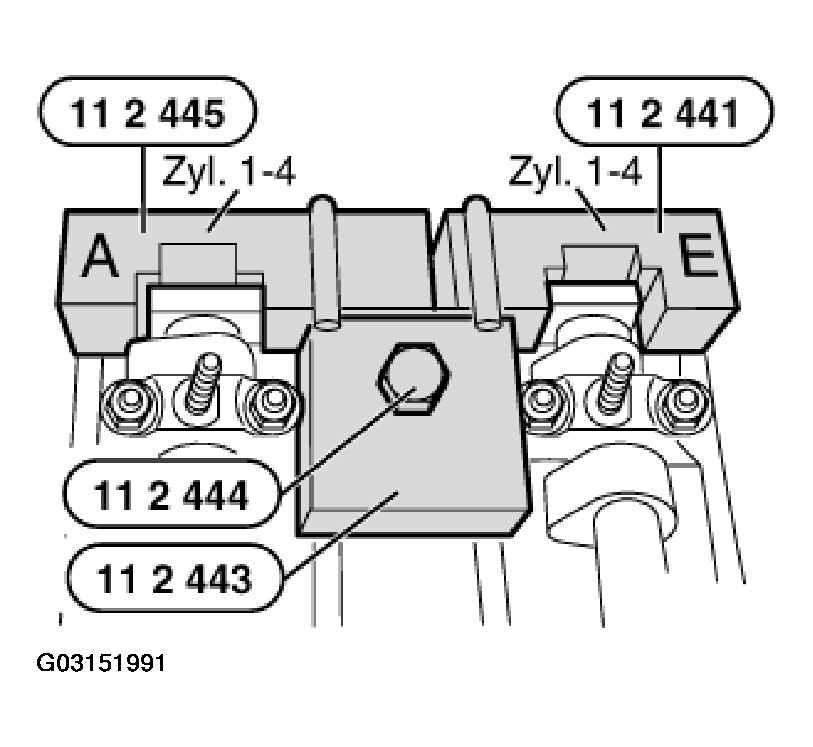

Fit special tool 11 2 443 to special tool 11 2 445 / 441 and secure with special tool 11 2 444 using the spark plug thread.

Fig 13: Fitting Special Tool 11 2 443

Courtesy of BMW OF NORTH AMERICA, INC.

E38/E39

Lift timing chain and hold under tension.

Crank engine from 45° before TDC position in direction of rotation up to TDC position.

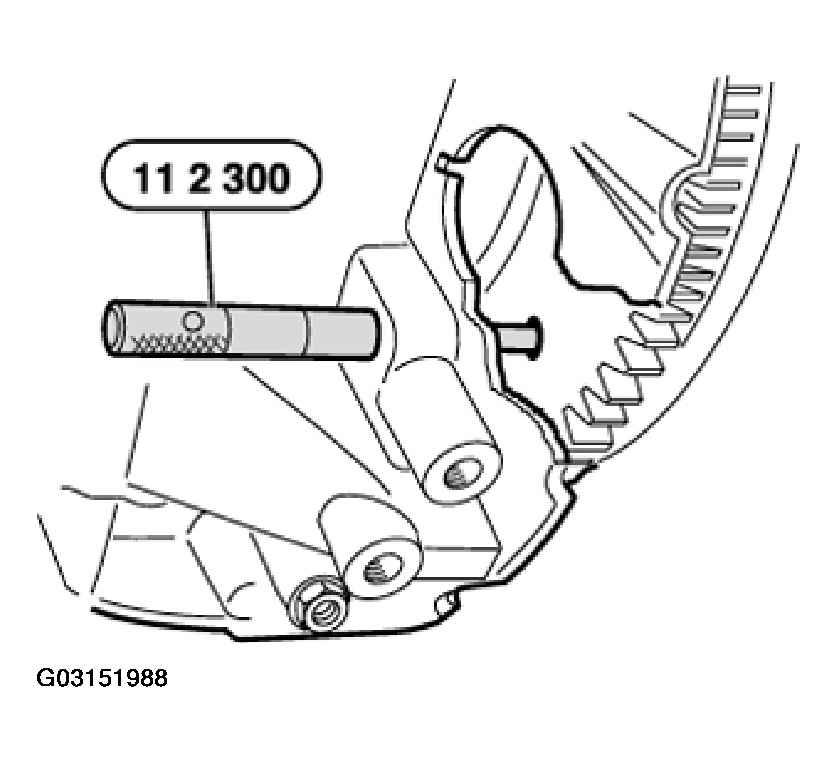

Hold crankshaft in TDC position with special tool 11 2 300.

CAUTION: Remove special tool 11 2 300 before starting engine.

Fig 14: Holding Crankshaft In TDC Position With Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

E53 (X5)

Lift timing chain and hold under tension.

Crank engine from 45° before TDC position in direction of rotation up to TDC position.

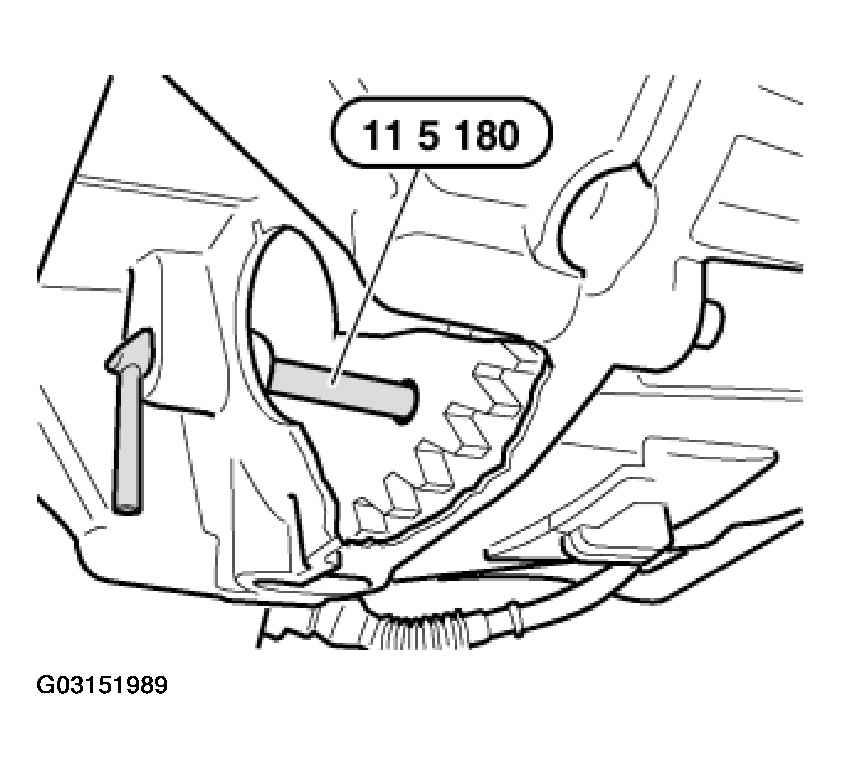

Secure crankshaft with special tool 11 5 180 in TDC position.

CAUTION: Remove special tool 11 5 180 before starting engine.

Fig 15: Securing Crankshaft With Special Tool 11 5 180 In TDC Position

Courtesy of BMW OF NORTH AMERICA, INC.

Install right camshaft adjustment unit, refer to 11 36 615 REMOVING AND INSTALLING/REPLACING RIGHT CAMSHAFT ADJUSTMENT UNIT (M62 VANOS FROM 9/98) .

Assemble engine.
