11 12 004 Removing and installing/sealing both cylinder head covers (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Note instructions on connecting and decoupling battery, refer to 12 00 INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect negative battery lead. See 12 00 INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Version 1

(acoustic cover screwed down)

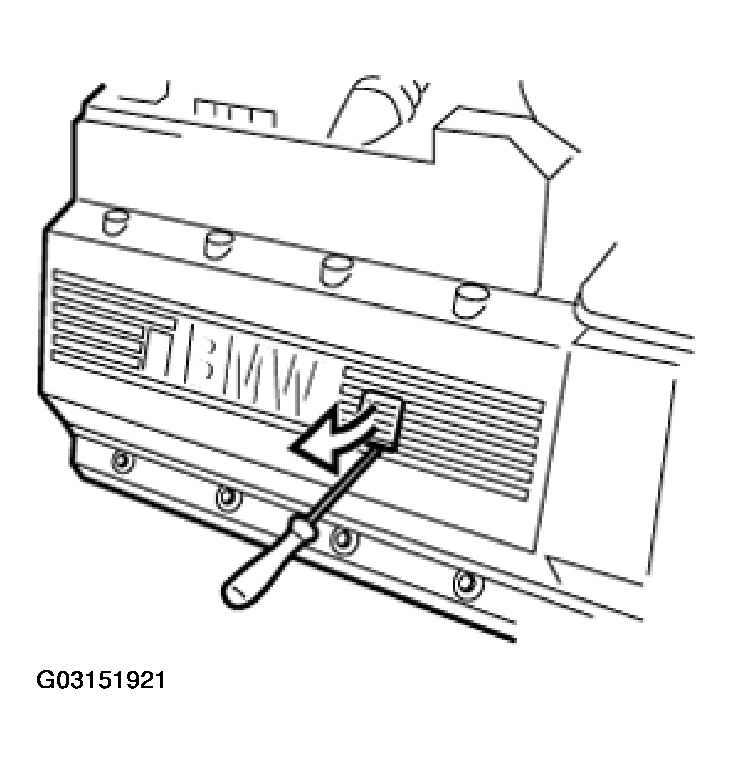

Pry out sealing cap. Unscrew nuts.

Remove acoustic cover.

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

(acoustic cover with press-stud fastener)

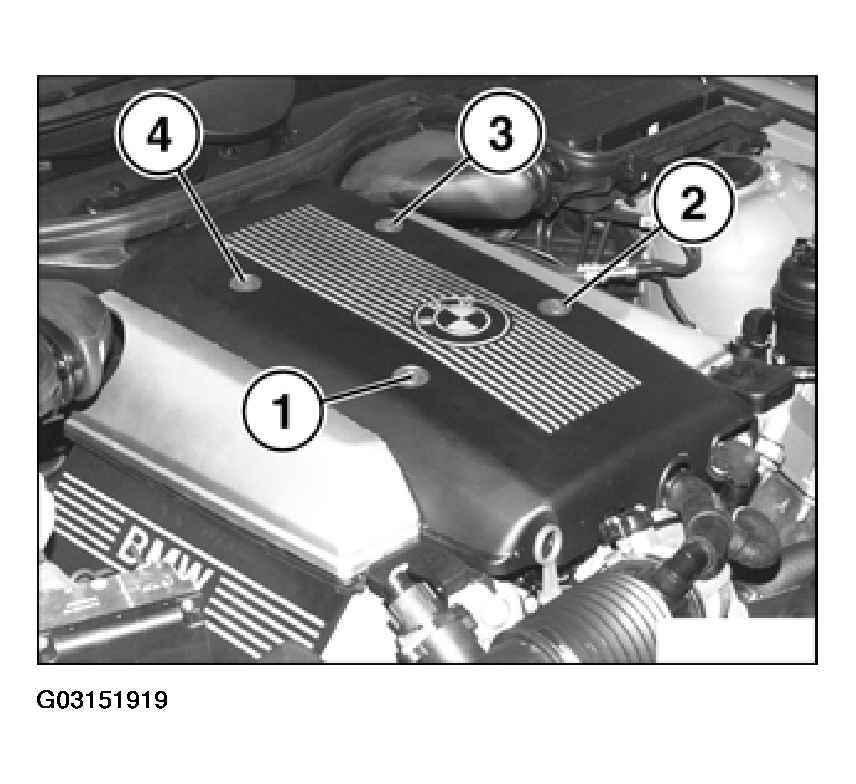

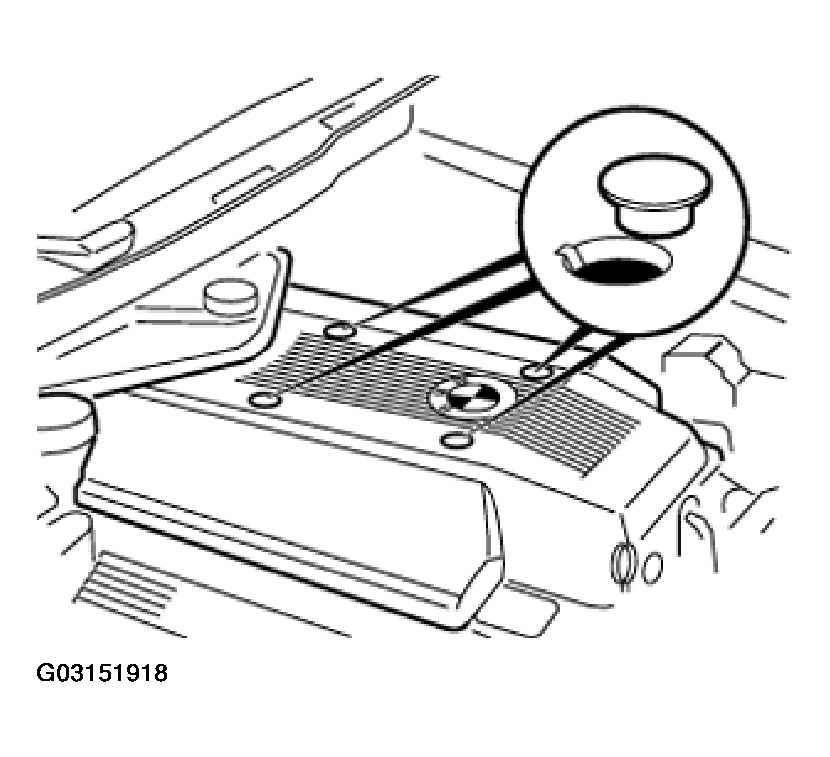

Open press-studs (1... 4) one at a time, at the same time lifting the acoustic cover slightly. Once all four press-studs have been opened, remove the acoustic cover.

Installation

Position acoustic cover and press downwards until press-studs (1... 4) click into place.

Fig 2: Opening Press-Studs

Courtesy of BMW OF NORTH AMERICA, INC.

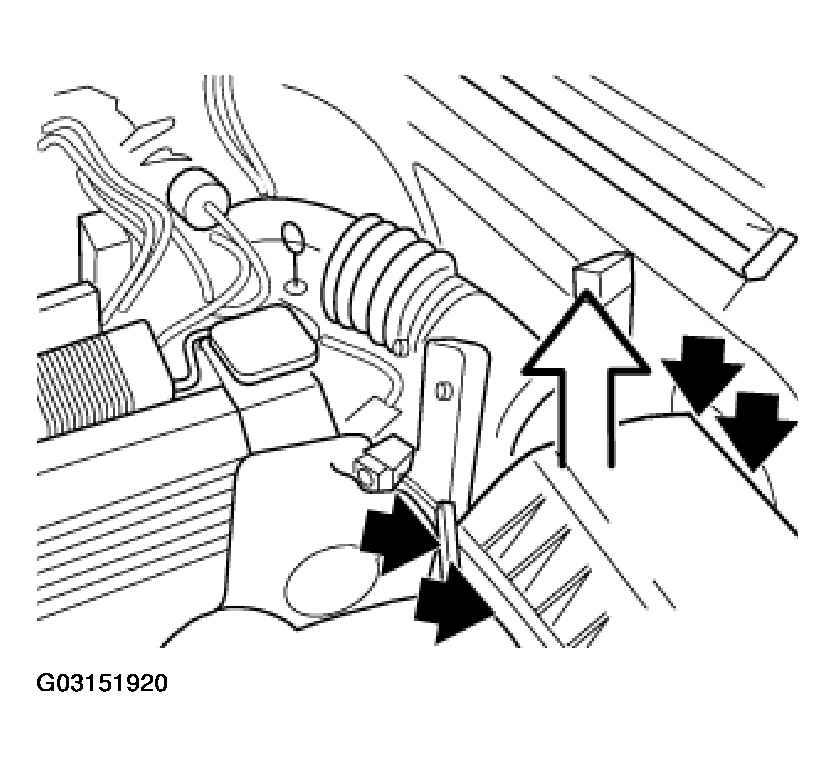

Remove suction-filter housing with air-mass sensor, refer to 13 71 000 REMOVING AND INSTALLING SUCTION-FILTER HOUSING (M60, M62) .

Fig 3: Removing Suction-Filter Housing With Air-Mass Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove covers from ignition coils.

Remove ignition coils, refer to 12 13 511 REPLACING IGNITION COIL (M60, M62) .

Fig 4: Removing Covers From Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

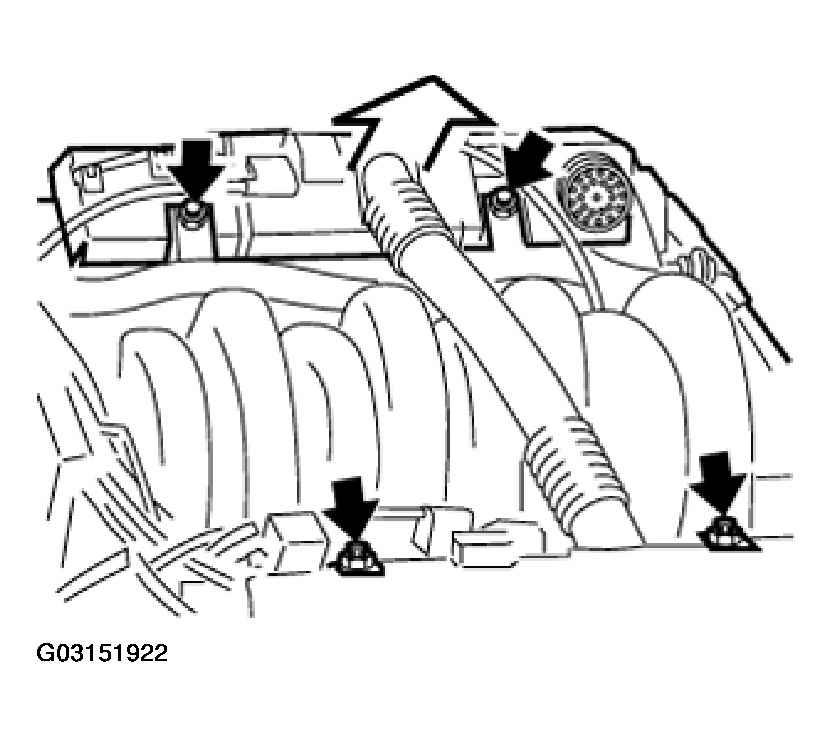

Unfasten left and right cable ducts and fold inwards.

NOTE: Note cable guide and plug connection to transmission control unit and to coolant manifold.

Fig 5: Unfastening Left And Right Cable Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

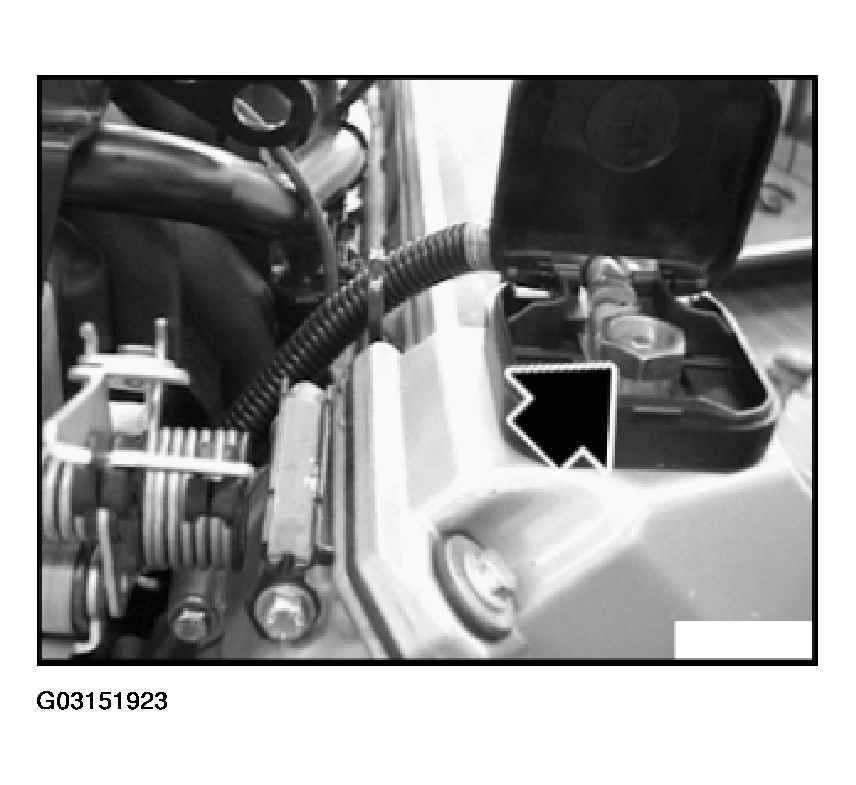

Unfasten positive battery terminal on battery support point. See 12 00 INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Fig 6: Unfastening Positive Battery Terminal On Battery Support Point

Courtesy of BMW OF NORTH AMERICA, INC.

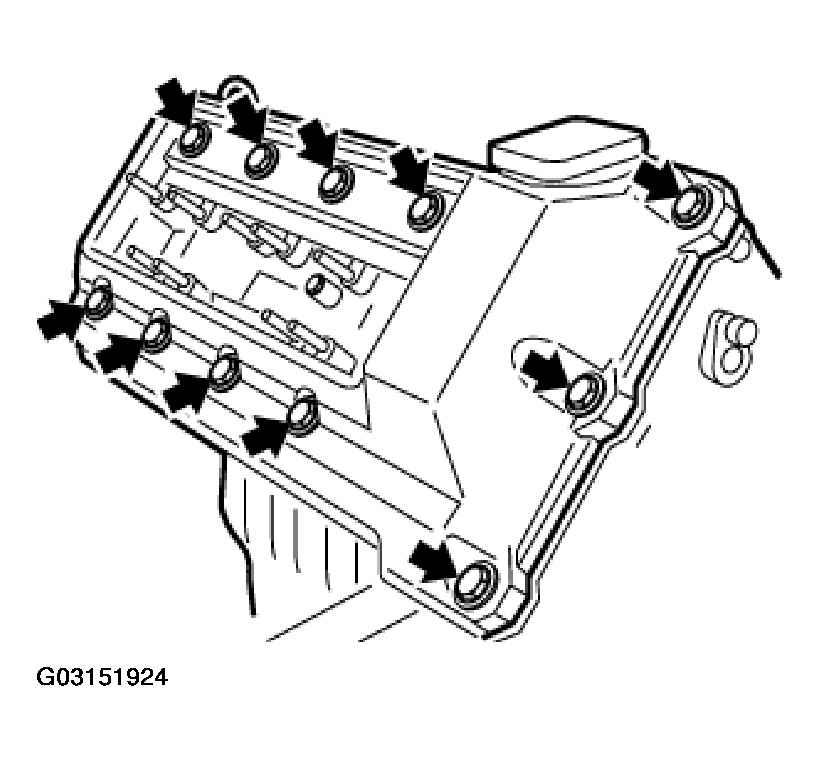

Unfasten retaining elements on left and right sides.

Fig 7: Unfastening Retaining Elements On Left And Right Sides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

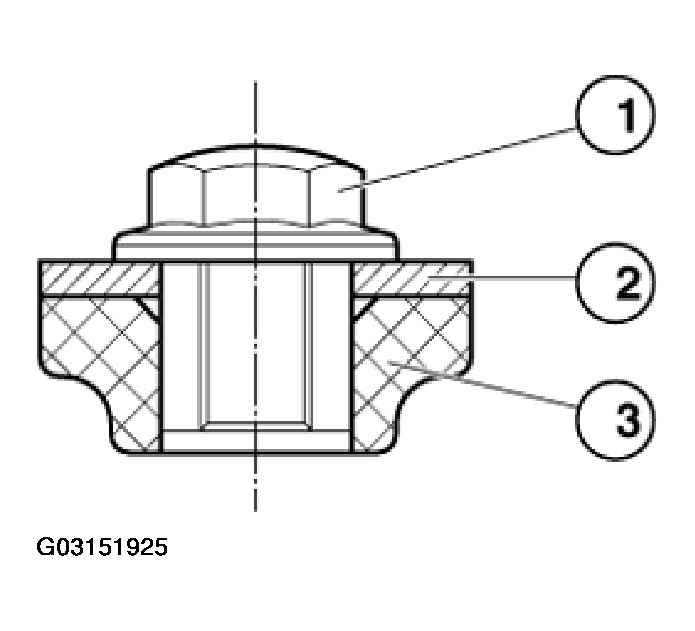

Layout of retaining elements:

Nut
Washer
Rubber mount

Fig 8: Identifying Nut, Washer, Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check seal, replace if necessary.

Coat outer and inner grooves and sealing face of cylinder head cover all round with anti-friction rubber coating, e.g. glycerine.

Press internal gasket into groove in cover without torsional stress, starting at the four corner radii.

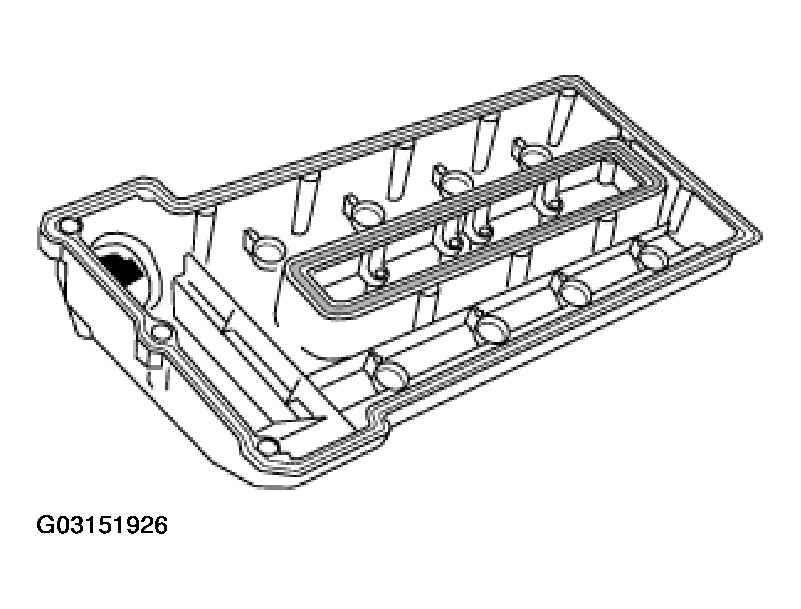

Fig 9: Identifying Cylinder Head Cover Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

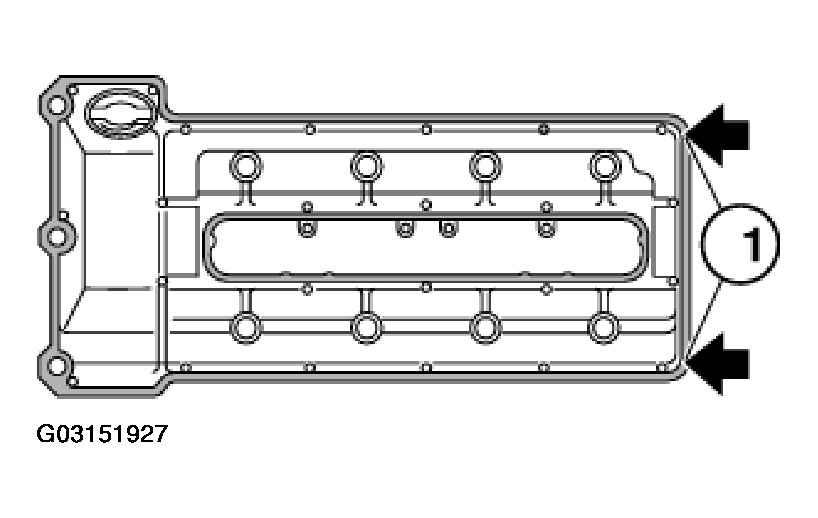

Align outer gasket loosely on groove in cover. Secure gasket in groove in cover, starting in the corner radii at the back (1) and locate without torsional stress in the groove.

Fig 10: Identifying Radii At Back

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Clean gasket residue from sealing surface.

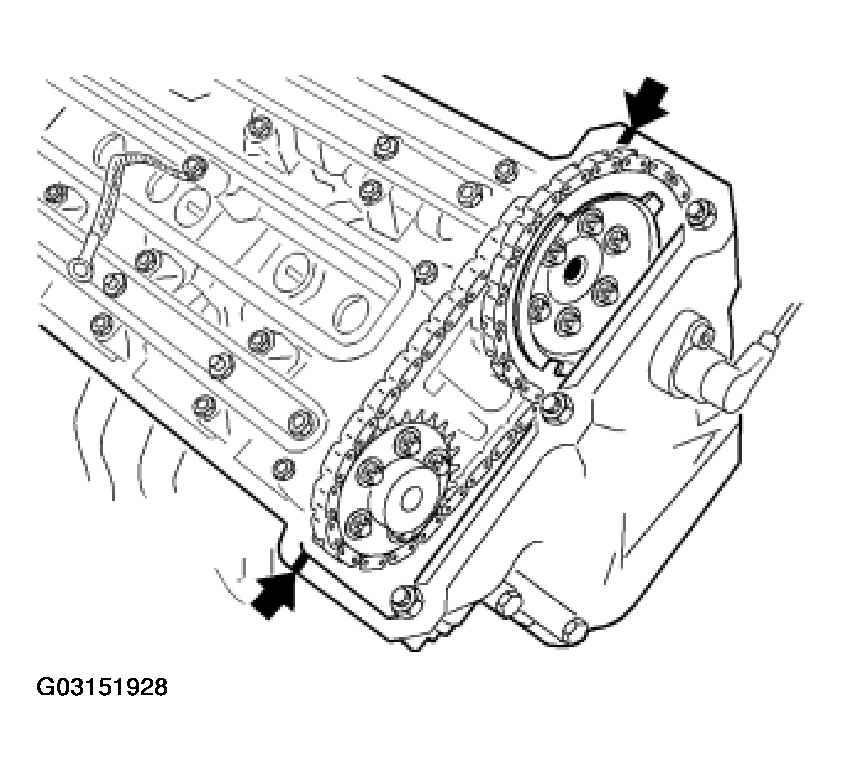

Apply coat of Drei Bond 1209 (refer to contact surfaces of joint.

Fig 11: Applying Coat Of Drei Bond

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Clean gasket residue from sealing surface.

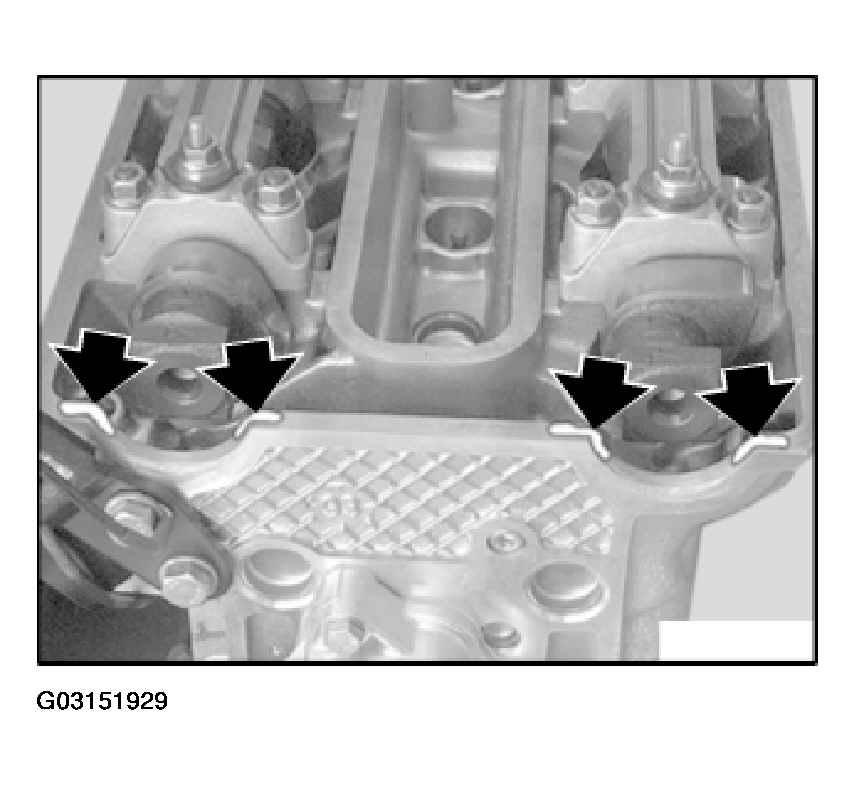

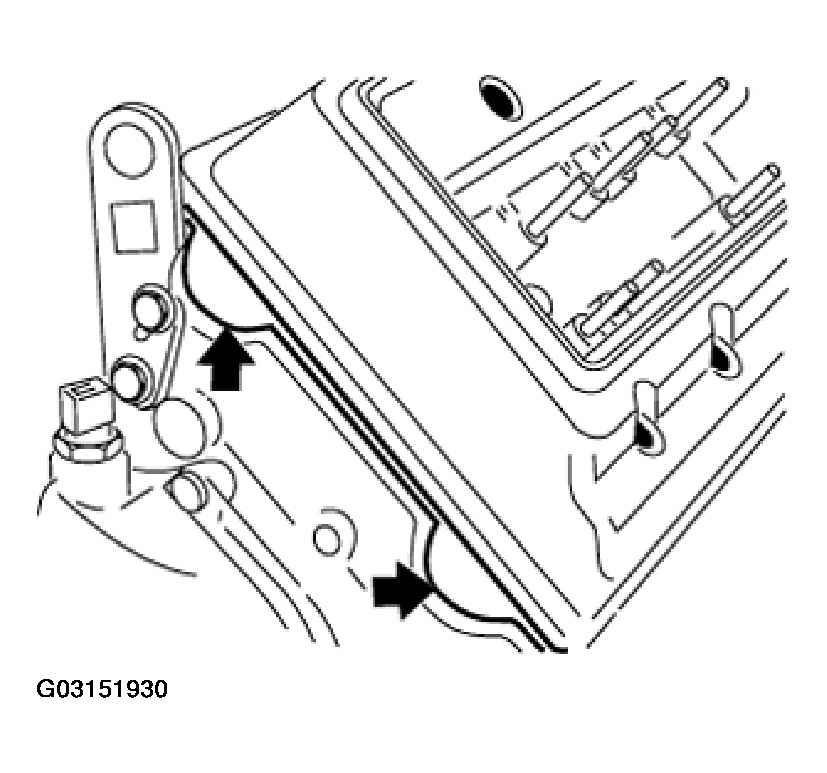

Apply thin, uniform bead of Drei Bond 1209 to transmission area on half-moon sections.

Fig 12: Applying Thin, Uniform Bead Of Drei Bond

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check that side of gasket is correctly seated and check back of cylinder head.

Fig 13: Checking Side Of Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

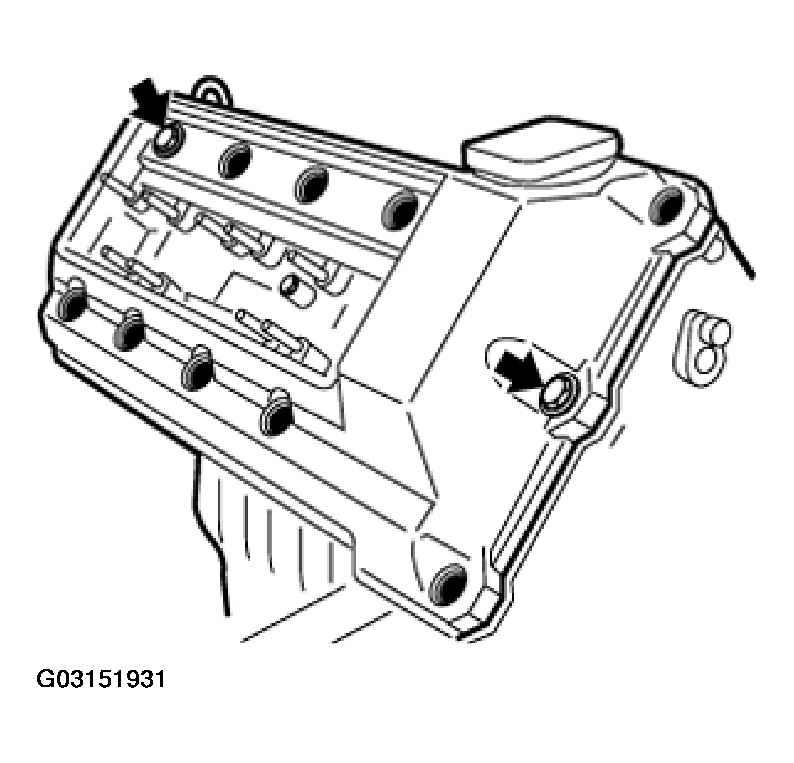

Screw two retaining elements to the locating points, without preload at this stage, and align the cover. Install all other retaining elements and tighten crosswise from inside to outside.

Fig 14: Screwing Two Retaining Elements To Locating Points

Courtesy of BMW OF NORTH AMERICA, INC.
