11 53 325 Removing and installing/replacing coolant manifold (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Installation

Replace sealing ring.

Tightening torque, refer to 11 11 5AZ in ENGINE - TIGHTENING TORQUES - 540i .

Top up coolant. Vent cooling system and check for leaks,

Refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

E38:

To improve accessibility to coolant manifold, lift water valve out of mounting and press to one side.

NOTE: Illustration with engine removed.

Remove all coolant hoses from coolant manifold.

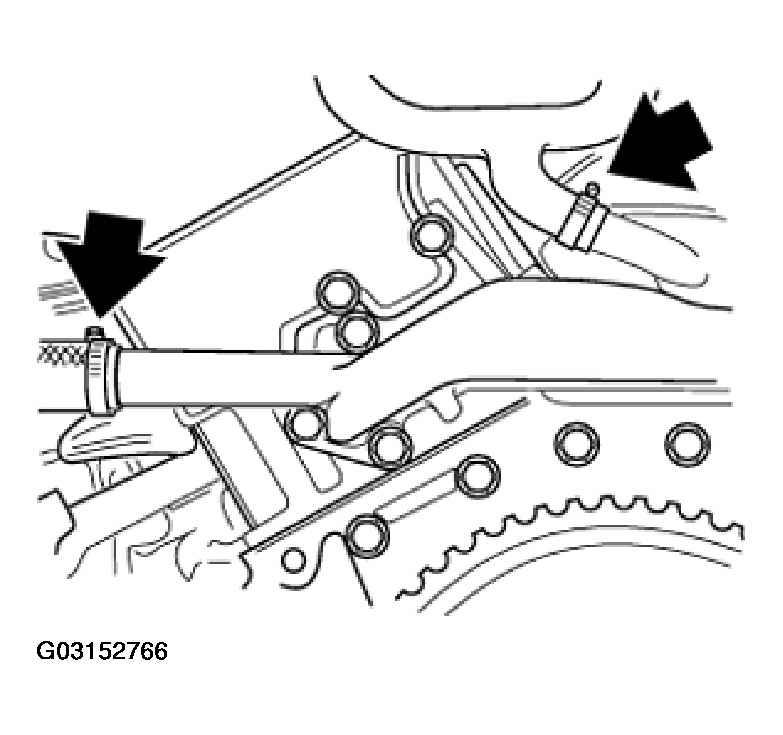

Fig 1: Identifying Coolant Hoses Attached With Coolant Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration with engine removed.

Unfasten left and right screw connection on coolant manifold.

Installation

Clean sealing faces and replace seals and sealing rings.

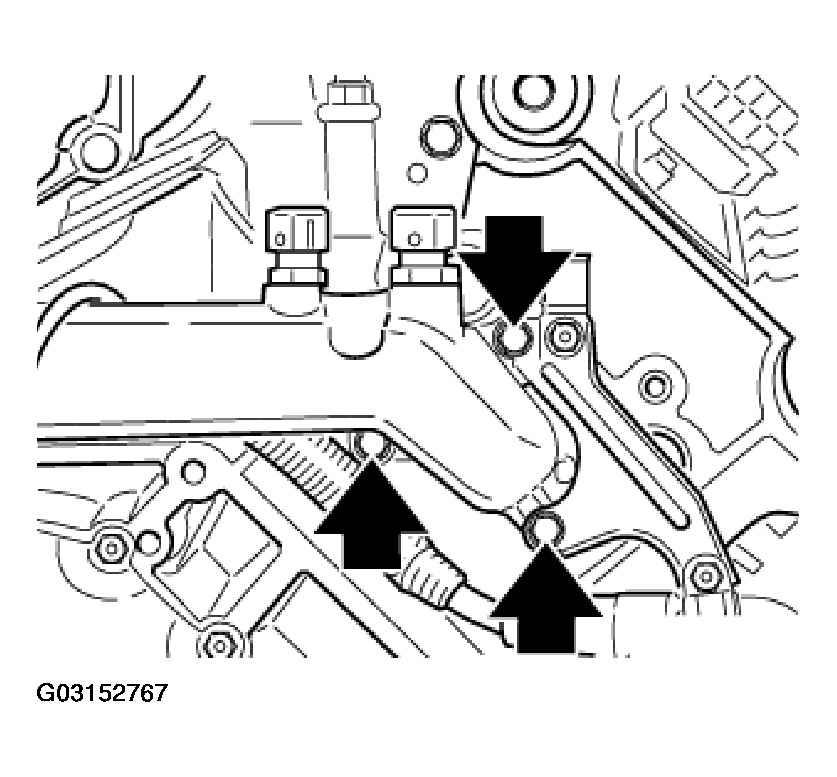

Fig 2: Unfastening Left And Right Screw Connection On Coolant Manifold
