Replacing Center Section Of Front Bumper (Support Beam):

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete front bumper, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

Remove holder for license plate, refer to 51 11 158 REPLACING BASEPLATE FOR LICENCE PLATE .

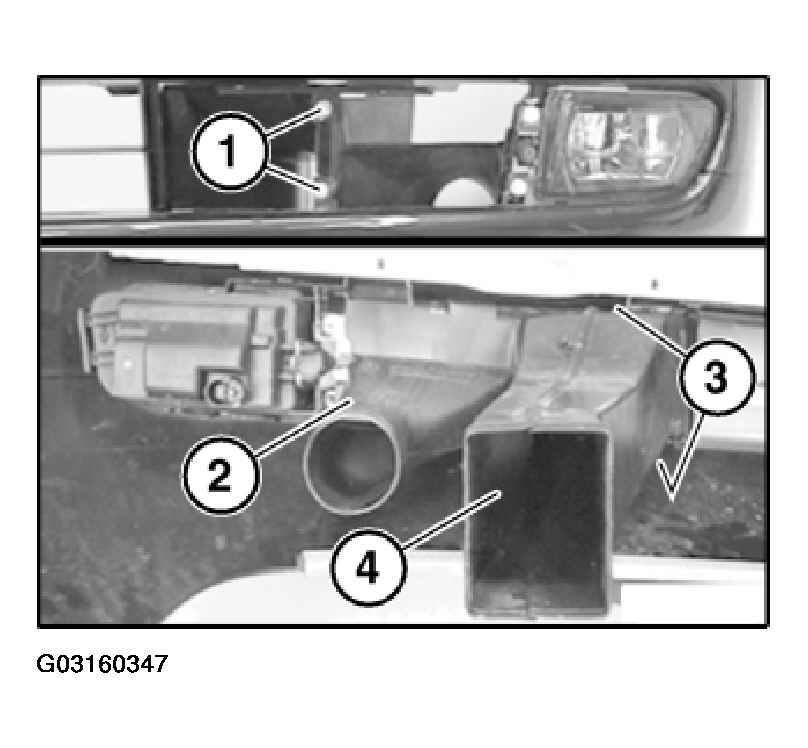

Unfasten screws (1) and lift off air guide (2). In addition, lever air duct (4) on left/right out of clips (3) and remove.

Fig 1: Removing Air Guides & Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

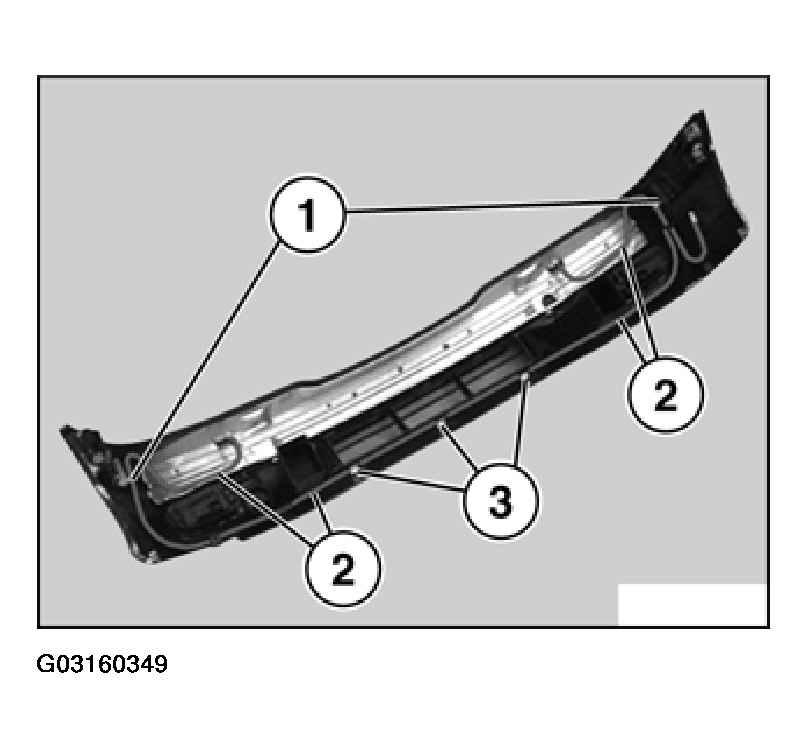

Lever out expansion rivets (1) and (2) and remove bumper carrier towards rear.

Fig 2: Removing Bumper Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Lift out expanding rivets (2) by pulling inwards with pincers.

Version With Headlight Cleaning System:

If necessary, remove both jet nozzles of headlamp cleaning system. Refer to 61 67 045 REMOVING AND INSTALLING/REPLACING SPRAY NOZZLES FOR LEFT OR RIGHT HEADLIGHT CLEANING SYSTEM .

If necessary, remove complete water hose.

Installation :

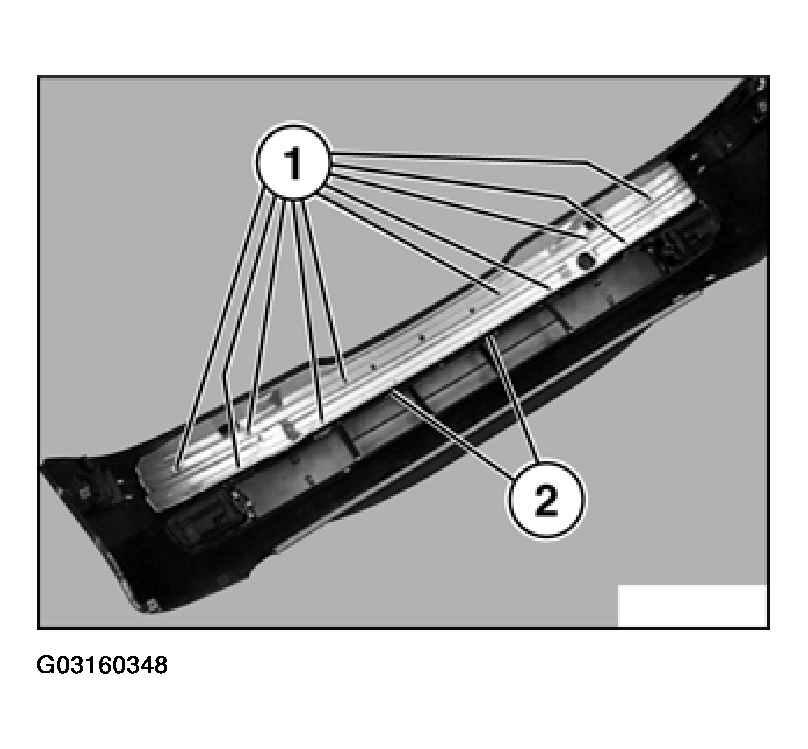

Route water hose under plastic tabs (3).

Fig 3: Removing Headlamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work for "Replacing front bumper center section (carrier)" ends here.
