51 11 158 Replacing baseplate for licence plate

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew and remove licence plate.

Remove both body moldings, refer to 51 11 170 REPLACING BODY MOLDING FOR LEFT OR RIGHT BUMPER .

If necessary, lever out expanding wedges (1) at top.

Lever out license plate holder at bottom and remove towards front/top.

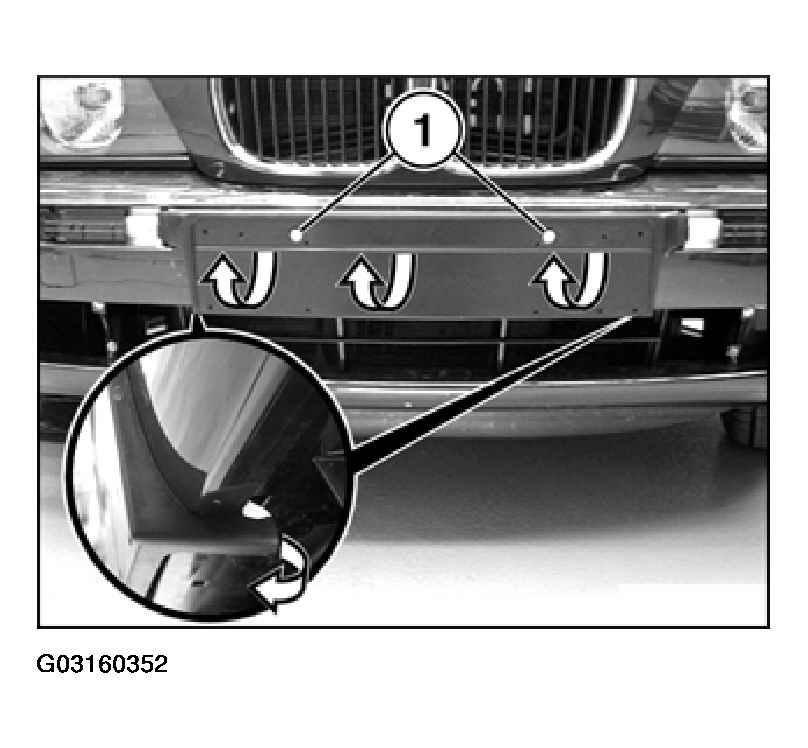

Fig 1: Levering Out License Plate Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Lever chrome strip (1) out of clips (2) of body molding and remove.

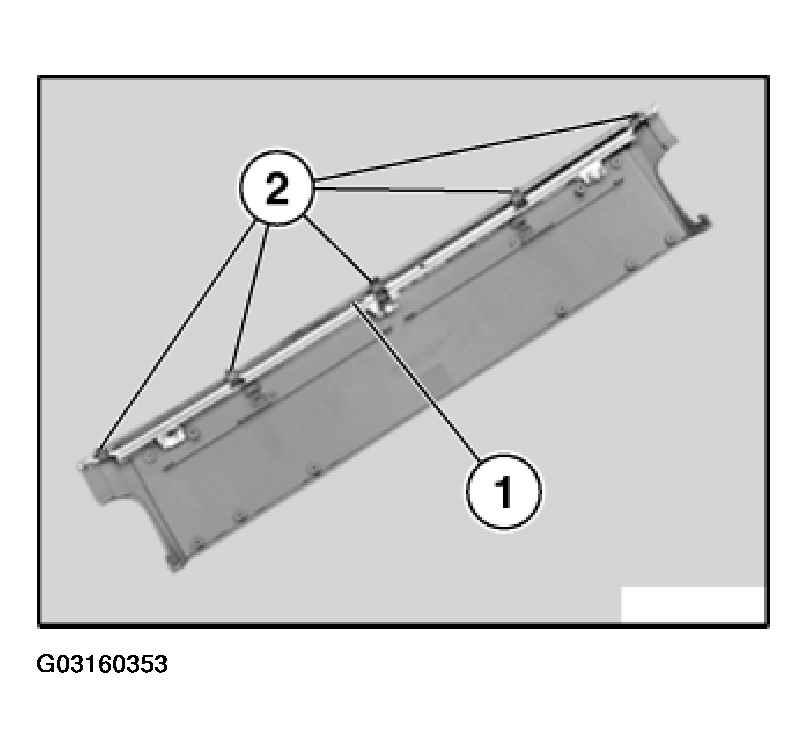

Fig 2: Levering Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 08/2000:

Installation :

Catches (1) to (3) of holder (4) must not be damaged.

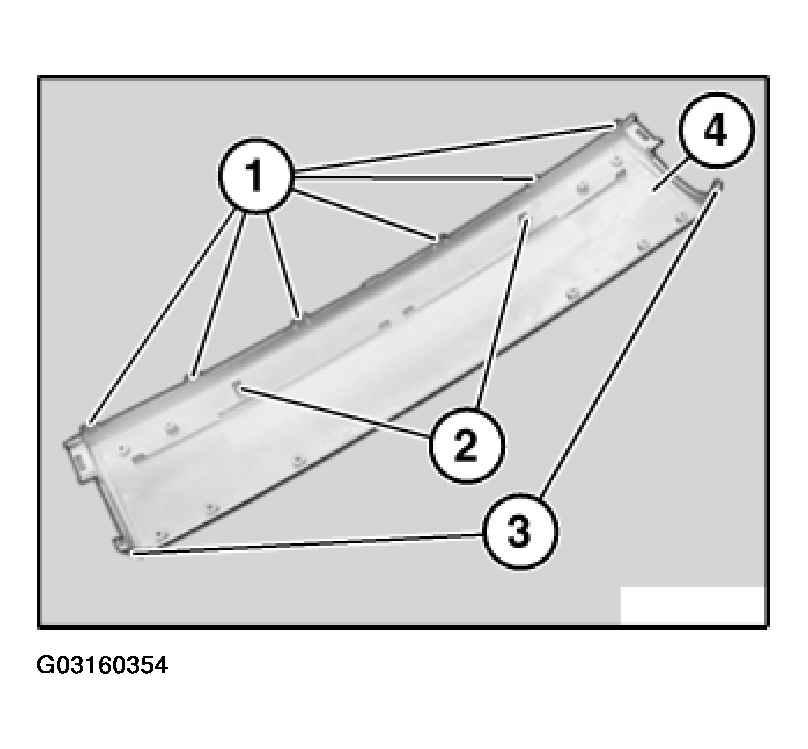

Fig 3: Use Care Not To Damage Holder

Courtesy of BMW OF NORTH AMERICA, INC.
