51 11 000 Removing and installing complete front bumper

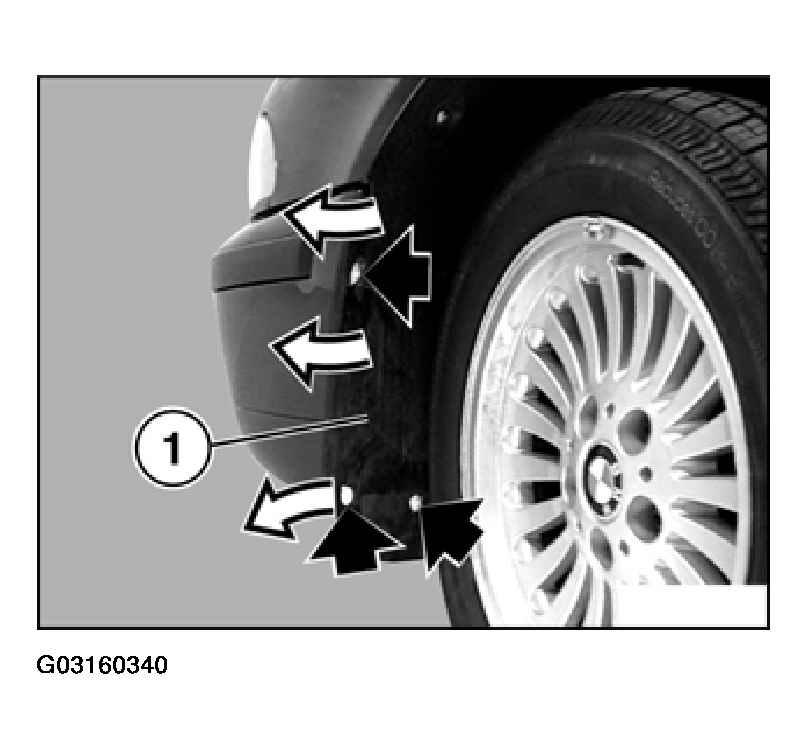

Unfasten left/ right screws and lift out wheel arch finishers (1) from side.

Fig 1: Removing Wheel Arch Finishers

Courtesy of BMW OF NORTH AMERICA, INC.

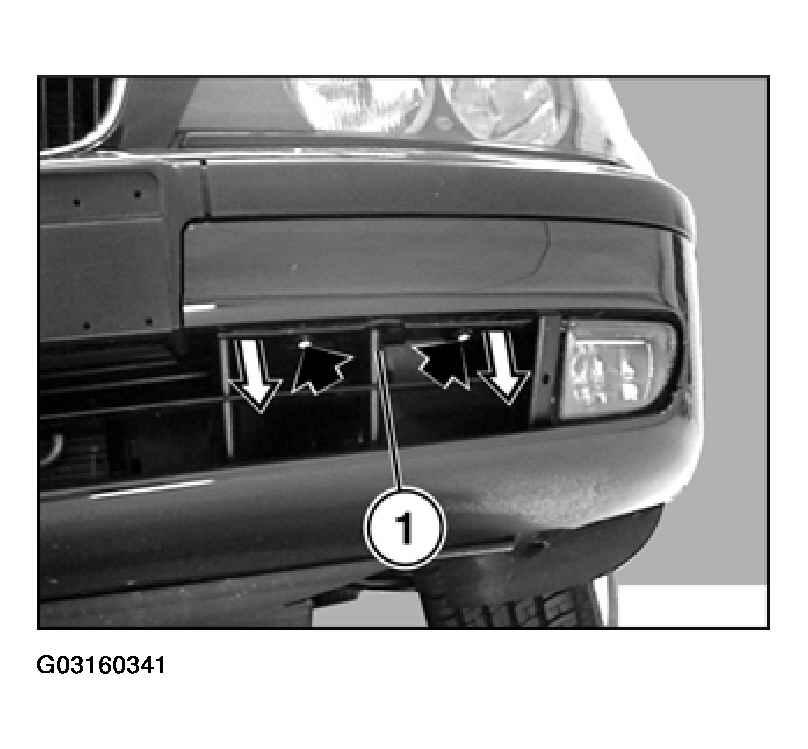

Lever out expansion rivets on left/right and remove grill (1).

Fig 2: Removing Grill

Courtesy of BMW OF NORTH AMERICA, INC.

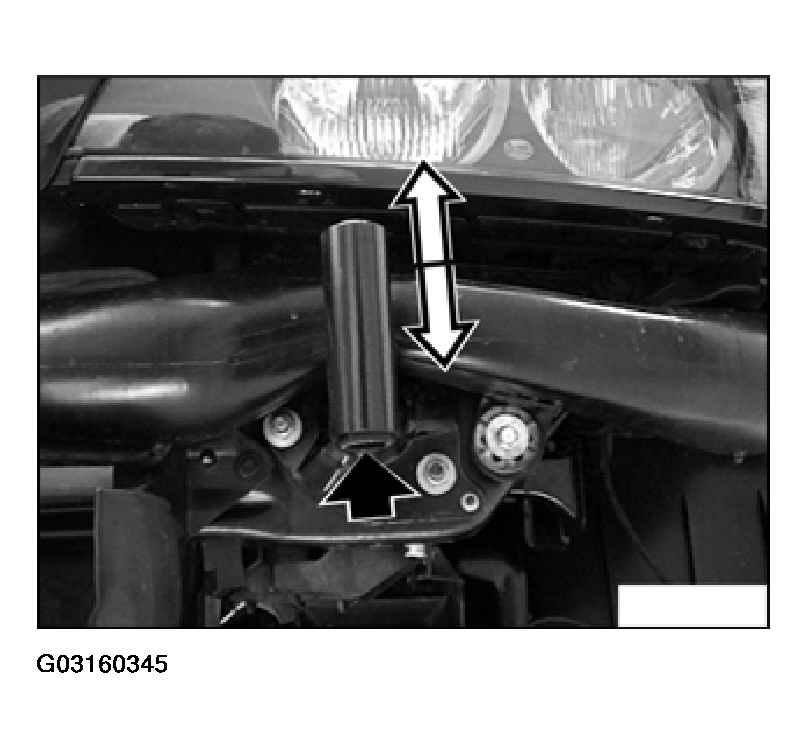

Release screws on impact absorber on left/right.

Installation  :

Tightening torque, refer to 51 11 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: Releasing Screws On Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

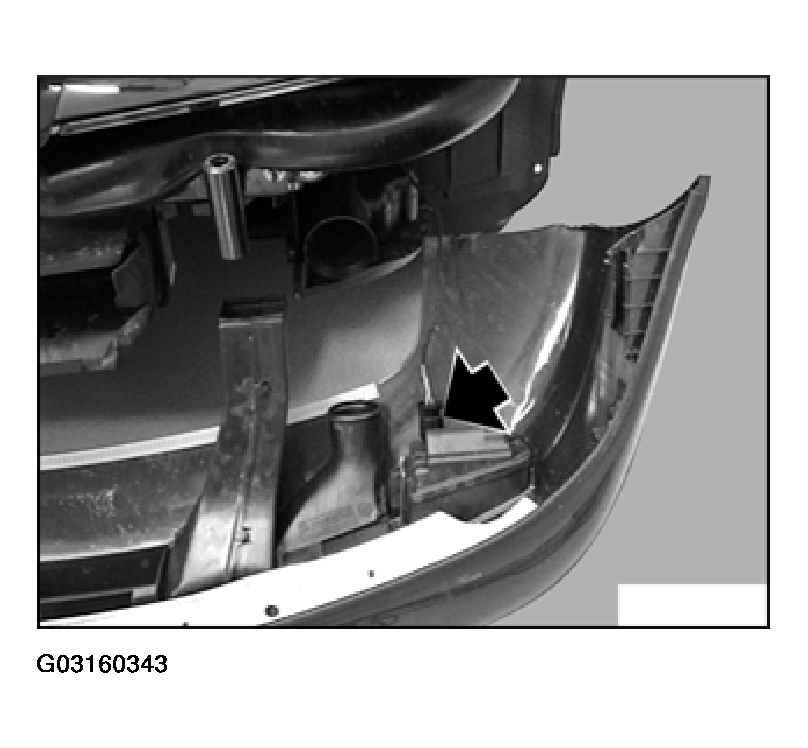

Version With Park Distance Control (PDC) And/Or Fog Lamps:

Pull bumper back a little.

Disconnect plug connection for fog lamps and/or PDC on left/right.

Remove bumper.

Fig 4: Disconnect Plug Connection For Fog Lamps & Remove Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

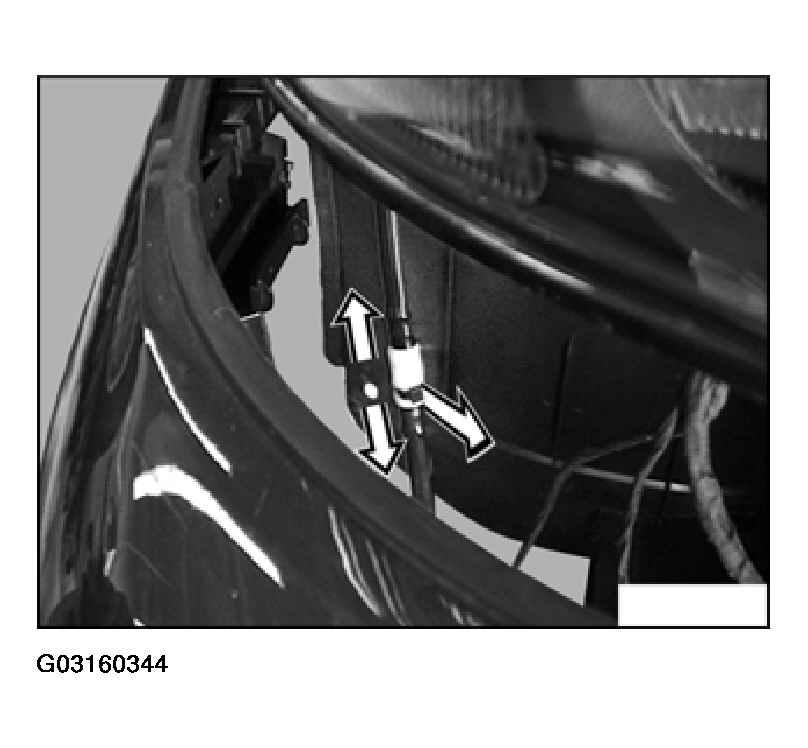

Version With Headlight Cleaning System:

Pull bumper back a little:

Detach lock and disconnect hose connection.

Remove bumper.

Fig 5: Disconnecting Detach Lock And Hose & Remove Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation  :

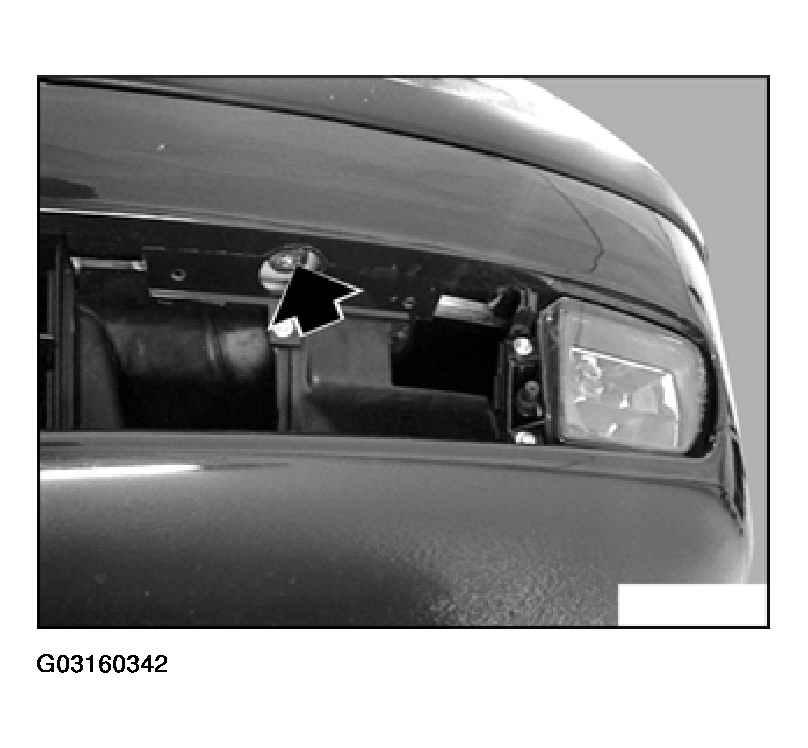

The height of the bumper is adjusted by turning the socket head cap screw.

Fig 6: Locating Socket Head Cap Screw For Bumper Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

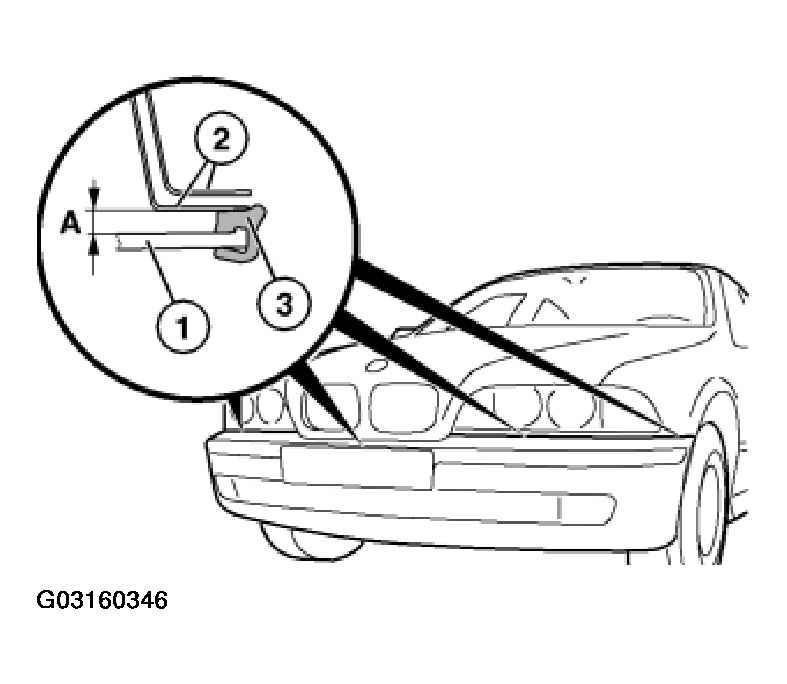

Ideal adjustment:

Distance (A) must be the same all around between the bumper and body cutout.

Dimension (A) = 5 +/- 1 mm

Fig 7: Identifying Bumper Height Adjustment
