61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front bumper, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

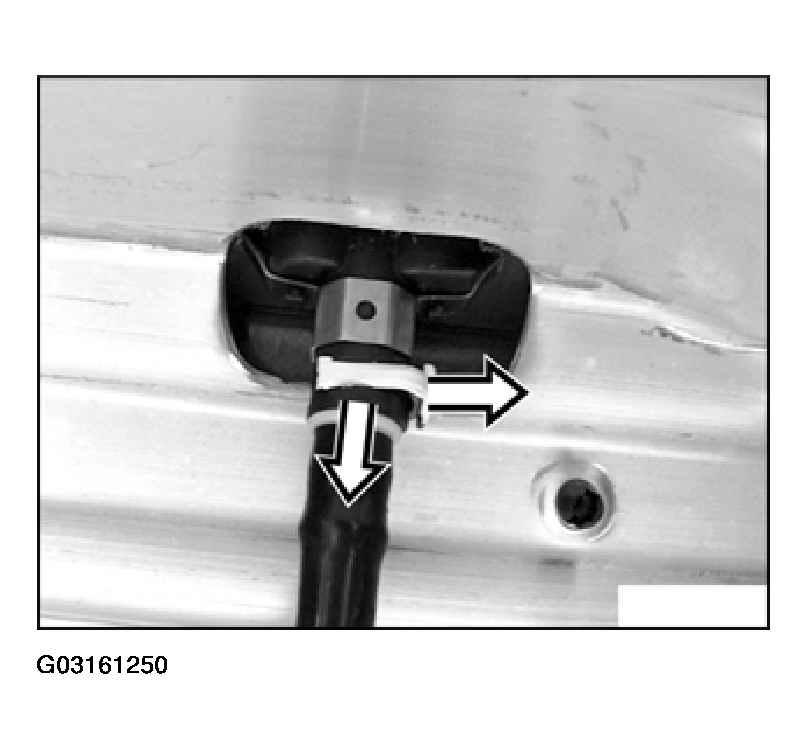

Slide clip to one side and remove line.

Fig 1: Removing Line

Courtesy of BMW OF NORTH AMERICA, INC.

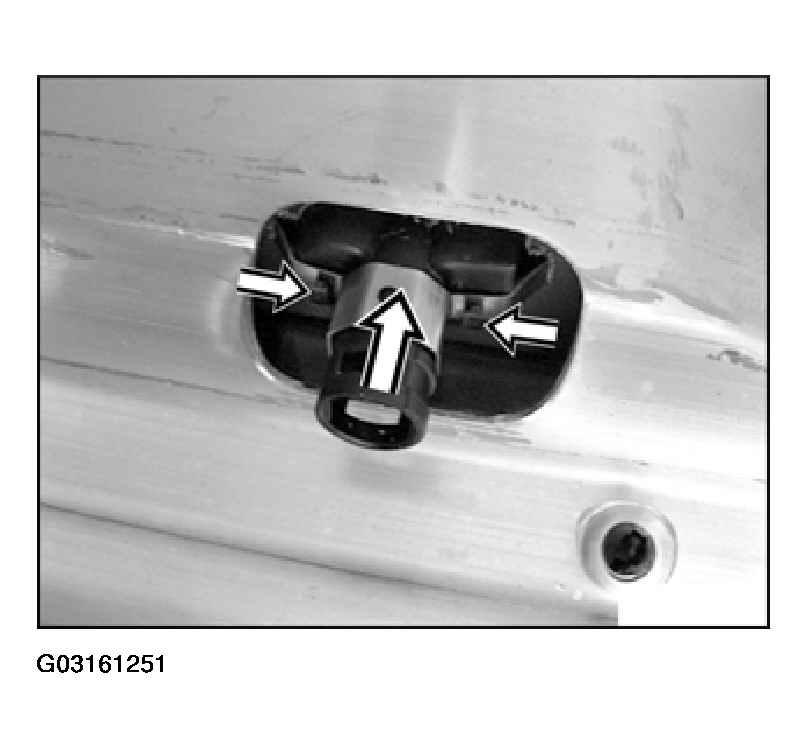

Press together clips and slide spray nozzle upwards.

Fig 2: Removing Spray Nozzles

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note.

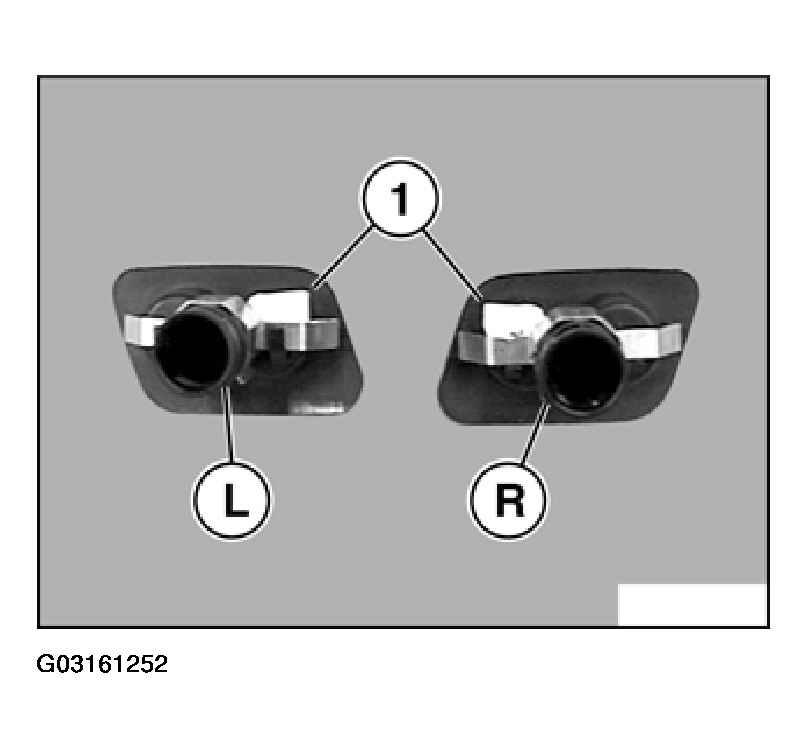

Do not confuse spray nozzles. The lugs (1) point towards the center grill on the car. Nozzles are designated with R and L.

Fig 3: Identifying Spray Nozzles

Courtesy of BMW OF NORTH AMERICA, INC.
