63 12 008 Removing and installing/replacing left or right headlight (xenon headlight, from 07/2004)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Detach spray nozzle of headlight cleaning system. Refer to 61 67 045 REMOVING AND INSTALLING/REPLACING SPRAY NOZZLES FOR LEFT OR RIGHT HEADLIGHT CLEANING SYSTEM .

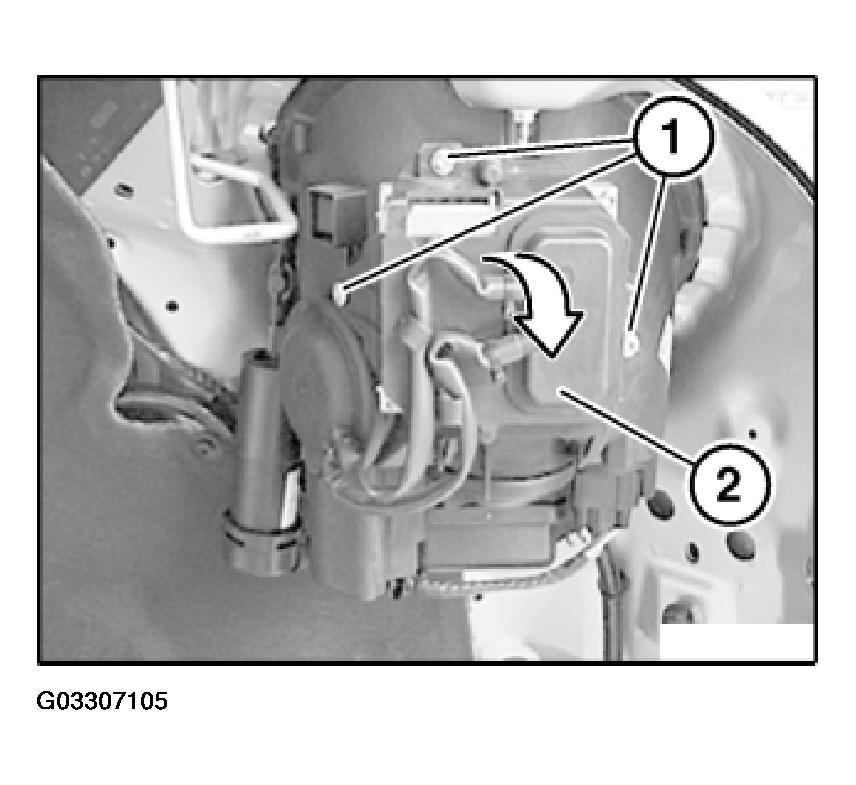

Release screws (1) and fold down control unit holder (2).

Fig 1: View Of Control Unit Holder

Courtesy of BMW OF NORTH AMERICA, INC.

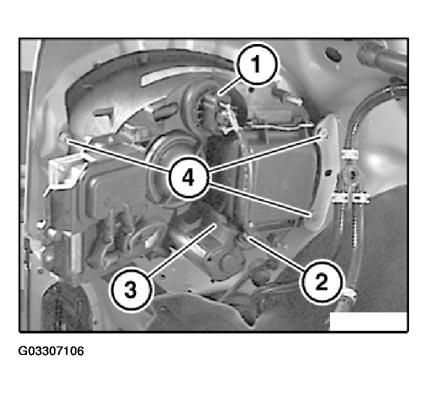

Unfasten plug connection (1) and disconnect.

Release wiring harness retaining clip (2).

Release nuts (4) and remove headlight (3).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove lamp for xenon light. Refer to 63 99 078 REPLACING BULB FOR LEFT OR RIGHT XENON HEADLIGHT (FROM 07/2004) .
Remove halogen bulb for high-beam headlight Refer to 63 99 001 REPLACING HALOGEN BULB FOR LEFT OR RIGHT HIGH-BEAM HEADLIGHT .

Installation:

Adjust headlights. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
