63 99 001 Replacing halogen bulb for left or right high-beam headlight
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

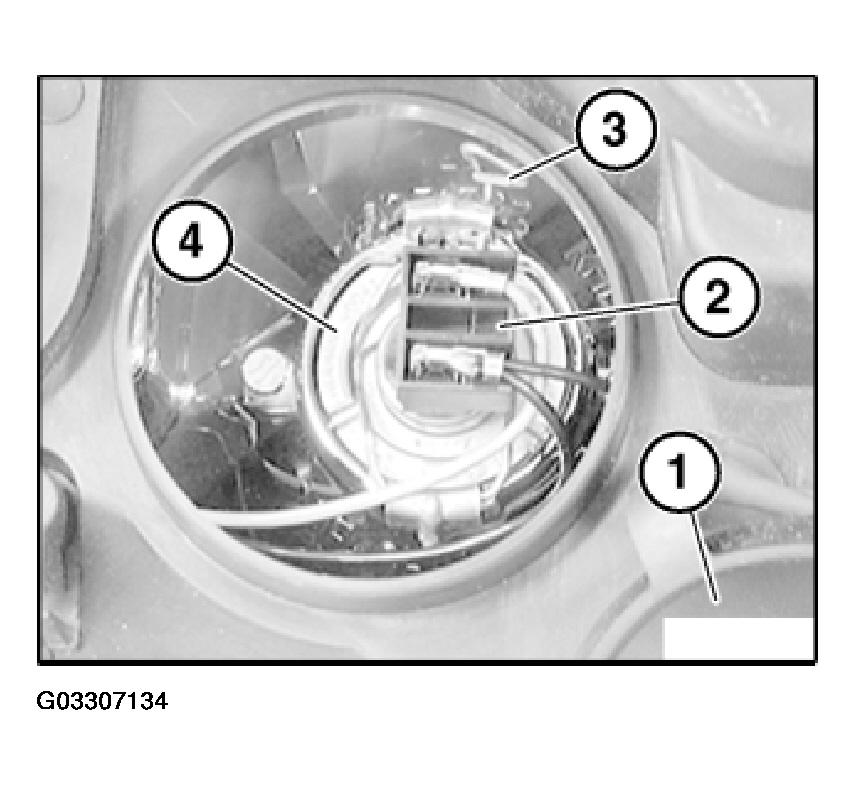

Remove cover (1) of halogen bulb for high-beam headlight.
Up to 07/2004:
Release lock (3) and remove halogen bulb for high-beam headlight (4) from headlight.
From 07/2004:
Unclip halogen bulb for high-beam headlight (4) towards rear from catch.
All:
Disconnect plug connection (2) and remove halogen bulb for high-beam headlight (4).
Installation:
Make sure halogen bulb for high-beam headlight (4) is correctly seated.
Installation:
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .
