63 10 004 Adjusting headlights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see LIGHTS - SPECIAL TOOLS - COOPER (1.6L) R50/W1 .

Special Tools Required:

63 2 100

NOTE: Comply with test preconditions for headlight adjustment. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

NOTE: Illustrations show the right headlight.

Adjust headlights at adjusting screws (1) and (2).

Adjusting screw for vertical aiming.
Adjusting screw for lateral aiming.

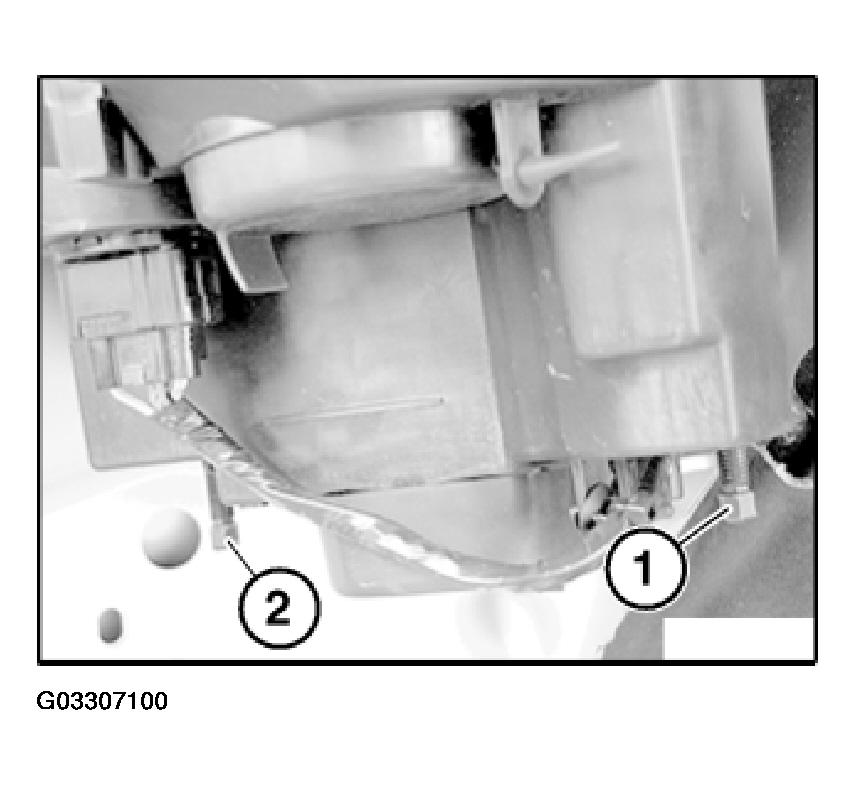

Fig 1: Identifying Headlight Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Open hood/bonnet.

Attach special tool 63 2 100 to adjusting screw (1).

Lock special tool 63 2 100 by pushing in direction of arrow on adjusting screw (1).

Close hood/bonnet and make sure special tool 63 2 100 is correctly laid between hood/bonnet and wheel arch trim (3).

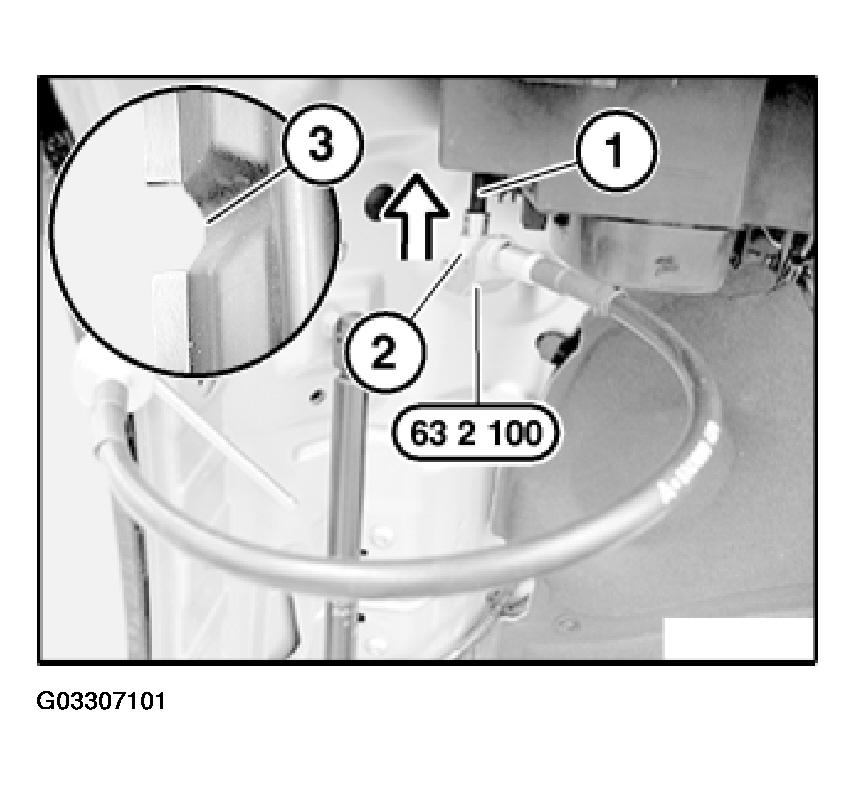

Fig 2: View Of Headlight Adjusting Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust headlight by turning special tool 63 2 100.

NOTE: Secure knurled wheel (1) when turning special tool 63 2 100.

Vertical adjustment:
- Clockwise = higher.
- Counterclockwise = lower.
Lateral adjustment:

Clockwise = to right.
Counterclockwise = to left.

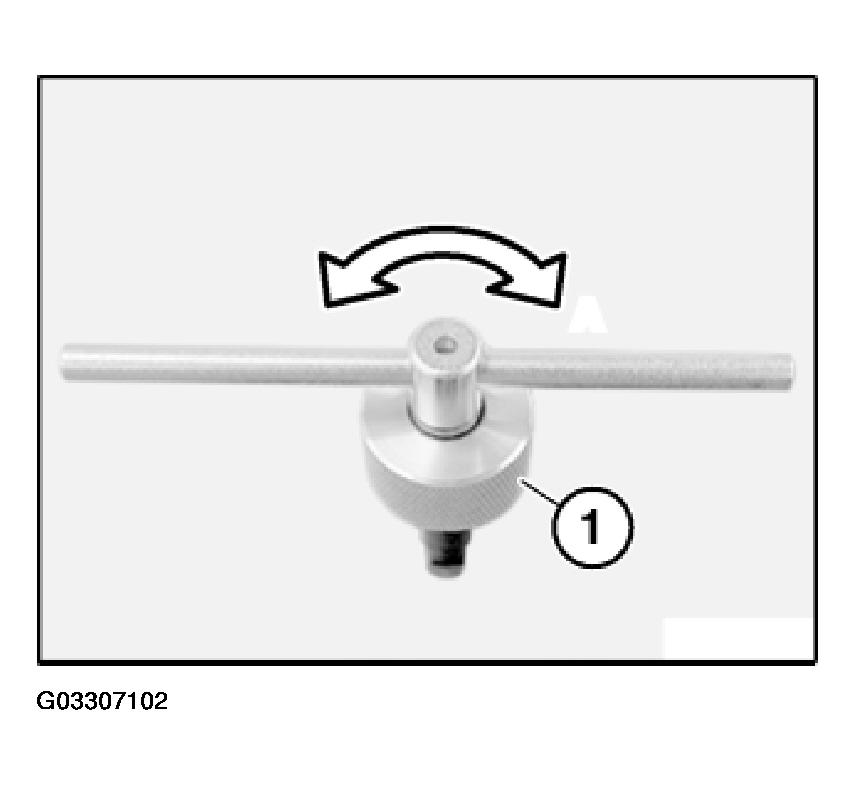

Fig 3: Identifying Knurled Wheel On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
