63 99 078 Replacing bulb for left or right xenon headlight (from 07/2004)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
NOTE:

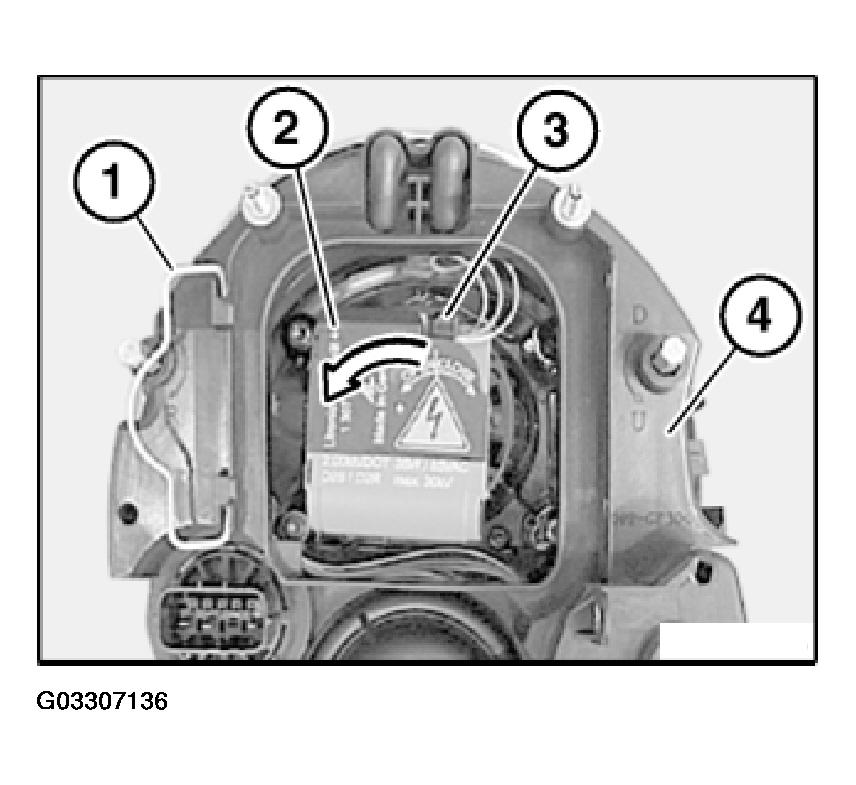

For purposes of clarity, illustration shows removed headlight (4).
Open lock (1) and remove cover of bulb for xenon headlight.
NOTE:
Plug (3) is automatically released by turning ignition unit for xenon headlight (2).
Turn ignition unit for xenon headlight (2) approx. 30° counterclockwise and detach from headlight (4).
Installation:
First fit ignition unit for xenon headlight (2), then attach plug (3).

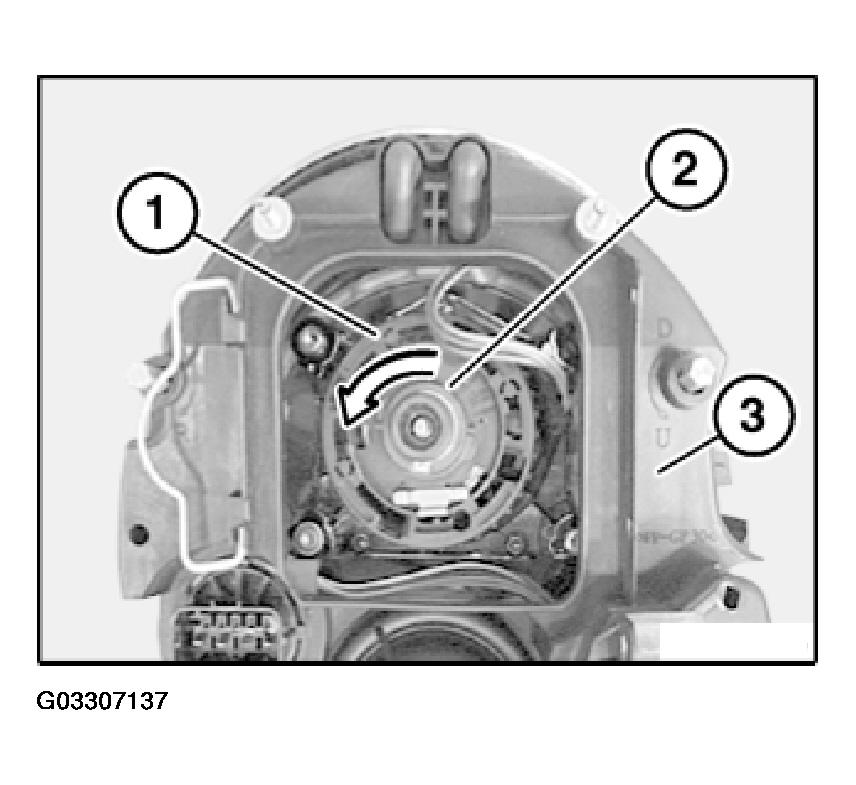

Unlock retaining ring (1) in direction of arrow and remove.
Remove bulb for xenon headlight (2) in direction of arrow from headlight (3).
Installation:

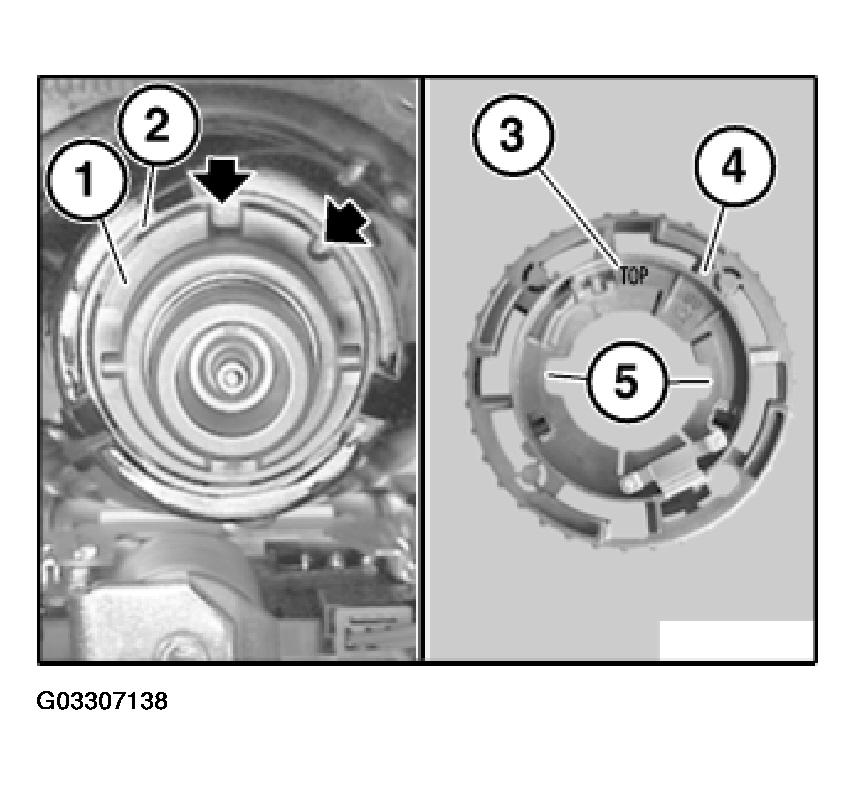

Insert bulb for xenon headlight (1) exactly in headlight (2).
Observe "Top" marking (3).
Fit retaining ring (4) on headlight in such a way that
apertures (5) slide over fixtures of ignition unit for xenon headlight.
Installation:
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .
