52 17 405 Replacing backrest cover for left or right front seat (comfort)

Special Tools Required:

• 52 0 050

Special tools used:

• Pliers 52 0 050

Necessary Preliminary Tasks:

• Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)  .
• Remove rear panel at top and bottom. Refer to 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)  .52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)  .

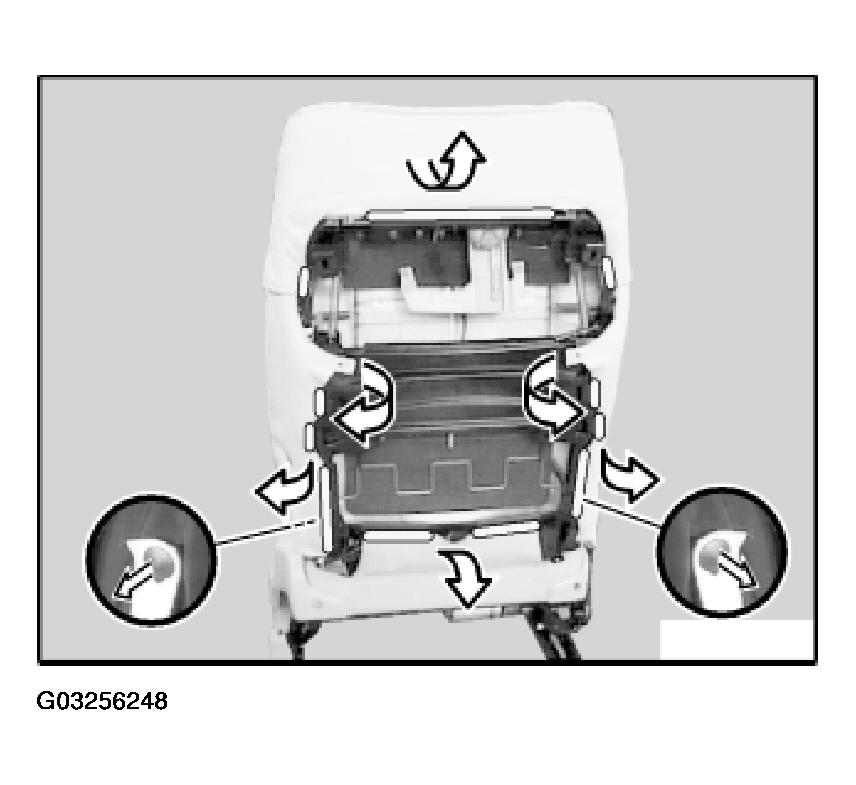

Unhook backrest cover from backrest frame.

Fig 1: Unhooking Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

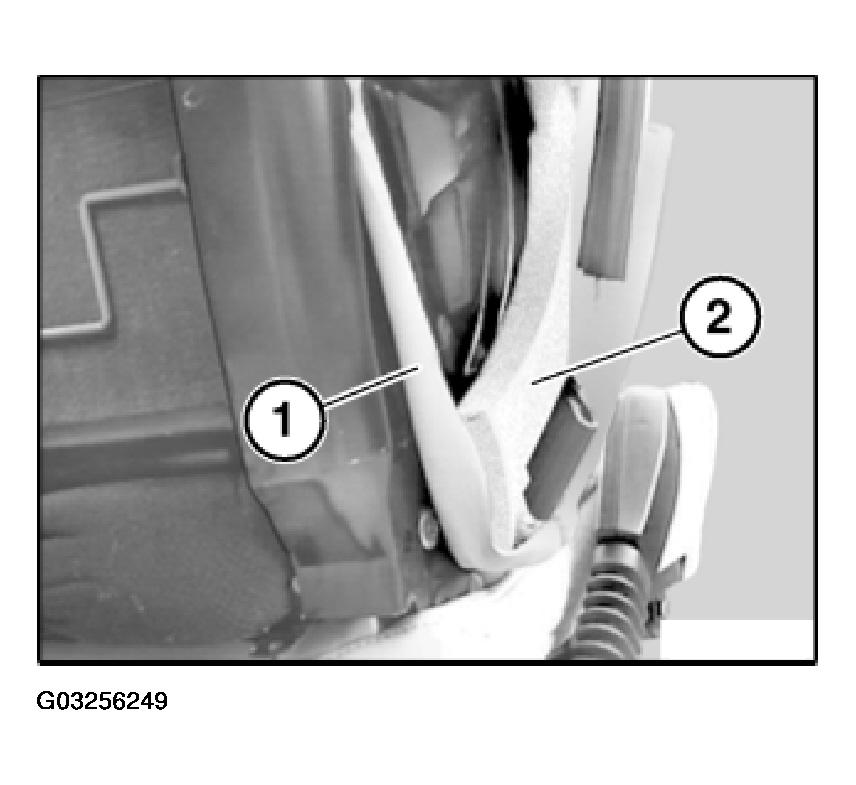

Guide cover lug (1) behind padding (2) and clip in (padding rests in a cover pocket).

Fig 2: Installing Cover Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Model With Seat Heating Only:

Remove outer cover on front seat. Refer to 52 13 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT BACK-REST (NORMAL/MANUAL)  .

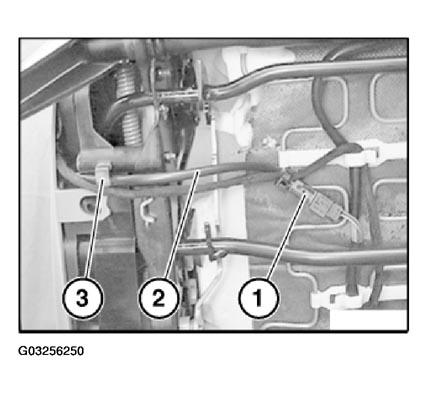

Unfasten plug connection (1).

Pull cable (2) out of holder (3). If necessary, cut cable ties.

Fig 3: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Model With Seat Heating Only:

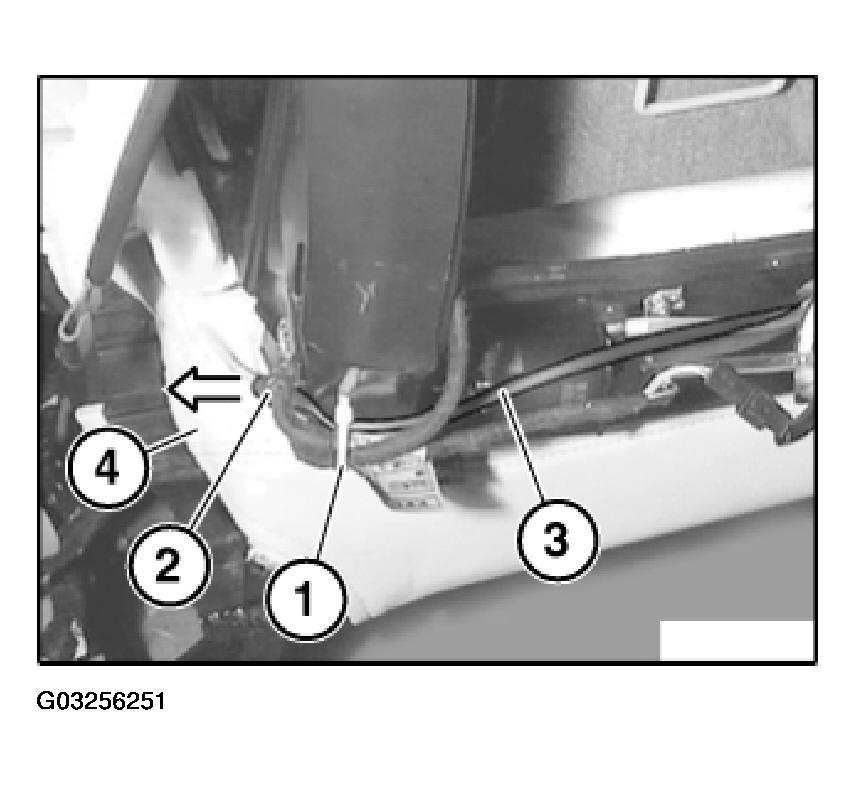

Cut cable tie (1) and unclip cable holder (2).

Feed out cable (3) behind cover bridge (4).

Fig 4: Unclipping Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

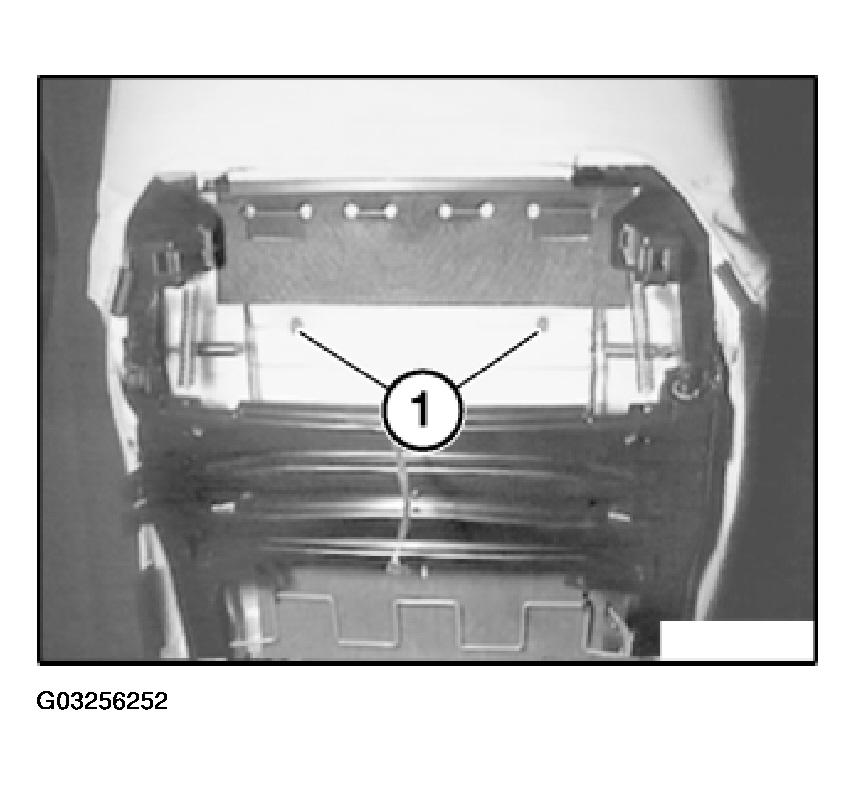

Bend open clips (1) and remove.

Installation:

Install clips with pliers 52 0 050.

Fig 5: Locating Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

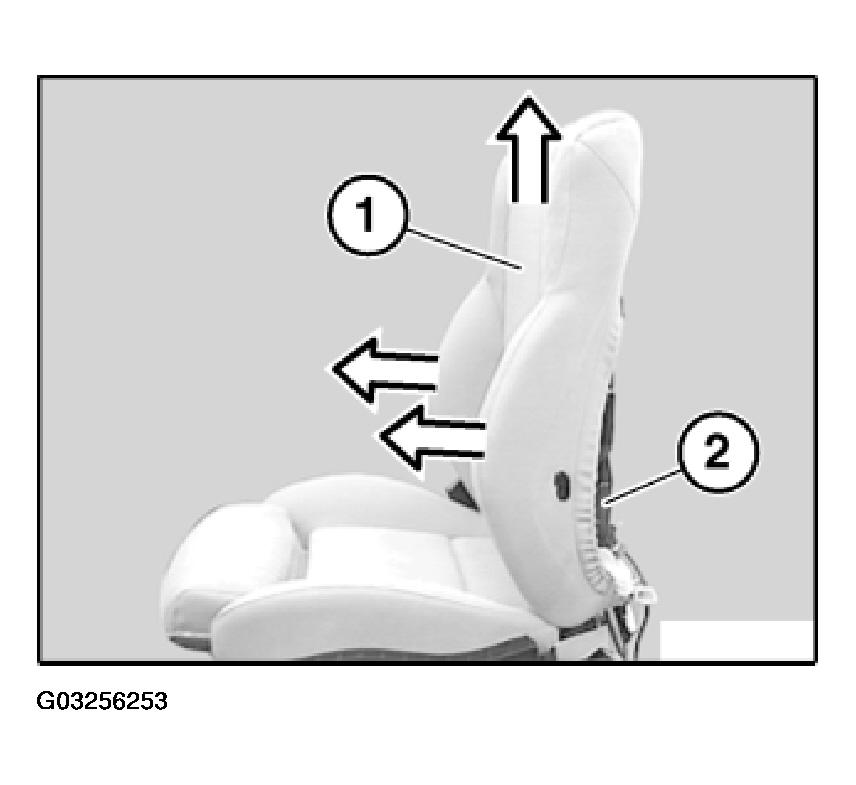

Unhook backrest cover (1) at bottom and side towards front and detach with padding upwards from backrest frame (2).

Fig 6: Unhooking Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Following operations:

"Removing backrest cover from padding"

and

"Replacing padding"

and

"Replacing backrest cover".

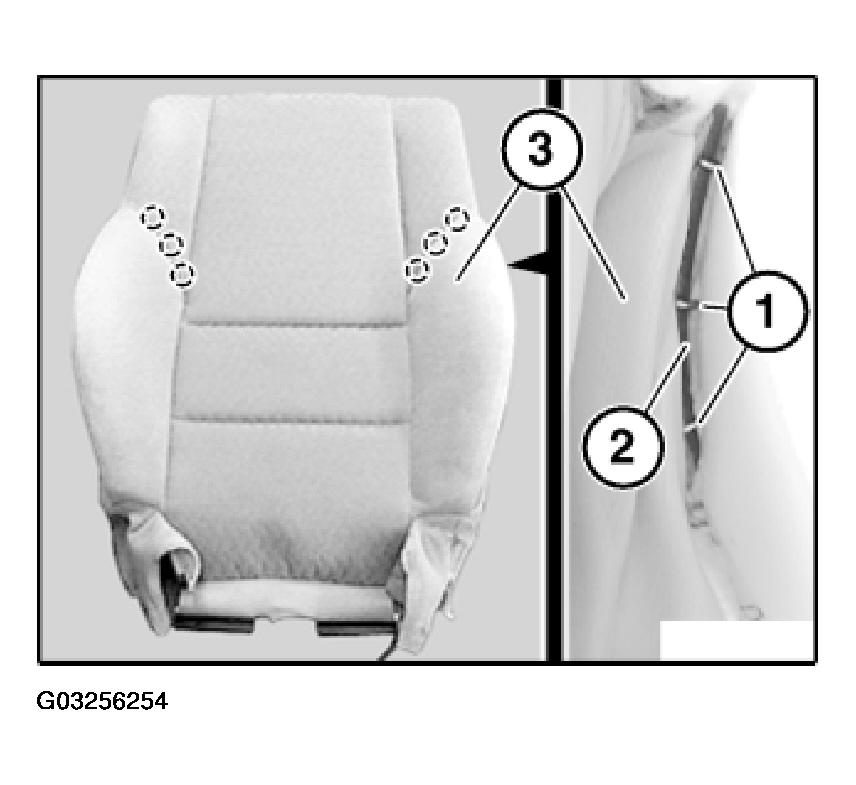

Carefully fold backrest cover (3) from padding (2) towards front and release clips (1).

Fig 7: Identifying Clips In Padding

Courtesy of BMW OF NORTH AMERICA, INC.

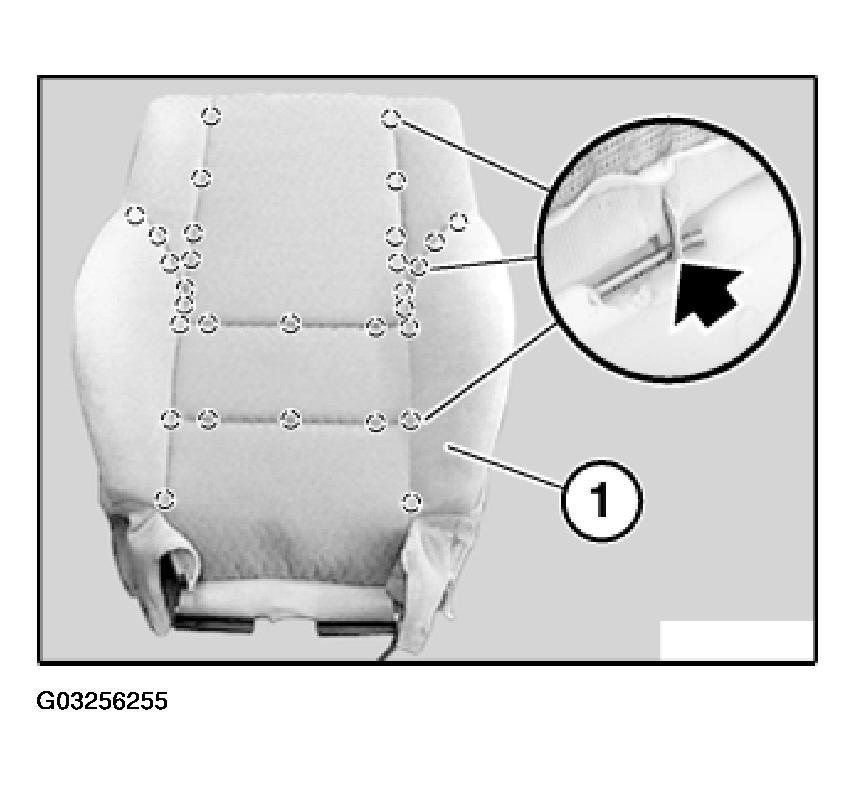

Continue folding backrest cover (1) back and undo remaining clips.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Fig 8: Locating Clips From Backrest Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

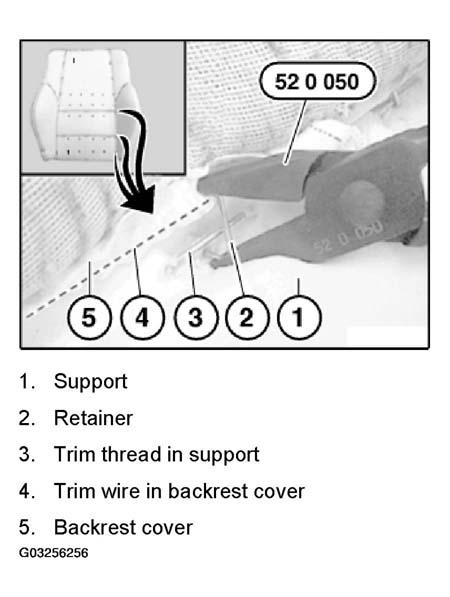

Bend new clip (2) closed with pliers 52 0 050.

1. Support.
2. Retainer.
3. Trim thread in support.
4. Trim wire in backrest cover.
5. Backrest cover.

Fig 9: Installing Clip With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

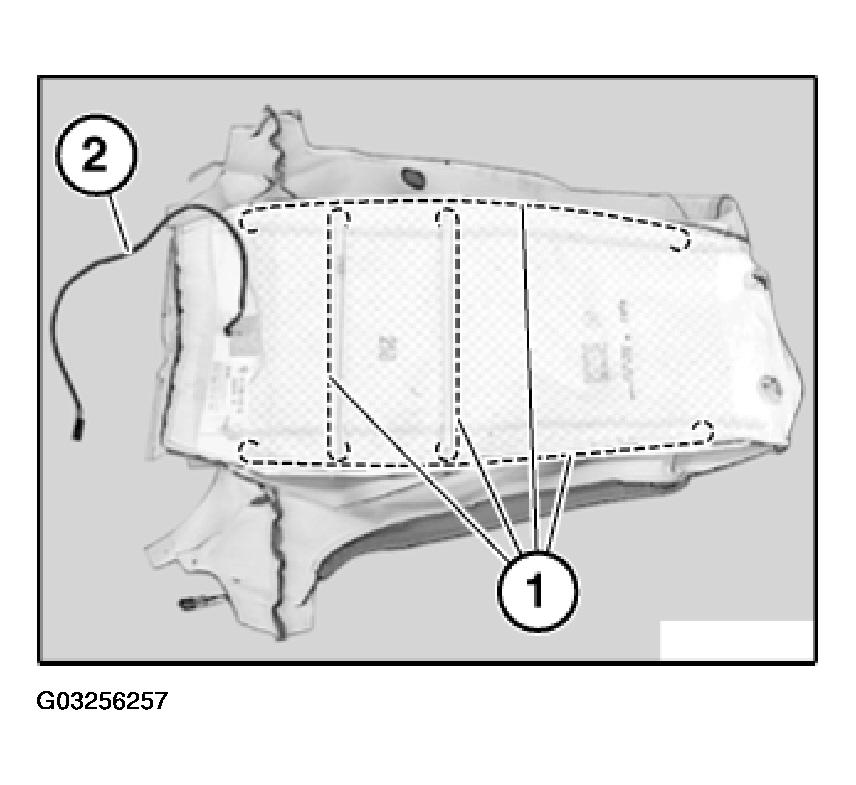

Pull trim threads (1) out of backrest cover.

Cut new backrest cover to size and insert trim threads (1).

(2) Seat heater cable

Fig 10: Removing Trim Threads Out Of Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.
