52 17 202 Removing and installing/replacing bottom rear panel on front seat backrest (luxury seat)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Headrest must be moved as far forwards as possible.

Remove rear panel at top. Refer to 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Remove clips (1) with side cutting pliers.

Unclip rear panel (2) first at side towards rear, then lift out at rear.

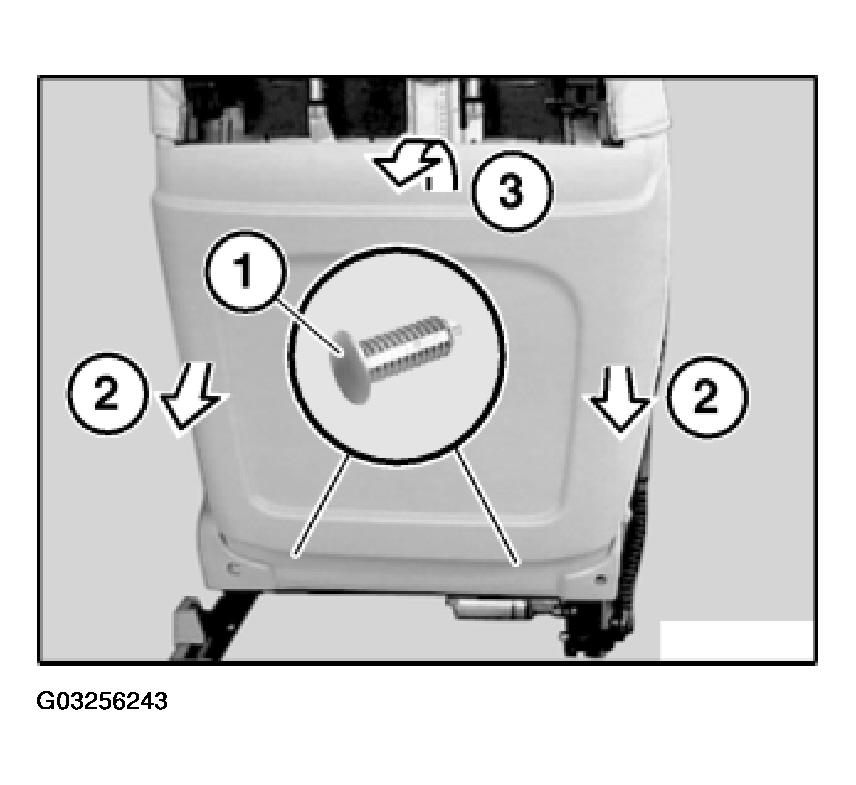

Fig 1: Identifying Clips On Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) and springs (2) must be correctly seated in rear panel mounts and must not be bent.

If necessary, replace defective clips/springs.

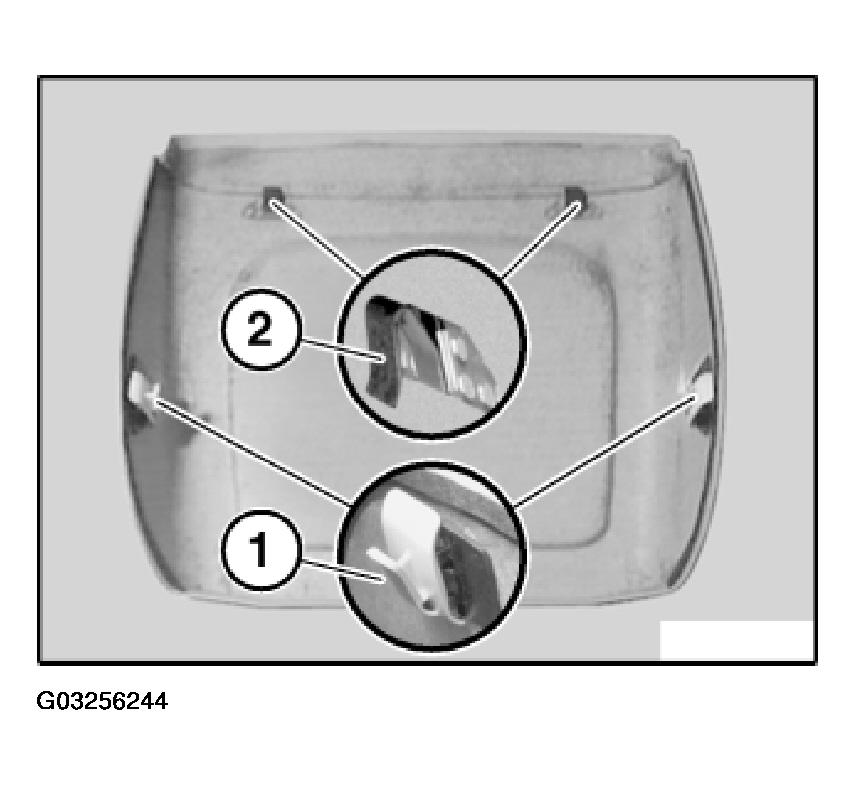

Fig 2: Locating Clips And Springs

Courtesy of BMW OF NORTH AMERICA, INC.
