52 13 040 Removing and installing/replacing outer cover on left or right front seat back-rest (normal/manual)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew bolt (1).

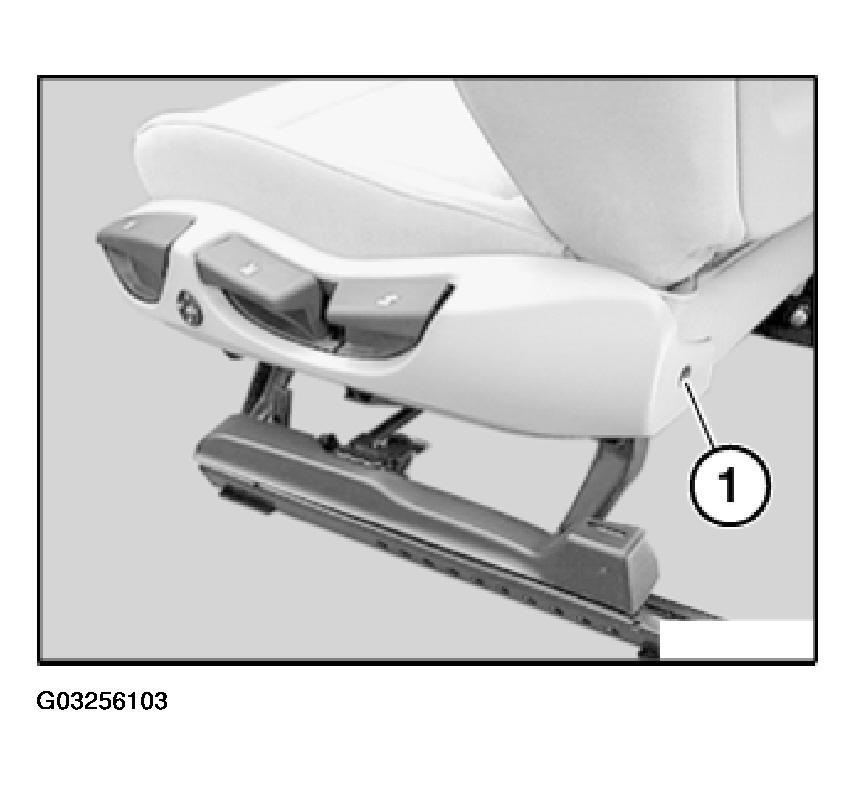

Fig 1: Unscrewing Bolt On Outer Cover

G03256103

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out catches (1) at front/rear and tongue (2) at rear from cover (3) towards top and pull outwards a little.

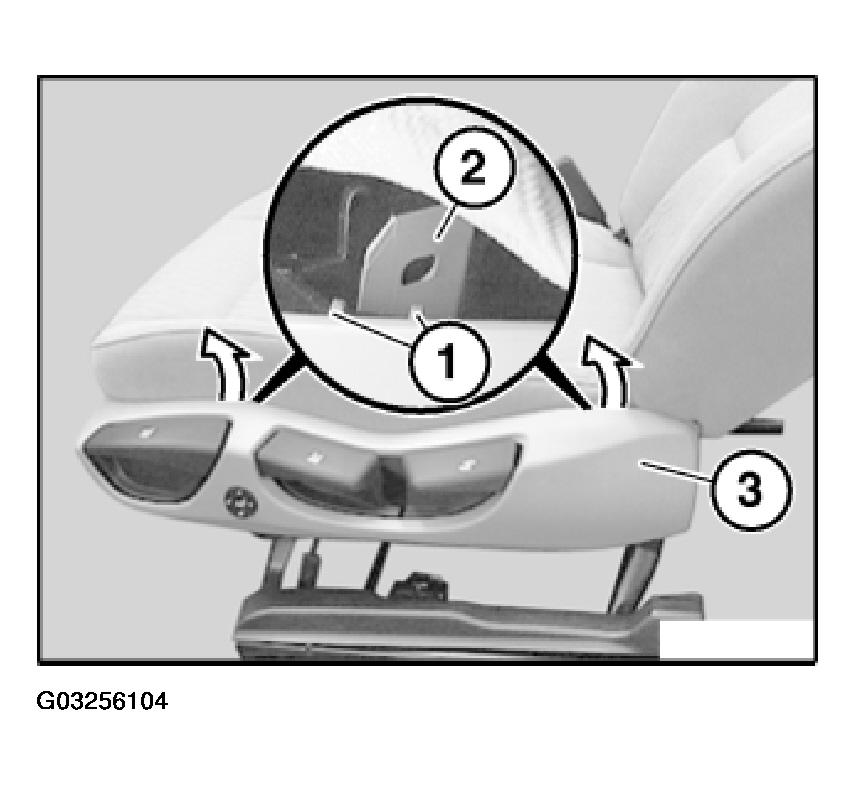

Fig 2: Detaching Catches On Outer Cover

G03256104

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide tongue (2) into mounts and snap into place.

Lever lugs (1) on cover (3) out of brackets (2).

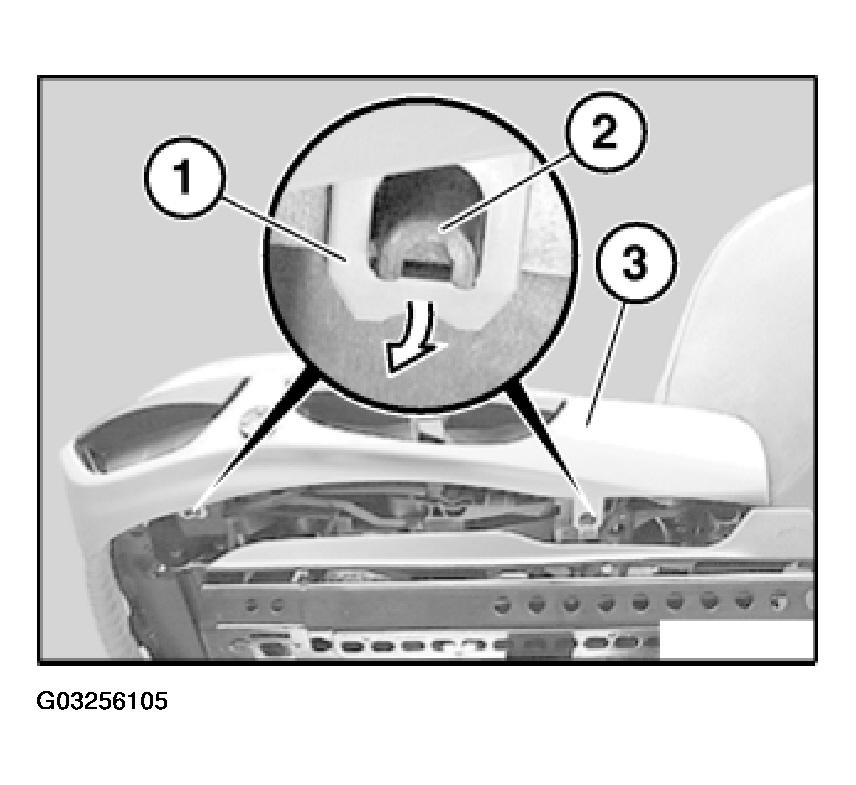

Fig 3: Releasing Lugs On Outer Cover

G03256105

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) at rear, detach at front from guide and remove.

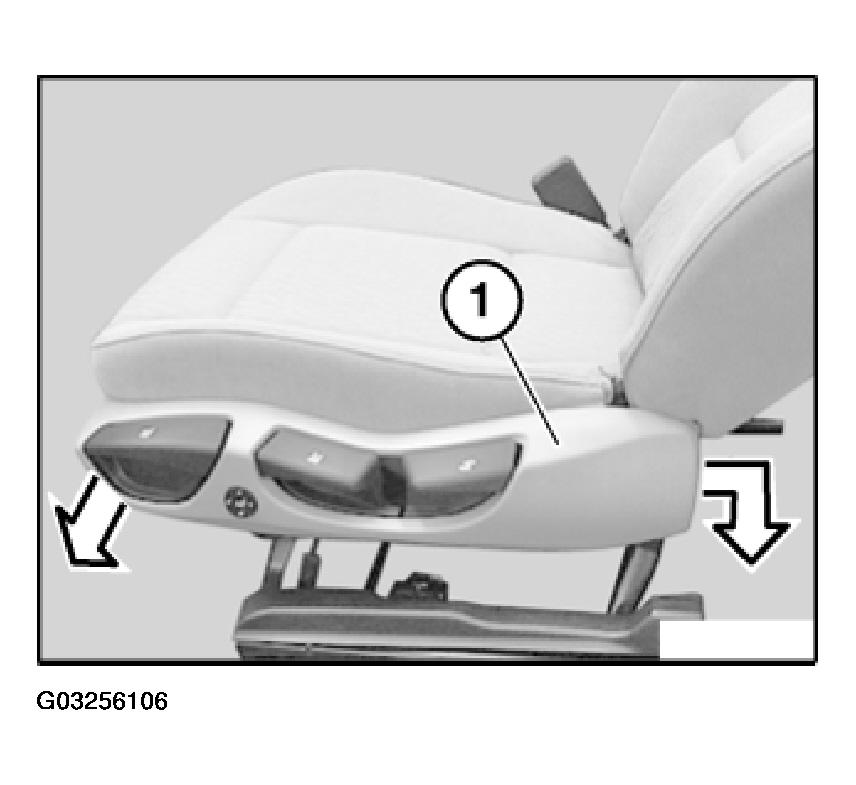

Fig 4: Removing Outer Cover

G03256106

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

If necessary, press down catches (1) on left/right and

remove switch (2) from cover (3).

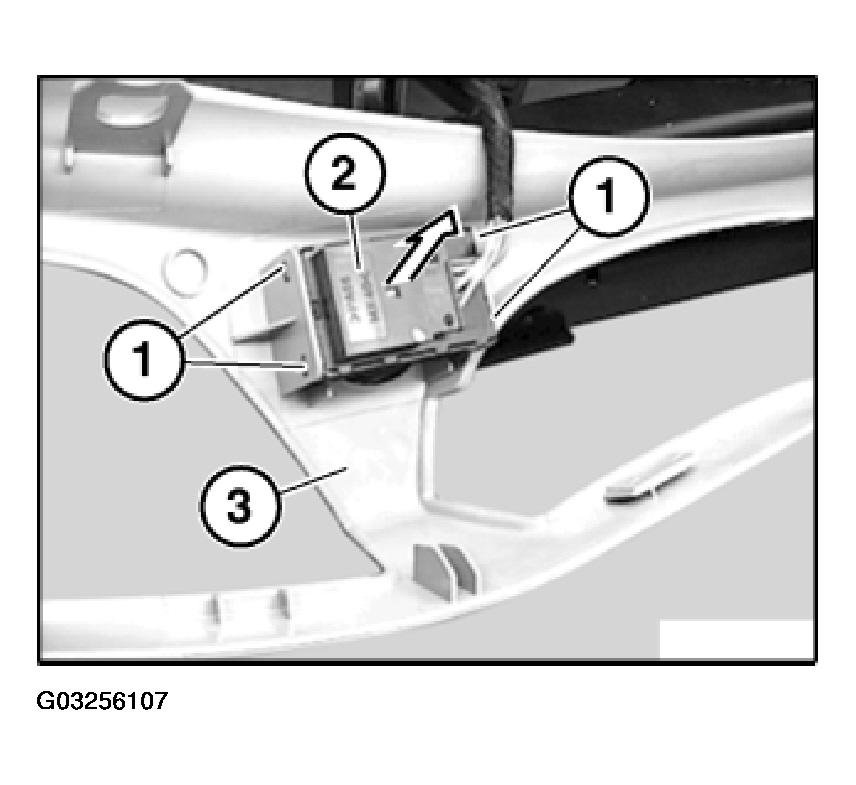

Fig 5: Removing Switch From Cover

G03256107

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged, replace cover (4) if necessary:

Catches, top.
Guide, front.
Lugs, bottom.

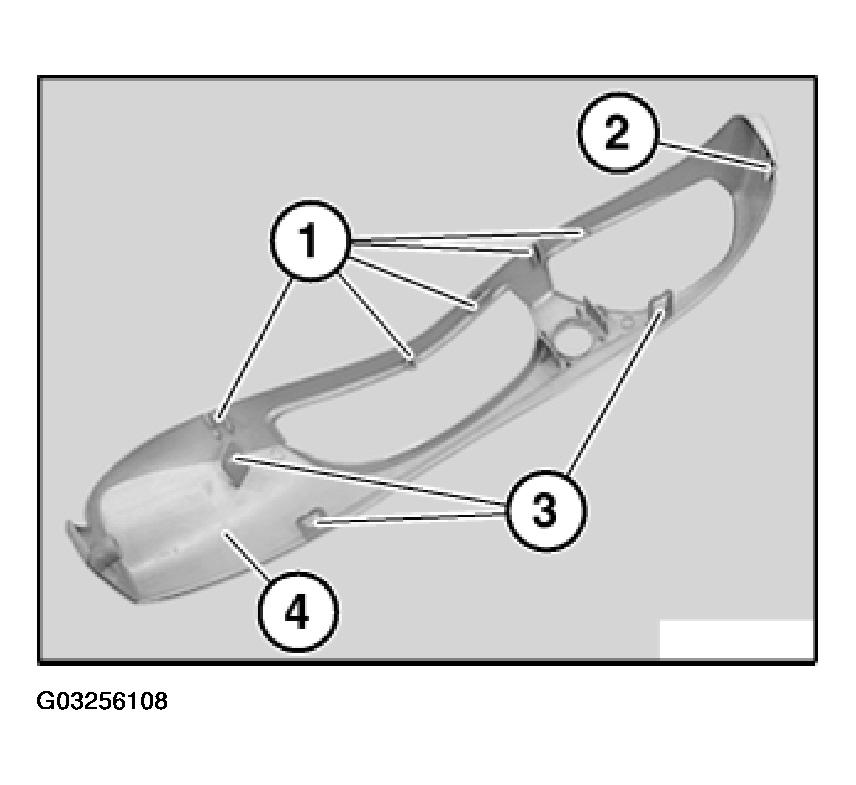

Fig 6: Identifying Catches, Guides And Lugs On Outer Cover
Courtesy of BMW OF NORTH AMERICA, INC.
