52 17 200 Removing and installing/replacing top rear panel on front seat backrest (luxury seat)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Move backrest adjustment as far forward as possible.

NOTE: If the backrest adjustment unit is defective and in rear position:

Unhook lower rear panel and leave suspended, refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .
Lower rear panel can be unhooked after upper rear panel has been removed.

Pull lower rear panel on both sides (1) (if necessary in succession) towards rear (unhooks springs at bottom).

Pull rear panel upwards/backwards (2) to remove.

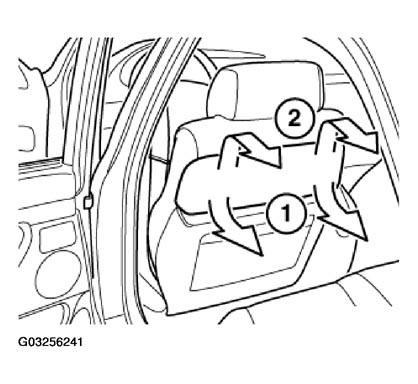

Fig 1: Removing Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The springs must be correctly located in the rear panel supports and must not be bent.

If necessary, replace defective clips.

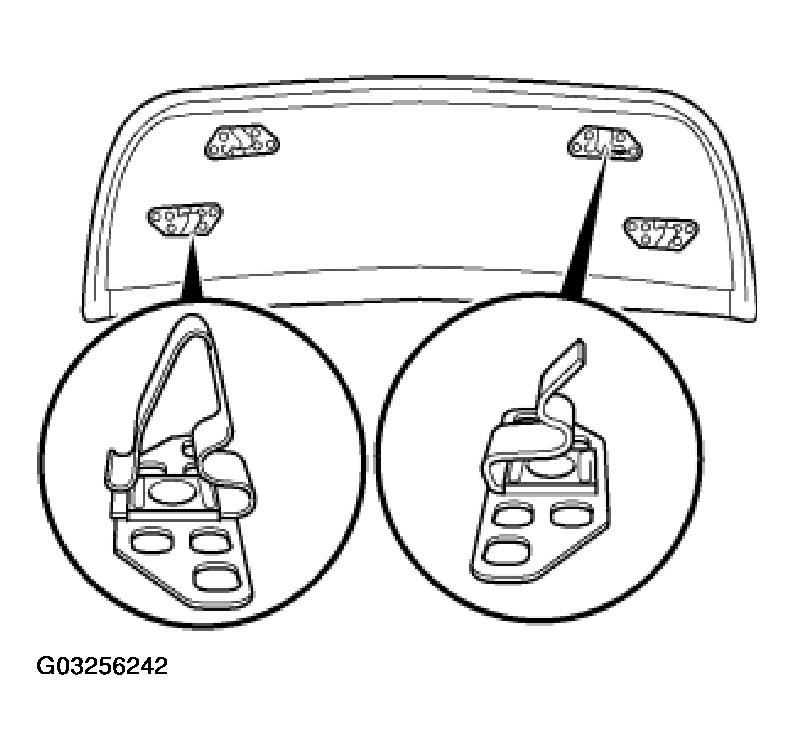

Fig 2: Identifying Clips And Springs

Courtesy of BMW OF NORTH AMERICA, INC.
