11 21 500 Replacing crankshaft (M52 / S52 / M52TU / M54 / M56)

(Engine removed.)

Necessary Preliminary Tasks:

• Removing cylinder head.
• Removing lower timing case cover.
• Removing all pistons, refer to 11 25 530 REMOVING AND INSTALLING OR REPLACING ALL PISTONS (M52 / S52 / M52TU / M54 / M56) .
• Remove end cover at rear; this operation is described in 11 14 151 REPLACING CRANKSHAFT RADIAL SEAL (TRANSMISSION SIDE) .

Checking axial clearance:

If permitted end float is exceeded, check crankshaft, guide bearing shells and engine block, replacing if necessary, end float.

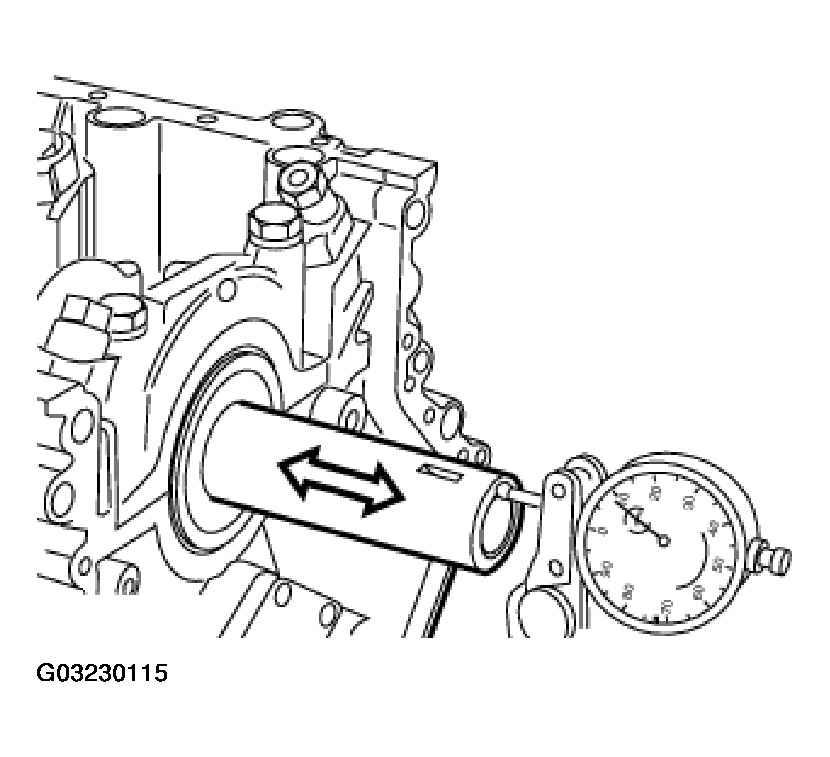

Fig 1: Checking Axial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw connection on reinforcement plates.

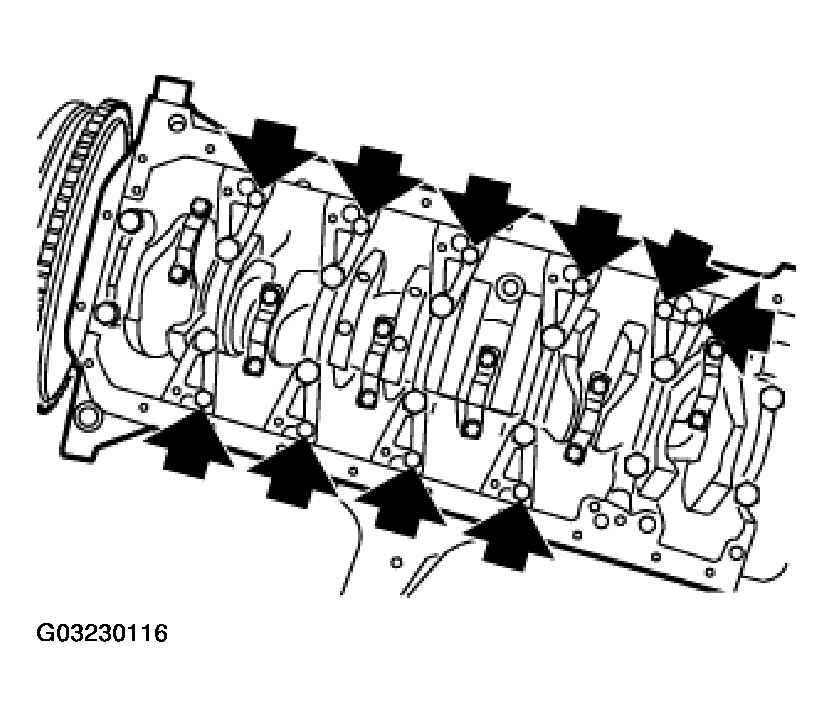

Fig 2: Removing Reinforcement Plate Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw connection on main bearing.

Remove main bearing caps (1 to 7).

Lever out crankshaft.

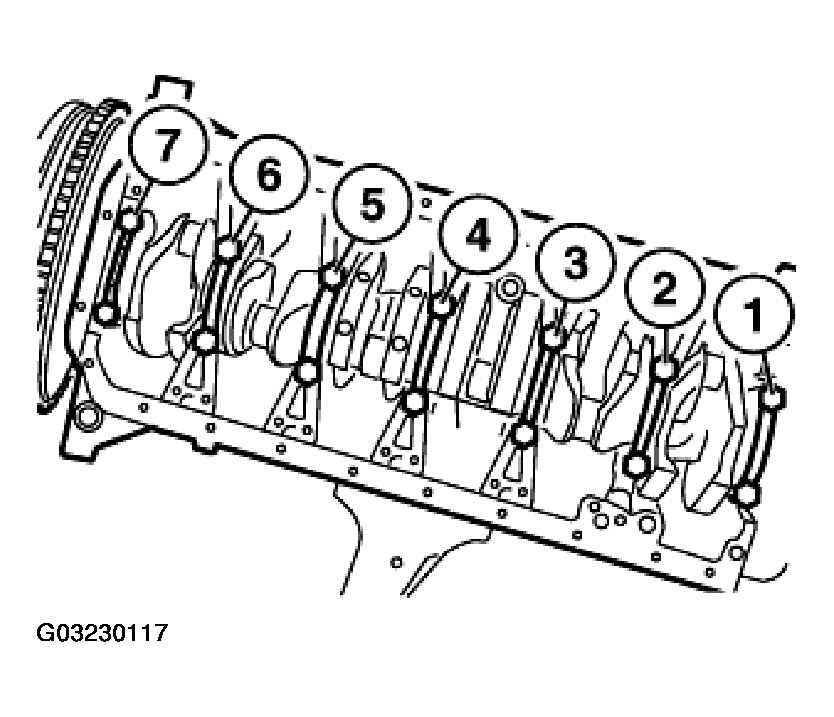

Fig 3: Removing Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release incremental gear.

Installation:

Replace screws.

Install screws and tighten down in two passes.

Tightening torque, refer to 11 21 1AZ in ENGINE - TIGHTENING TORQUES .

Important!

Check grinding stage of crankshaft, refer to ENGINE - TECHNICAL DATA .

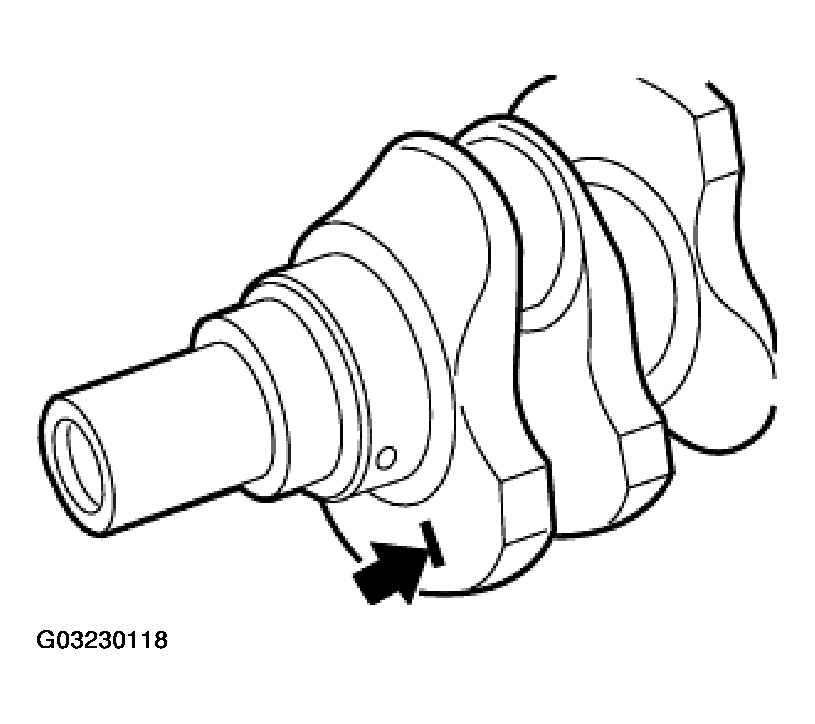

Fig 4: Checking Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Replace main crankshaft bearing shells, refer to 11 21 531 REPLACING ALL MAIN CRANKSHAFT BEARING SHELLS (M52 / S52 / M52TU / M54 / M56) .

Replace conrod bearing shells, refer to 11 24 571 REPLACING ALL CONNECTING ROD BEARINGS (M52 / S52 / M52TU / M54 / M56) .

Replace grooved ball bearings in crankshaft, refer to 11 21 571 REPLACING GROOVED BALL BEARING IN CRANKSHAFT (M52 / S52 / M52TU / M54 / S50 / S54) .
