11 25 530 Removing and installing or replacing all pistons (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

(Engine removed.)

Remove cylinder head.

Removal:

Removal of pistons is described separately from installation.

Assembly sequence for removal and installation is different.

Important!

Re-install piston, connecting rod and bearing shells back in the same position and in the same installation location.

Connecting rods and bearing covers are designated with the same pair number: do not mix them.

Remove oil pump, refer to 11 41 000 REMOVING AND INSTALLING/REPLACING OIL PUMP (M52TU / M54 / M56) .

If oil pump and oil scraper are two parts:

Remove oil scraper.

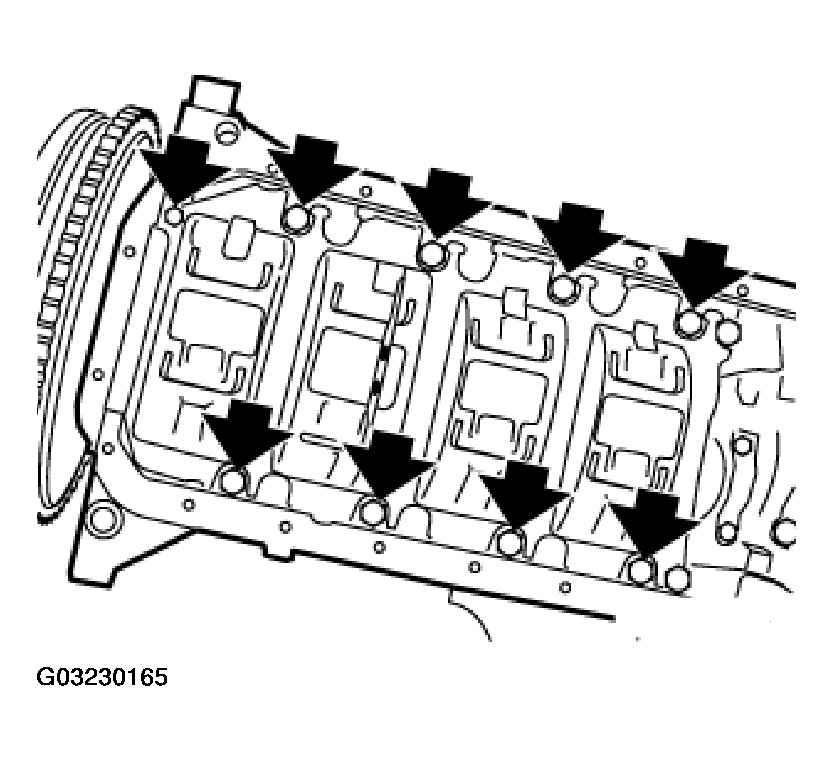

Fig 1: Removing Oil Scraper
G03230165Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Figure shows crankshaft removed.

On engines with spray nozzles for piston cooling on cylinder underside:

Important!

When removing and installing pistons, make sure the piston cooling spray nozzles are not damaged.

Installation:

Screw threads are coated with screw securing adhesive (Loctite). Replace screws.

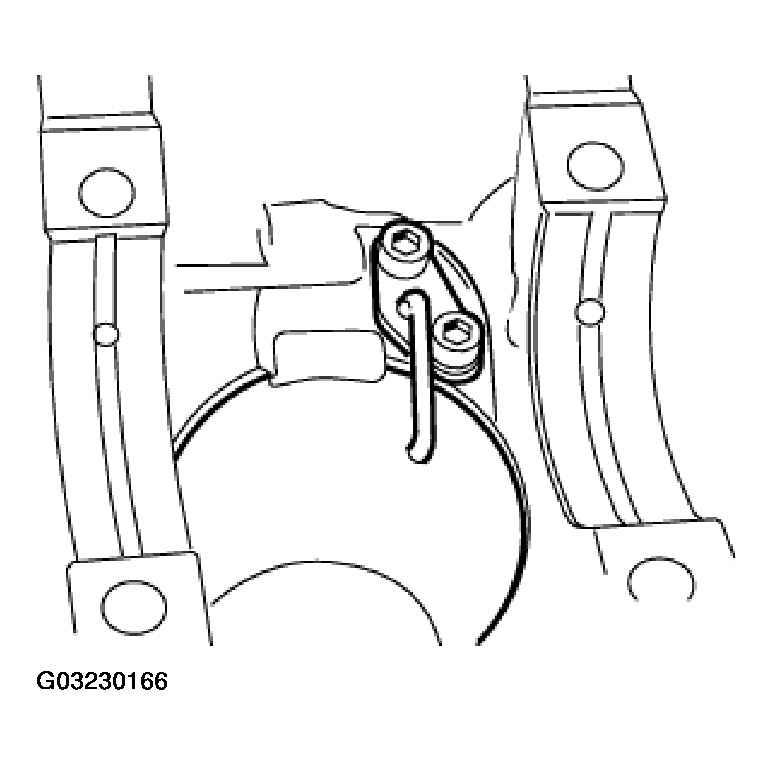

Fig 2: Identifying Piston Cooling Spray Nozzles
G03230166Courtesy of BMW OF NORTH AMERICA, INC.

In event of heavy oil carbon residue:

Carefully remove oil carbon residue from cylinder wall.

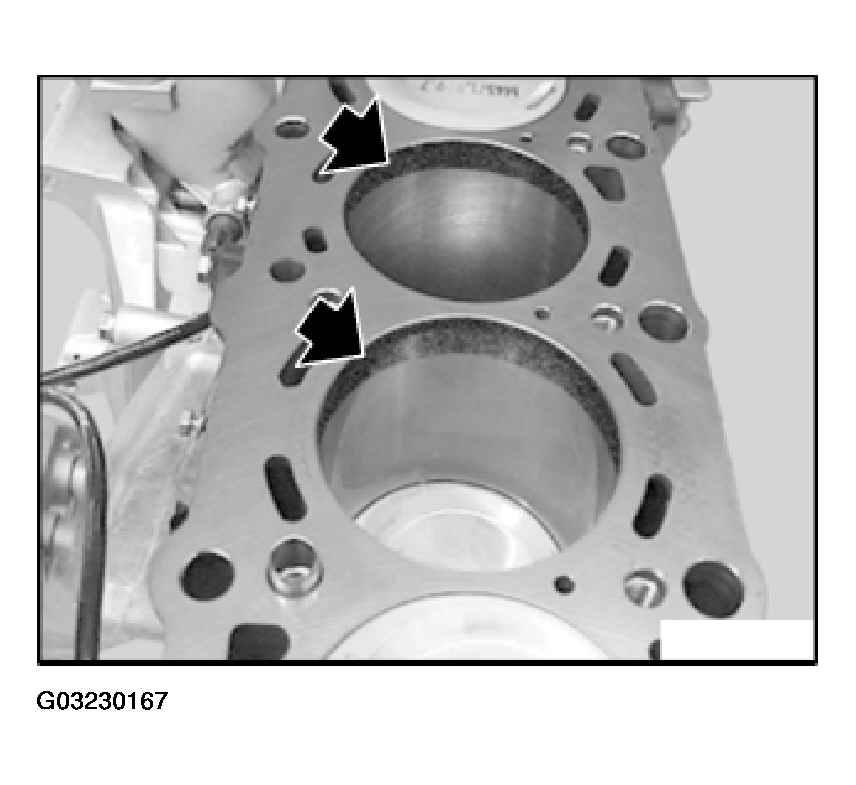

Fig 3: View Of Heavy Oil Carbon Residue
G03230167Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew conrod bearing cover.

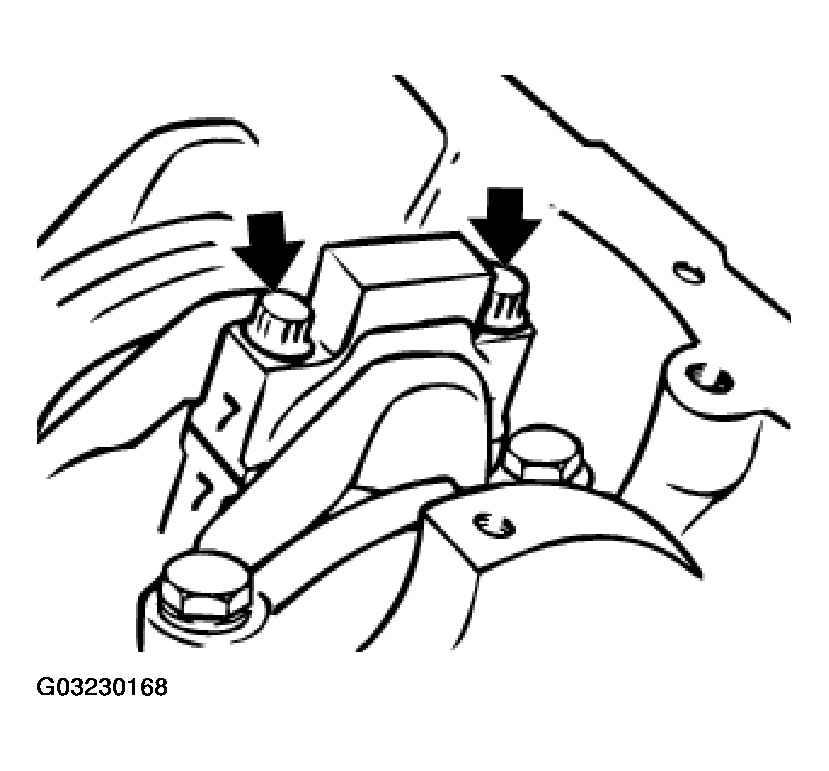

Fig 4: Locating Conrod Bearing Cover Screws
G03230168Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 3 480  in conrod.

Remove conrod with piston from cylinder head side.

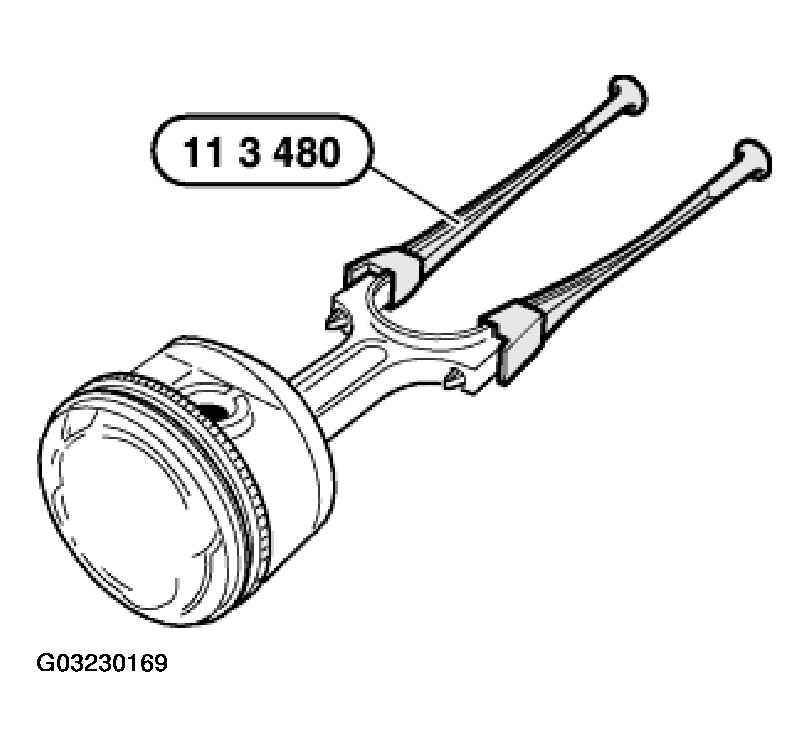

Fig 5: Identifying Conrod With Piston
G03230169Courtesy of BMW OF NORTH AMERICA, INC.

Lift out retaining ring and press out piston pin.

Important!

Piston and piston pin are paired and must not be fitted individually.

Fig 6: Removing Piston Pin Retaining Ring
G03230170Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation of pistons is described separately from removal. The assembly sequence differs between removal and installation.

The piston pin must be able to be pressed through the liner by hand with little force and must not display any significant play.

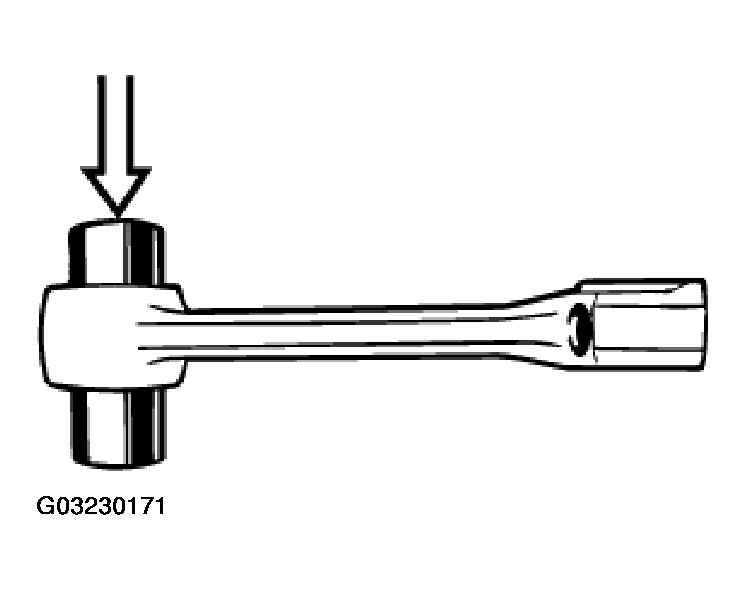

Fig 7: Removing Piston Pin
G03230171Courtesy of BMW OF NORTH AMERICA, INC.

Measure piston installation clearance:

Measure piston diameter with micrometer at distance A from the underside of the piston and at offset angle of 90° to piston pin axis.

Measurement A, refer to ENGINE - TECHNICAL DATA .

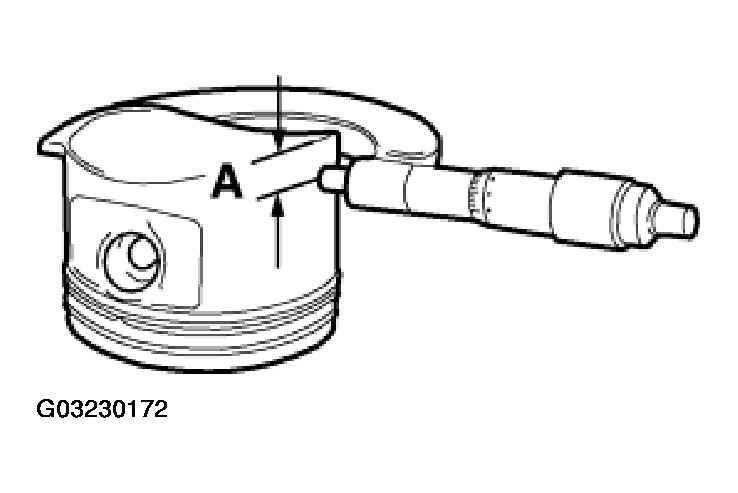

Fig 8: Identifying Measurement A
G03230172Courtesy of BMW OF NORTH AMERICA, INC.

Adjust micrometer to cylinder bore of engine block, set internal caliper on micrometer to zero. Measure bottom, center and top of cylinder bore in direction of travel and direction of engine rotation.

Diameter of cylinder bore, refer to ENGINE - TECHNICAL DATA .

Piston installation clearance, refer to ENGINE - TECHNICAL DATA .

Total permissible wear tolerance, refer to ENGINE - TECHNICAL DATA .

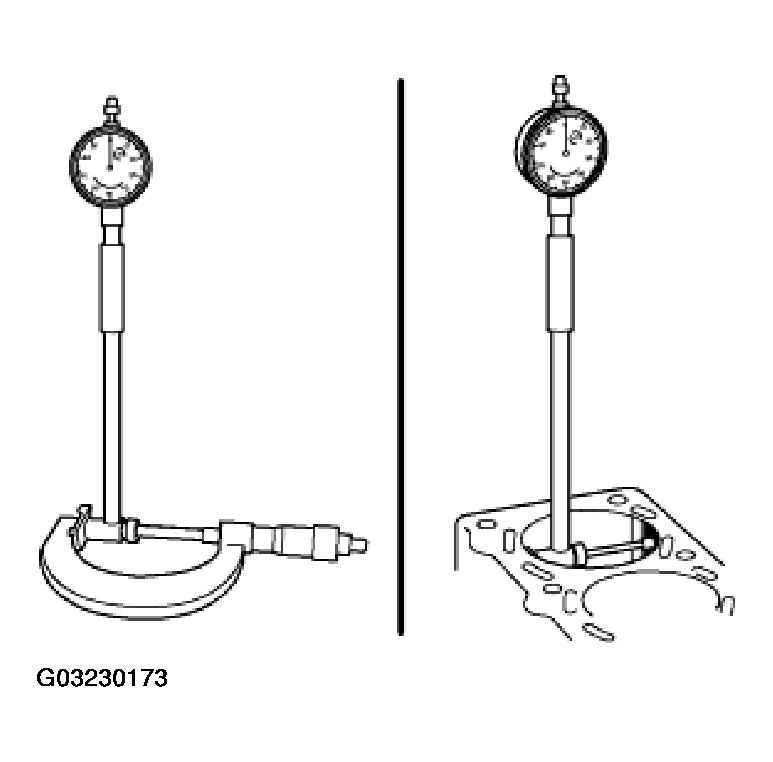

Fig 9: Measuring Cylinder Bore
G03230173Courtesy of BMW OF NORTH AMERICA, INC.

Replace conrod bearing shells, refer to 11 24 571 REPLACING ALL CONNECTING ROD BEARINGS (M52 / S52 / M52TU / M54 / M56) .

Important!

Piston and piston pin are paired and must not be fitted individually.

Fit conrod with piston pin to piston in such a way that both of the visible pair numbers on the installation direction arrow on the piston point to the right.

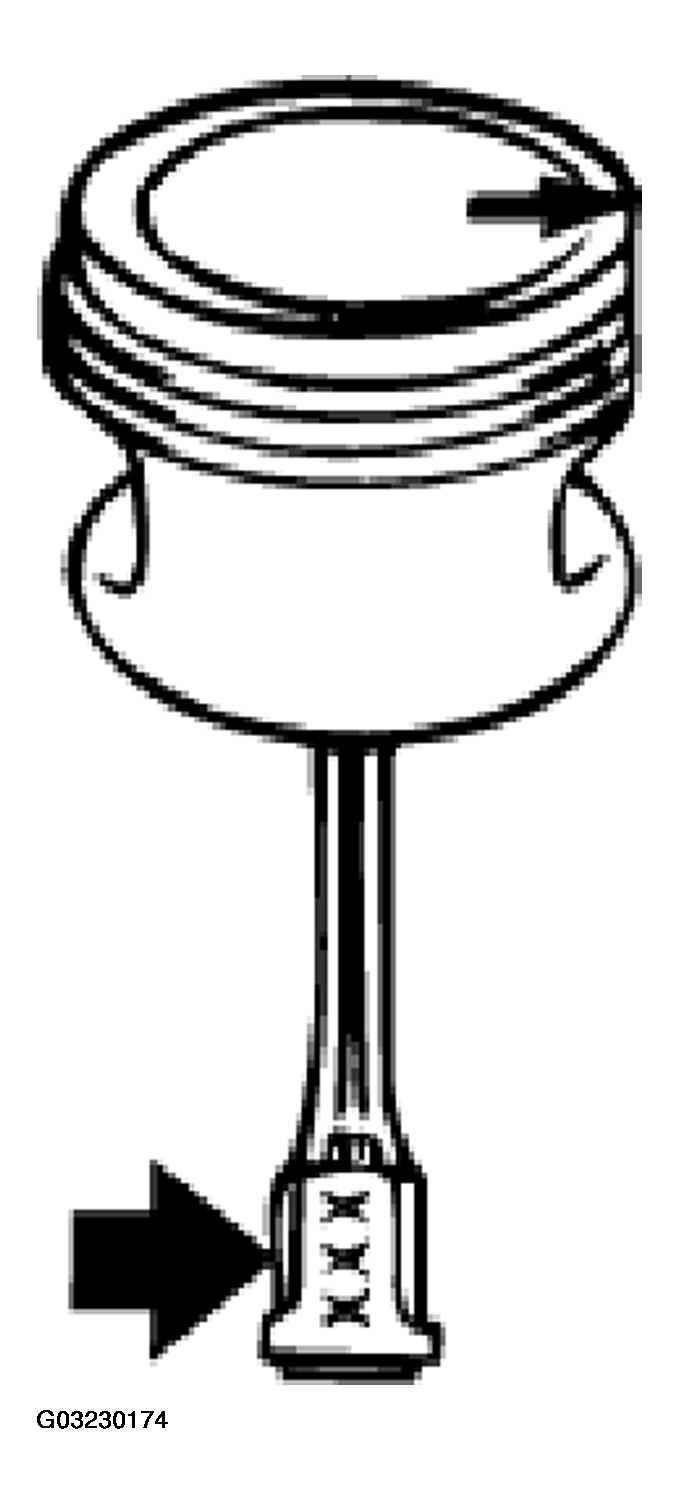

Fig 10: Identifying Installation Direction Arrow On Piston
G03230174Courtesy of BMW OF NORTH AMERICA, INC.

Install snap ring so that opening is opposite recess.

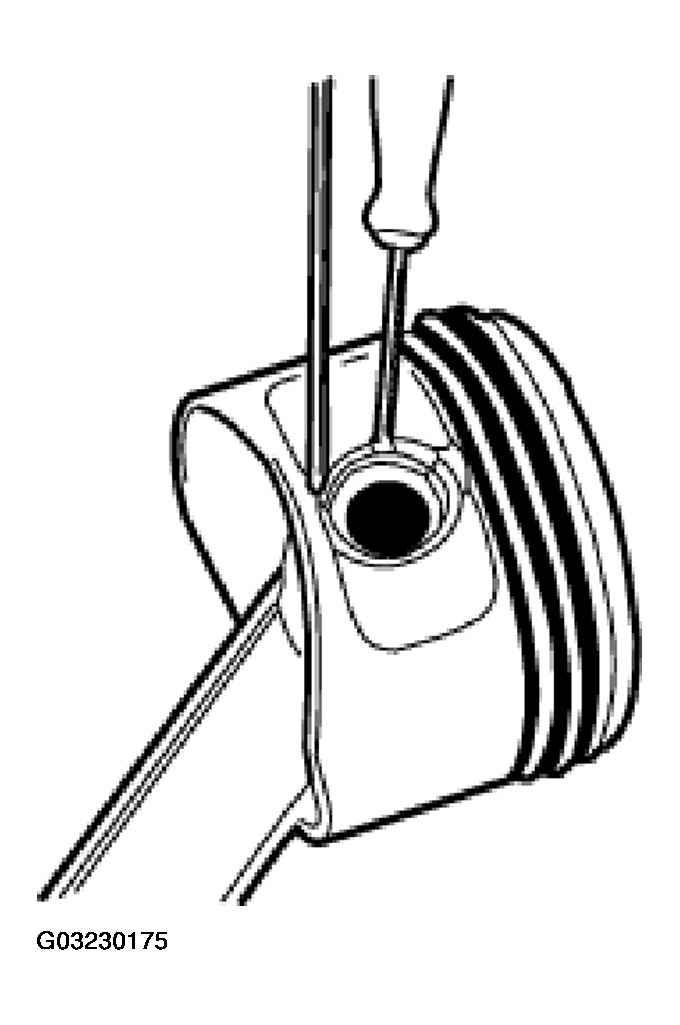

Fig 11: Installing Snap Ring
G03230175Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 2 470  in conrod.

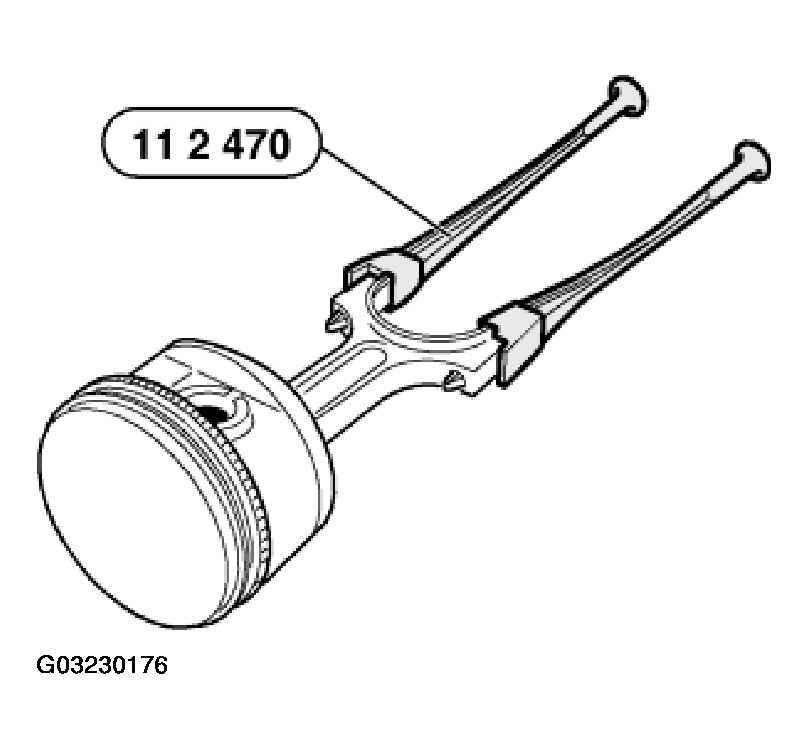

Fig 12: Installing Guide Mandrel In Conrod
G03230176Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat pistons and piston rings with oil.

Align contact points on piston rings (offset at approx. 120°, but do not arrange over piston pin lug).

NOTE: Piston diameter 84 mm: Use special tool 11 8 141  . Press together piston rings with special tool 11 2 260  . Piston diameter 80 mm: Press together piston rings with special tool 11 2 260  .

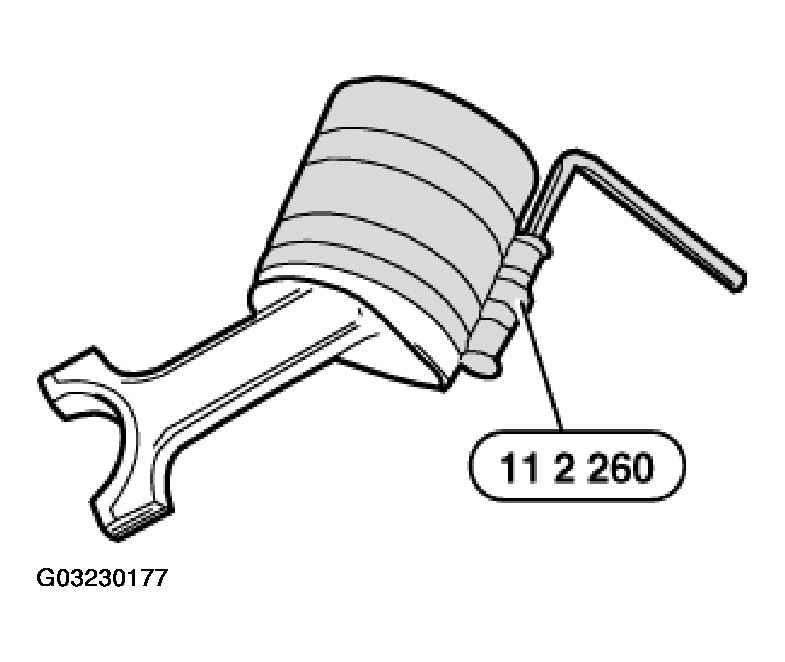

Fig 13: Compressing Piston Rings With Special Tool
G03230177Courtesy of BMW OF NORTH AMERICA, INC.

Install piston so that arrow points to camshaft drive.

Entire circumference of tightening strap must rest firmly on engine block.

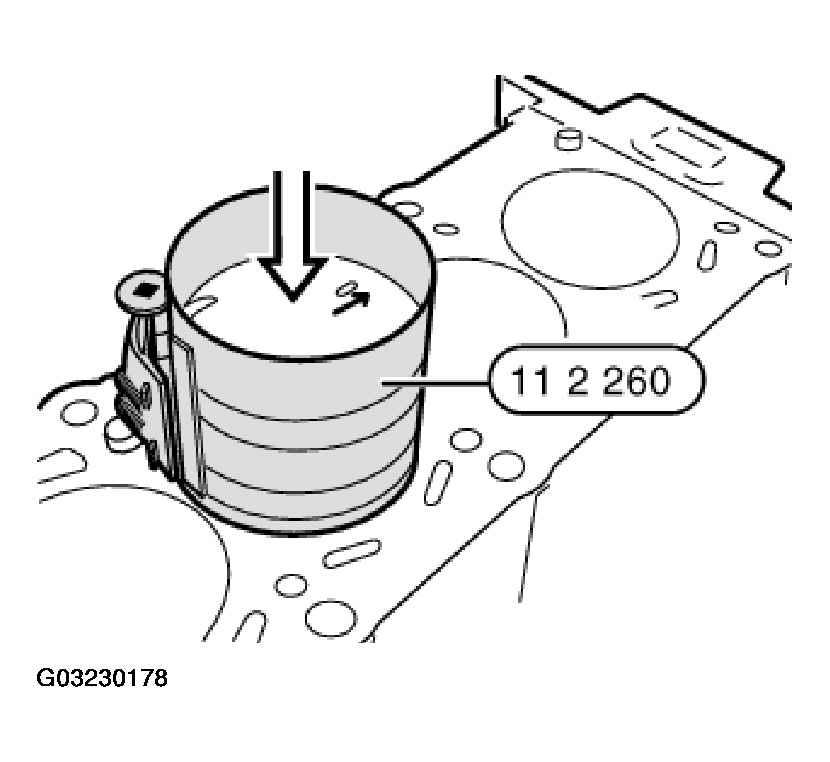

Fig 14: Aligning Piston Directional Arrow Towards Camshaft Drive
G03230178Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Danger of piston ring failure.

Press in piston only with finger force (do not knock in!).

Attach crankpin to connecting rod.

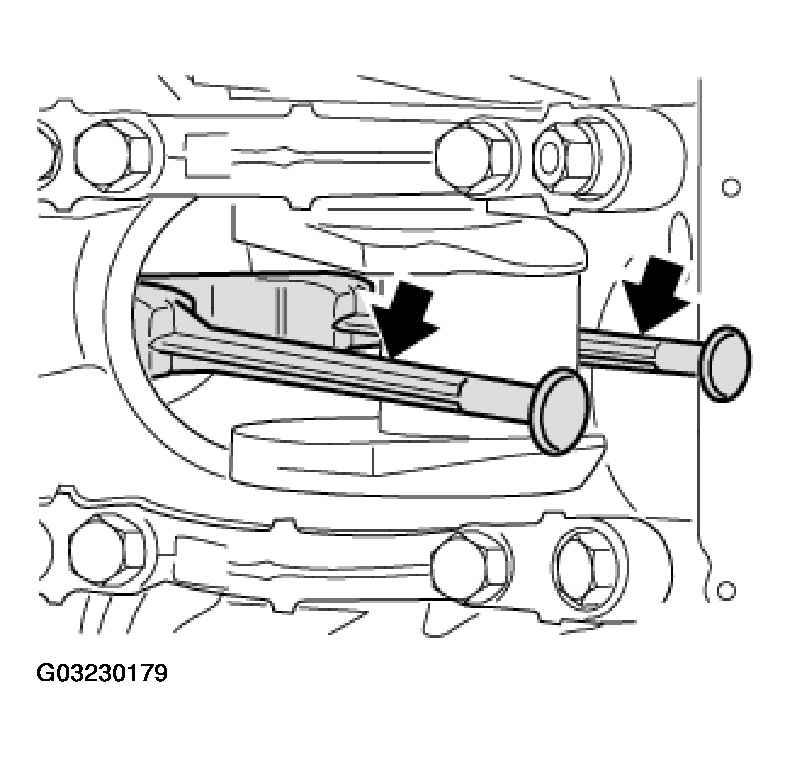

Fig 15: Attaching Crankpin To Connecting Rod
G03230179Courtesy of BMW OF NORTH AMERICA, INC.

Apply light coat of oil to connecting-rod bearing shells.

Fit bearing caps so that pair numbers match up.

Install new conrod bolts.

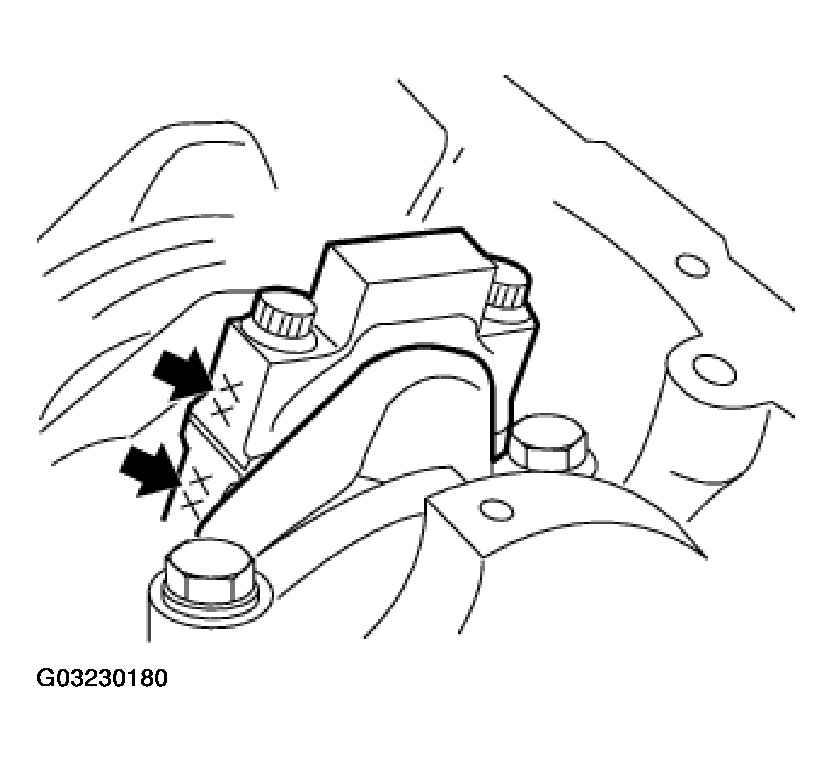

Fig 16: Aligning Pair Numbers On Bearing Caps
G03230180Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down conrod bolts with special tool 00 9 120  or special tool 11 2 110  .

Tightening torque, refer to 11 24 1AZ in ENGINE - TIGHTENING TORQUES .

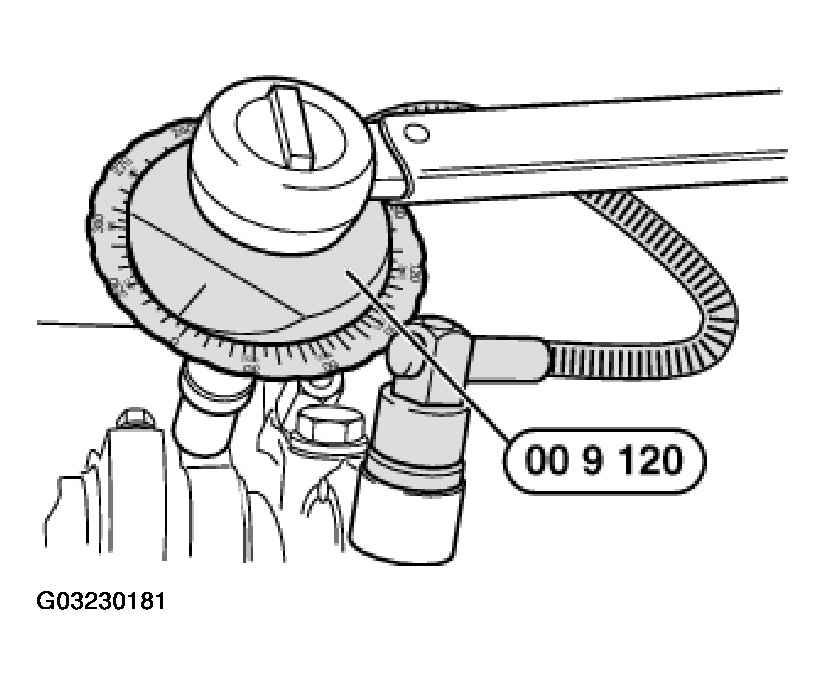

Fig 17: View Of Torque Angle Measuring Dial
G03230181Courtesy of BMW OF NORTH AMERICA, INC.

Install oil pump, refer to 11 41 000 REMOVING AND INSTALLING/REPLACING OIL PUMP (M52TU / M54 / M56) .

If oil pump and oil scraper are two parts:

Fit oil scraper.

Assemble engine.

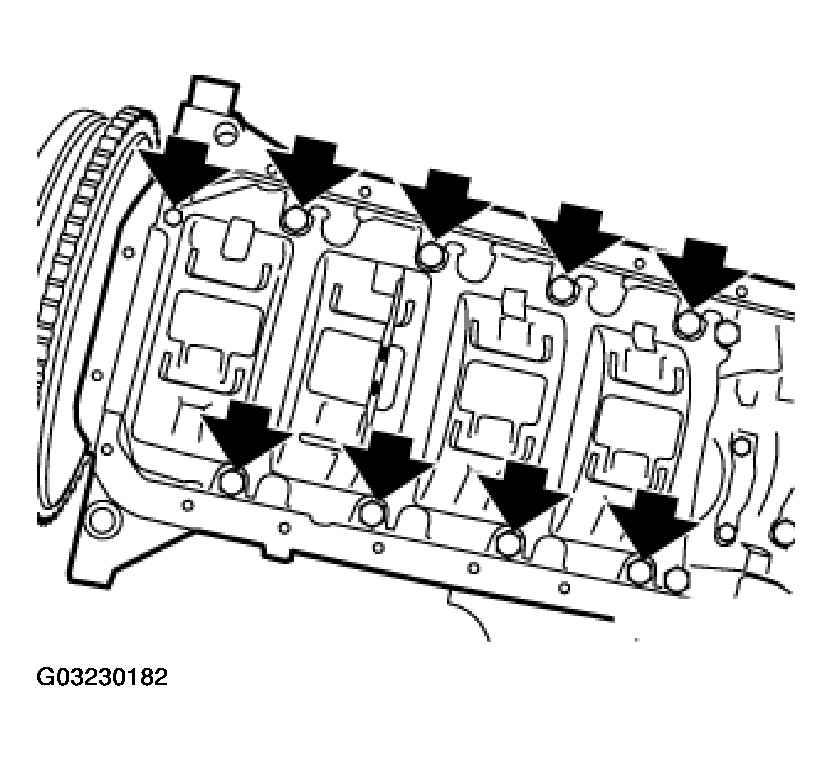

Fig 18: Installing Oil Scraper
