11 21 571 Replacing grooved ball bearing in crankshaft (M52 / S52 / M52TU / M54 / S50 / S54)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 5 500
11 2 340
11 2 350

(Clutch removed.)

Important!

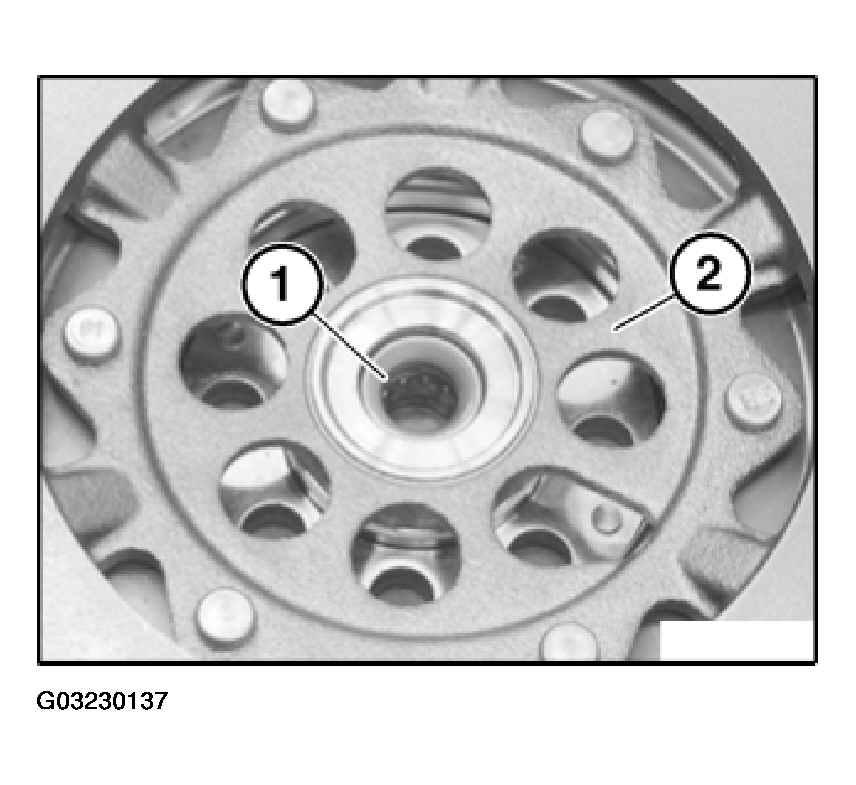

In version with needle bearing (1) in dual-mass flywheel (2), no grooved ball bearing may be fitted in the crankshaft.

Fig 1: Identifying Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Grooved Ball Bearing:

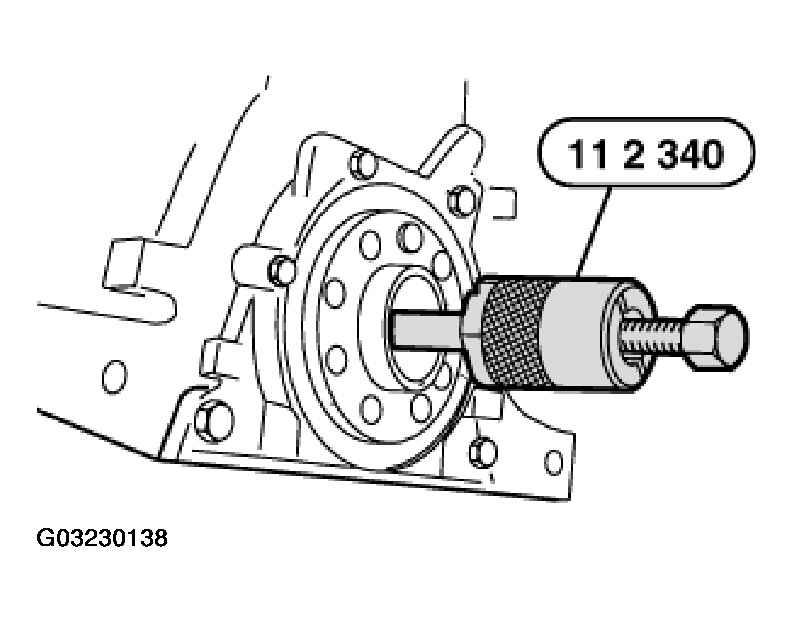

Remove guide bearing with special tool 11 2 340 .

Fig 2: Removing Guide Bearing With Puller

Courtesy of BMW OF NORTH AMERICA, INC.

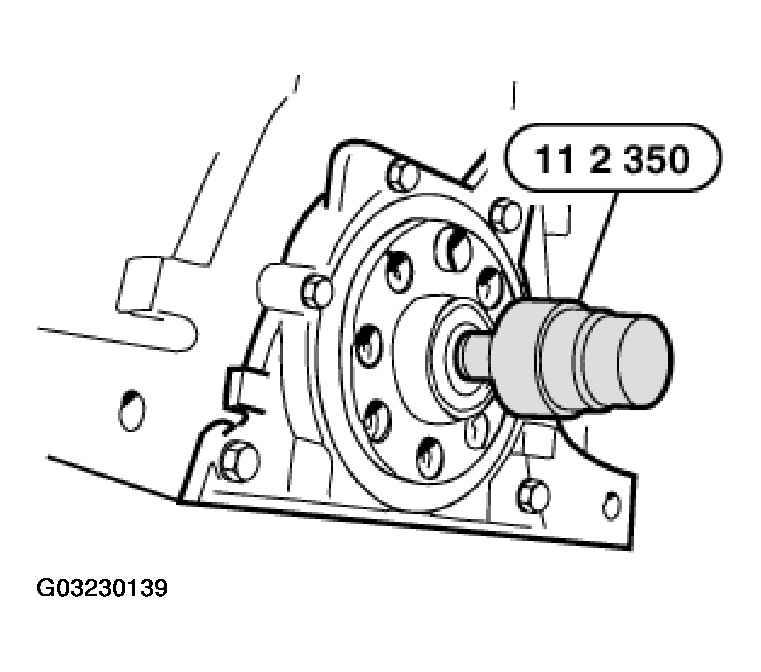

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500 .

Fig 3: Installing Thrust Bearing With Drift

Courtesy of BMW OF NORTH AMERICA, INC.
