61 31 . . . Replacing all switches and indicator lamps in center console (Z3 roadster, Z3 coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unclip shift-lever cover.

Remove insulation sheet.

Carefully press hazard warning light switch or window regulator switch downwards to remove from trim.

Disconnect connector.

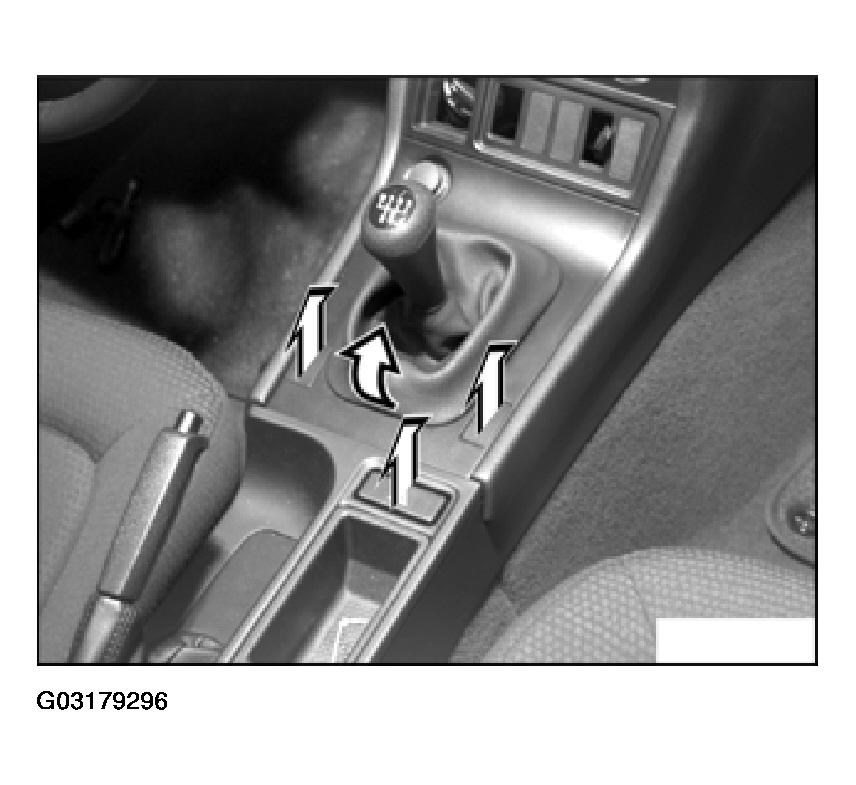

Fig 1: Unclipping Shift-Lever Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove radio finisher or, if necessary, radio. Refer to 65 11 030 RADIO (BAVARIA C II OR C REVERSE II) or 65 11 030 REMOVING AND INSTALLING OR REPLACING RADIO (BAVARIA C III OR C REVERSE III RDS) or 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO (BUSINESS) .

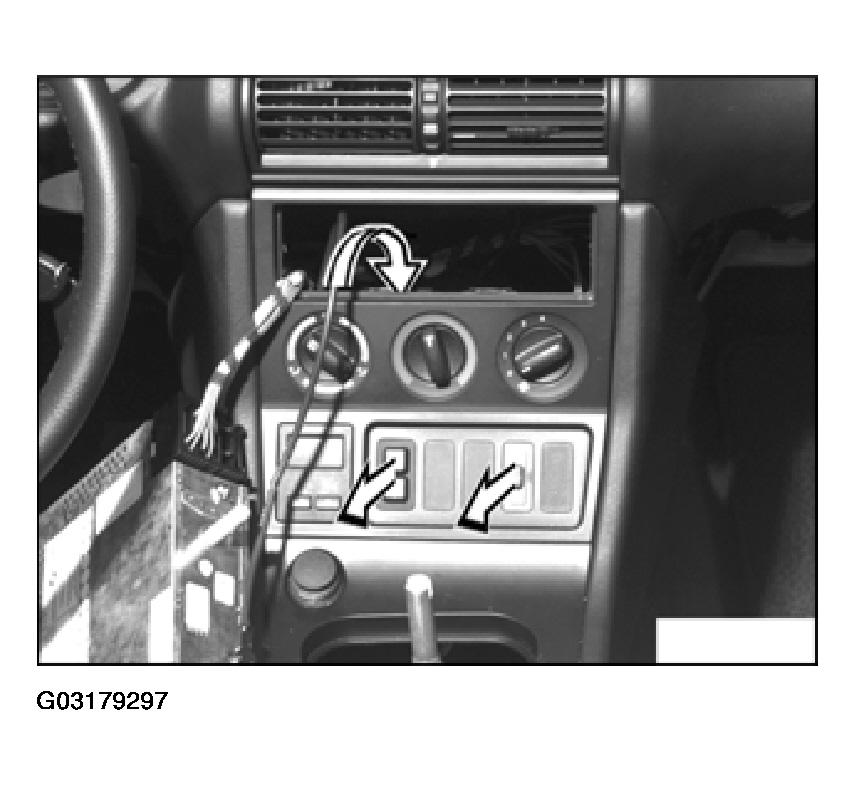

Fig 2: Removing Radio Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Push A/C switch or indicator lamp forwards through radio aperture to unclip and remove connector.
