65 11 030 Radio (Bavaria C II or C Reverse II)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

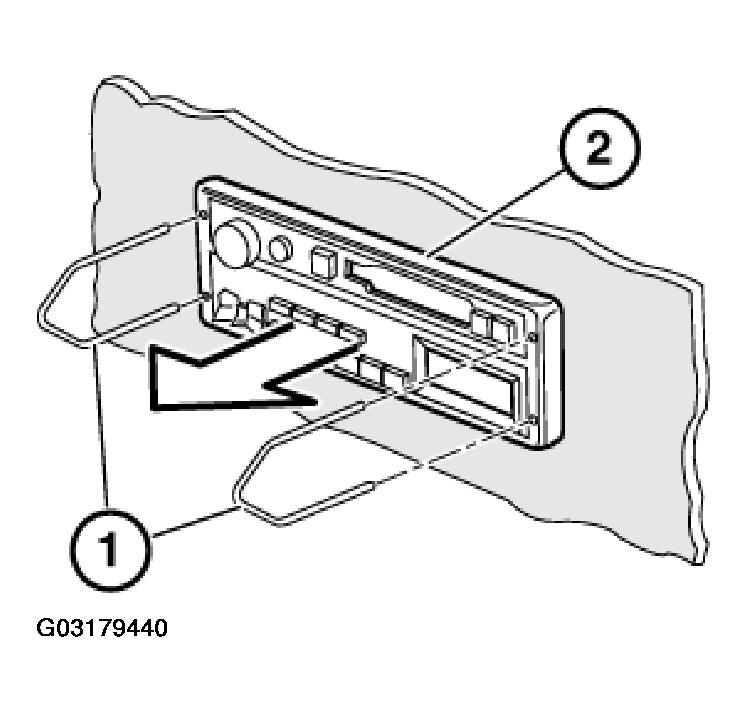

Press unlocking hooks (1) into radio on left and right sides.

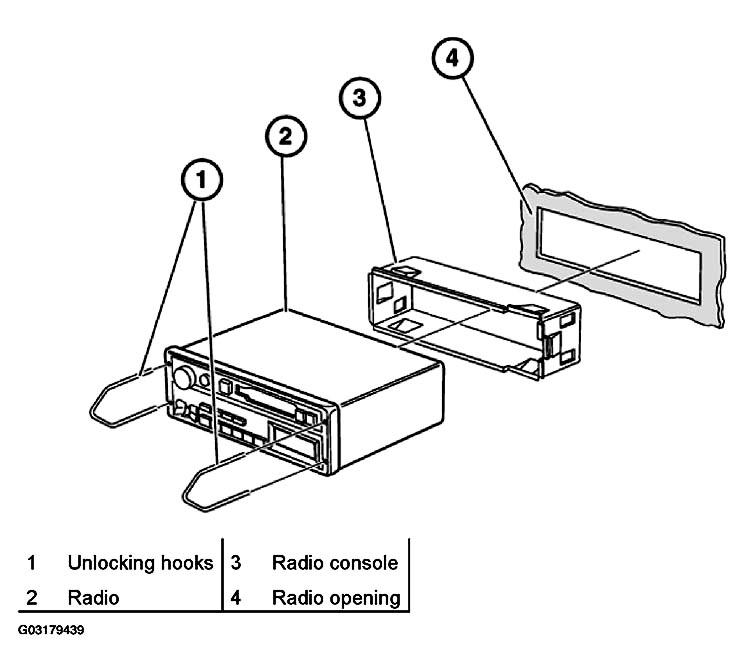

Fig 1: Removing Radio (Bavaria C II Or C Reverse II)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out radio carefully with hooks.

Fig 2: Pressing Unlocking Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

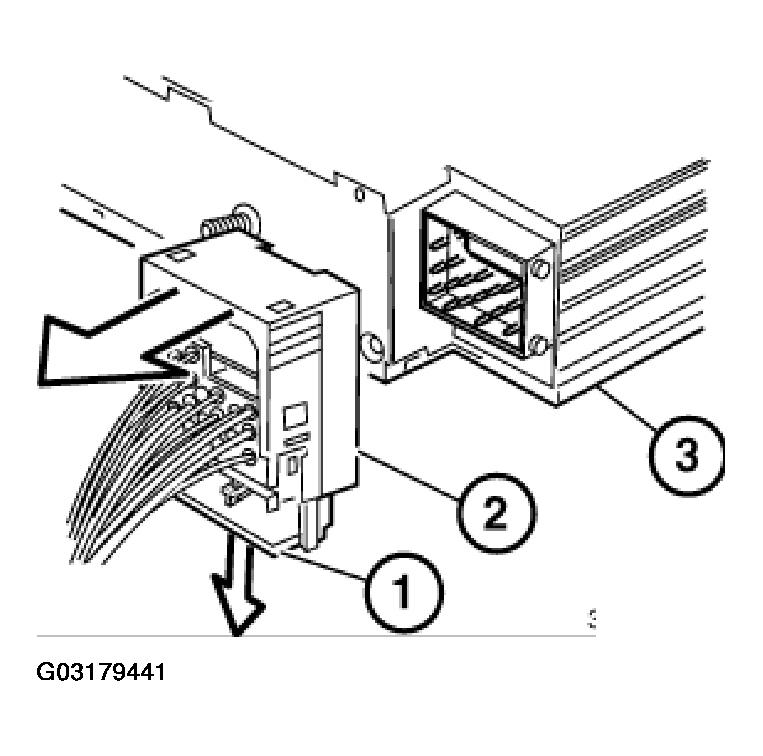

Remove retaining bracket (1) and remove connector (2) from radio (3).

Fig 3: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
