65 11 030 Removing and installing or replacing radio (Bavaria CIII or C Revers III RDS)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

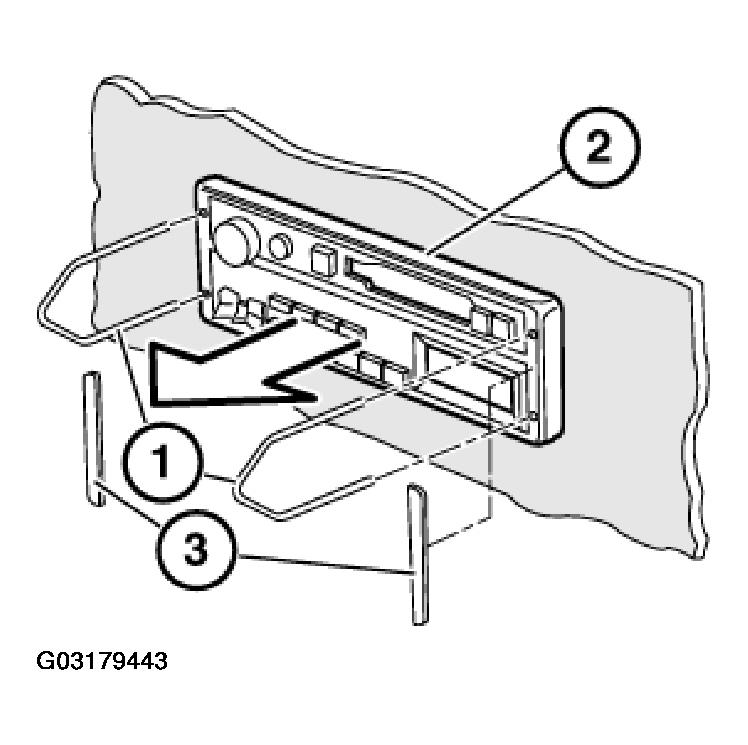

Fig 1: Removing Radio (Bavaria CIII Or C Revers III RDS)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip covers (3) and remove.

Press unlocking hooks (1) into radio on left and right sides.

Pull out radio carefully with hooks.

Fig 2: Removing Covers

Courtesy of BMW OF NORTH AMERICA, INC.

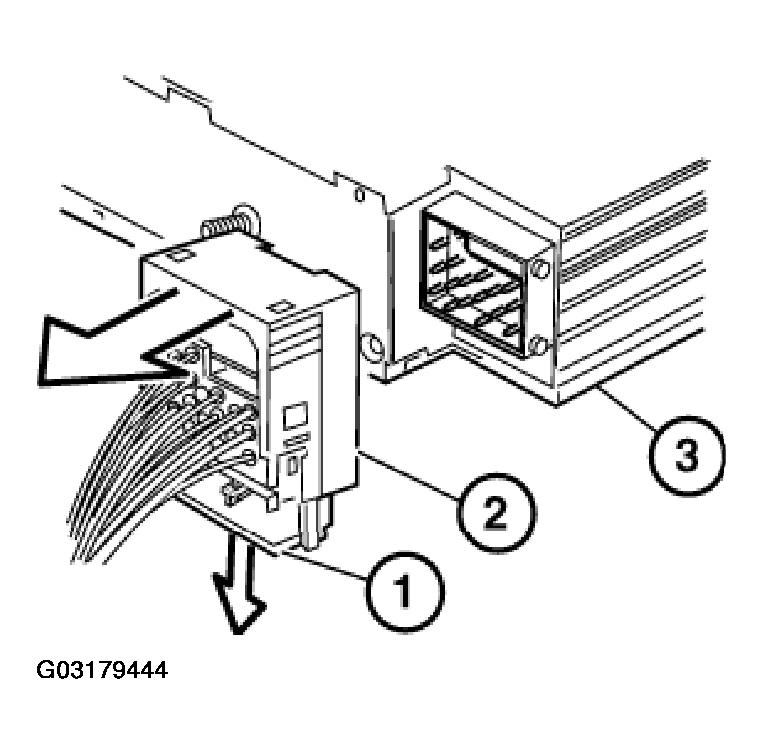

Remove retaining bracket (1) and remove connector (2) from radio (3).

Fig 3: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
