65 11 030 Removing and installing/replacing radio (Business)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Radio (Business)

Courtesy of BMW OF NORTH AMERICA, INC.

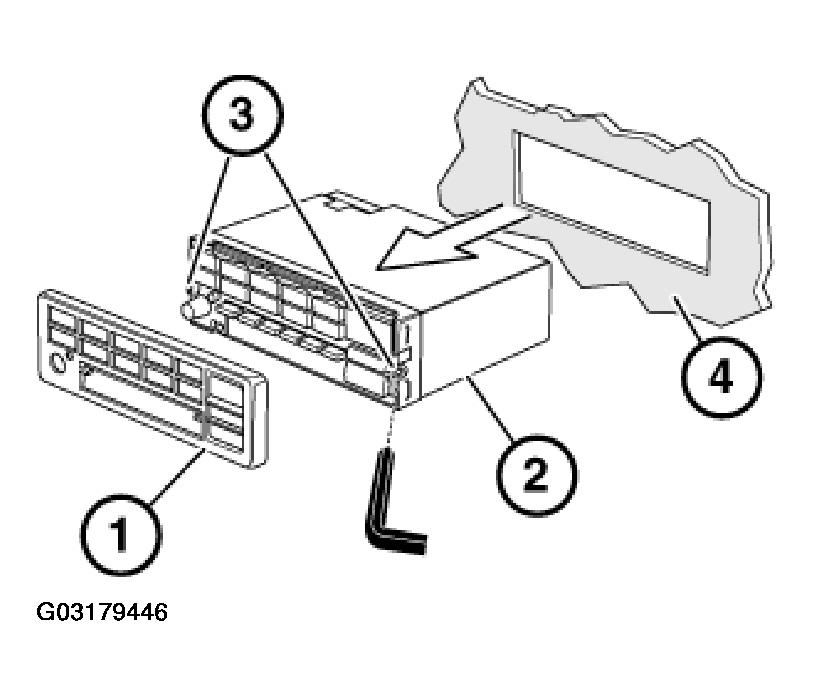

Remove finisher (1), unfasten left or right screws (3) and remove radio (2) through radio aperture.

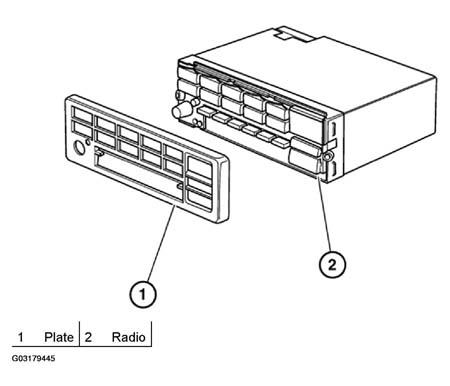

Fig 2: Removing Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

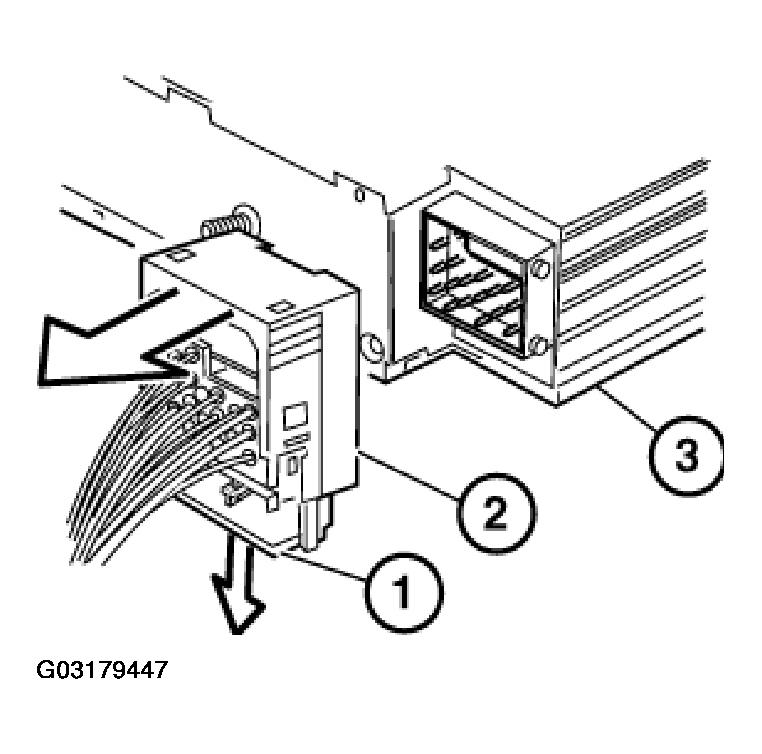

Remove retaining bracket (1) and remove connector (2) from radio (3).

Fig 3: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
