51 31 000 Removing and installing windshield (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To bond windshield: Adhesives for cold and hot working are permitted. Remove interior rearview mirror, refer to 51 16 060 REMOVING AND INSTALLING OR REPLACING INTERIOR REAR-VIEW MIRROR . Remove trim pieces for front roof pillar (A-pillar), refer to 51 43 201 REMOVING AND INSTALLING/REPLACING PANEL FOR ROOF PILLAR, FRONT LEFT OR RIGHT (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) . Remove grill for air intake/heater, refer to 51 13 077 REMOVING AND INSTALLING/REPLACING GRILL FOR AIR INTAKE/HEATER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Cold Processing:

Comply with instructions on gluing windows, refer to 51 31 ... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

Warm Processing:

Open aluminum membrane at rear end of cartridge.

Place cartridge in cartridge oven.

Heat glue cartridges to 80° C for one hour in oven.

Comply with instructions on gluing windows, refer to 51 31 ... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

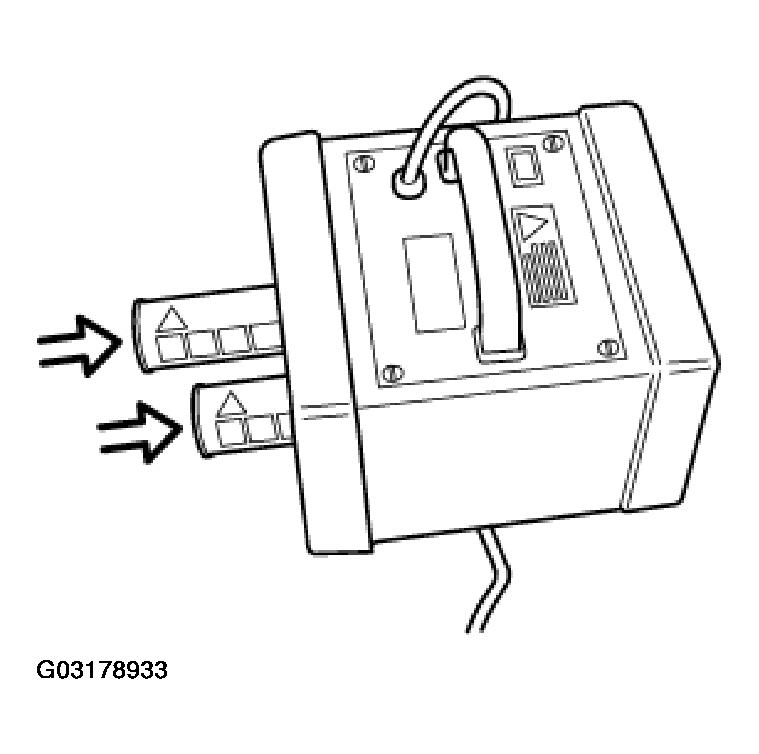

Fig 1: View Of Cartridge Oven

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Cover radiator/engine compartment (top) and front side walls with protective covers.

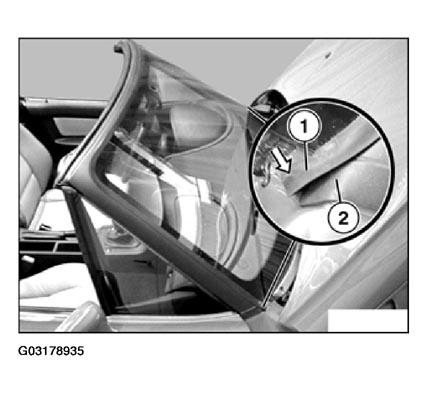

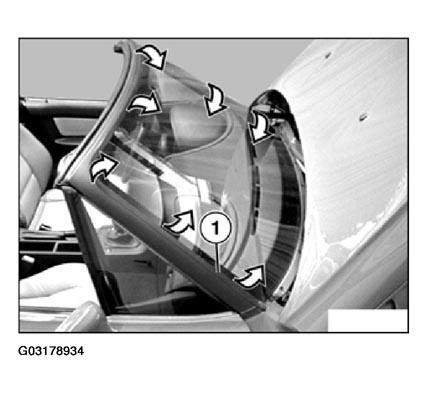

Pull seal (1) down from left to right.

Fig 2: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Left/right seals (1) must be pushed over seal (2).

Fig 3: Installing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

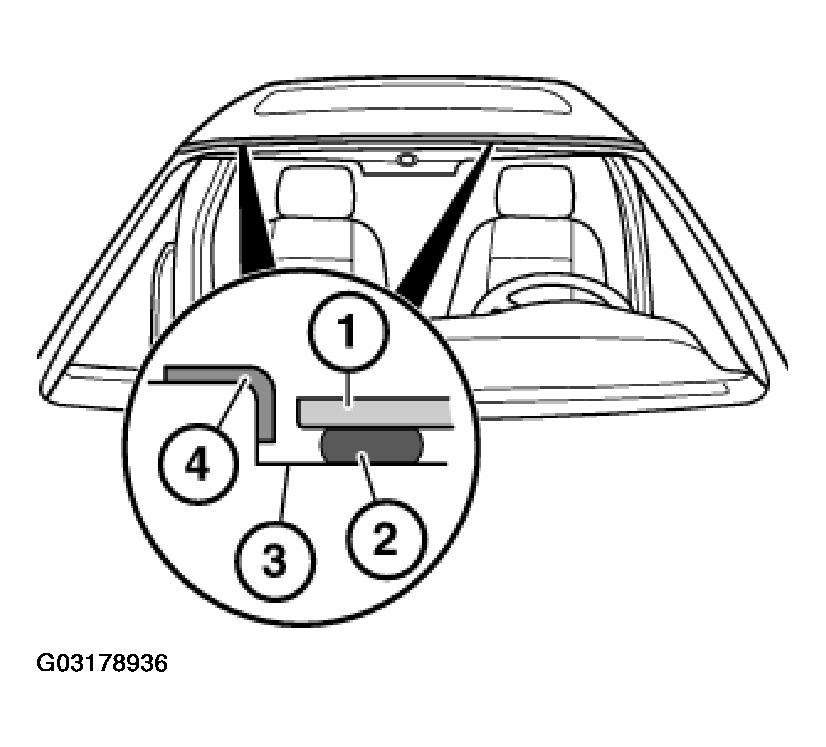

Mask body along roof connection with narrow fabric adhesive tape (e.g. Tesa).

Windshield.
Glue bead.
Body opening.
Fabric adhesive tape.

Fig 4: Identifying Windshield, Glue Bead, Body Opening And Fabric Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Cover cowl panel bottom edge with tape.

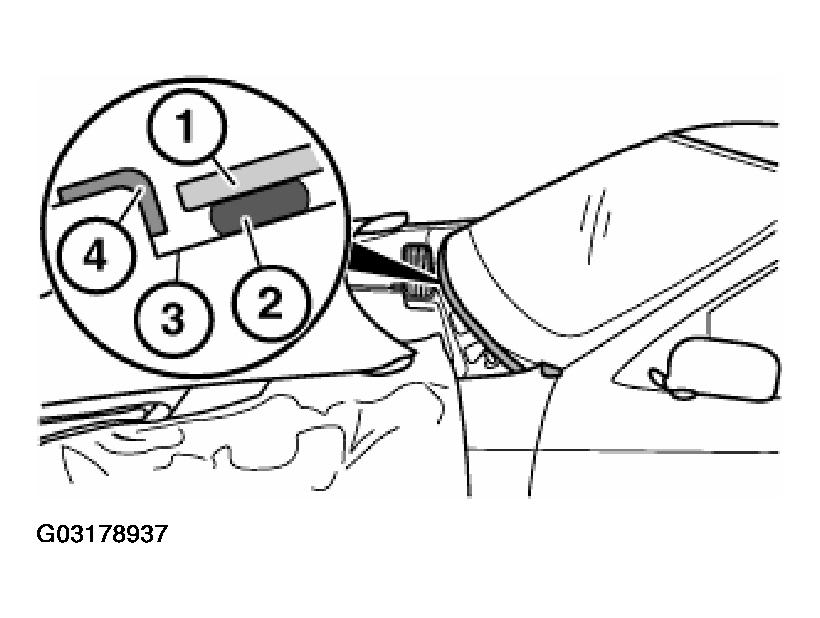

Attach adhesive to edges on front side panels.

Windshield.
Glue bead.
Body opening.
Fabric adhesive tape.

Fig 5: Locating Windshield, Glue Bead, Body Opening And Fabric Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

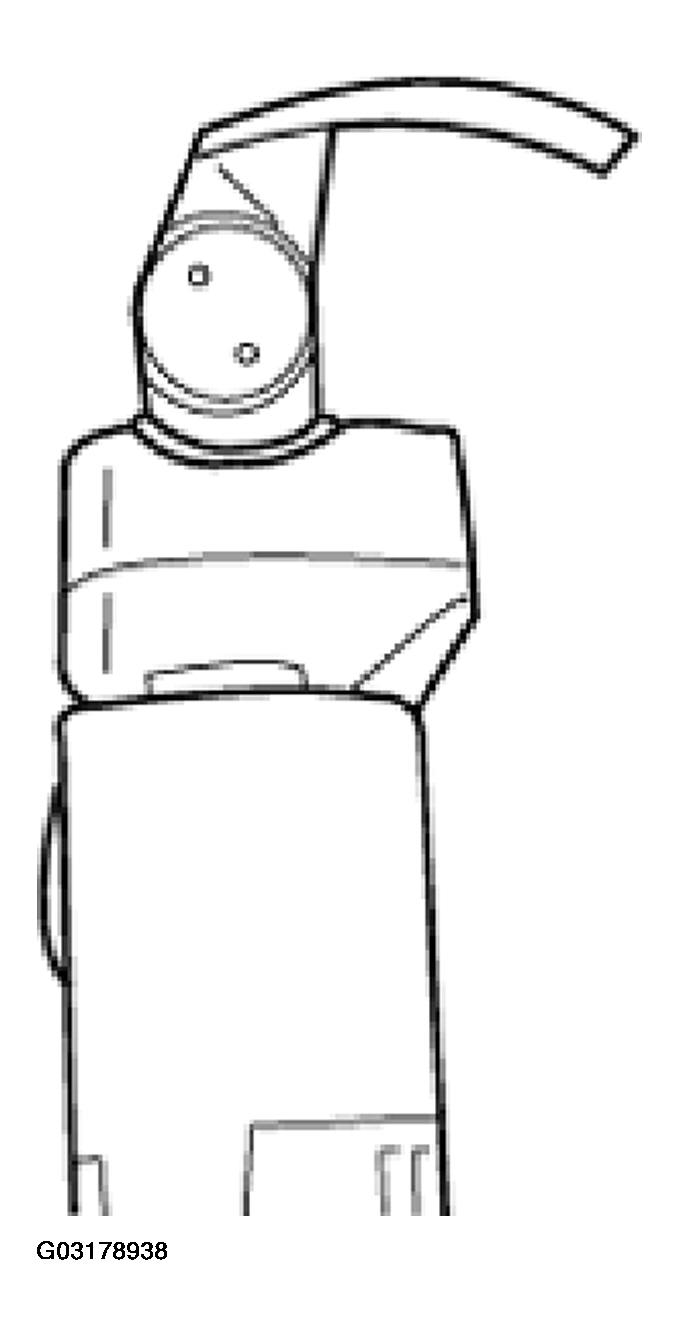

Fit long knife (36 mm blade length) to the tool.

NOTE: Resharpen knife with machine running.

Fig 6: Fitting Knife To Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

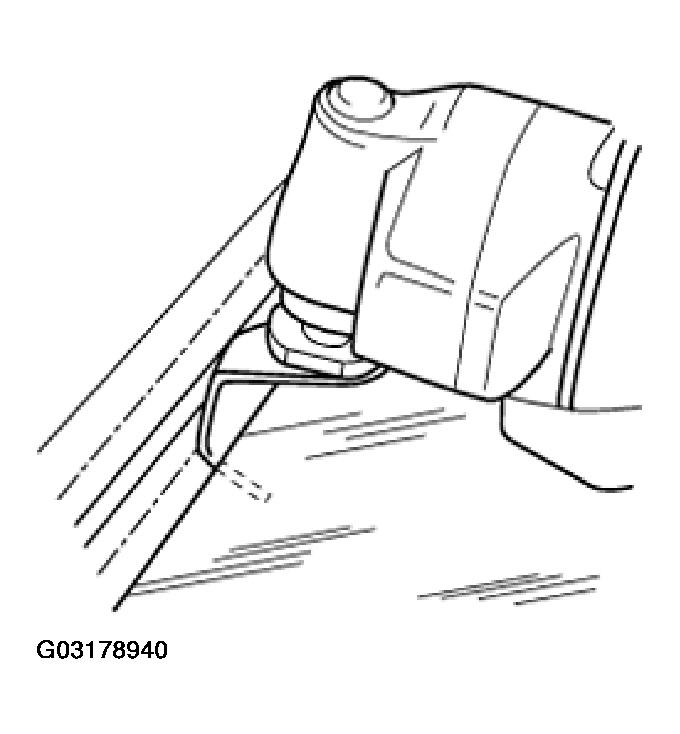

Carefully insert knife between body and windshield.

Fig 7: Inserting Knife Between Body And Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

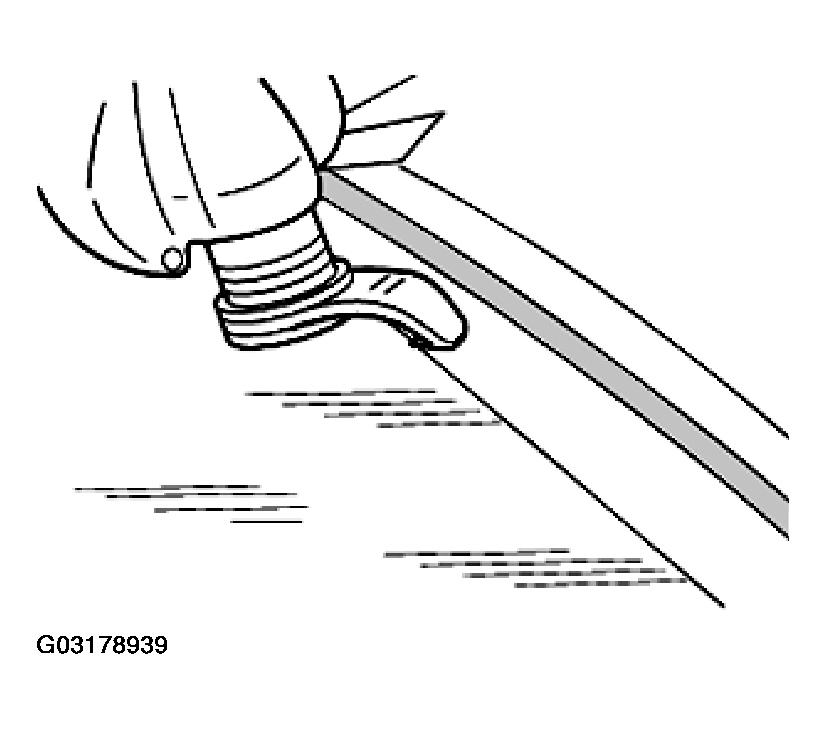

Guide handle of knife parallel to windshield.

Fig 8: Guiding Handle Of Knife Parallel To Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

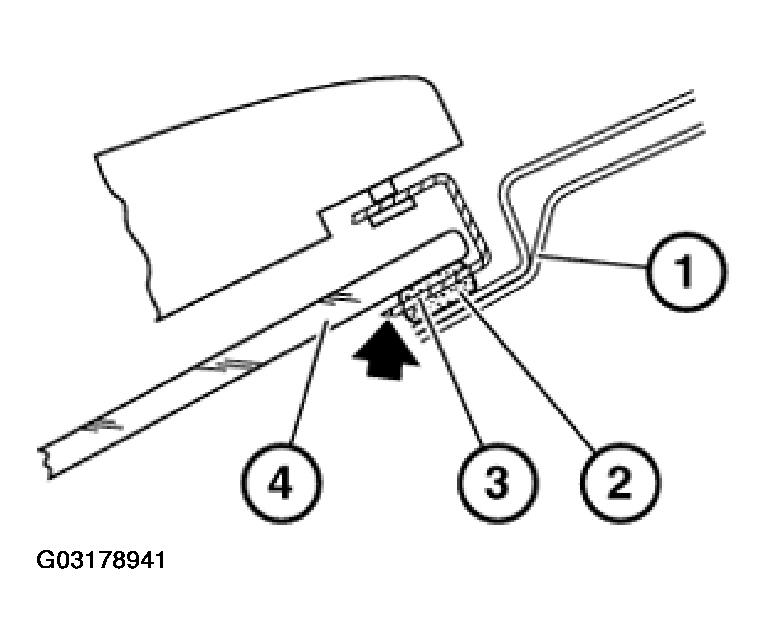

Cut through glue bead all around and as close as possible to windscreen glass.

Body opening.
Glue bead.
Knife.
Windshield.

Fig 9: Locating Windshield, Glue Bead, Body Opening And Fabric Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

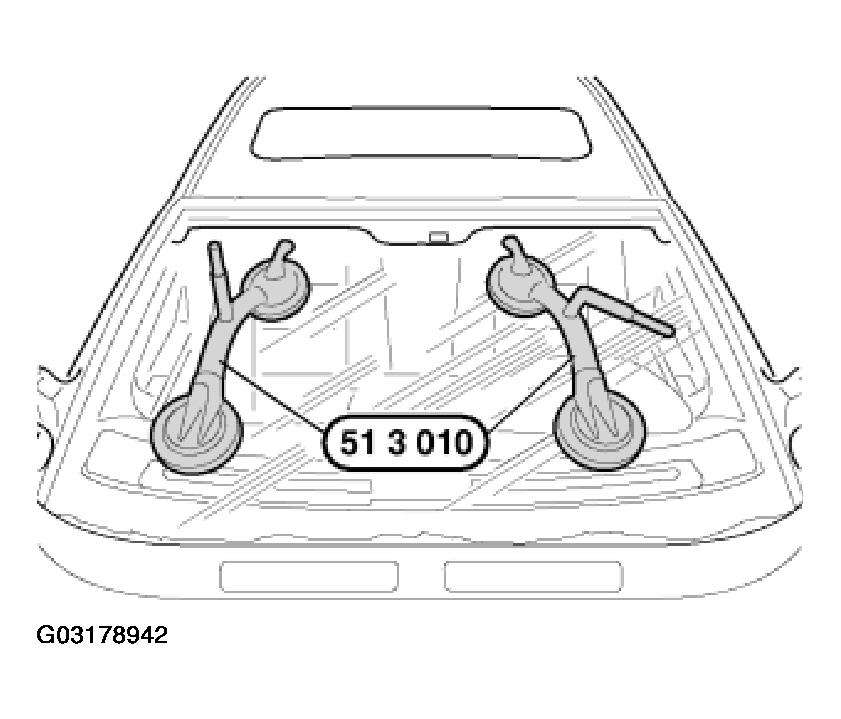

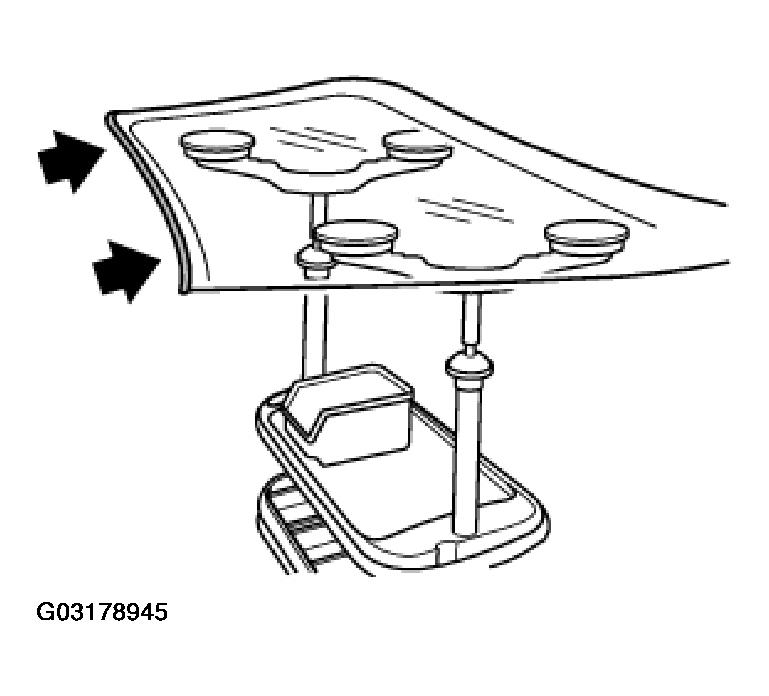

Lift out the windscreen using special tool 51 3 010.

Fig 10: Removing Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

Cut off old glue in body opening to a thickness of approx. 0.5 mm.

Cut off old glue carefully with a universal knife (sharp as a razor blade) to avoid damaging the paint finish in body opening.

Fig 11: Removing Old Glue

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off adhesive tapes all round.

CAUTION: To ensure long-term corrosion protection, it is absolutely essential to repair paintwork damage (scratches and large-surface damage), refer to 51 31 ... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

When reusing the windshield:

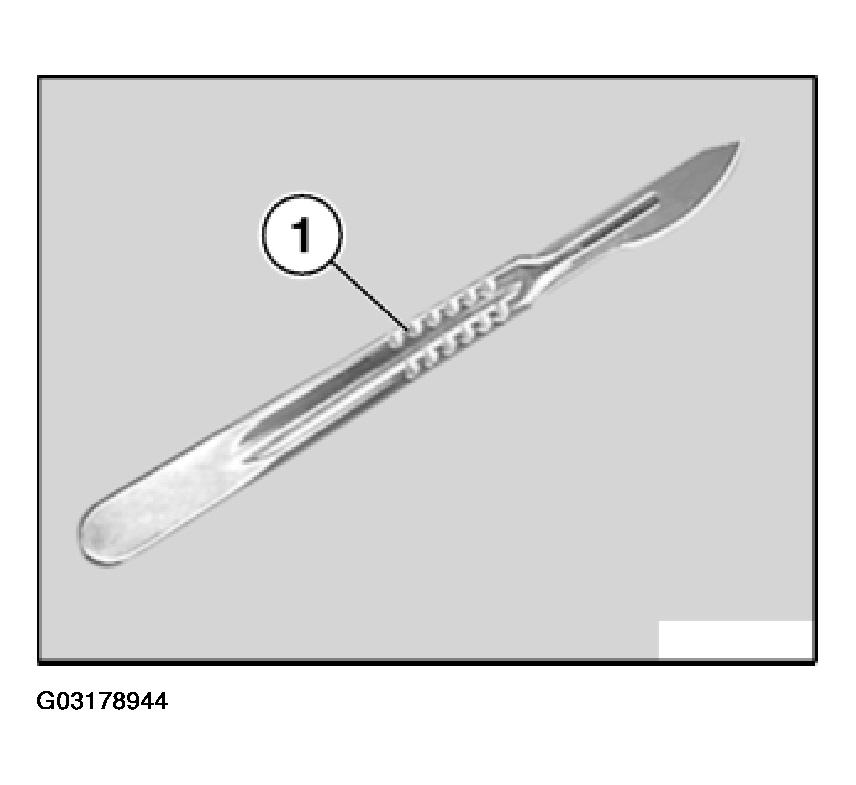

Remove glue residue on windshield with a heavy-duty scalpel to approx. 0.5 mm.

Fig 12: Identifying Heavy-Duty Scalpel

Courtesy of BMW OF NORTH AMERICA, INC.

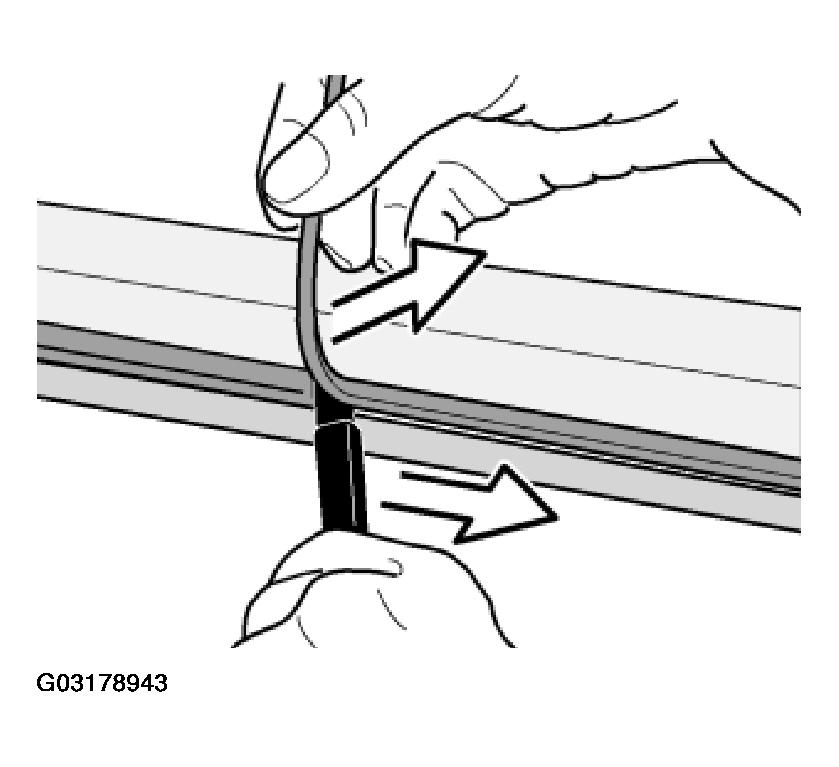

Install seal from bottom left to bottom right and press on.

Fig 13: Installing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The basic filler must have hardened!

Treat windshield and body around glued area with BMW-approved materials, refer to 51 31 ... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

NOTE: Note ventilation time!

Fig 14: Installing Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

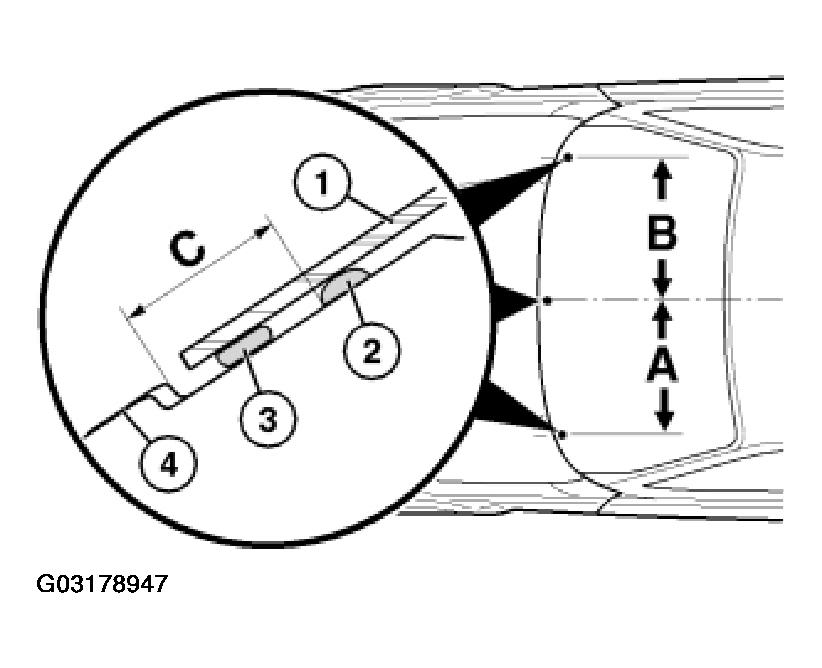

Stick on 1 spacer buffer (2) in each case in center and at distances (A) and (B) from center of cowl panel.

Dimensions:

500 mm.
500 mm.
18 mm.

Windshield.
Spacer buffer.
Glue bead.
Windshield.

Fig 15: Identifying Spacer Buffer Locations

Courtesy of BMW OF NORTH AMERICA, INC.

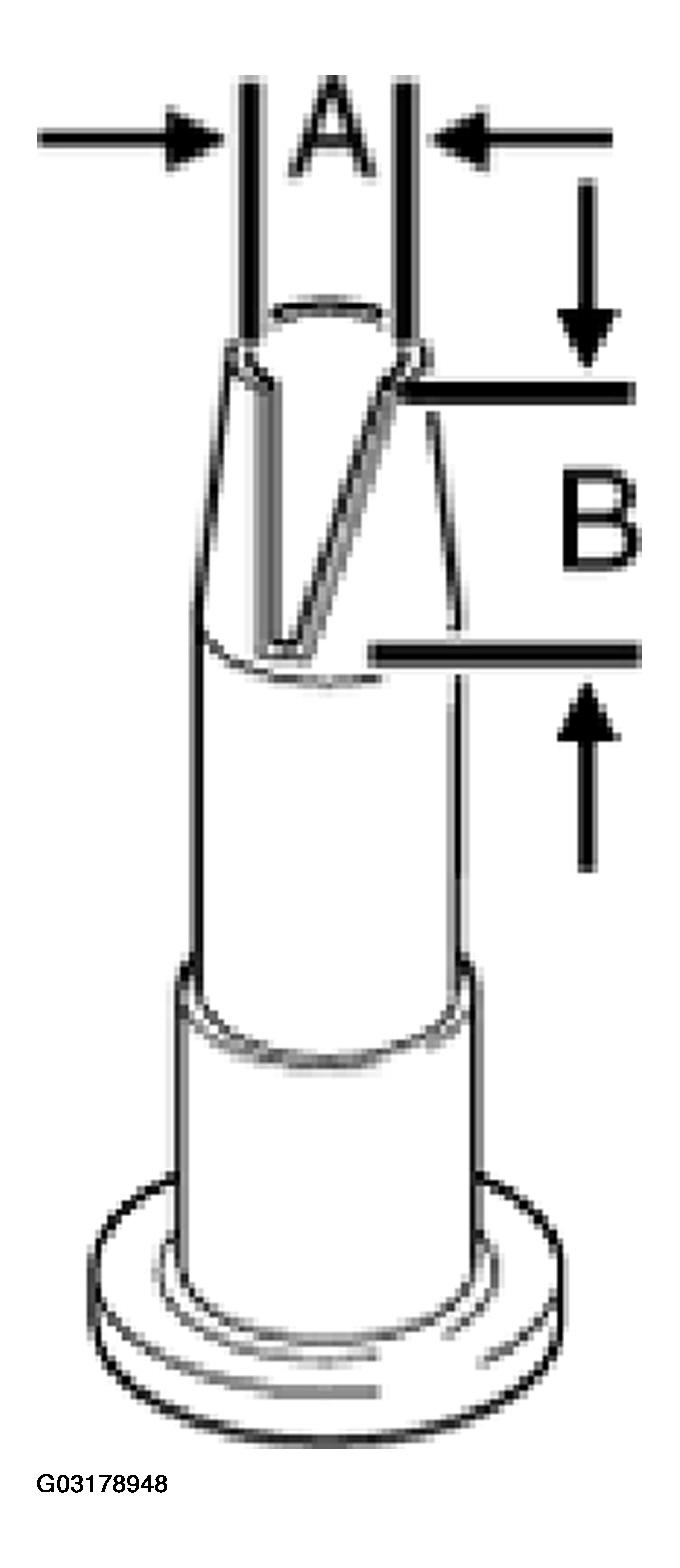

Cut nozzle to size.

Dimensions:

8 _-2 2 mm.
11 _-2 mm.

NOTE: For an even application of adhesive bead: Use a cartridge gun (operated pneumatically or electrically).

Check expiration date of glue!

Fig 16: Identifying Nozzle Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

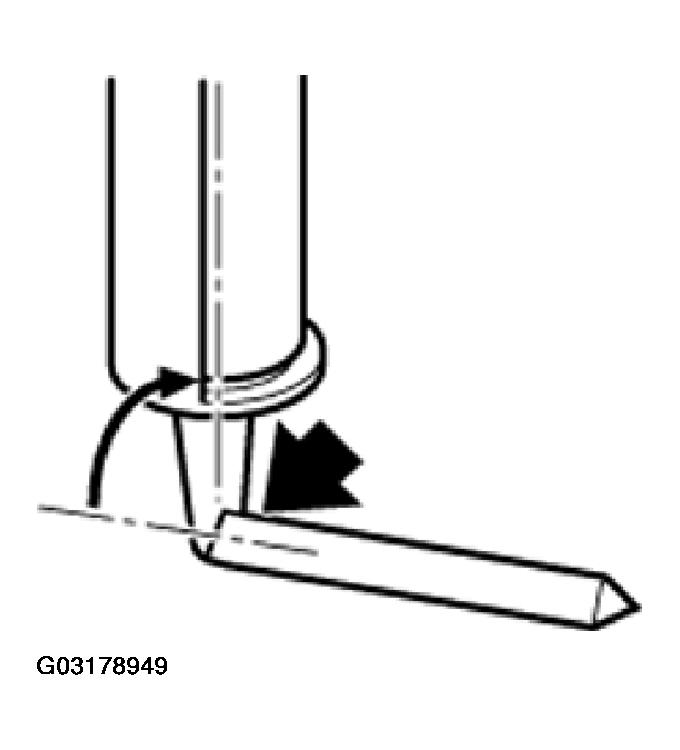

If necessary, apply a test bead before gluing.

Cartridge must be held perpendicular to the windscreen glass.

Fig 17: Testing Glue

Courtesy of BMW OF NORTH AMERICA, INC.

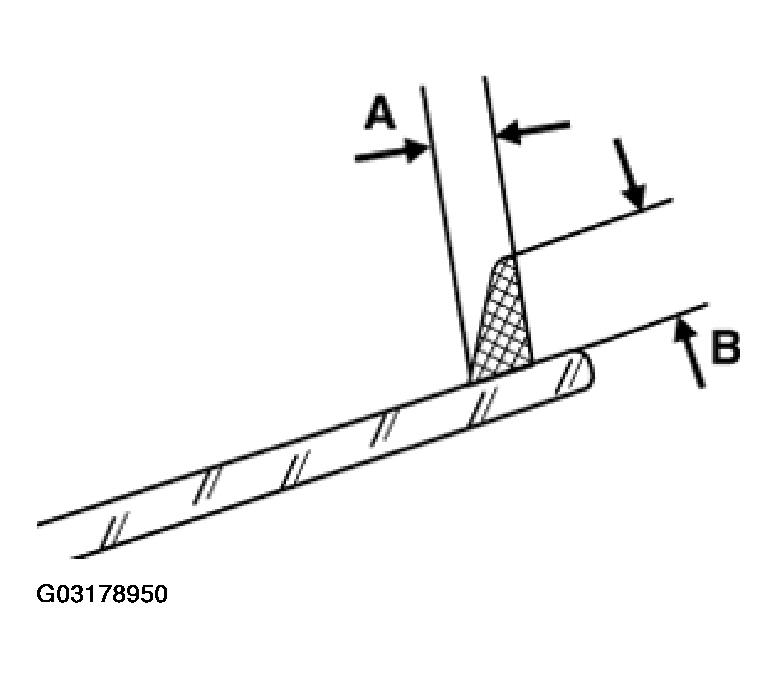

Shape of glue bead:

8_-2 mm.
11_-2 mm.

Fig 18: Identifying Shape Of Glue Bead

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Apply glue bead quickly and insert windscreen glass. Skin formation time of glue, maximum 10 minutes.

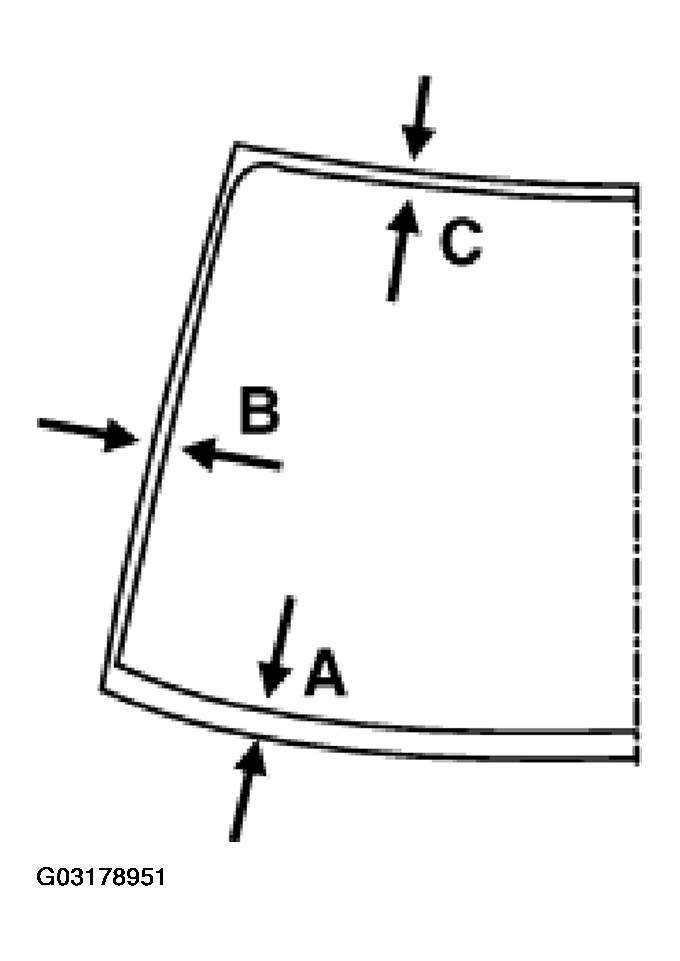

GLUE BEAD THICKNESS SPECIFICATION

(A) = 8 mm.	Distance of glue bead to edge of windshield/bottom of windshield.
(B) = 8 mm.	Distance between glue bead and edge of windshield.
(C) = 8 mm.	Distance between glue bead and edge of windshield.

Fig 19: Glue Bead Thickness Specification

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The adhesive area for the plastic adhesive tapes must be free of grease and dust.

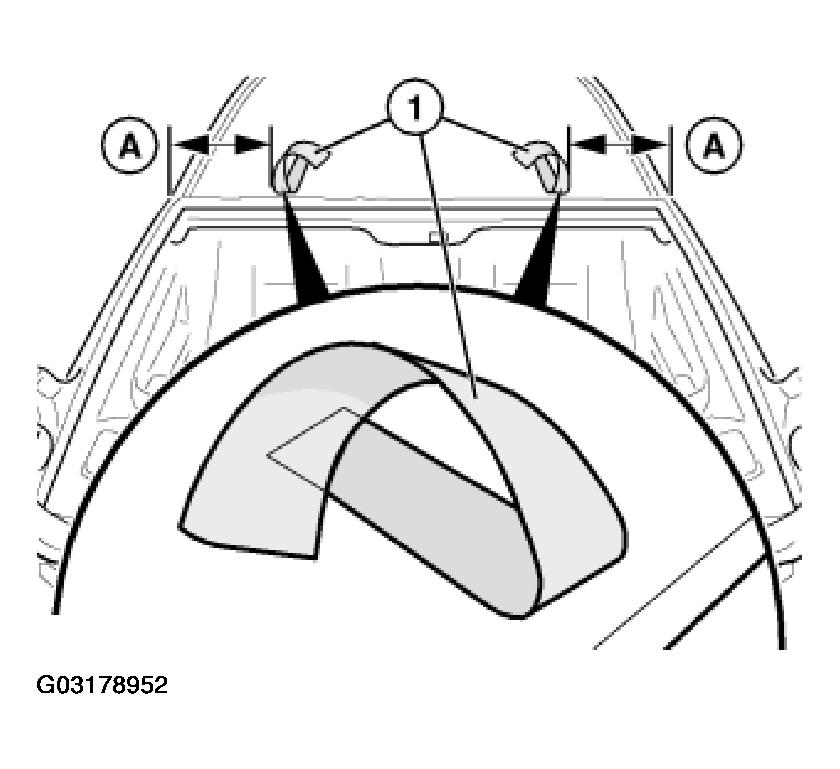

Attach two yellow plastic adhesive tapes (1) to roof at distance (A) from outer corners.

Length: 500 mm.

Width: 50 mm.

(A) 250 mm.

Fig 20: Identifying Plastic Adhesive Tapes

Courtesy of BMW OF NORTH AMERICA, INC.

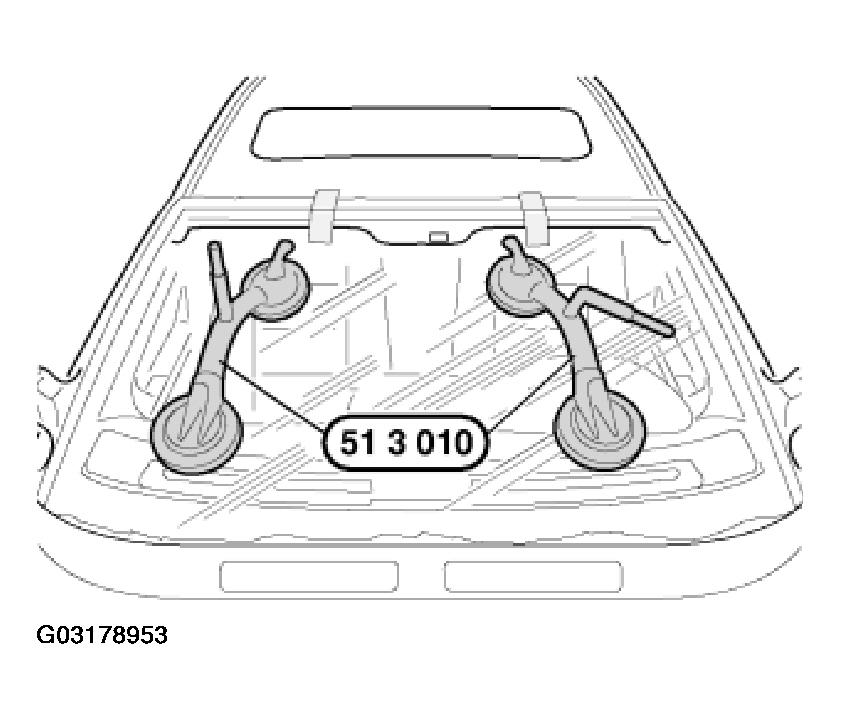

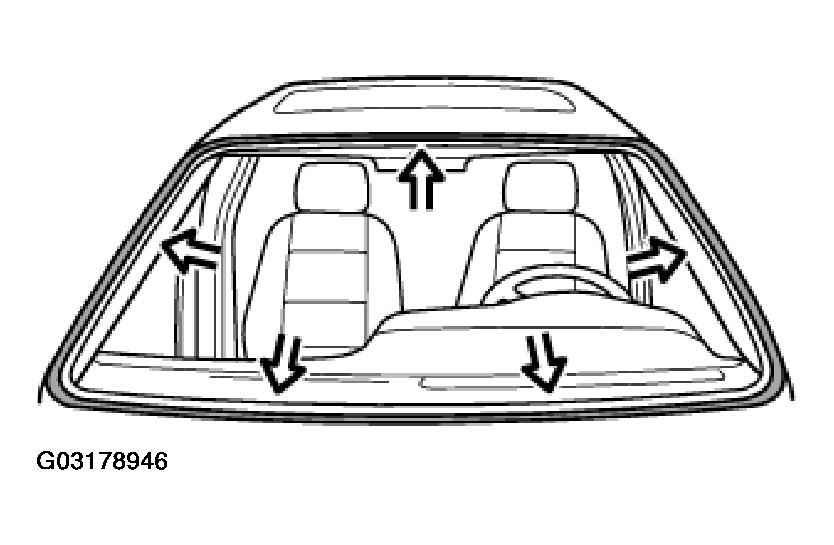

Using special tool 51 3 010, first position windshield at top, align sides, then install at bottom and press into place.

Press windshield upwards until seal rests uniformly on roof.

Fix windshield in this location at top with two yellow plastic adhesive tapes.

If necessary, support windshield glass from below with wooden wedge.

Fig 21: Installing Windshield Glass

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Remove dirt from residual glue with Sika-Entferner 208 before glue is hard. Do not press out windscreen glass again for this purpose. Hardened glue can only be removed by machine.

Assemble car.

After hardening time, remove support.

NOTE: Any leakages are located by spraying water under the sealing lips or by using an ultrasonic leak detector and sealed with the appropriate nozzle.
