51 13 077 Removing and installing/replacing grille for air intake/heater (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing both windscreen wiper arms, refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS .

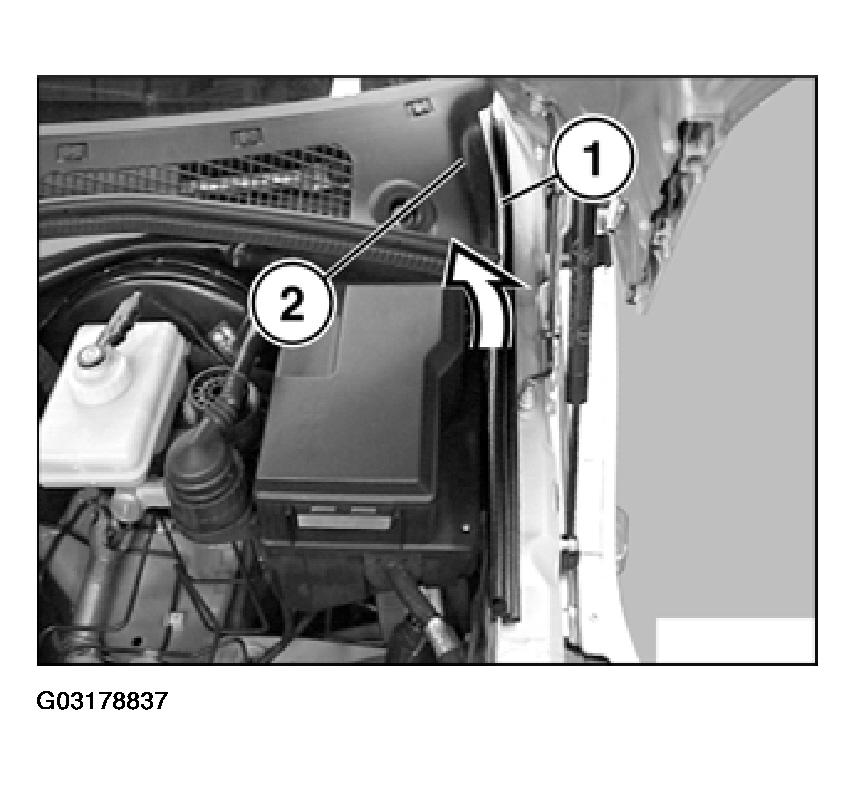

Remove left/right rubber seal (1) from beside protective grill (2).

Fig 1: Removing Windscreen Wiper Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber seal from protective grill.

Fig 2: Removing Rubber Seal From Protective Grill

Courtesy of BMW OF NORTH AMERICA, INC.

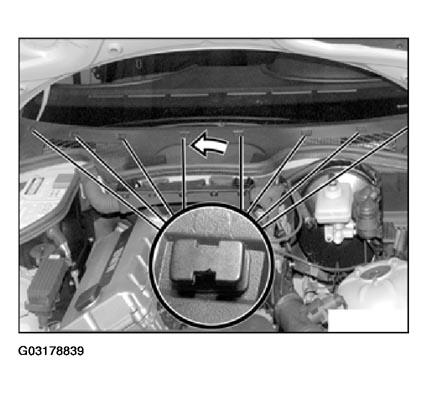

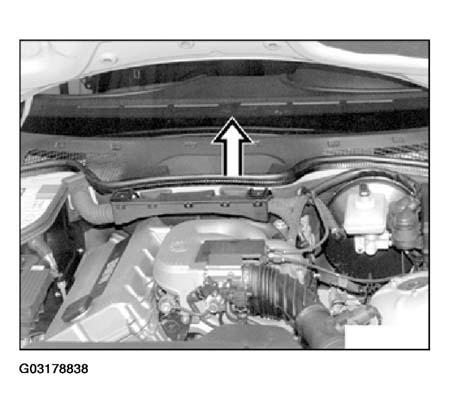

Unfasten all expanding rivets and remove protective grill.

Fig 3: Removing Protective Grill

Courtesy of BMW OF NORTH AMERICA, INC.
