51 16 060 Removing and installing or replacing interior rear-view mirror.

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: On version with remote control for central locking: If necessary, disconnect negative lead to battery, refer to 12 00 ... DISCONNECTING AND CONNECTING BATTERY .

Version with automatic dip action (electro-chrome plating technology) for interior mirror and/or infrared remote control:

Remove panel and disconnect plug connection.

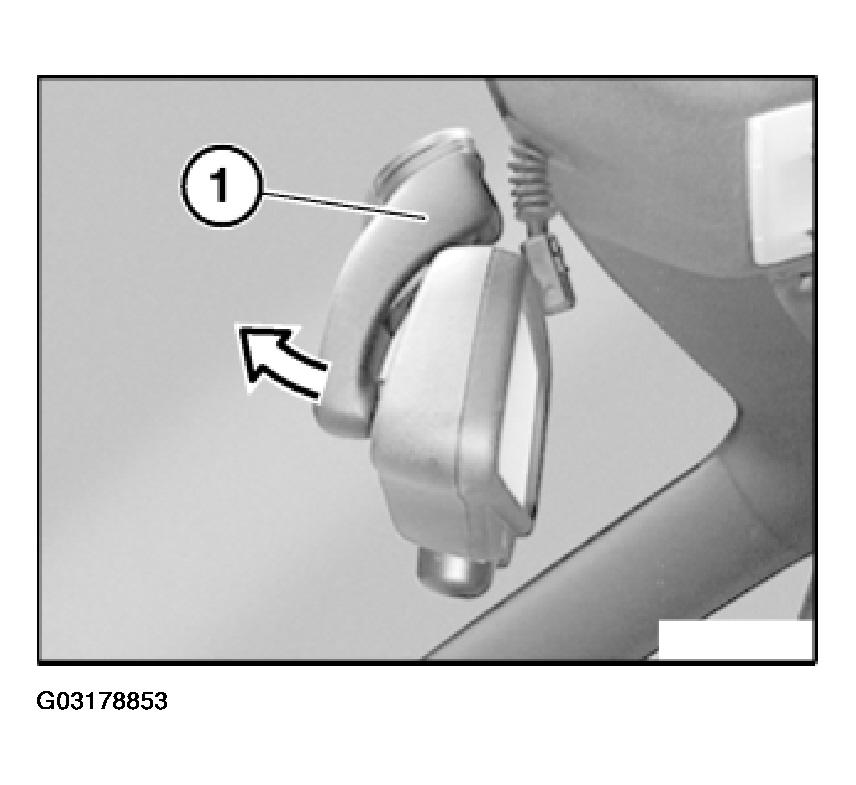

Fig 1: Removing Panel And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Snap mirror (1) forwards out of mirror mount and remove.

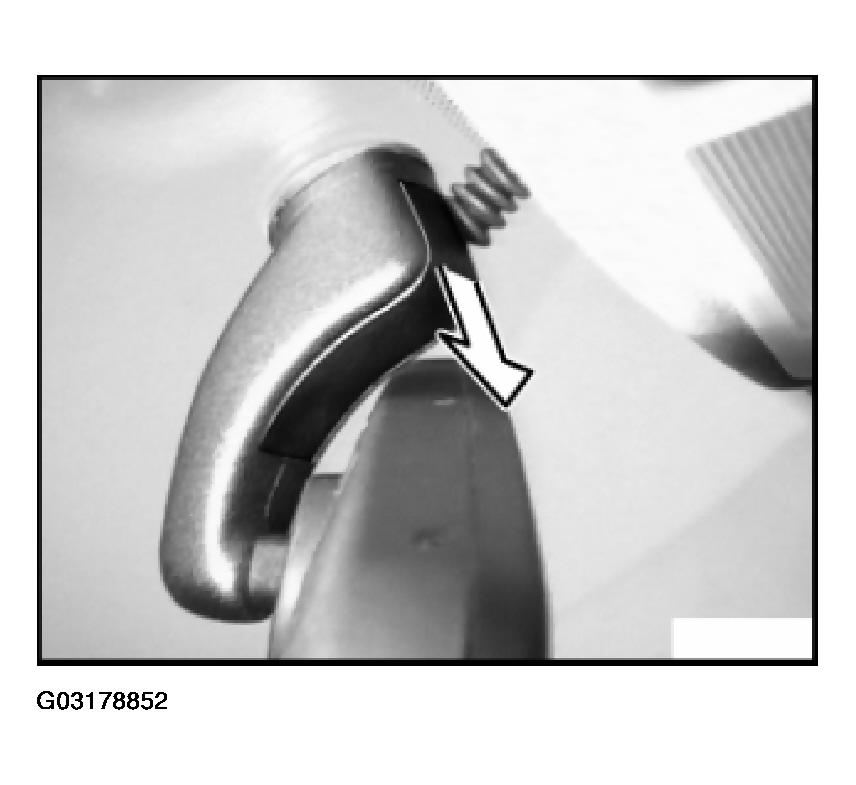

Fig 2: Removing Mirror From Mirror Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not snap mirror backwards (risk of damage).

Installation:

Twist mirror base by approx. 45° and fit to mirror mount.

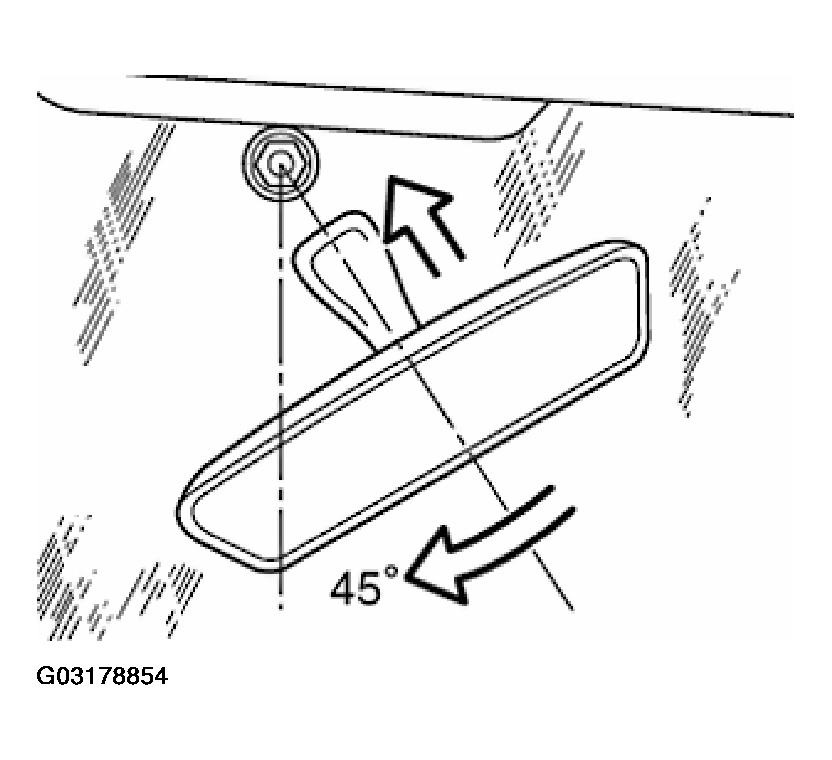

Fig 3: Installing Mirror Base
Courtesy of BMW OF NORTH AMERICA, INC.
Turn mirror foot until it engages on mirror base.

Only replace with version with infrared remote control for central locking:

Installation:

Initialize all transmitters (key).
