51 43 201 Removing and installing/replacing panel for roof pillar, front left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove mucket from front roof column (A-column finisher).

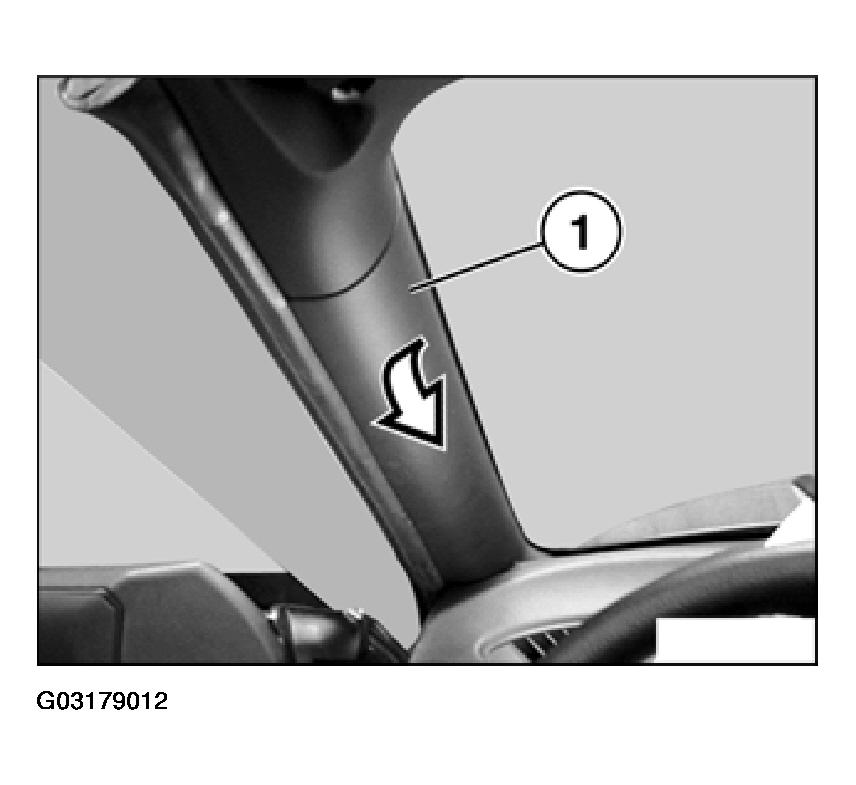

Pull trim (1) inwards to unclip; then pull obliquely upwards to remove.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

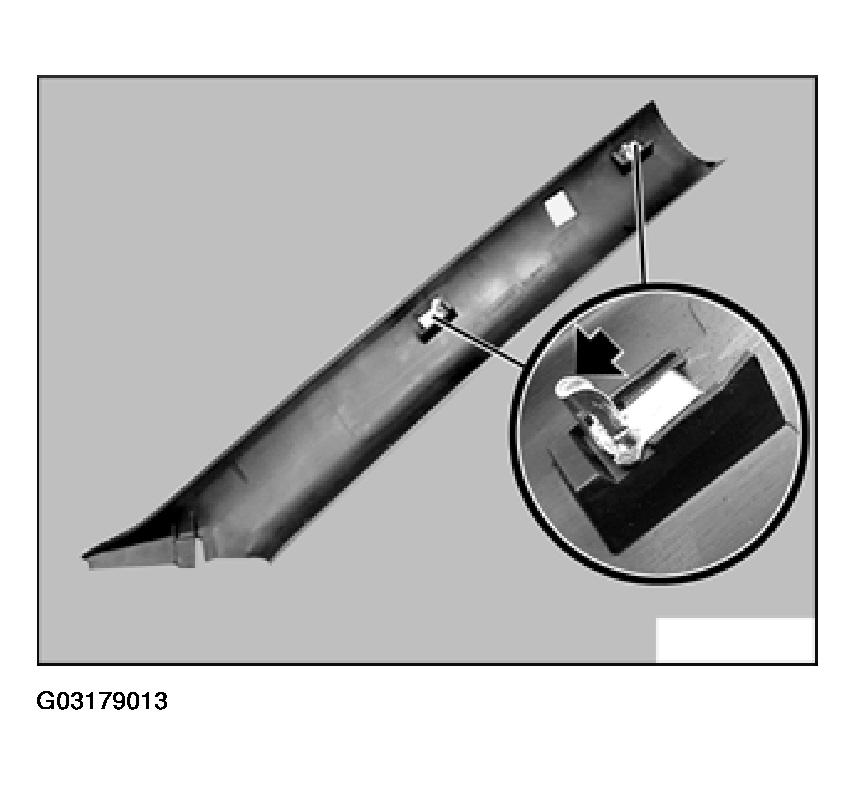

Fig 2: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
