11 21 500 Replacing crankshaft (M52 / S52 / M52TU / M54 / M56)

(Engine removed)

Necessary Preliminary Tasks:

• Removing cylinder head.
• Removing lower timing case cover.
• Removing all pistons. Refer to 11 25 530 REMOVING AND INSTALLING OR REPLACING ALL PISTONS (M52 / S52 / M52TU / M54 / M56) .
• Remove end cover. Refer to 11 14 151 REPLACING CRANKSHAFT RADIAL SEAL (TRANSMISSION SIDE) .

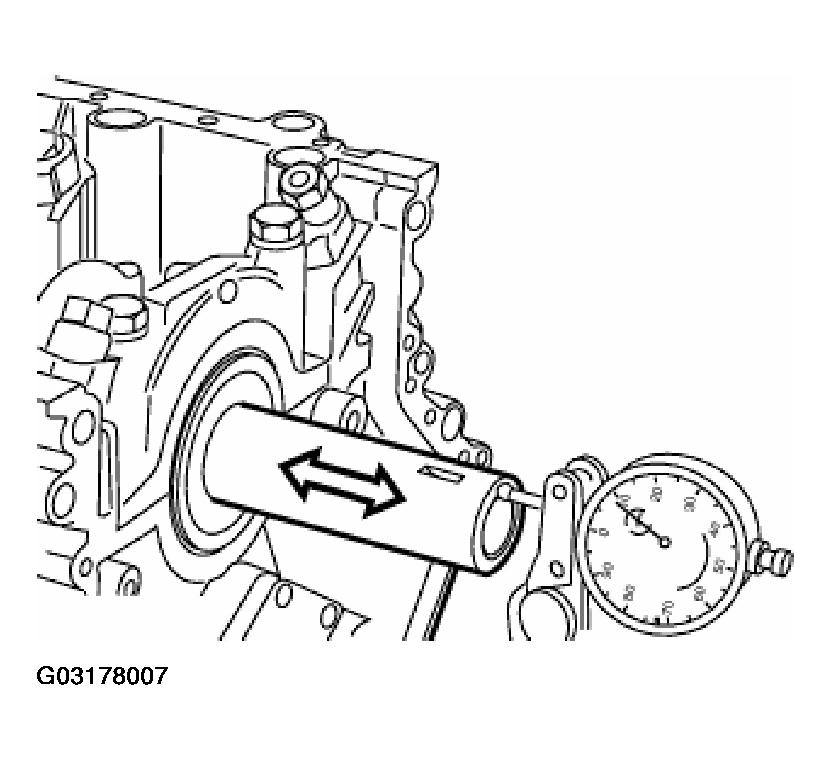

Checking axial clearance:

If permitted end float is exceeded, check crankshaft, guide bearing shells and engine block, replacing if necessary, end float. Refer to CRANKSHAFT WITH BEARING .

Fig 1: Checking Axial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

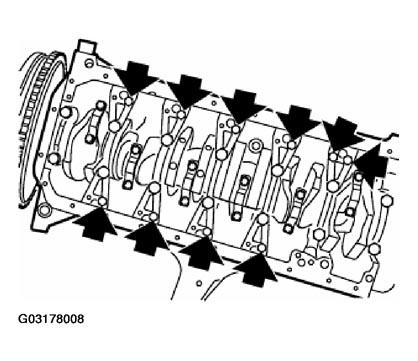

Unfasten screw connection on reinforcement plates.

Fig 2: Unfastening Reinforcement Plates Screws

Courtesy of BMW OF NORTH AMERICA, INC.

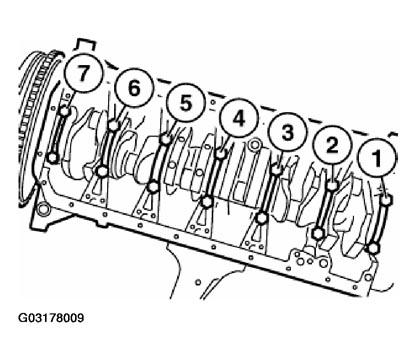

Unfasten screw connection on main bearing.

Remove main bearing caps (1 to 7).

Lever out crankshaft.

Fig 3: Removing Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release incremental gear.

Installation:

Replace screws.

Install screws and tighten down in two passes.

Tightening torque, refer to 11 21 1AZ in 11 21 CRANKSHAFT AND BEARINGS .

Important!

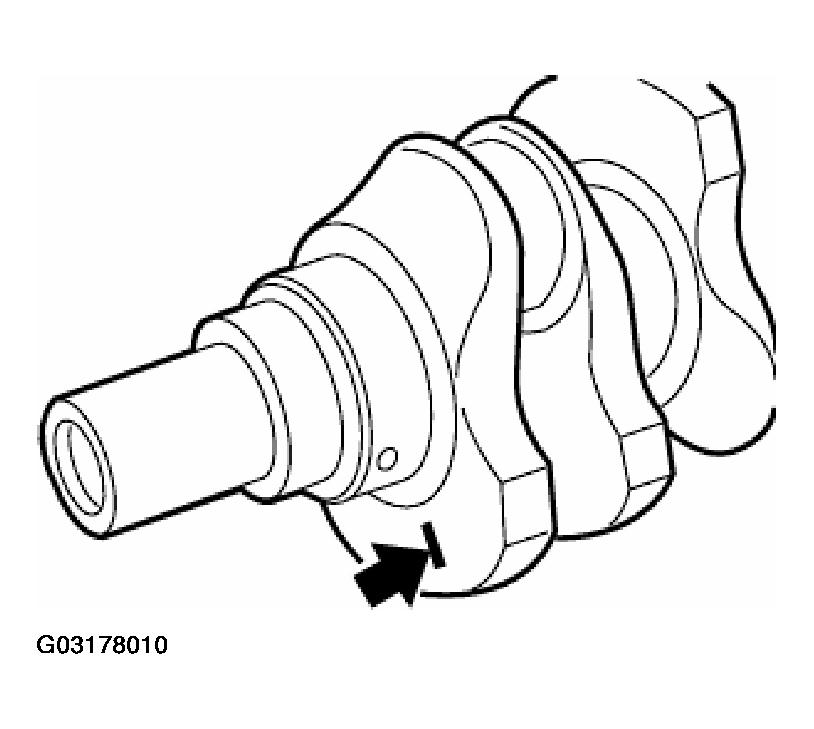

Check grinding stage of crankshaft. Refer to CRANKSHAFT WITH BEARING .

Fig 4: Checking Grinding Stage Of Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Replace main crankshaft bearing shells. Refer to 11 21 531 REPLACING ALL MAIN CRANKSHAFT BEARING SHELLS (M52 / S52 / M52TU / M54 / M56) .

Replace conrod bearing shells. Refer to 11 24 571 REPLACING ALL CONNECTING ROD BEARINGS (M52 / S52 / M52TU / M54 / M56) .

Replace grooved ball bearings in crankshaft. Refer to 11 21 571 REPLACING GROOVED BALL BEARING IN CRANKSHAFT (M52 / S52 / M52TU / M54 / S50 / S54) .
