11 25 530 Removing and installing or replacing all pistons (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

(Engine removed)

Remove cylinder head.

Removal:

Removal of pistons is described separately from installation.

Assembly sequence for removal and installation is different.

Important!

Re-install piston, connecting rod and bearing shells back in the same position and in the same installation location.

Connecting rods and bearing covers are designated with the same pair number: do not mix them.

Remove oil pump. Refer to 11 41 000 REMOVING AND INSTALLING/REPLACING OIL PUMP (M52TU / M54 / M56) .

If oil pump and oil scraper are two parts:

Remove oil scraper.

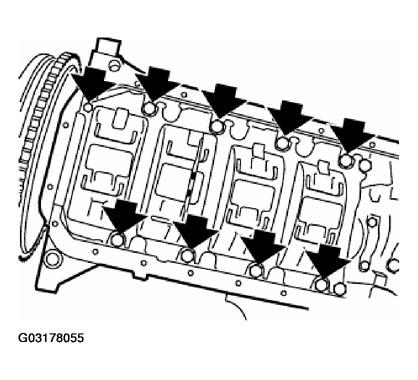

Fig 1: Removing Oil Scraper Bolts
G03178055Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Figure shows crankshaft removed.

On engines with spray nozzles for piston cooling on cylinder underside:

Important!

When removing and installing pistons, make sure the piston cooling spray nozzles are not damaged.

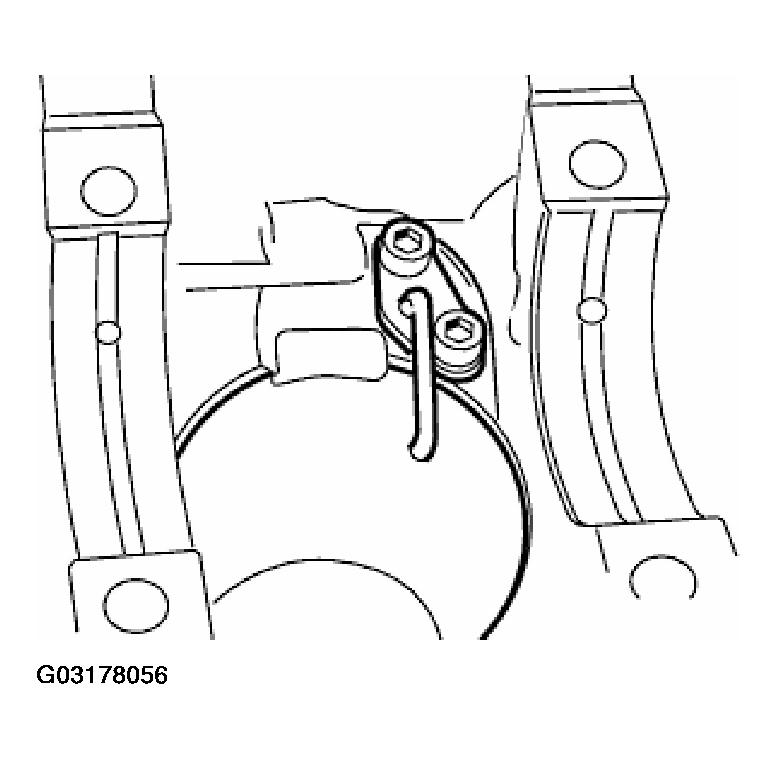

Fig 2: Identifying Piston Cooling Spray Nozzles
G03178056Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw threads are coated with screw securing adhesive (Loctite). Replace screws.

In event of heavy oil carbon residue:

Carefully remove oil carbon residue from cylinder wall.

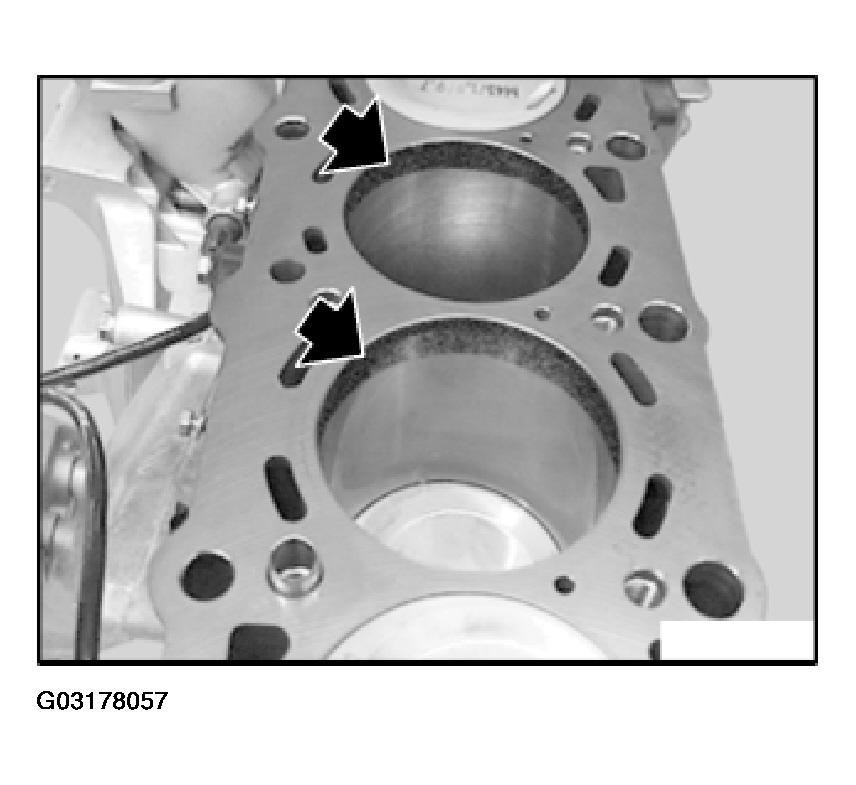

Fig 3: Identifying Oil Carbon Residue On Cylinder Wall
G03178057Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew conrod bearing cover.

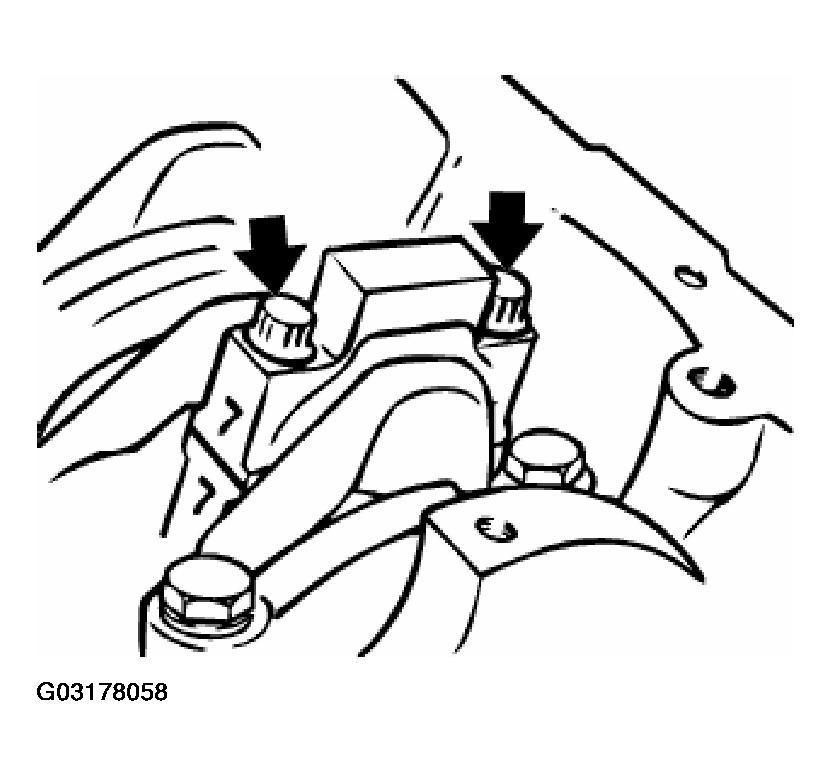

Fig 4: Identifying Screw Of Conrod Bearing Cover
G03178058Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 3 430 in conrod.

Remove conrod with piston from cylinder head side.

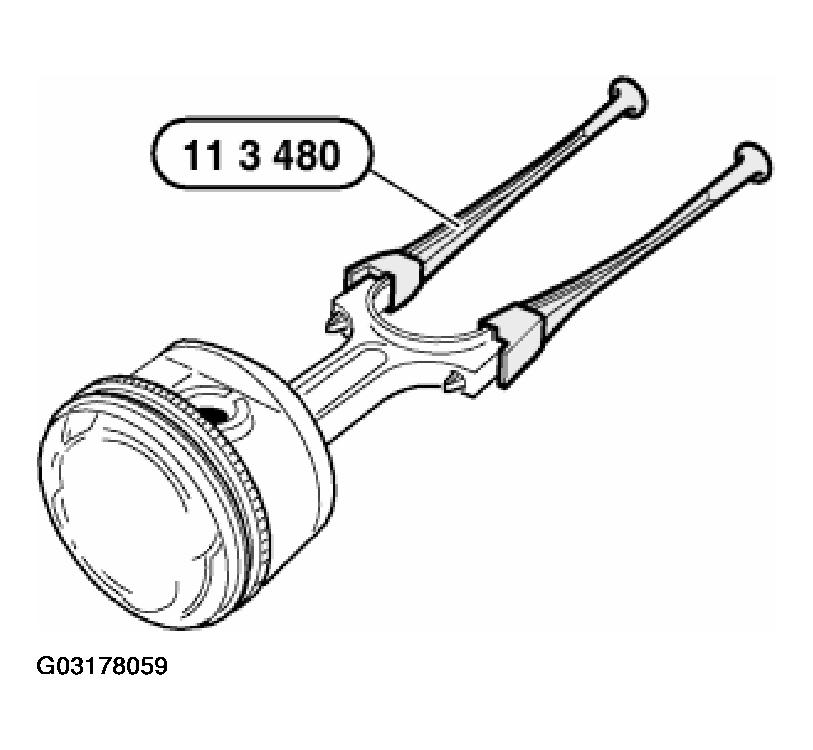

Fig 5: Inserting Special Tool 11 3 430 In Conrod
G03178059Courtesy of BMW OF NORTH AMERICA, INC.

Lift out retaining ring and press out piston pin.

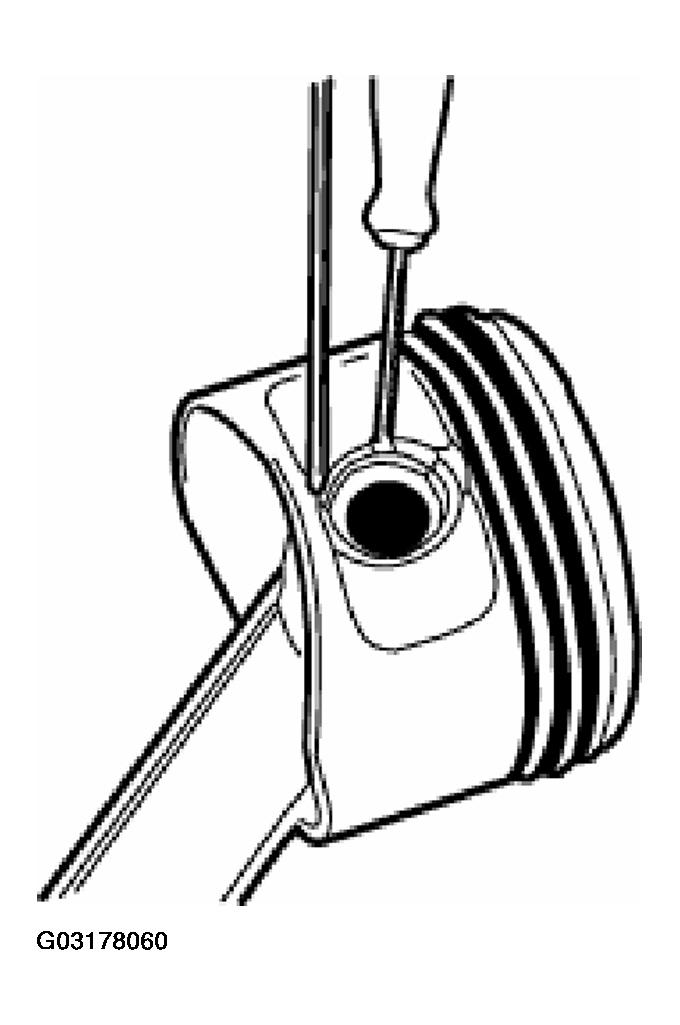

Fig 6: Lifting Out Retaining Ring
G03178060Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Piston and piston pin are paired and must not be fitted individually.

Installation:

Installation of pistons is described separately from removal. The assembly sequence differs between removal and installation.

The piston pin must be able to be pressed through the liner by hand with little force and must not display any significant play.

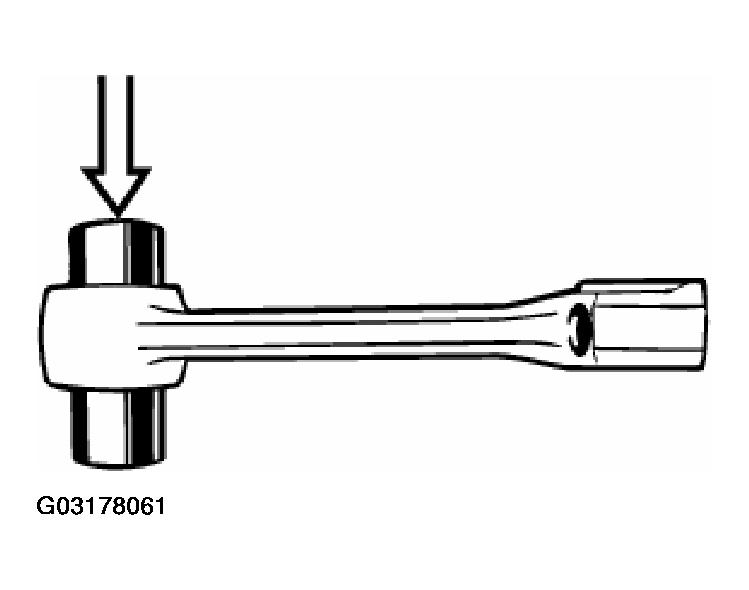

Fig 7: Identifying Piston Pin
G03178061Courtesy of BMW OF NORTH AMERICA, INC.

Measure piston installation clearance:

Measure piston diameter with micrometer at distance A from the underside of the piston and at offset angle of 90° to piston pin axis.

Measurement A, refer to PISTON WITH RINGS AND PINS .

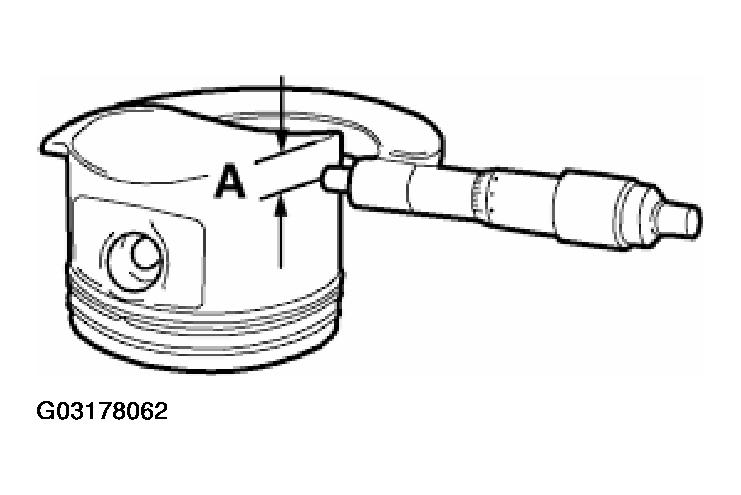

Fig 8: Measuring Piston Diameter With Micrometer
G03178062Courtesy of BMW OF NORTH AMERICA, INC.

Adjust micrometer to cylinder bore of engine block, set internal caliper on micrometer to zero. Measure bottom, center and top of cylinder bore in direction of travel and direction of engine rotation.

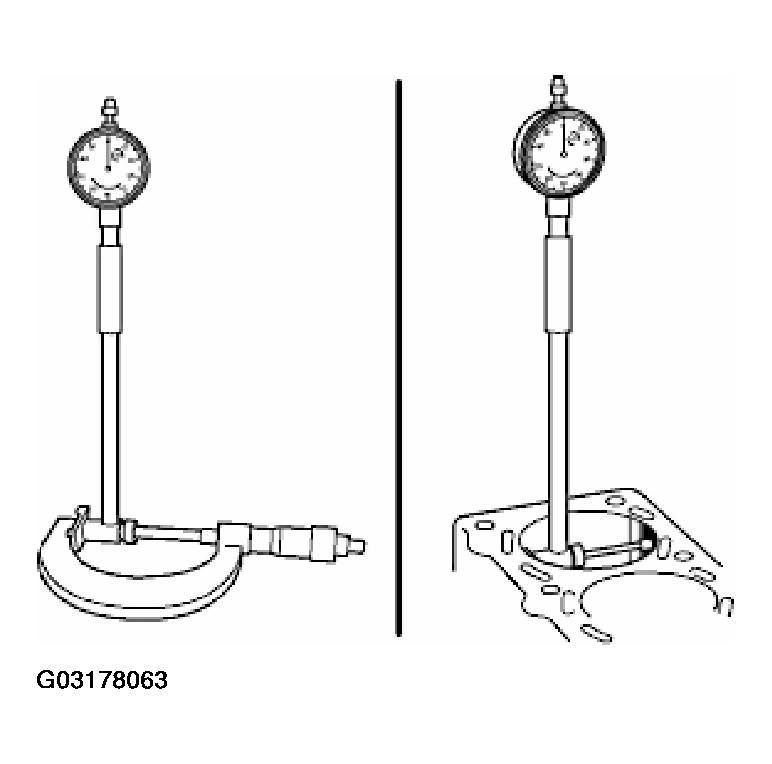

Fig 9: Measuring Cylinder Bore Of Engine Block
G03178063Courtesy of BMW OF NORTH AMERICA, INC.

Diameter of cylinder bore, refer to ENGINE BLOCK .

Piston installation clearance, refer to PISTON WITH RINGS AND PINS .

Total permissible wear tolerance, refer to PISTON WITH RINGS AND PINS .

Replace conrod bearing shells. Refer to 11 24 571 REPLACING ALL CONNECTING ROD BEARINGS (M52 / S52 / M52TU / M54 / M56) .

Important!

Piston and piston pin are paired and must not be fitted individually.

Fit conrod with piston pin to piston in such a way that both of the visible pair numbers on the installation direction arrow on the piston point to the right.

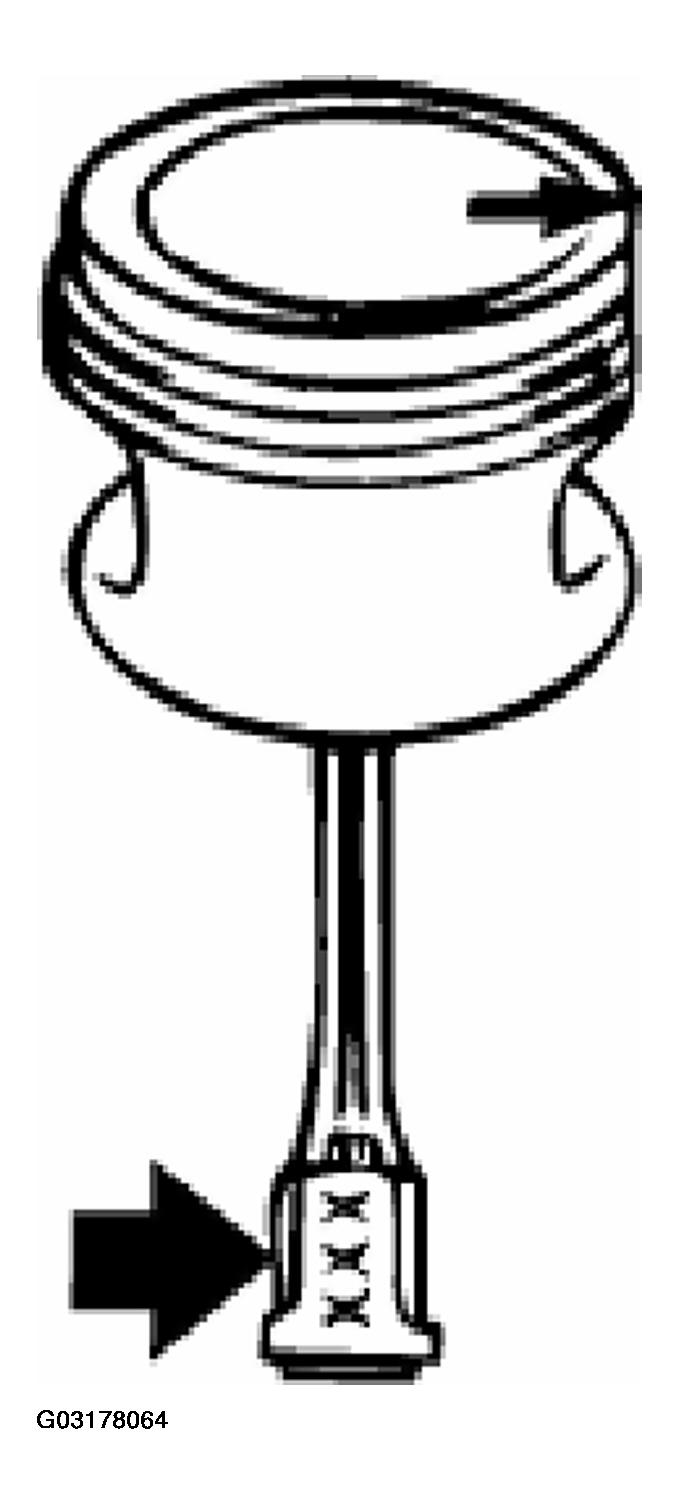

Fig 10: Identifying Pair Numbers On Conrod
G03178064Courtesy of BMW OF NORTH AMERICA, INC.

Install snap ring so that opening is opposite recess.

Fig 11: Installing Snap Ring
G03178065Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 2 470 in conrod.

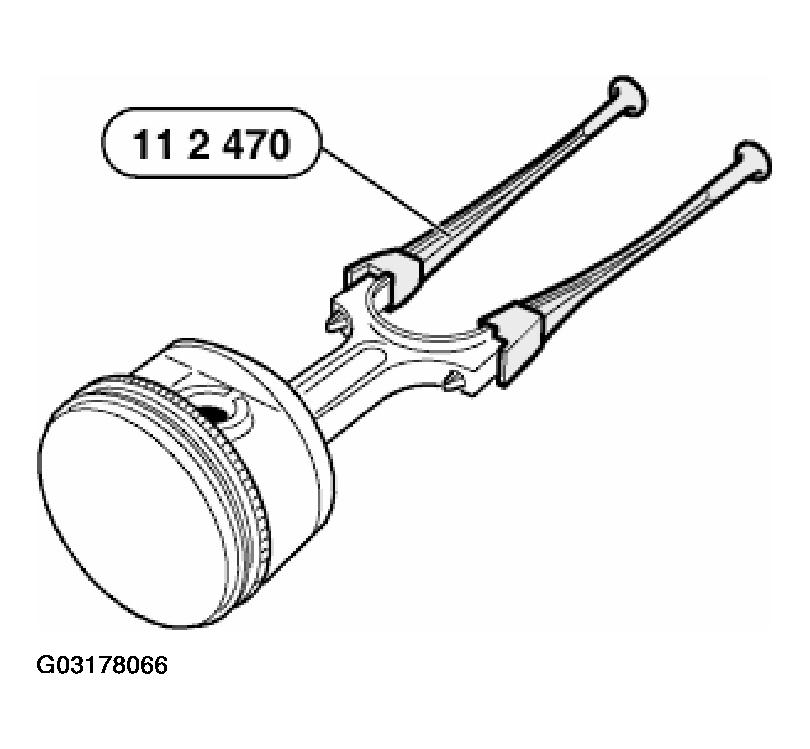

Fig 12: Inserting Special Tool 11 2 470 In Conrod
G03178066Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat pistons and piston rings with oil.

Align contact points on piston rings (offset at approx. 120°, but do not arrange over piston pin lug).

NOTE: Piston diameter 84 mm: Use special tool 11 8 141. Piston diameter 80 mm: Press together piston rings with special tool 11 2 260.

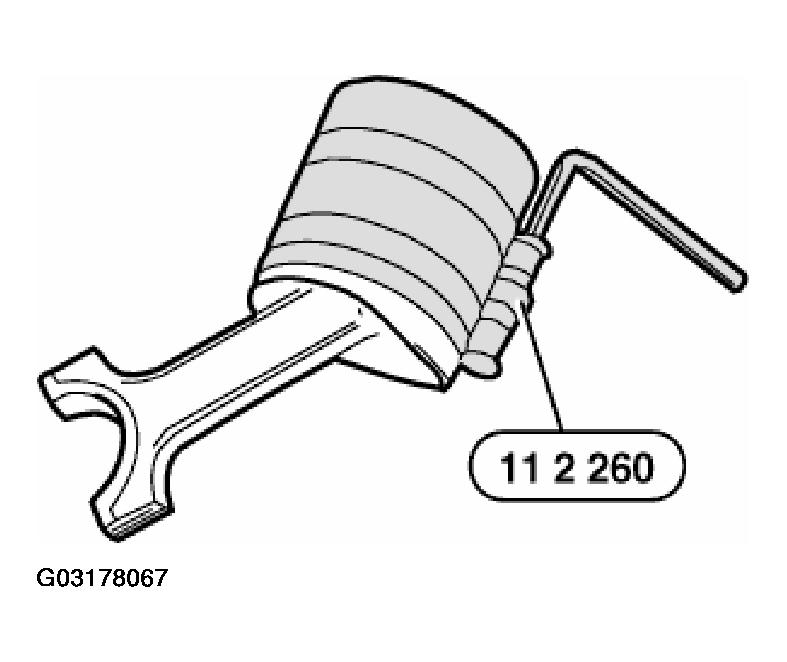

Fig 13: Pressing Together Piston Rings With Special Tool 11 2 260
G03178067Courtesy of BMW OF NORTH AMERICA, INC.

Install piston so that arrow points to camshaft drive.

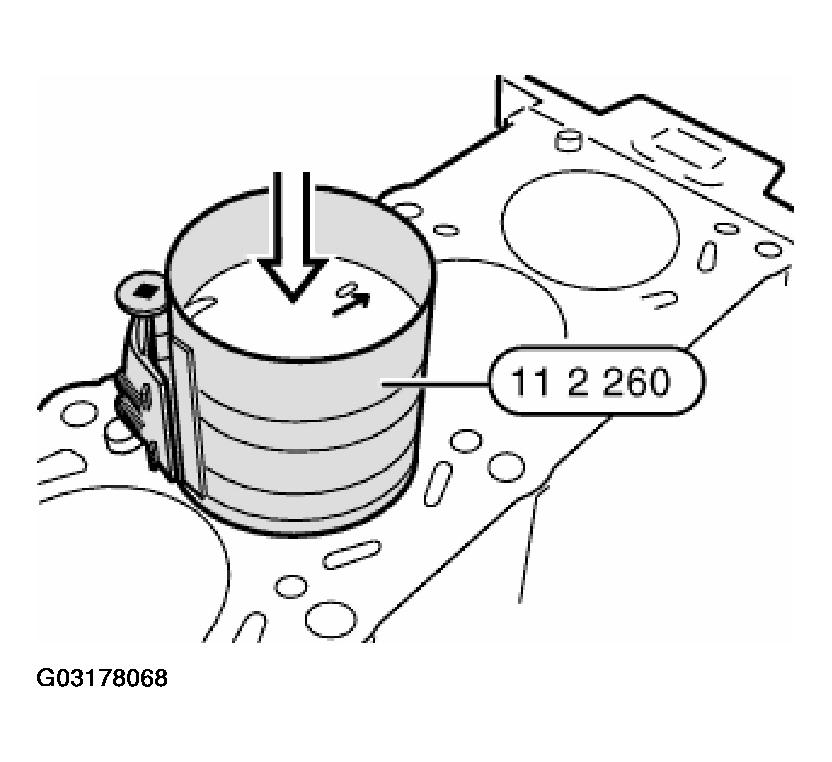

Fig 14: Install Piston With Arrow Pointing Towards Camshaft Drive
G03178068Courtesy of BMW OF NORTH AMERICA, INC.

Entire circumference of tightening strap must rest firmly on engine block.

Important!

Danger of piston ring failure.

Press in piston only with finger force (do not knock in!).

Attach crankpin to connecting rod.

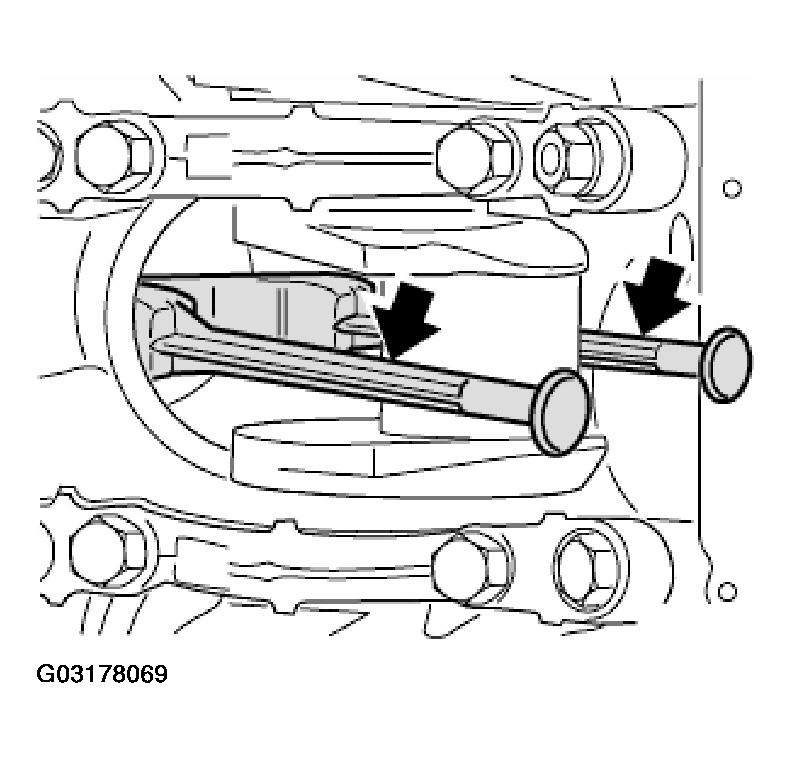

Fig 15: Attaching Crankpin To Connecting Rod
G03178069Courtesy of BMW OF NORTH AMERICA, INC.

Apply light coat of oil to connecting-rod bearing shells.

Fit bearing caps so that pair numbers match up.

Install new conrod bolts.

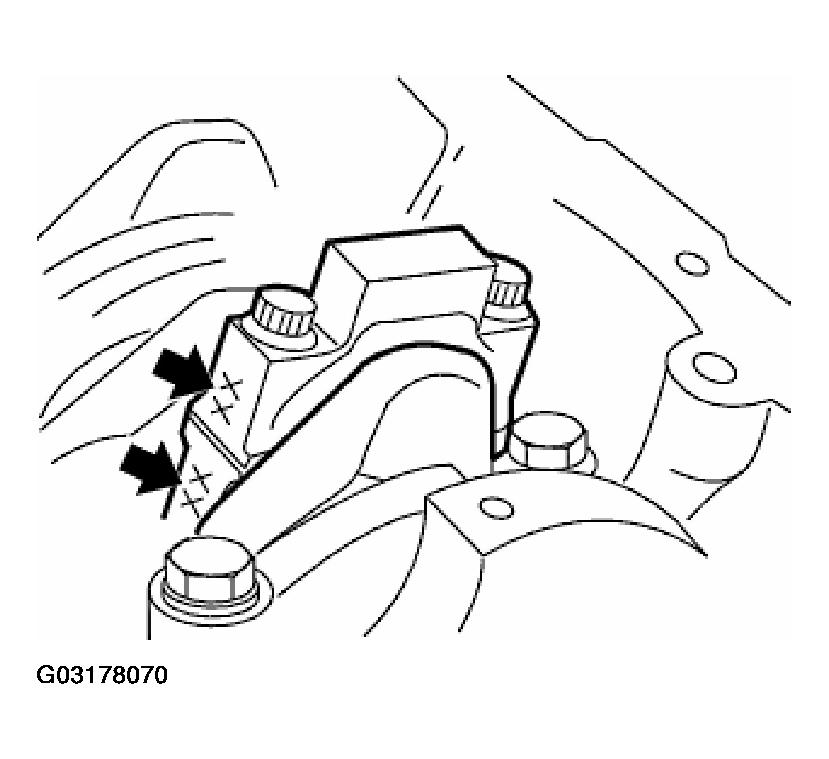

Fig 16: Identifying Connecting-Rod Bearing Shells Marks
G03178070Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

Tightening torque, refer to 11 24 1AZ in CONNECTING RODS AND BEARING .

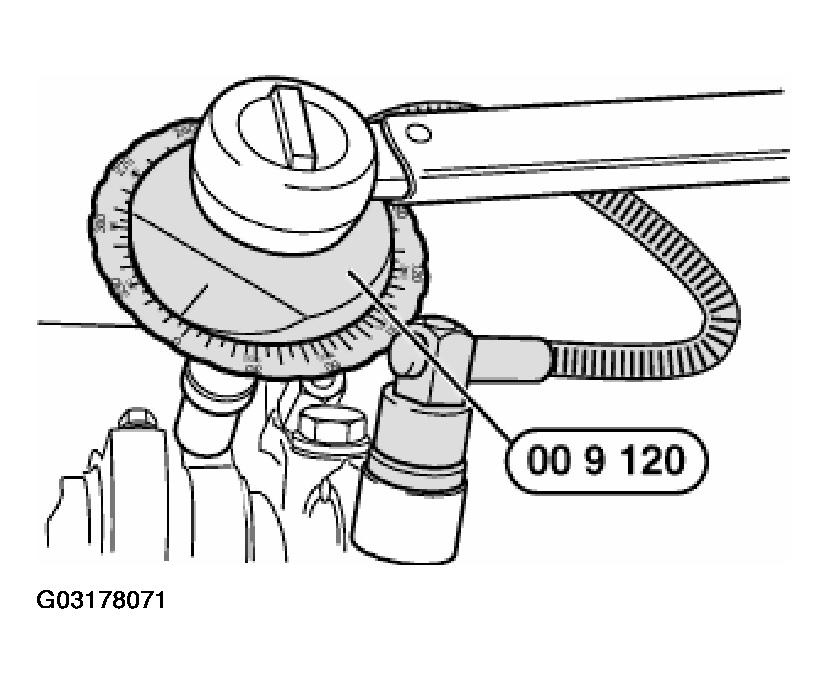

Fig 17: Tightening Conrod Bolts With Special Tool 00 9 120
G03178071Courtesy of BMW OF NORTH AMERICA, INC.

Install oil pump. Refer to 11 41 000 REMOVING AND INSTALLING/REPLACING OIL PUMP (M52TU / M54 / M56) .

If oil pump and oil scraper are two parts:

Fit oil scraper.

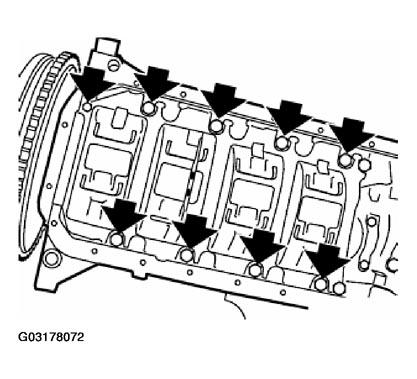

Fig 18: Fitting Oil Scraper
G03178072Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
