11 21 531 Replacing all main crankshaft bearing shells (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

00 2 590
00 9 120
11 2 110

(Engine dismantled)

M52 B20 / M52TU/ B20/ M54/M22

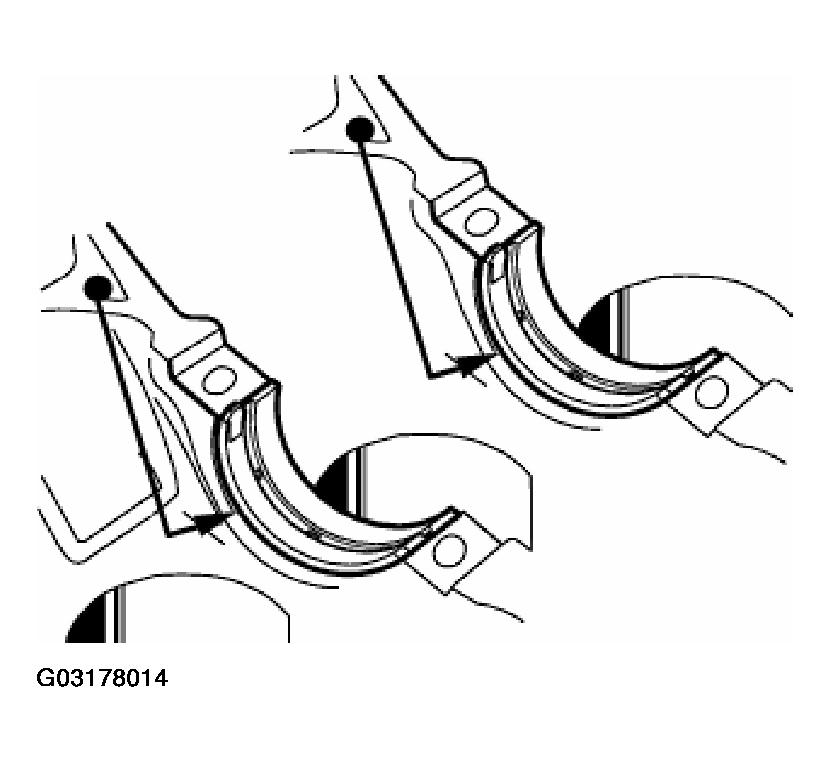

NOTE: Injection nozzles for cooling the pistons are installed in the bores of bearing seats 2 to 7.

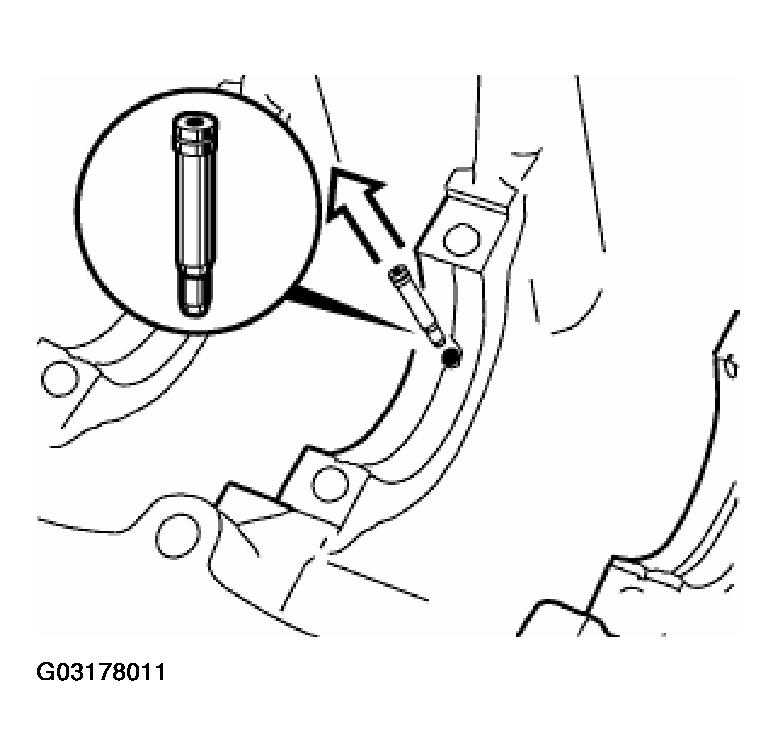

Fig 1: Identifying Injection Nozzles For Cooling Pistons In Bores Of Bearing Seats

Courtesy of BMW OF NORTH AMERICA, INC.

M52 B25 / B28 S52 M52TU B25 / B28 M54 B25 / B30 M56

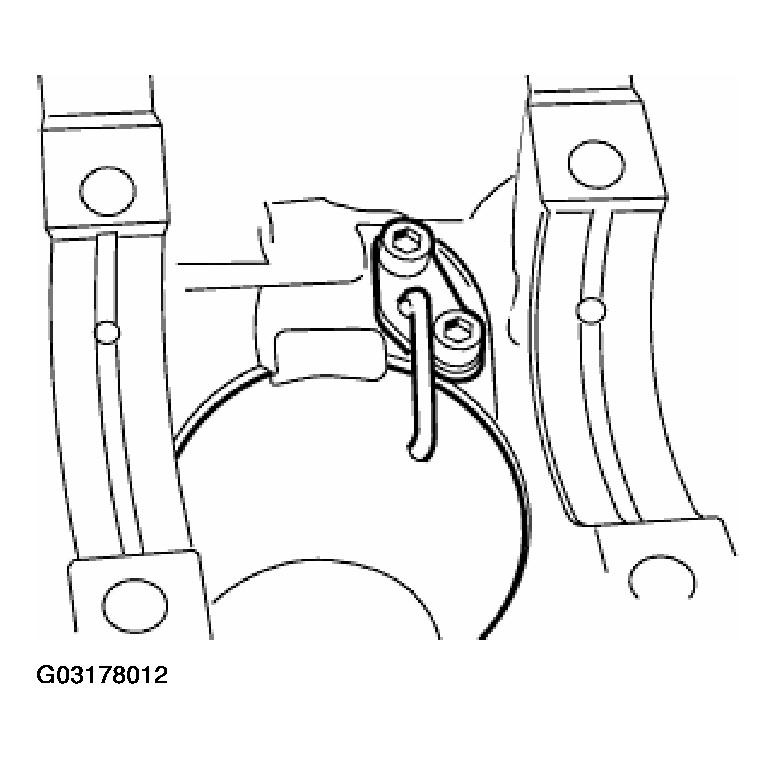

NOTE: Injection nozzles for cooling the pistons are installed on the underside of the cylinder between the bearing seats.

Fig 2: Identifying Injection Nozzles For Cooling Pistons Between Bearing Seats

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw threads are coated with screw securing adhesive (Loctite).

Replace screws.

Important!

Observe grinding stage of crankshaft. Refer to CRANKSHAFT WITH BEARING .

Fig 3: Observing Grinding Stage Of Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When replacing the bearing shells (also for replacement crankshaft), classification for bearing shell arrangement in engine block is waived.

Insert bearing shells with yellow color coding in engine block.

Fig 4: Identifying Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Install bearing shells with continuous lubricant groove and one retaining lug in engine block.
Fit bearing shells without continuous lubricant groove and two retaining lugs in bearing cover.

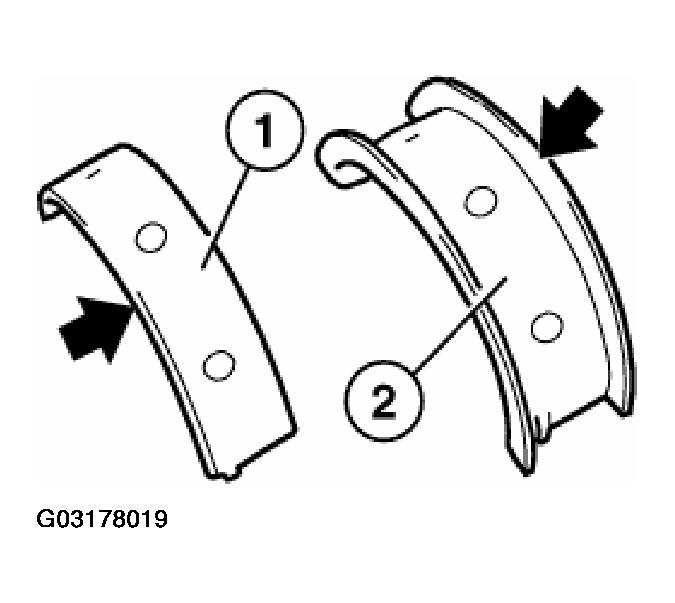

Fig 5: Identifying Bearing Shells With And Without Continuous Lubricant Groove

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The axial guide on the crankshaft is fitted to bearing point 6. Insert pilot bearing shell in the engine block.

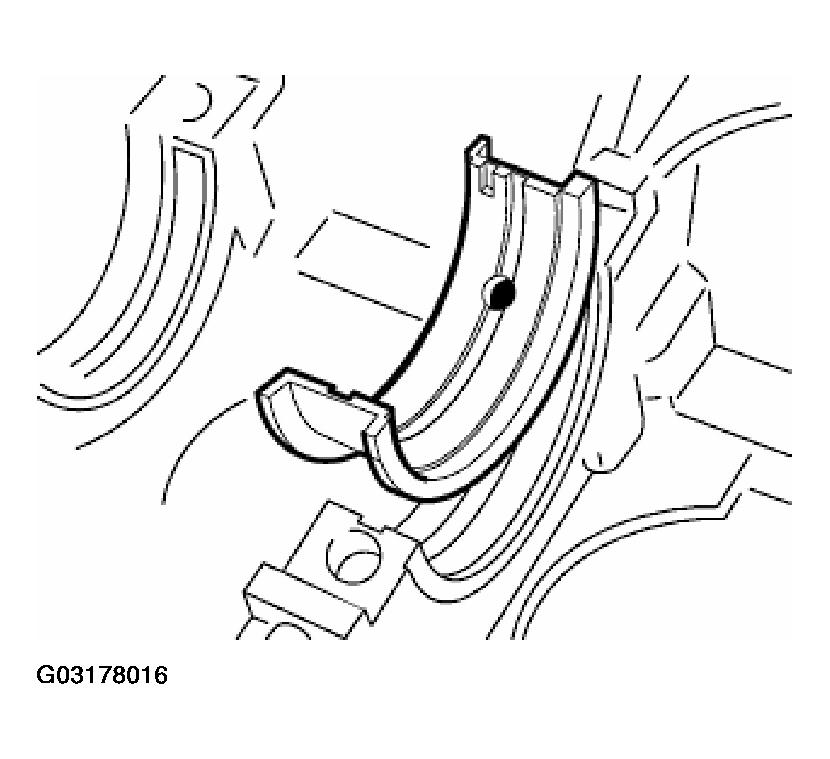

Fig 6: Inserting Pilot Bearing Shell In Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

Install crankshaft.

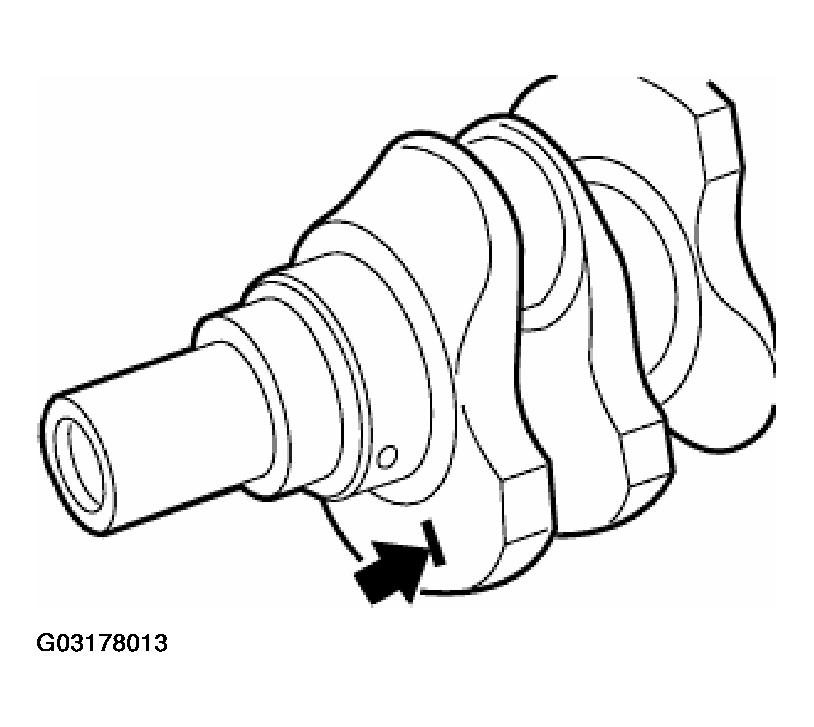

NOTE: The crankshaft is marked with yellow, green or white paint according to the tolerance of the main journal.

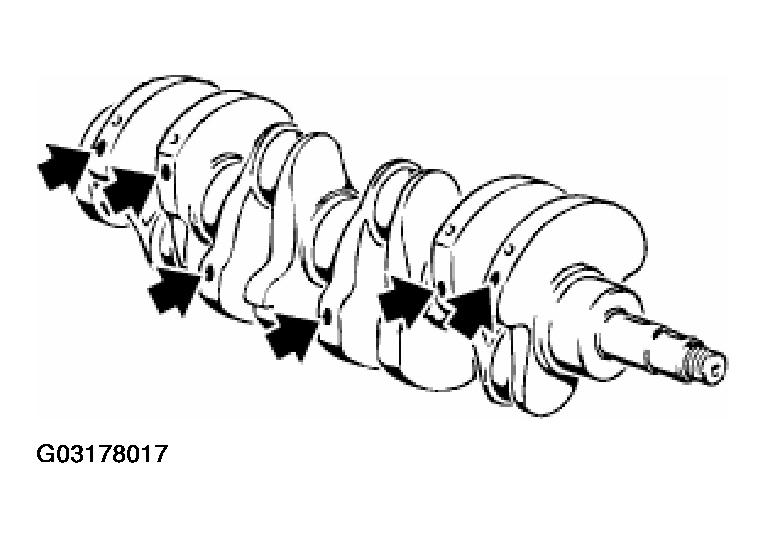

Fig 7: Identifying Marks On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The bearing shell classification for the bearing cover is marked on the crankshaft in yellow, green or white paint.

Insert main bearing shells with same crankshaft color coding in main bearing caps.

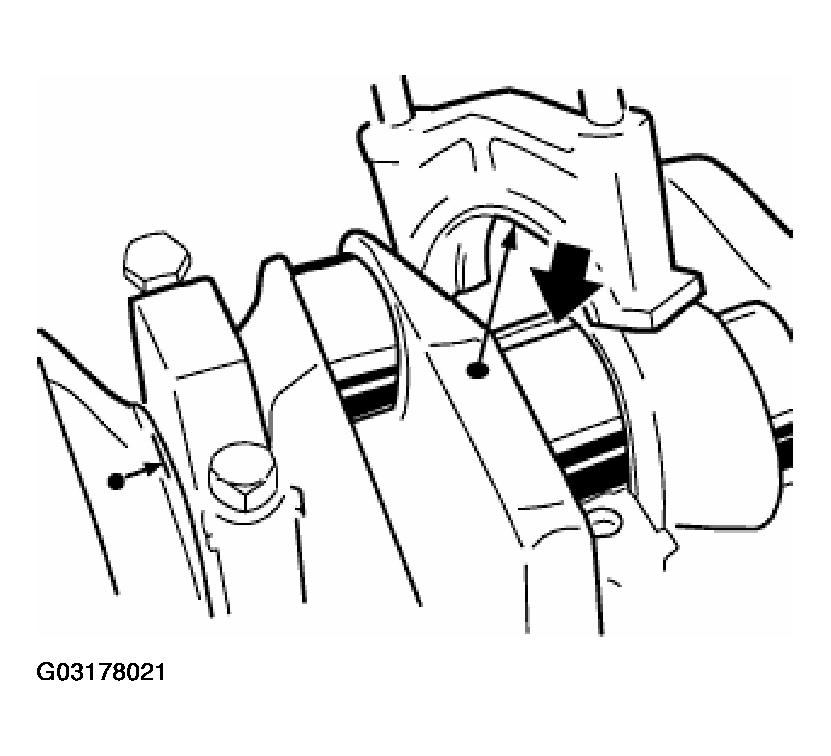

Fig 8: Identifying Mark On Main Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

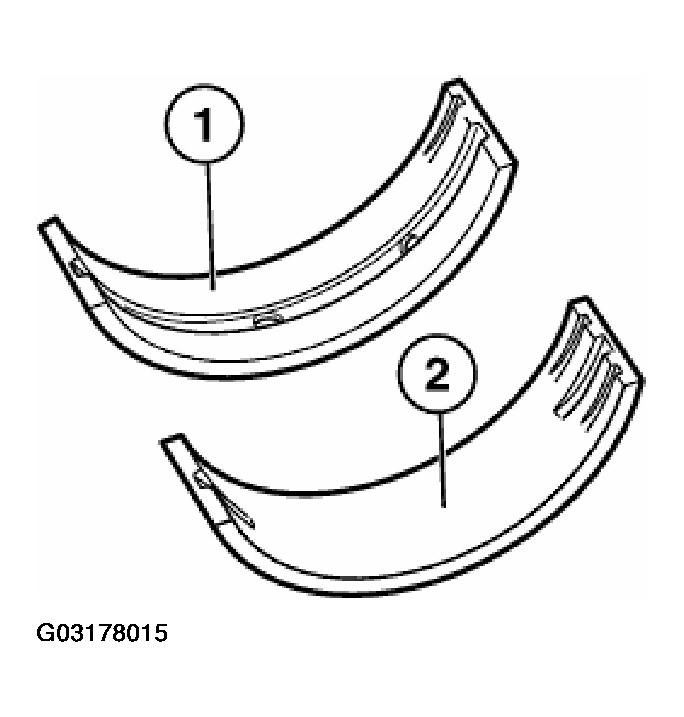

The bearing shells are marked with yellow, green or white paint.

Bearing shell.
Guide bearing.

Observe grinding stage of main bearing journals. Refer to CRANKSHAFT WITH BEARING .

Fig 9: Identifying Bearing Shell And Guide Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

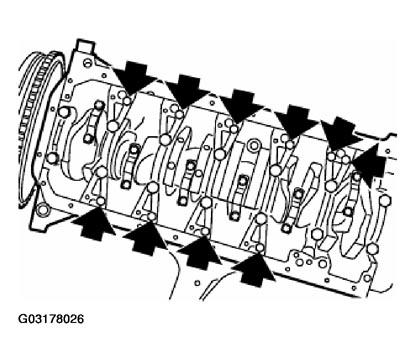

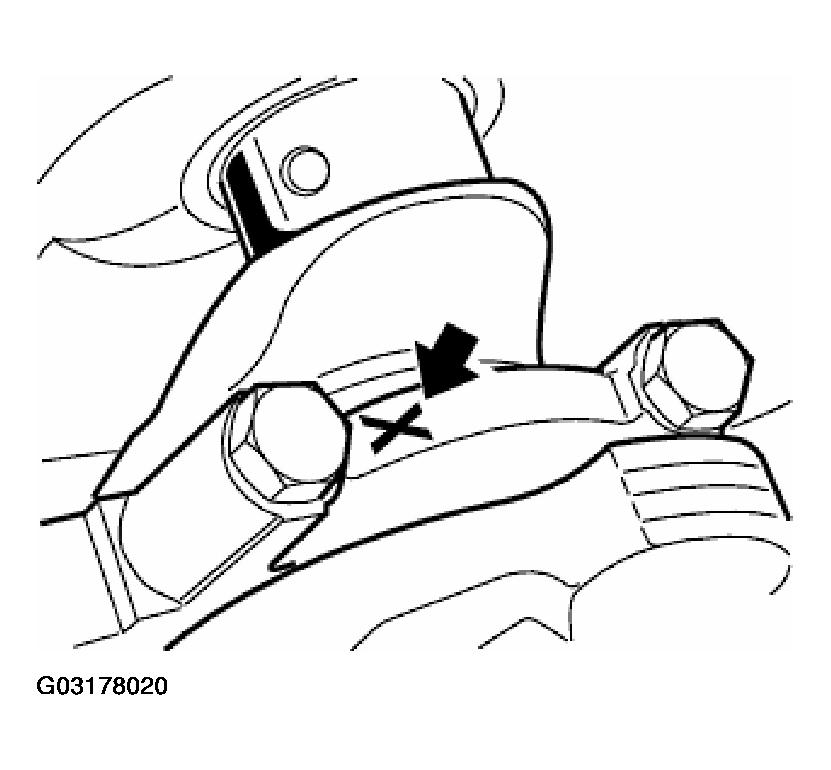

NOTE: Bearing caps 1 to 5 are marked on exhaust side. Bearing caps 6 and 7 are not designated. Bearing cap 6 is a thrust bearing.

Fig 10: Identifying Bearing Cap Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Check clearance on main crankshaft bearing.

Install crankshaft and place special tool 00 2 590 (Plastigage Type PG1) on oil-free crankshaft.

Do not twist crankshaft.

Fig 11: Checking Clearance On Main Crankshaft Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

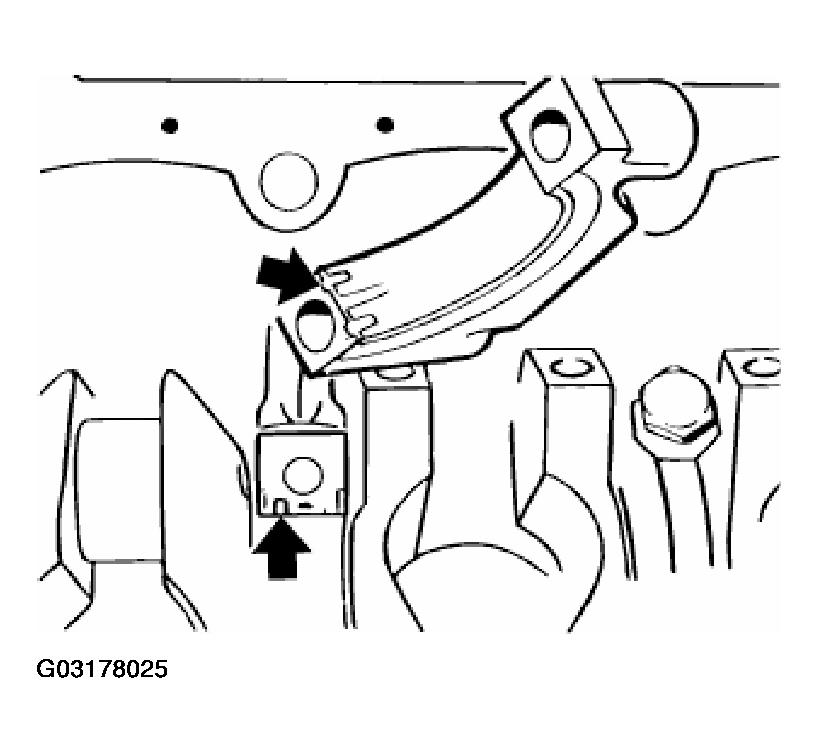

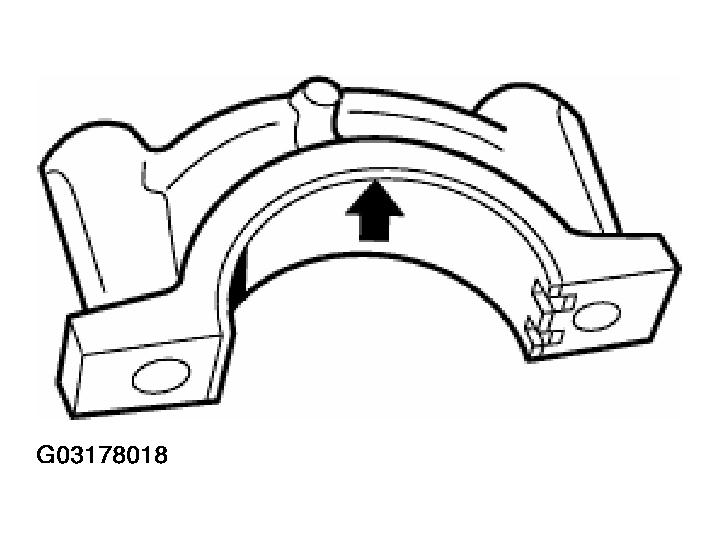

Install main bearing cap so that grooves in main bearing shell guide are one side.

Align main bearing cap flush with side of bearing seat.

Fig 12: Identifying Grooves In Main Bearing Shell Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To check main bearing clearance, use the old main bearing screws.

There must be no oil in the blind holes (risk of cracking).

Tighten down main bearing screws with jointing torque.
Tighten down main bearing bolts with special tool 00 9 120 to angle of rotation.
Tightening torque, refer to 11 11 1AZ in ENGINE BLOCK .

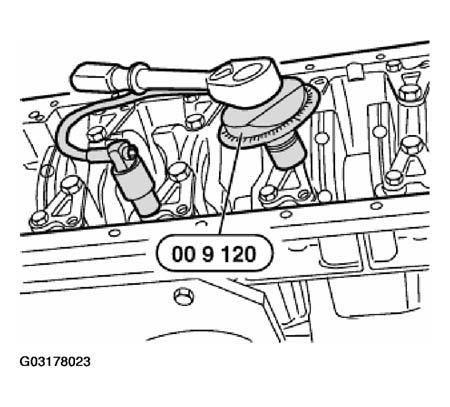

Fig 13: Tightening Main Bearing Bolts With Special Tool 00 9 120
Courtesy of BMW OF NORTH AMERICA, INC.

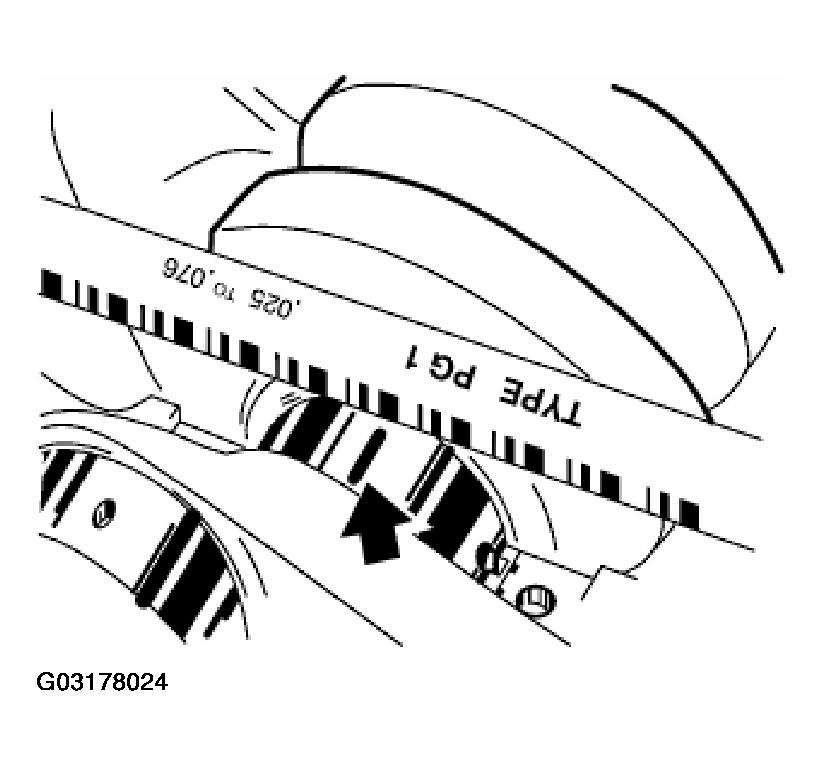

Remove main bearing cap and read off bearing clearance at width of pinched plastic thread on measuring scale.

Fig 14: Reading Bearing Clearance At Width Of Pinched Plastic Thread On Measuring Scale

Courtesy of BMW OF NORTH AMERICA, INC.

Radial crankshaft bearing clearance. Refer to CRANKSHAFT WITH BEARING .

If necessary, to correct bearing clearance, fit new bearing shells with a different color coding.

Remove plastic thread.

Coat main bearing shells and crankshaft with engine oil.

Install main bearing cap so that grooves in main bearing shell guide are one side.

Align main bearing cap flush with side of bearing seat.

Fig 15: Identifying Main Bearing Shells And Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Always replace bolts of main bearing cap with new bolts.

There must be no oil in the blind holes (risk of cracking).

NOTE: The reinforcement plates are not fitted on engines with gray cast iron engine blocks or on engines with oil pumps integrated in oil scrapers.

Fig 16: Installing Reinforcement Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install reinforcement plates and fit screws with zero backlash.

Install main bearing shells and abut firmly.

Tighten down screw connection on reinforcement plates.

Tightening specifications for main bearing:

Tighten all screws on main bearing cover with jointing torque.
Unfasten screws on main bearing cover 6.
Strike back and front of crankshaft with plastic hammer to center thrust bearing (do not damage crankshaft).
Tighten screws of main bearing cover 6 with jointing torque.
Tighten down all screws of main bearing caps with special tool 11 2 110 or with special tool 00 9 120 to torsion angle.

Tightening torque, refer to 11 11 1AZ in ENGINE BLOCK .

Fig 17: Tightening Screw Of Main Bearing Caps With Torque Angle Measuring Dial

Courtesy of BMW OF NORTH AMERICA, INC.

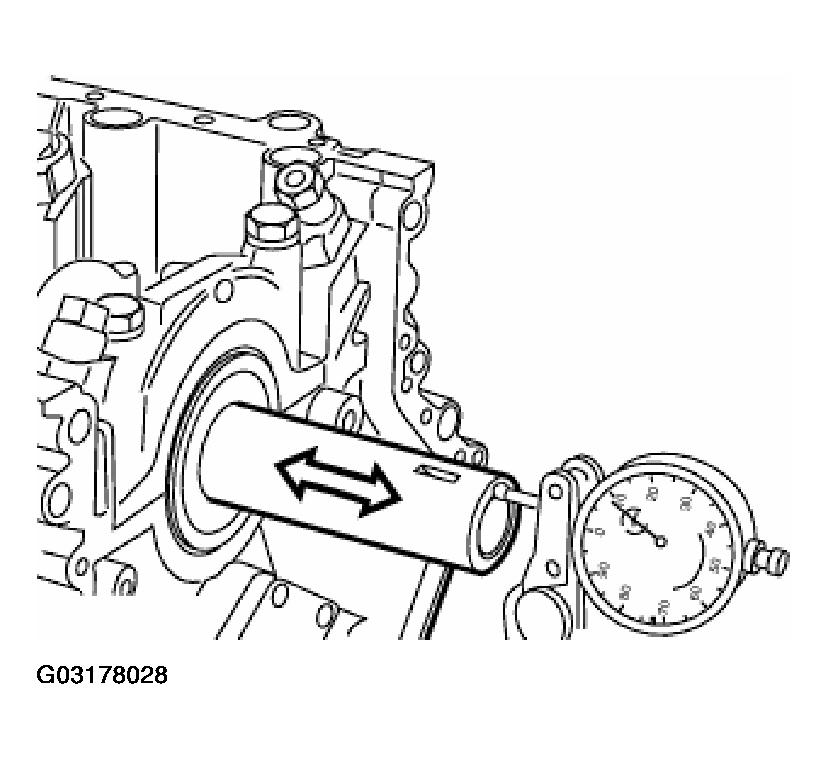

Check axial play.

If permitted end float is exceeded, check crankshaft, guide bearing shells and engine block, replacing if necessary, end float. Refer to CRANKSHAFT WITH BEARING .

Fig 18: Checking Axial Play

Courtesy of BMW OF NORTH AMERICA, INC.
