11 34 552 Removing and installing/replacing all valves (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove LEFT CYLINDER HEAD .
Remove RIGHT CYLINDER HEAD .
Remove camshafts. See LEFT INTAKE CAMSHAFT , LEFT EXHAUST CAMSHAFT , RIGHT INTAKE CAMSHAFT , and RIGHT EXHAUST CAMSHAFT .
Remove the intermediate shaft. See REMOVING LEFT ECCENTRIC SHAFT and RIGHT ECCENTRIC SHAFT .

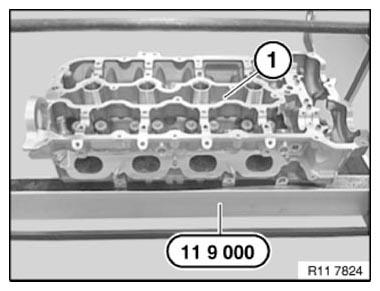

Mount cylinder head (1) on special tool 11 9 001 .

Graphic N63.

Fig 1: Mounting Cylinder Head On Special Tool (11 9 000)

Courtesy of BMW OF NORTH AMERICA, INC.

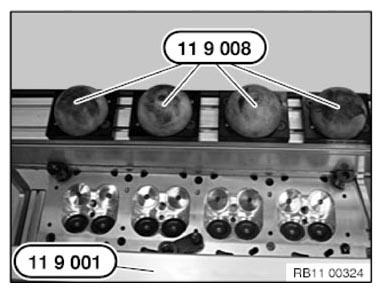

Prepare special tool 11 9 008 .

Fig 2: Preparing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 9 006 with silicone cushion on cylinder head.

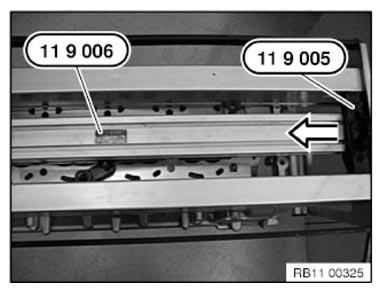

Slide lock 11 9 005 in direction of arrow and pretension with eccentric shaft.

Fig 3: Sliding Lock

Courtesy of BMW OF NORTH AMERICA, INC.

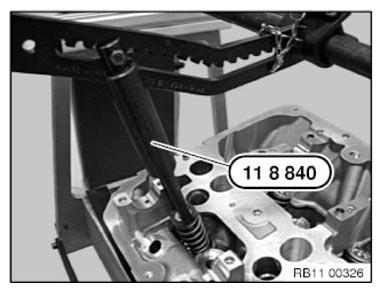

Press down valve spring with special tool 11 8 840 .

Fig 4: Pressing Down Valve Spring Using Special Tool (11 8 840)

Courtesy of BMW OF NORTH AMERICA, INC.

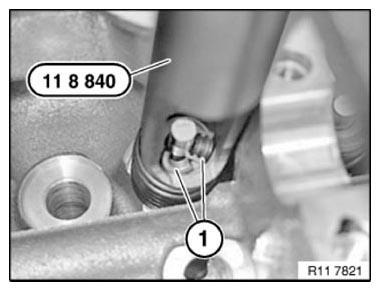

Remove valve cotters (1) with a magnet.

Place valve springs and valve keys on special tool 11 4 480 in an orderly manner.

Fig 5: Removing Valve Cotters

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Incorrect assembly possible.
Incorrect assembly will result in valve spring breakage.

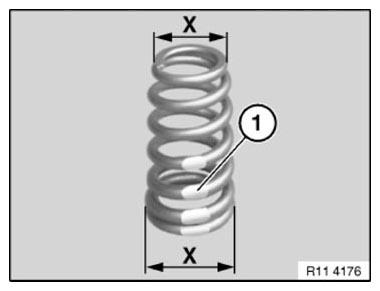

Color coding (1) is normally on lower end of valve spring.
Only the diameter is decisive for the correct installation of the valve springs.
Install valve spring so that larger diameter points to spring cup at bottom.

Fig 6: Identifying Correct Installation Position Of Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

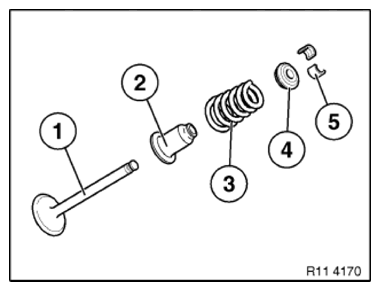

Arrangement:

Valve
Valve stem seal with spring cup, bottom
Valve spring
Top spring cup
Valve keys

Fig 7: Exploded View Of Valve
Courtesy of BMW OF NORTH AMERICA, INC.

Release special tool 11 9 006 from cylinder head.

Remove all valves and place on special tool 11 4 480 in an orderly manner.

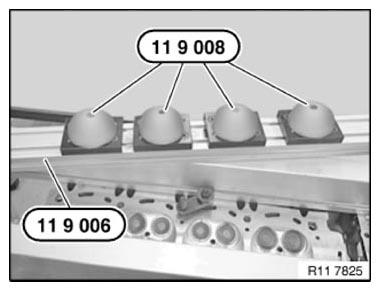

Fig 8: Preparing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
