11 31 036 Removing and installing/replacing left exhaust camshaft (S63)

Special tools required:

• 11 4 480

  (cylinder bank 5 to 8)

Necessary preliminary tasks:

• Remove left HIGH PRESSURE PUMP .
• Remove LEFT CYLINDER HEAD COVER .
• Remove EXHAUST CAMSHAFT ADJUSTER  on left side.

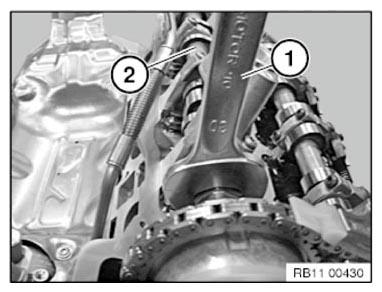

Use an open-end spanner (1) to twist exhaust camshaft (2) at mounting flats into a suitable position.

Fig 1: Checking Locking Of Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

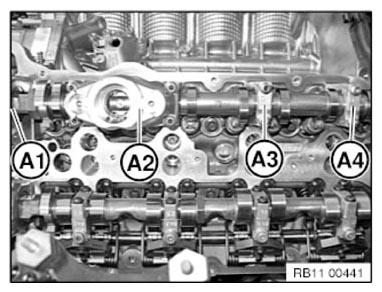

Release screws of camshaft bearing from outside inwards in 1/2 turns.

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 480 .

Remove roller tappet from bearing cap (2 and 3) of high pressure pump and set down on special tool 11 4 480 .

Remove left exhaust camshaft and set down on special tool 11 4 480 .

Fig 2: Identifying Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

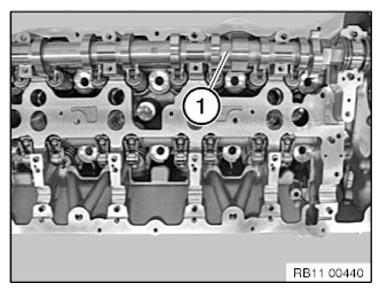

Align all rocker arms (1).

Fig 3: Installing Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

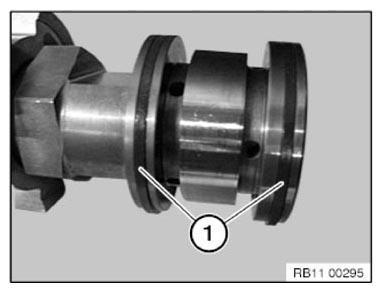

Plastic rings (1) are maintenance-free and must not be renewed.

Check plastic rings for damage.

Fig 4: Identifying Plastic Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Plastic plain rectangular compression ring:

Plain rectangular compression rings are preassembled on a new camshaft.

Plain rectangular compression rings (1) are maintenance-free and must only be renewed if damaged.

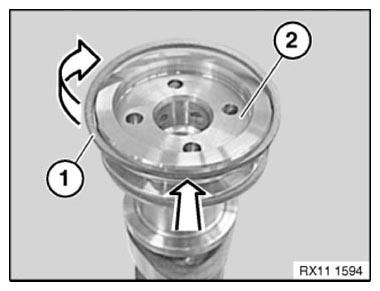

Insert plain rectangular compression ring (1) into groove of exhaust camshaft (2) (see arrow).

Oil plain rectangular compression ring (1) and rotate in direction of arrow until plain rectangular compression ring (1) is positioned on exhaust camshaft.

Fig 5: Inserting Plastic Rectangular Compression Ring Into Groove Of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

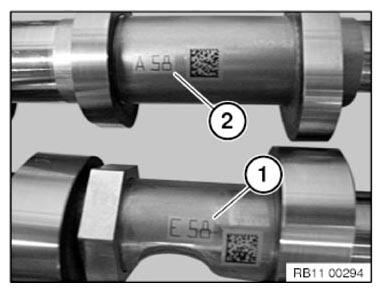

Fig 6: Identifying Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Coat all bearing positions with engine oil.

Insert exhaust camshaft (1) with identification A 58  towards top.

Illustration: Cylinders 1 to 4.

Fig 7: Inserting Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all bolts.

Tighten screws from inside outwards in 1/2 turns.

Tightening torque: 11 31 6AZ .

Tightening torque: 11 31 7AZ .

Insert tappets for high-pressure pump.

Fig 8: Identifying Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Use an open-end spanner (1) at hexagon head of camshafts (2) to position camshaft.

Fig 9: Checking Locking Of Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

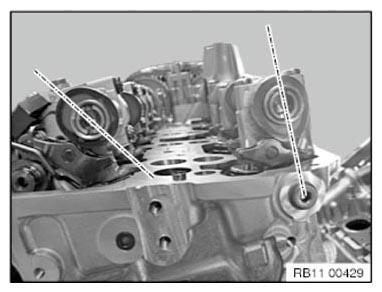

The position of the exhaust camshaft on cylinder 8 is correct when the cam points downward.

See Fig 10.

Fig 10: Identifying Position Of Intake And Exhaust Camshafts On Cylinder 8

Courtesy of BMW OF NORTH AMERICA, INC.

Install INLET ADJUSTMENT UNITS .

Adjust VALVE TIMING .

Assemble engine.
