11 12 106 Removing and installing right cylinder head (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

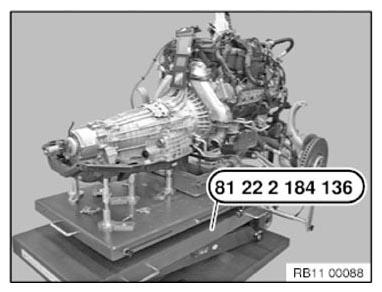

Special tools required:

Necessary preliminary tasks:

Necessary preliminary tasks:

Pull off vacuum hose to vacuum pump and to pressure converters (EPDW).

Release screws (1).

Vacuum pipe (2) can remain in vehicle.

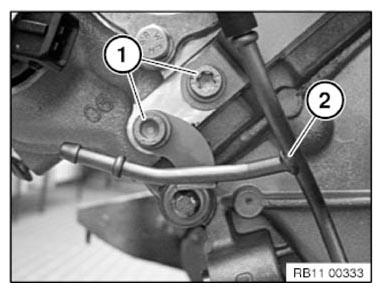

Fig 2: Identifying Vacuum Pipe And Screws
G10055888Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw (1) of guide rail.

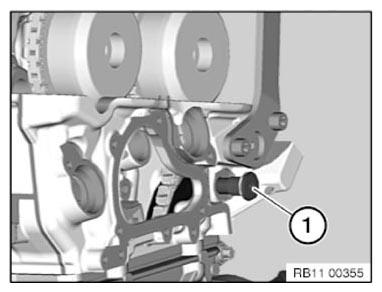

Fig 3: Identifying Screw Of Guide Rail
G10055889Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1) on bank 1.

Detach coolant hose (2).

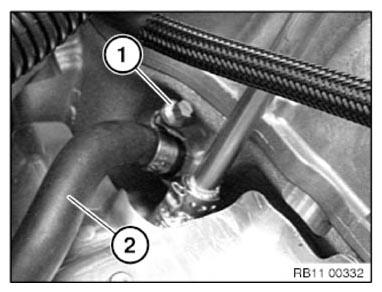

Fig 4: Identifying Coolant Hose And Clamp
G10055890Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) at front from cylinder head.

Fig 5: Identifying Bolts At Front
G10055891Courtesy of BMW OF NORTH AMERICA, INC.

Twist camshaft (1) on hexagon head (2) by 180°.

All cylinder head bolts on the intake side are accessible in this position.

Fig 6: Identifying Camshaft And Hexagon Head
G10055892Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts in sequence (10 to 1).

Remove all cylinder head bolts with washers.

Fig 7: Right Cylinder Head Bolts Tightening/Loosening Sequence (S63)
G10055893Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing faces of cylinder head and engine block; if necessary, remove gasket debris compound with special tool 11 4 470 . Make sure no gasket debris drops into the oil and coolant ducts.

Threaded holes in engine block must be free of dirt and oil. (risk of cracking)  .

Check CYLINDER HEAD FOR LEAKS .

Check CYLINDER HEAD SEALING FACE  for surface evenness.

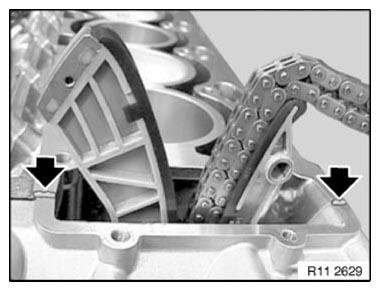

Coat joint between engine block and gear case cover with DREI BOND 1209 .

NOTE: Graphic N62.
Fig 8: Identifying Joint Between Engine Block And Timing Case Cover
G10055894Courtesy of BMW OF NORTH AMERICA, INC.

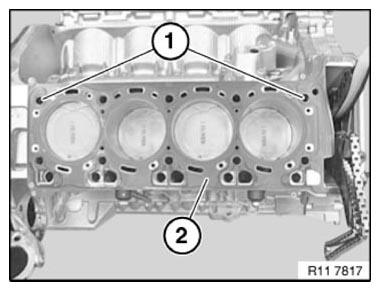

Check fitting sleeves (1) for damage and correct installation position.

Fit new cylinder head gasket (2).

Fig 9: Identifying Cylinder Head Gasket And Fitting Sleeves
G10055895Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit new cylinder head screws.

Put the cylinder head on.

Do not wash off bolt coating.

Insert cylinder head bolts and initially tighten so that they are free of play.

Apply cylinder head bolts in the sequence 1 - 10 and fit with 30 Nm.

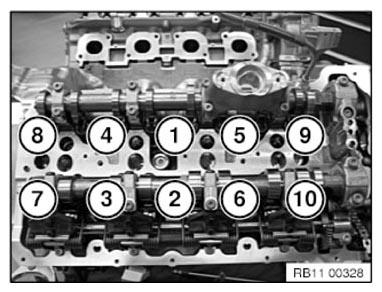

Fig 10: Right Cylinder Head Bolts Tightening/Loosening Sequence (S63)
G10055896Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mark cylinder head bolt (1) with a colored mark for a better check of angle tightening.

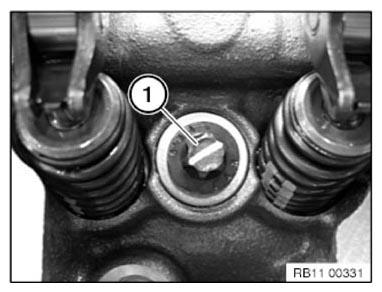

Fig 11: Identifying Mark Across Cylinder Head Bolt
G10055897Courtesy of BMW OF NORTH AMERICA, INC.

Tighten cylinder head bolts in sequence (1 to 10).

Tightening torque: 11 12 1AZ .

Fig 12: Right Cylinder Head Bolts Tightening/Loosening Sequence (S63)
G10055898Courtesy of BMW OF NORTH AMERICA, INC.

Twist back camshaft (1) on hexagon head (2) by 180°.

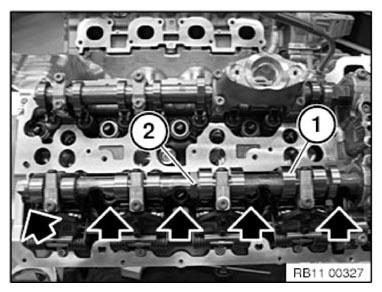

Fig 13: Identifying Camshaft And Hexagon Head
G10055899Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down bolts (1) between cylinder head and timing case cover.

Tightening torque: 11 12 2AZ .

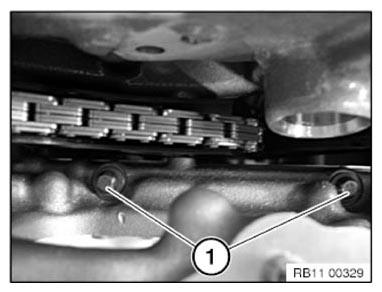

Fig 14: Identifying Bolts At Front
G10055900Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) of guide rail and tighten down.

Tightening torque: 11 31 3AZ .

Fig 15: Identifying Screw Of Guide Rail
G10055901Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install camshafts. See INSTALLING RIGHT INTAKE CAMSHAFT and INSTALLING RIGHT EXHAUST CAMSHAFT .

Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS ON RIGHT SIDE .

Assemble engine.
